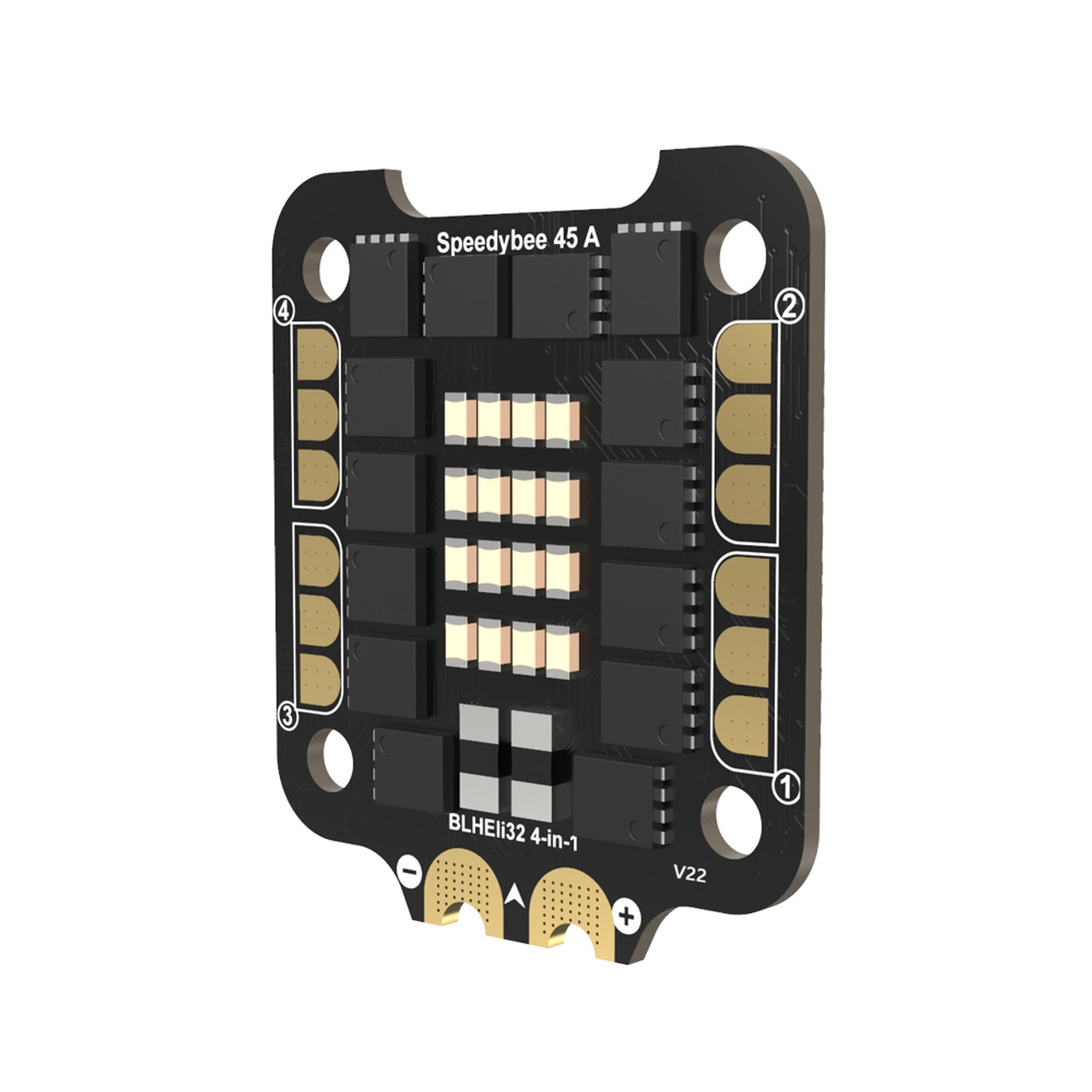

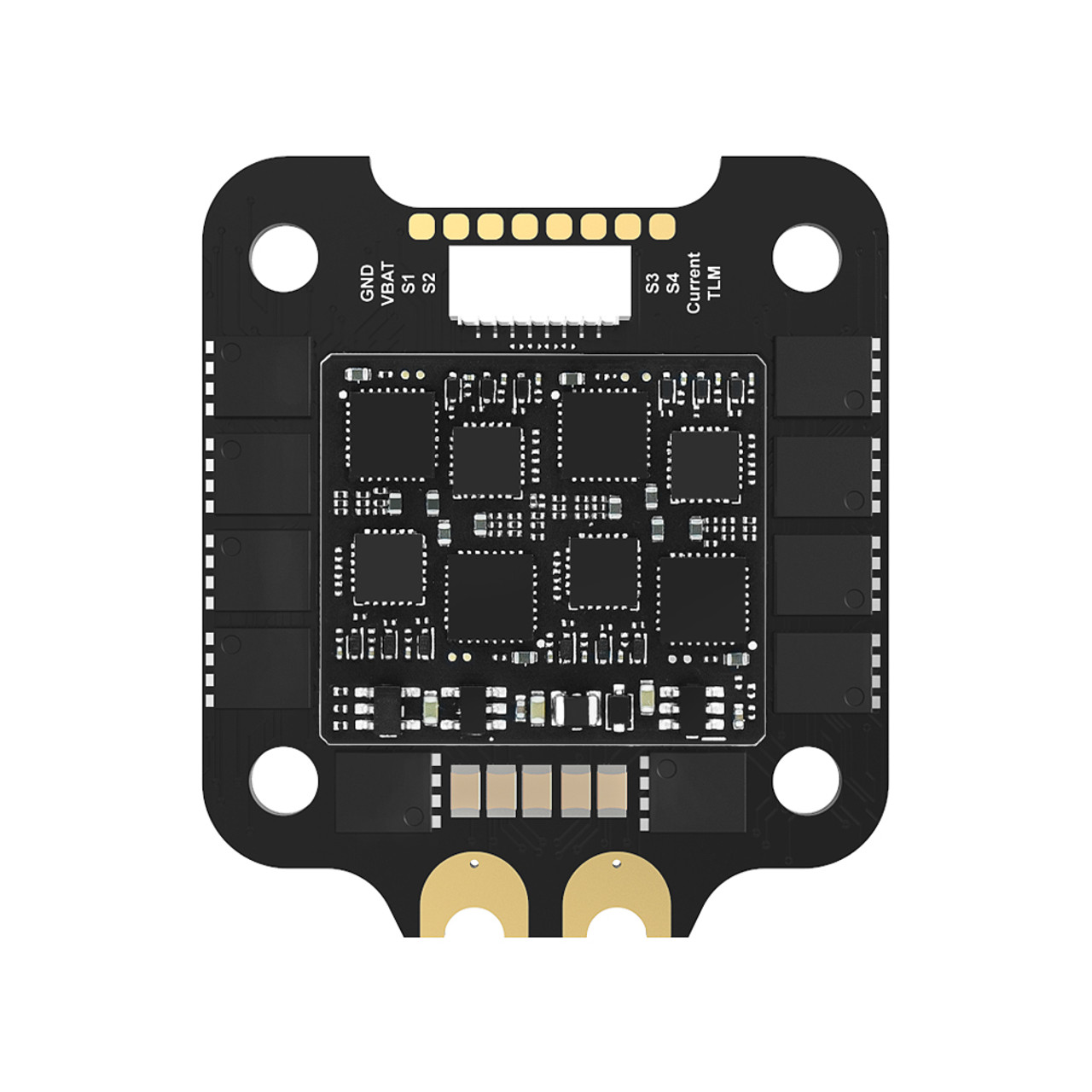

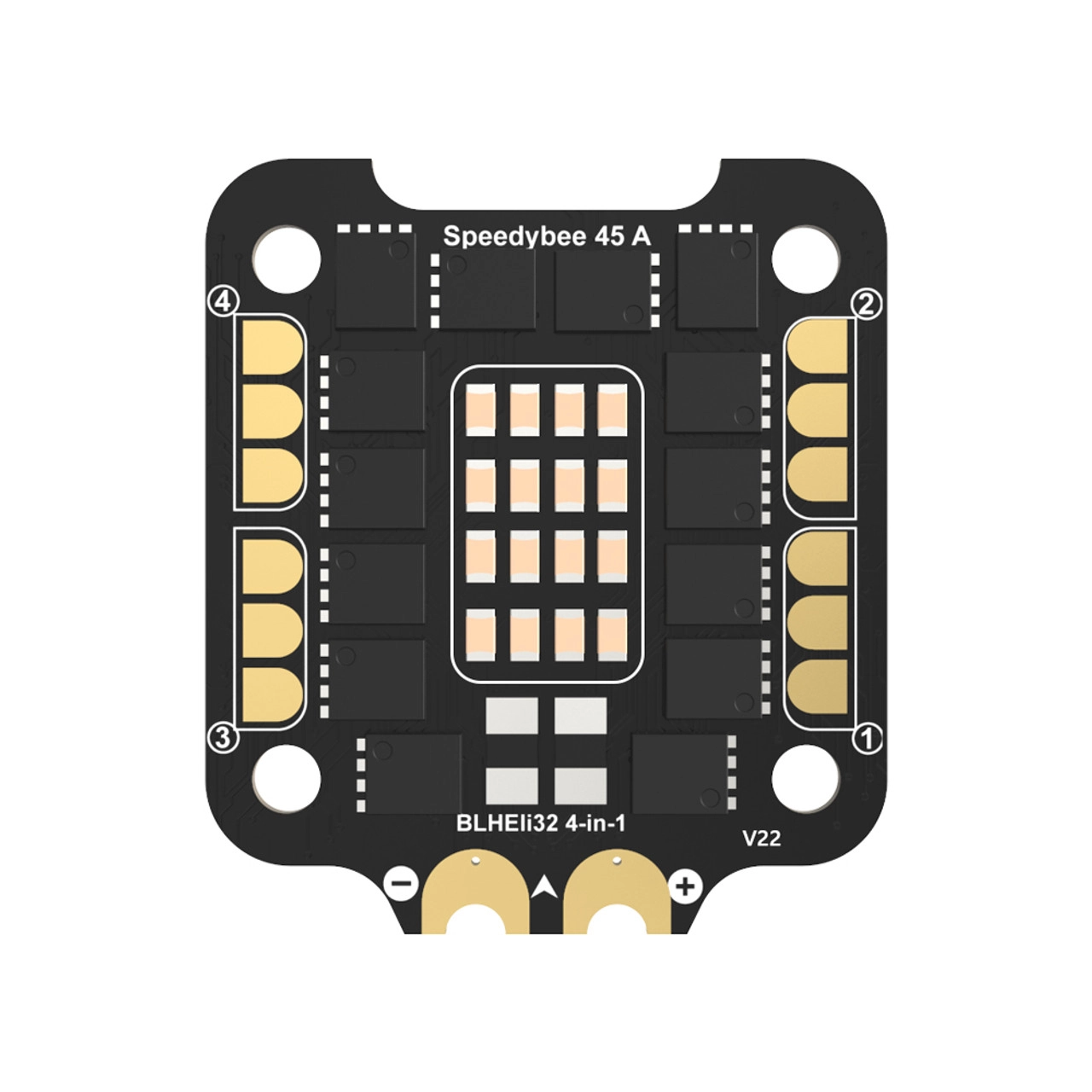

SpeedyBee 45A 4in1 ESC
Производитель
SpeedyBee
Категория
ESC 4-in-1
Монт. размер
30,5x30,5мм
Рабочий ток
45A
Прошивка ESC
BLHeli_32
Напряжение
до 6s
| Firmware | BLHeli32 SpeedyBee 4in1 |
| Continuous Current | 45A * 4 |
| Burst Current | 55A(10S) |
| ESC Protocol | DSHOT300/600/1200 |
| Power input | 3-6S Note: Strongly recommended to solder the filtering capacitor between VBAT”+” and” -“ |
| Power output | VBAT |
| Current Sensor | Support (Scale 168) |
| ESC Telemetry | Support |
| Mounting | 30.5 x 30.5mm, 4mm hole size |
| Dimension | 41 * 45 * 6.5mm |
| Weight | 12.5g |
| Supported Motor | 1900KV or below should be needed for 6S |
