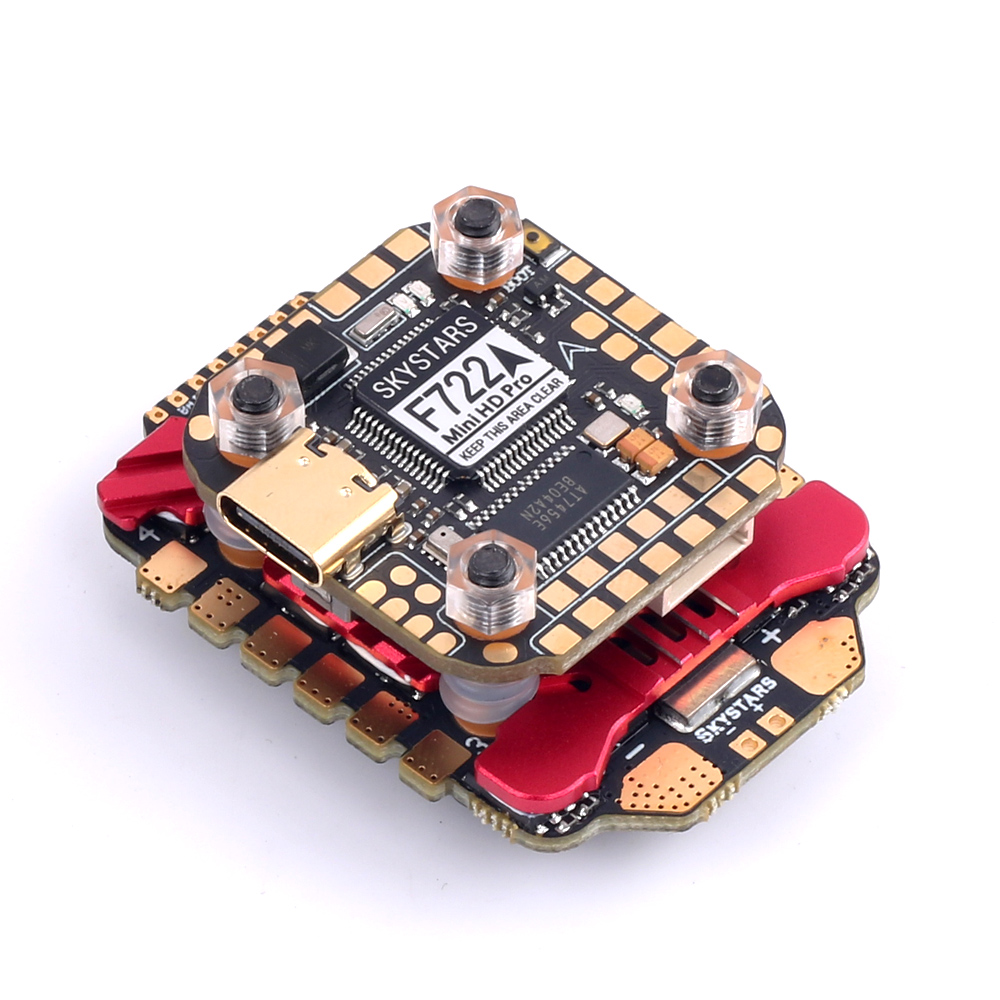

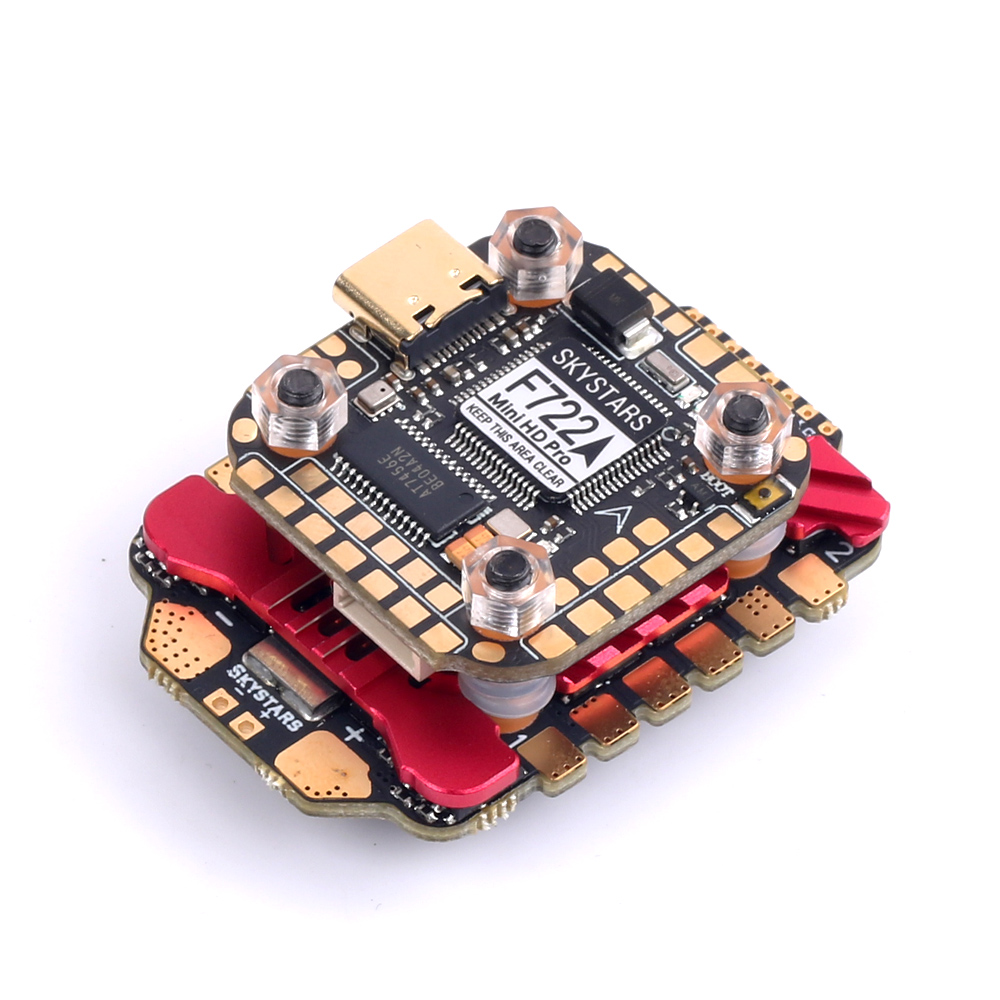

Skystars F7 Mini HDPro Stack
Skystars
FC stack
STM32F722
BMI270
20x20мм
55A
AM32
до 6s
Designed the LED installation position in the four corners,support WS2812 Programable LED.
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire,) . Support 3.3V Satellite Receiver.
High-performance / low-noise / high sensitivity IMU. BMI with 6-axis gyro and accelerometer.
Support connect DJI HD air module.
Input voltage 12V-26V (3-6S)
TVS protect.
Automatic voltage monitoring.
F722FC
MCU: STM32F722RGT6 216MHz
IMU: BMI270 (SPI)
OSD: Betaflight OSD & DJI HD OSD (UART6)
6 hardware UARTS (UART1,2,3,4,5,6)
5V 2A & 10V 2A
Input Voltage: 3-6S Lipo
Blackbox: 16MB
Barometer: YES
Firmware: SKYSTARS F7HD
Dimensions: 35x28x7mm
Mounting Holes: Standard 20mm/M3 square to center of holes
Weight: 4.2g
55A 4IN1 ESC voltage: 3-6S LiPo
Con.Current: 55A Peak
Current: 70A≥ 10S
Firmware: AM_32
Support : Dshot 600
Mounting hole : 20X20 mm/M3
BEC: No
Product size: 35*47*6.5mm
Weight: 16.5g
