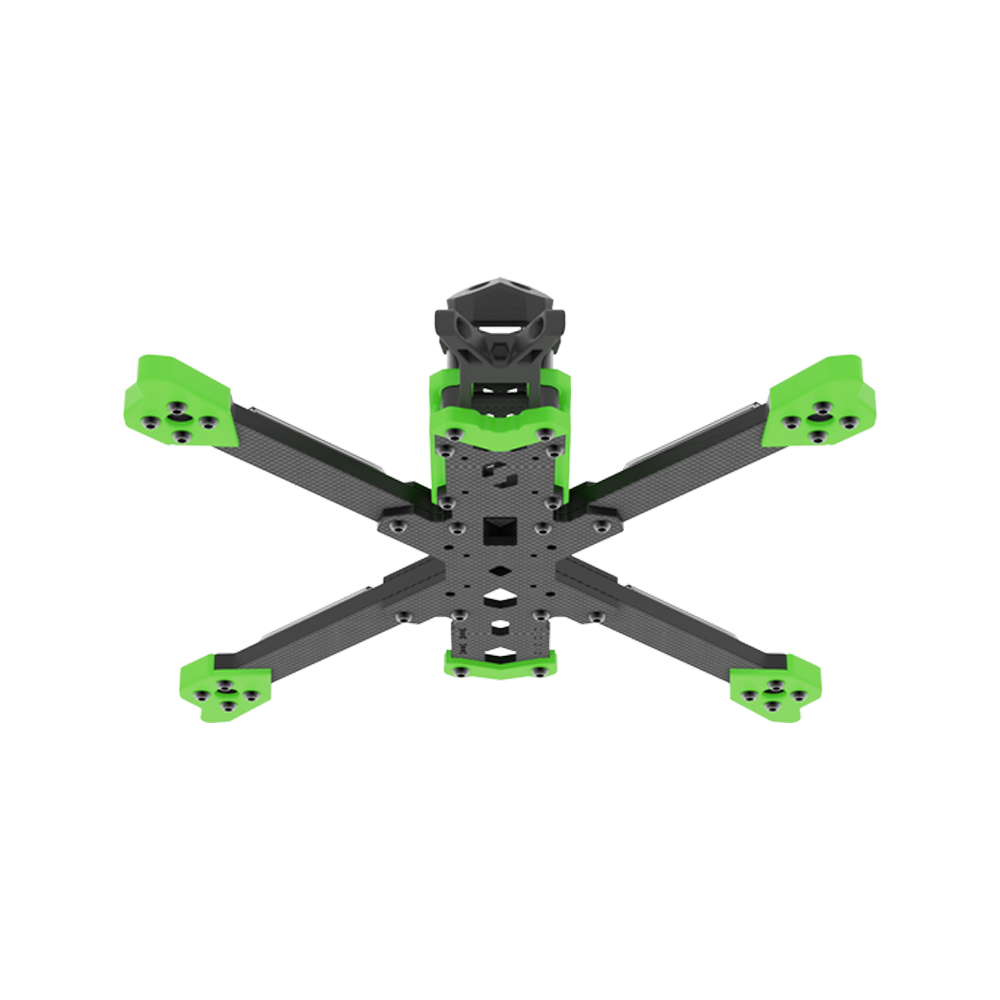

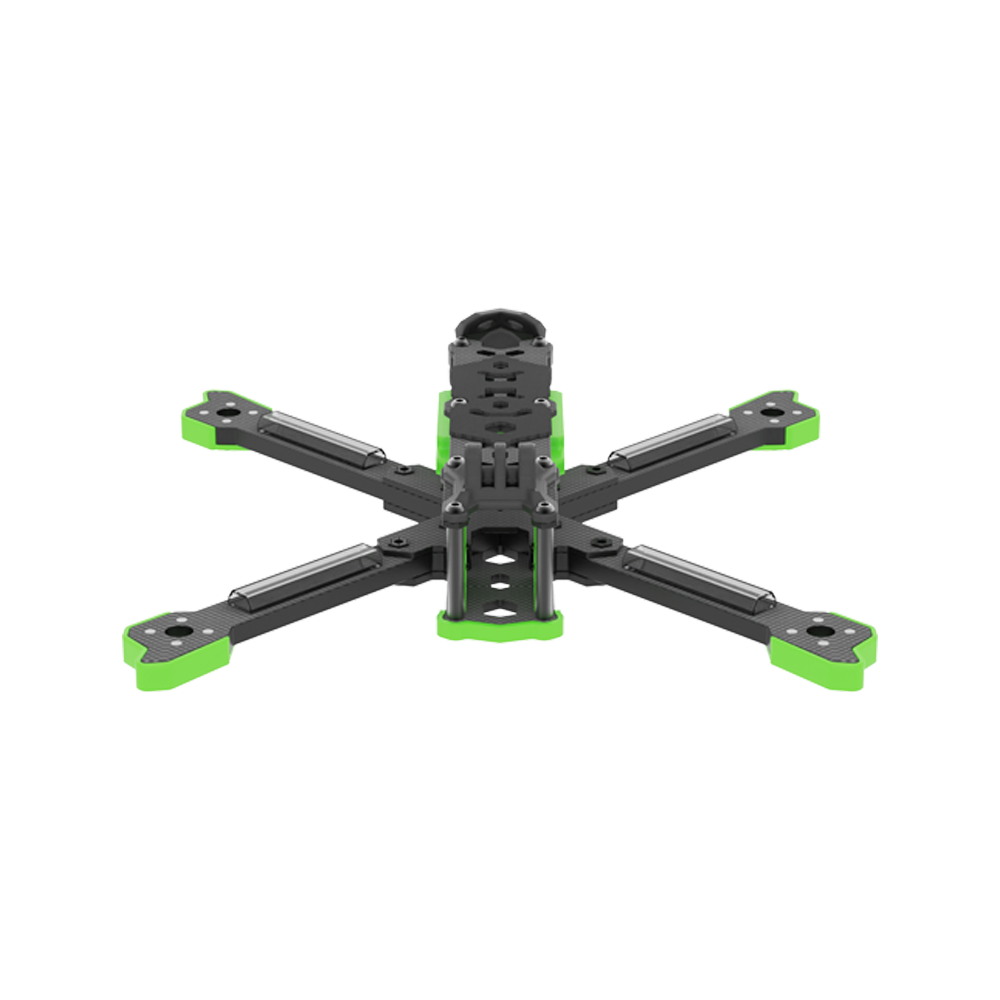

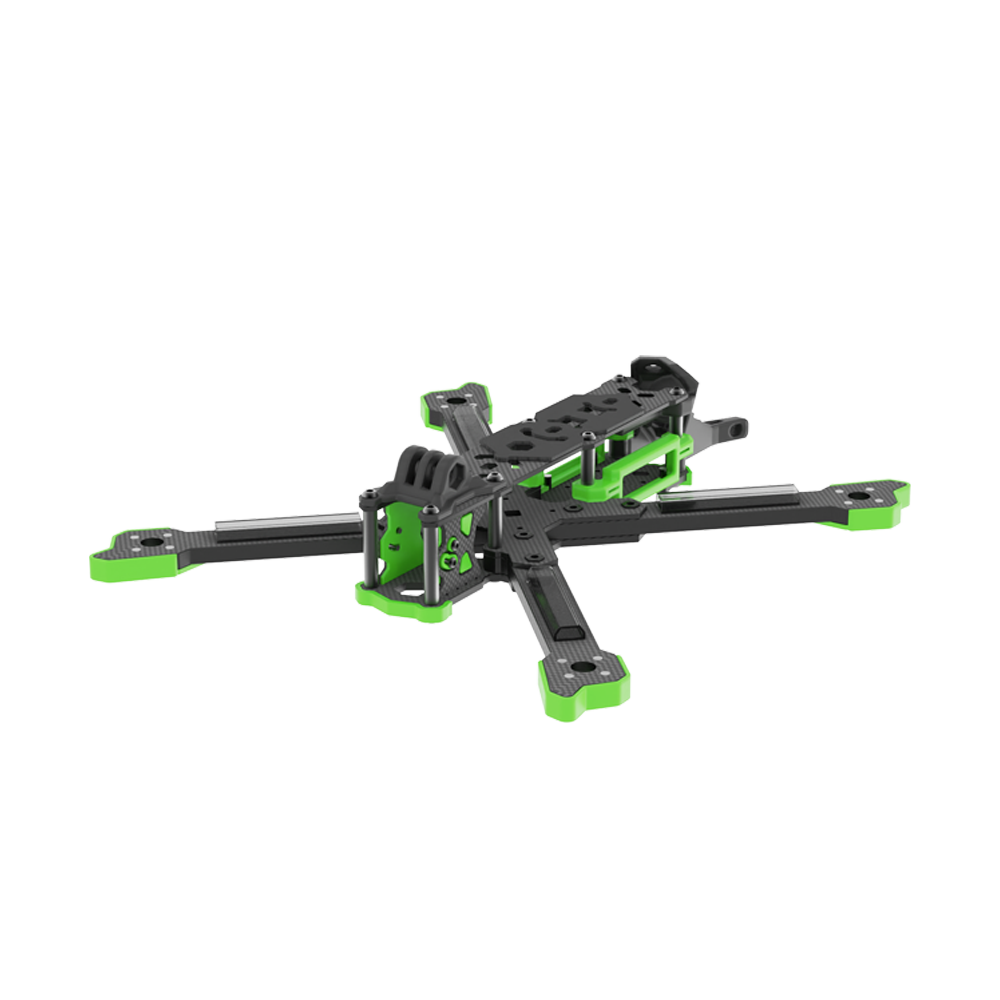

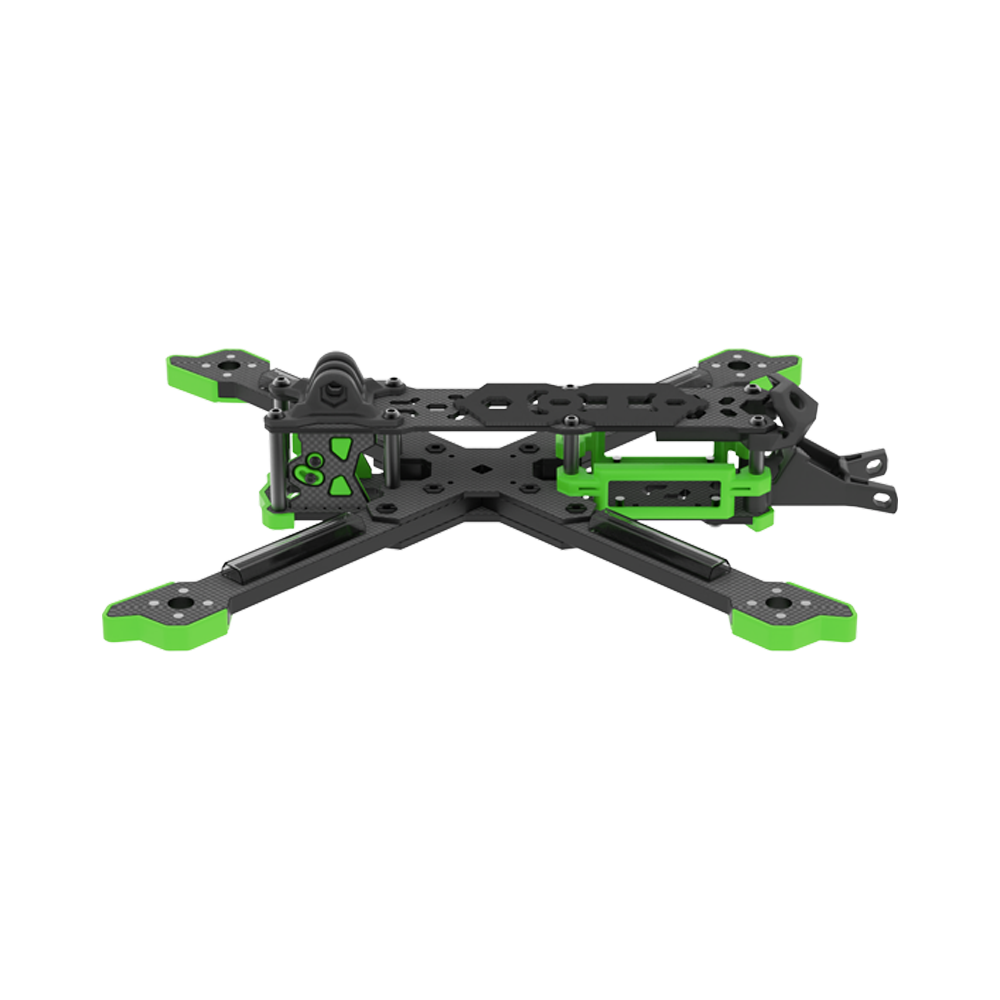

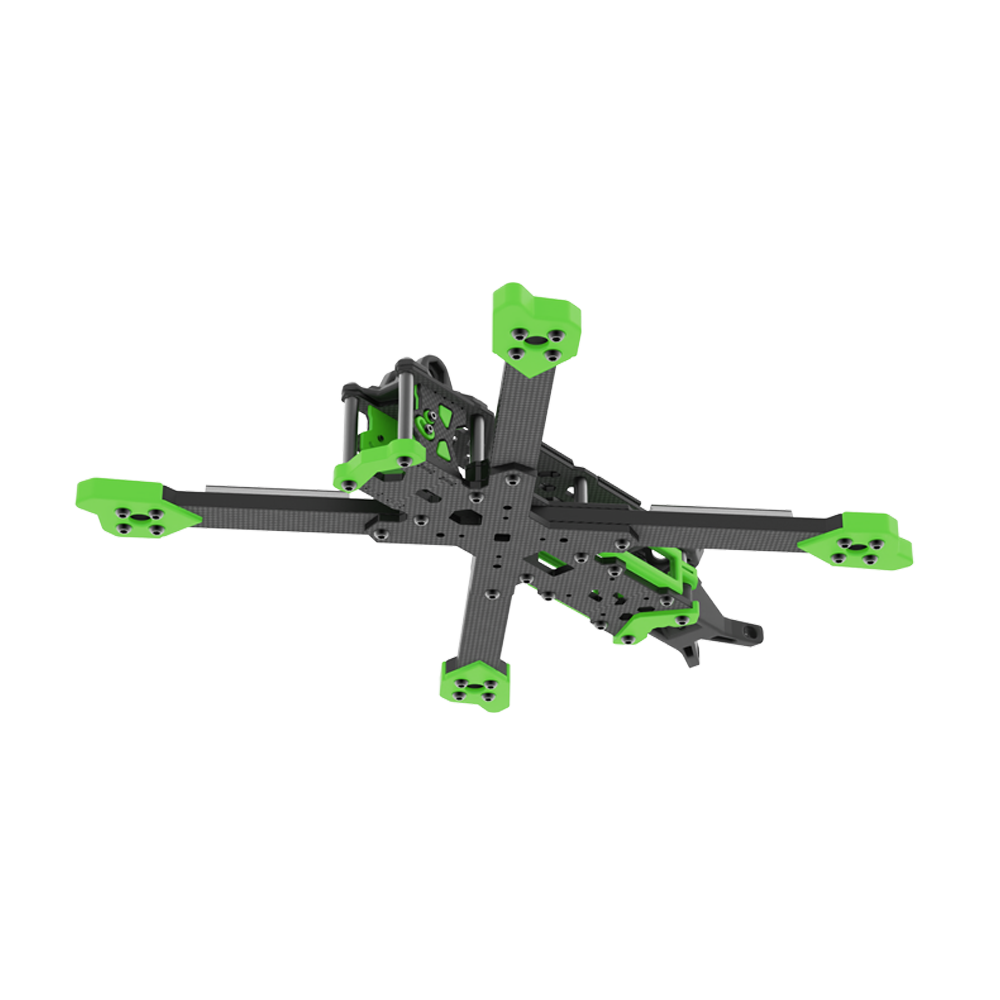

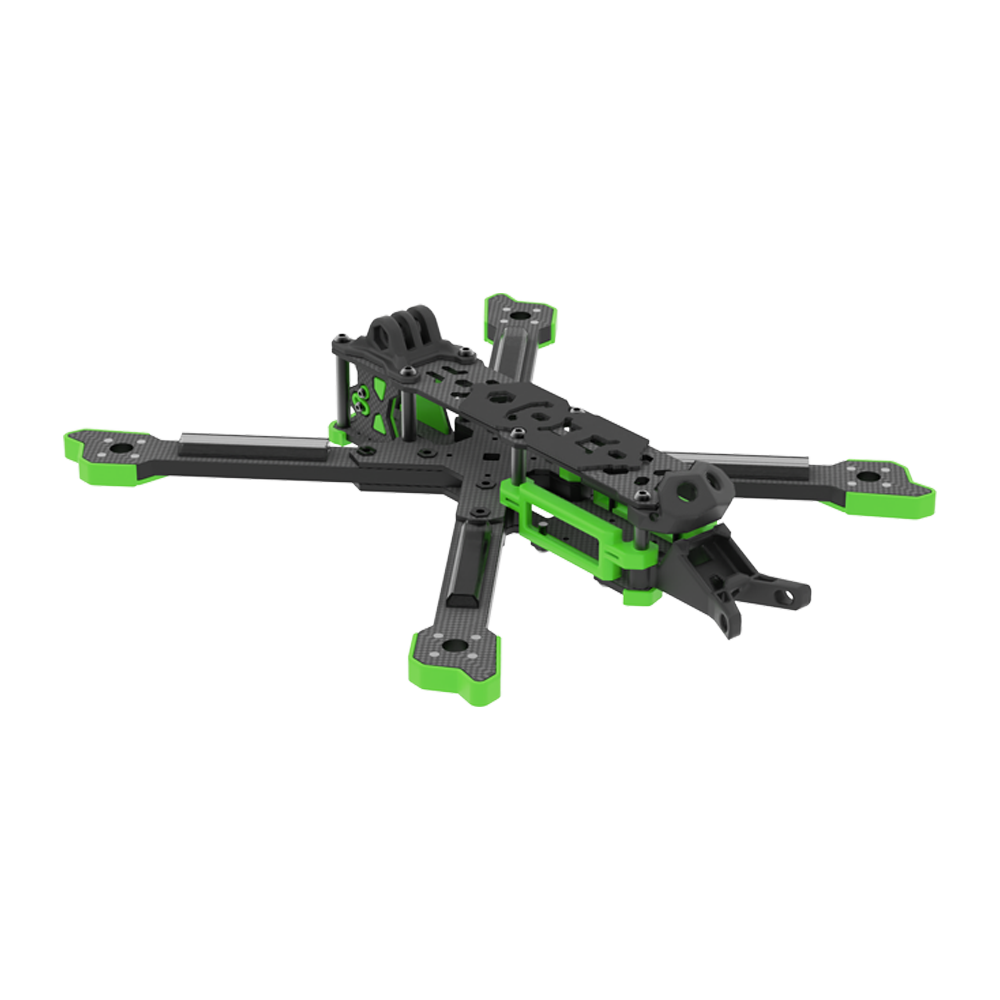

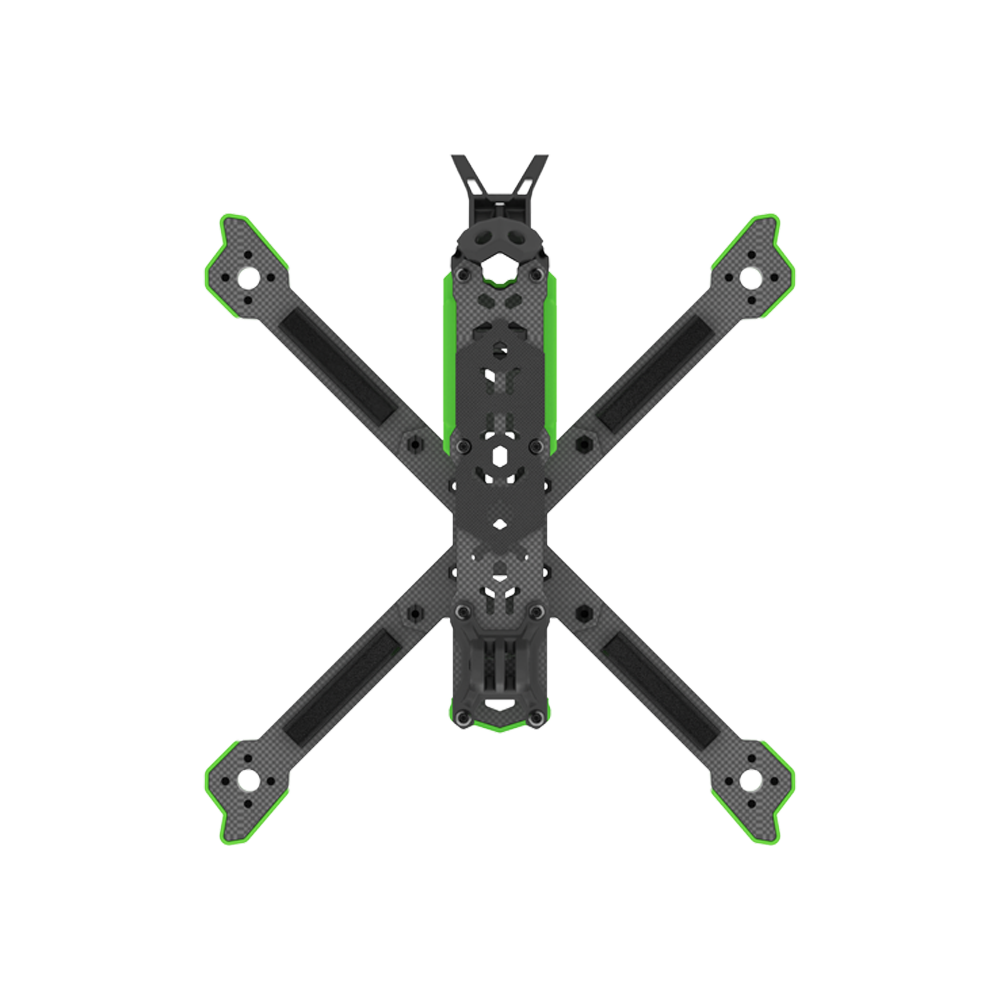

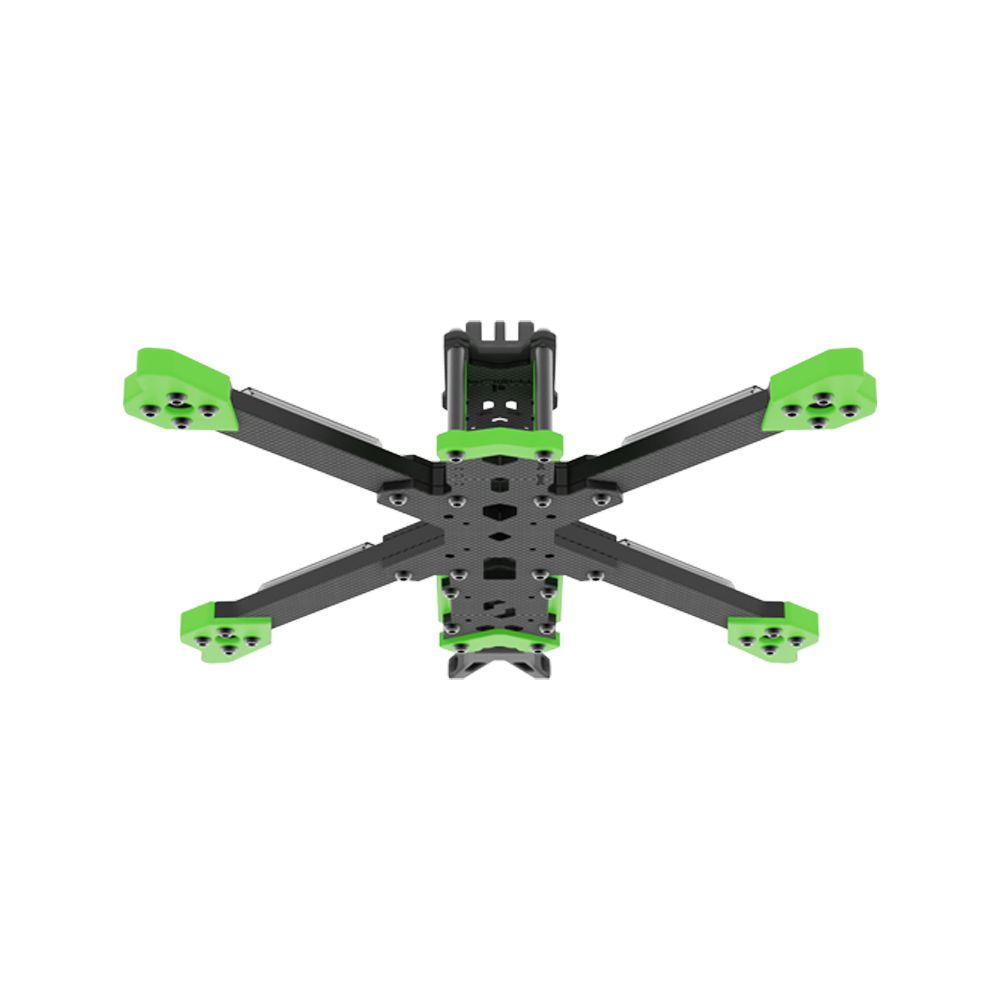

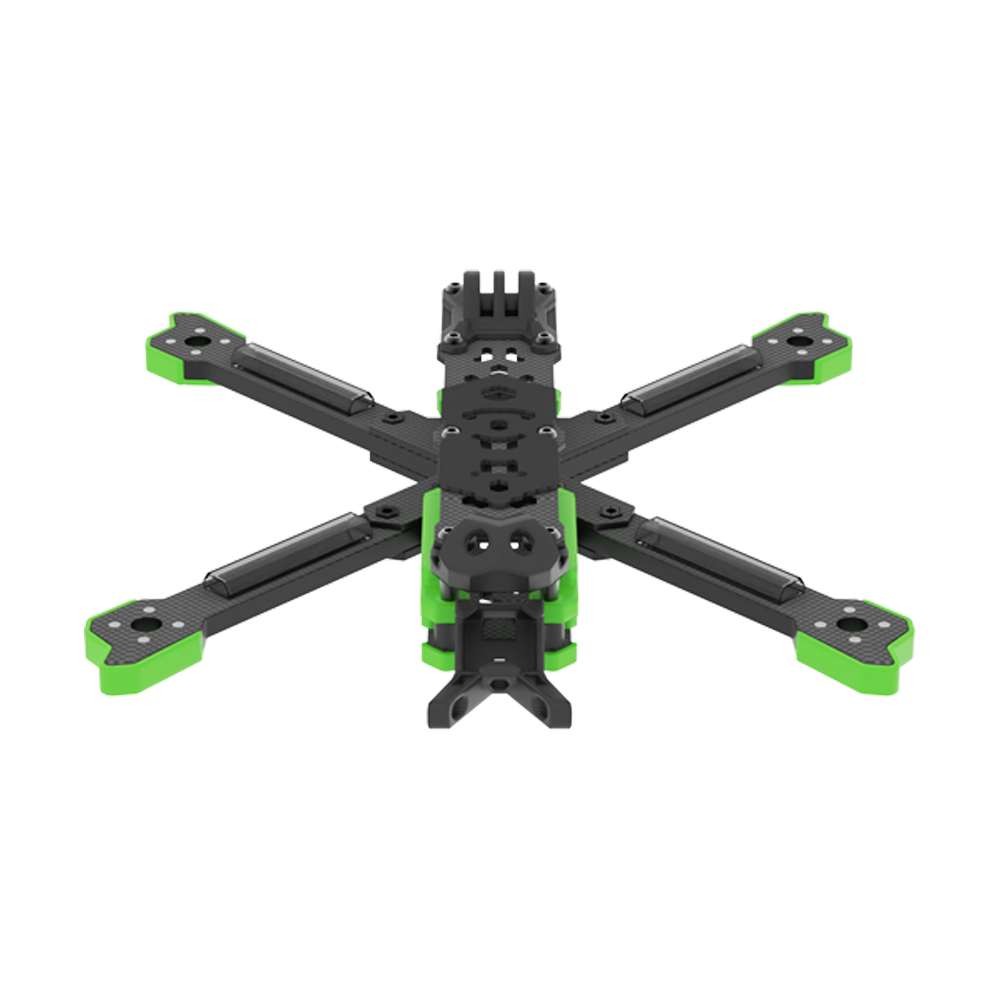

iFlight TITAN XL5

Производитель

iFlight

Категория

5'' frame

Тип рамы

True X

After our popular TITAN DC5 (DeadCat style frame) approach we decided to take a step back to the roots and create a new X-Geometry frame to get the best performance on both axis and better weight distribution for freestyle.

6mm arm design for more durability

Variable GoPro TPU mount (supports ND-Filter inserts)

360° TPU protection and Antenna mounts

Product Name:TITAN XL5 Frame

Wheelbase: 250mm

Frame Dimension: L185*W133 mm

Arm Thickness: 6mm

Bottom Plate Thickness: 2mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 2mm

Camera Plate Thickness: 2mm

Motor Mounting:16x16mm

VTX Mounting:30.5*30.5 / 20*20 mm

Weight: 199.1grams (Included TPU Parts)
