iFlight Chimera7 Pro V2

Производитель

iFlight

Категория

7'' frame

Тип рамы

DC

The iFlight Chimera7 is a 7.5″ longrange frame designed to give maximum stability and flight time during your cinematic shoots.

Fly smooth lines on the waterfront all the way to the Swiss Alps if you want! Made from a super-stiff carbon for minimum resonance and recommended 2806.5 motors for maximum 7.5″ prop control.

Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6 cells recommended or 5 cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will do the job.


V1 to V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission

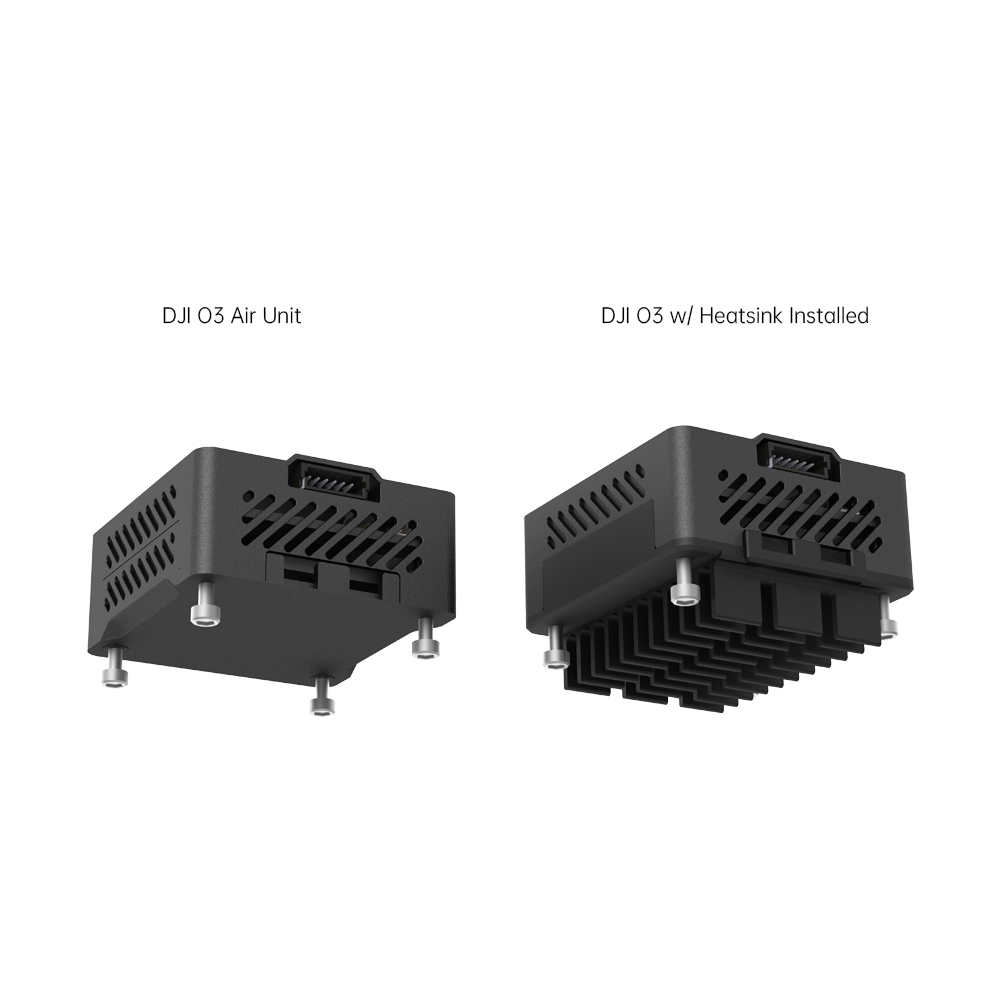

Specially Designed Heatsink for DJI O3 Air Unit

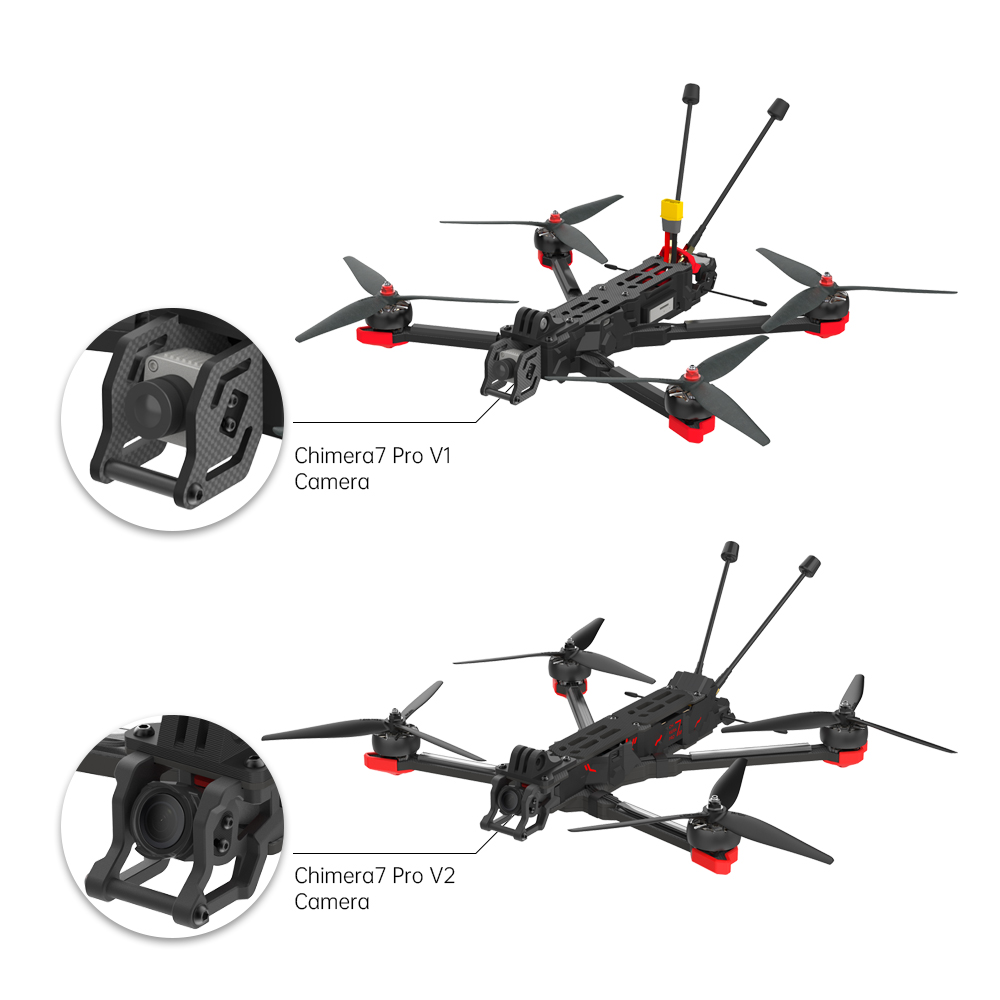

New Camera Mount for a wider camera FOV with TPU damping inserts

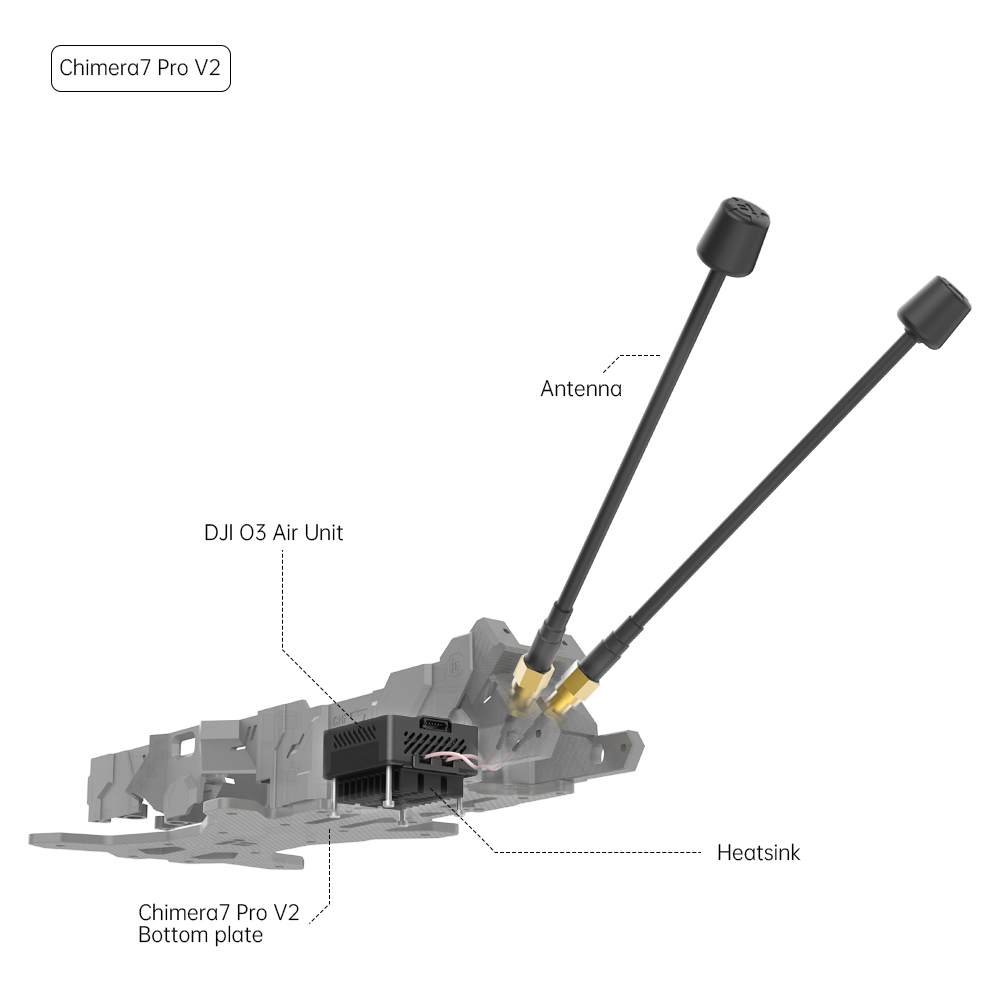

New Side Panels to perfectly fit the O3 Air Unit in the back

New Dual 5.8G VTX Antenna TPU mount

Latest Chimera7 Pro Frame Upgrades for Maximum Protection

Optional Parts to select (not included in frame kit):

New Anti Spark Filter to prevent rapid voltage and current spikes plugging in a battery

Single DJI VTX Antenna TPU to install the original DJI O3 set included antenna.

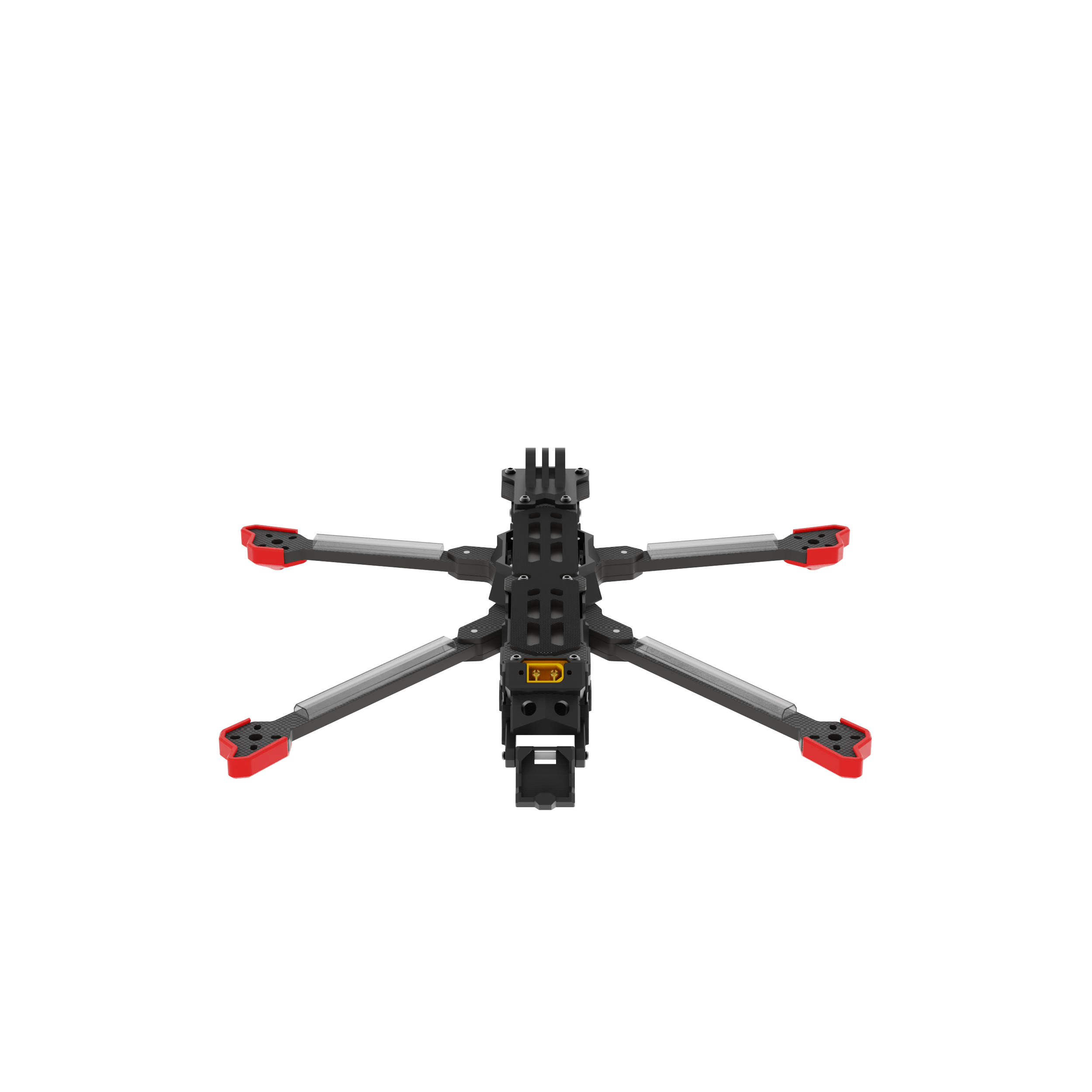

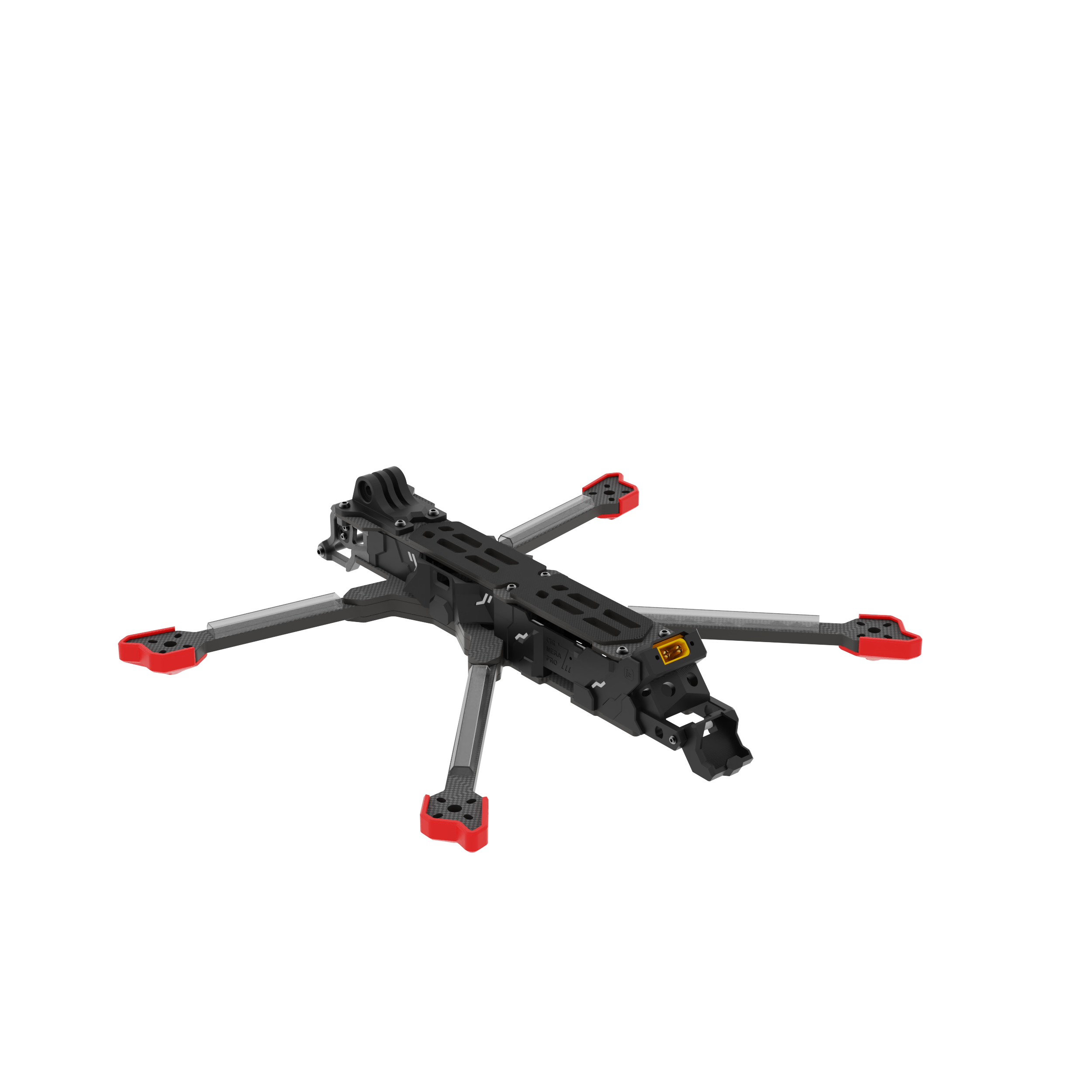

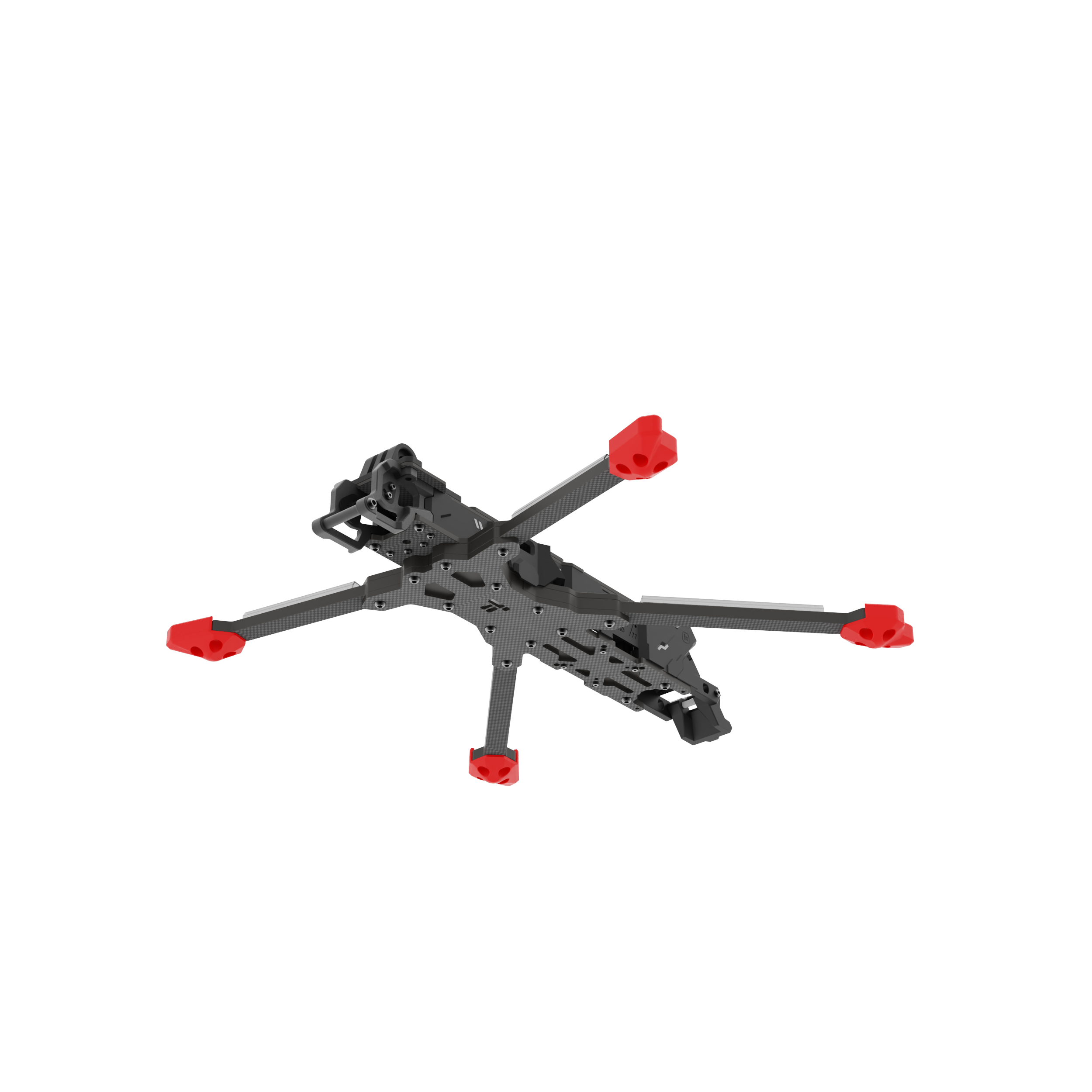

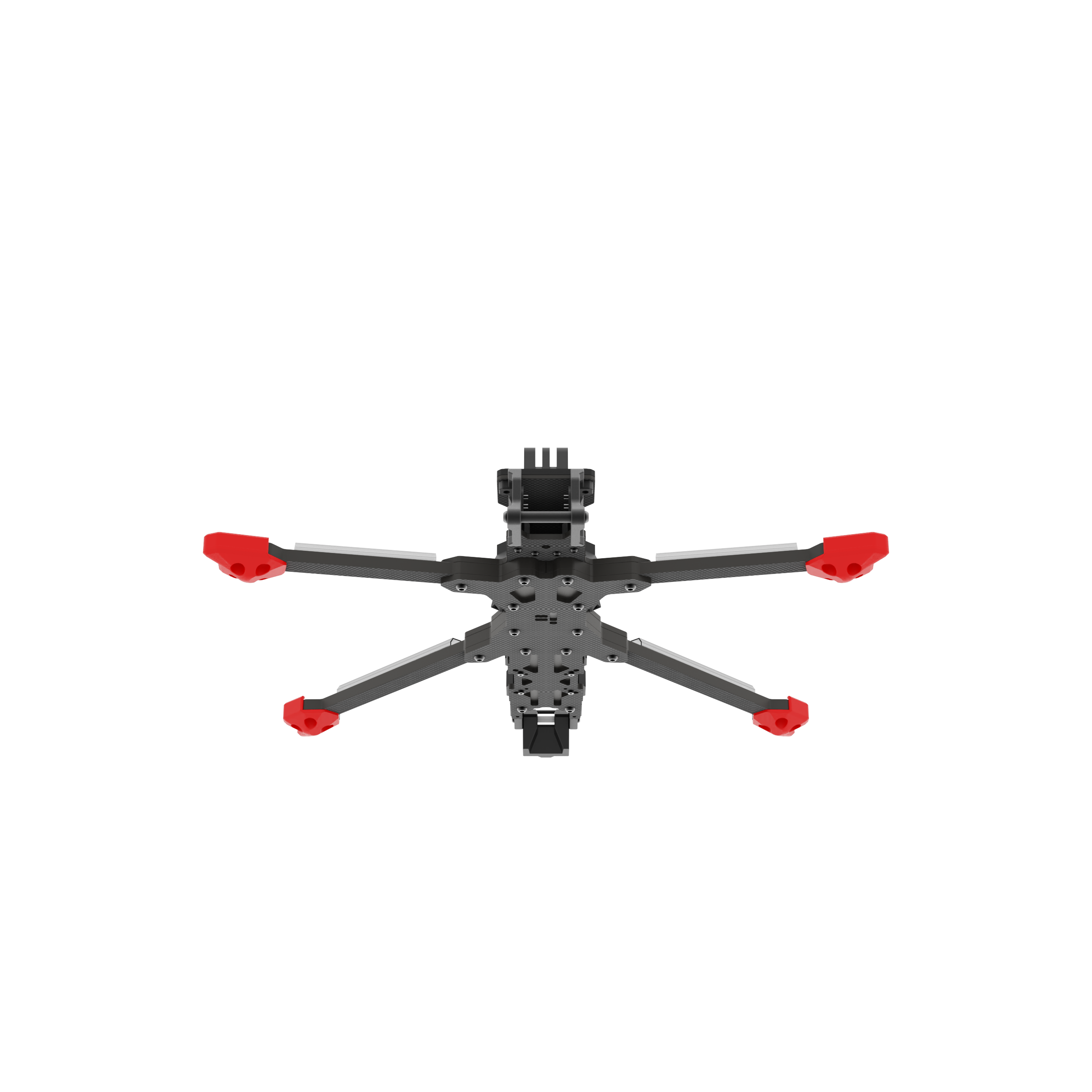

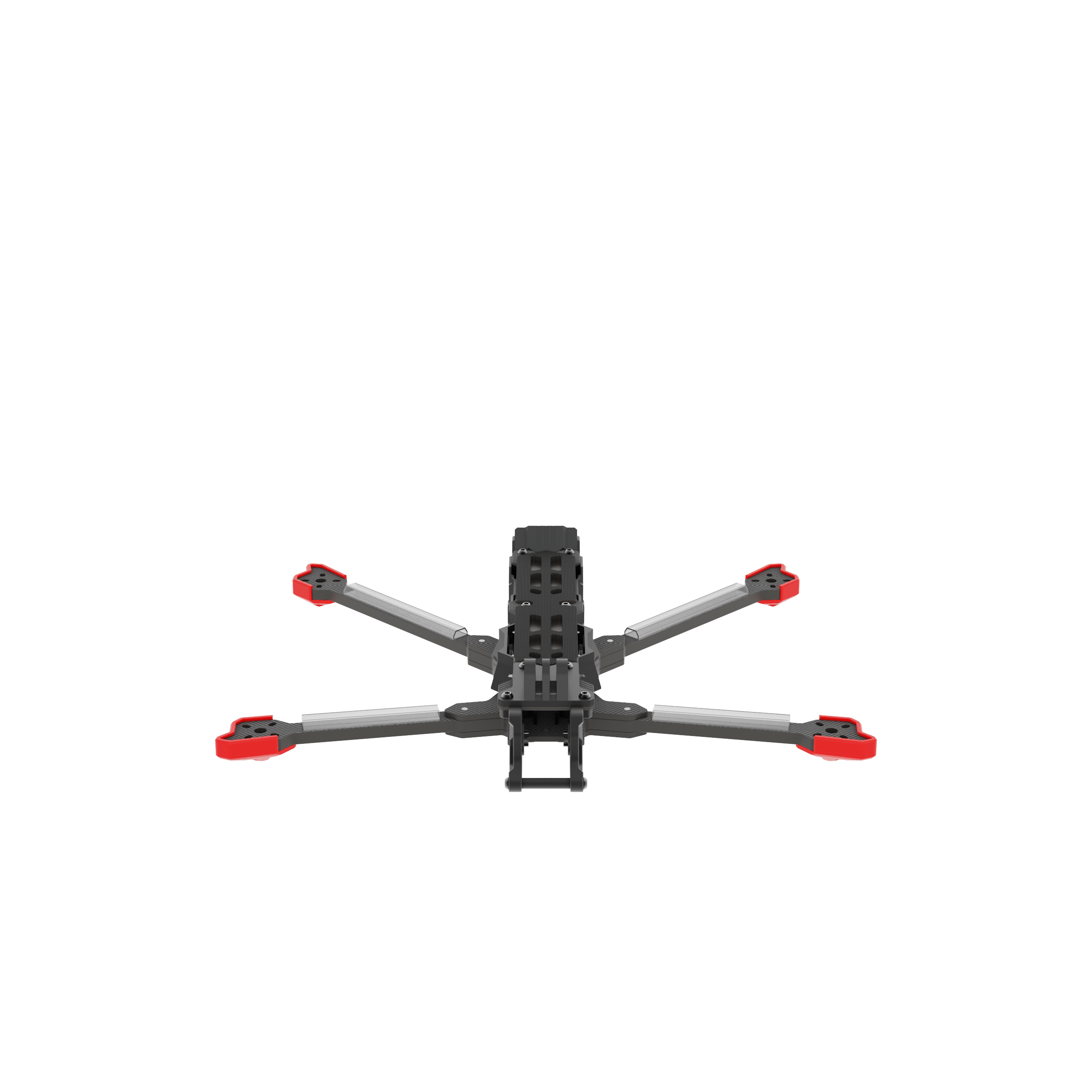

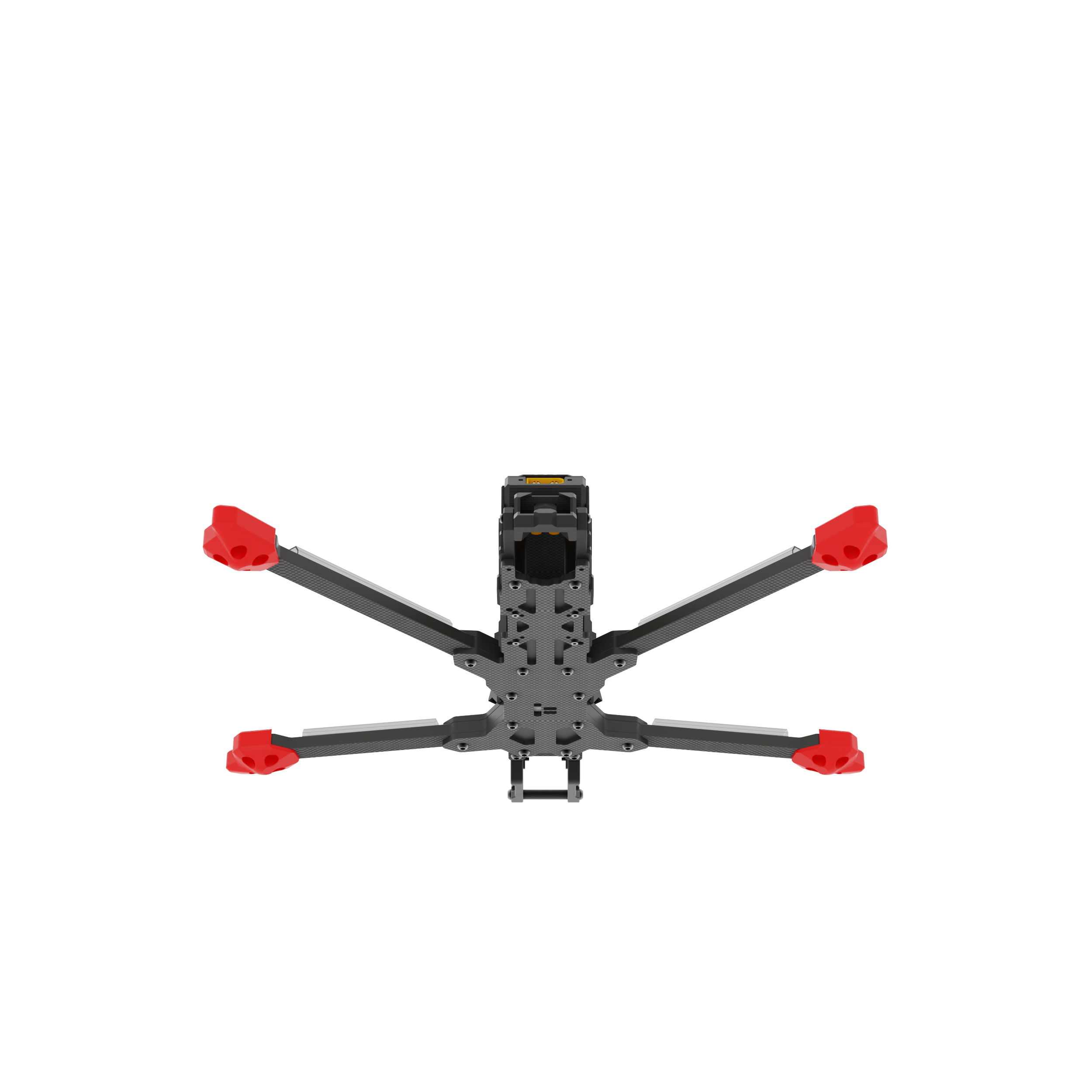

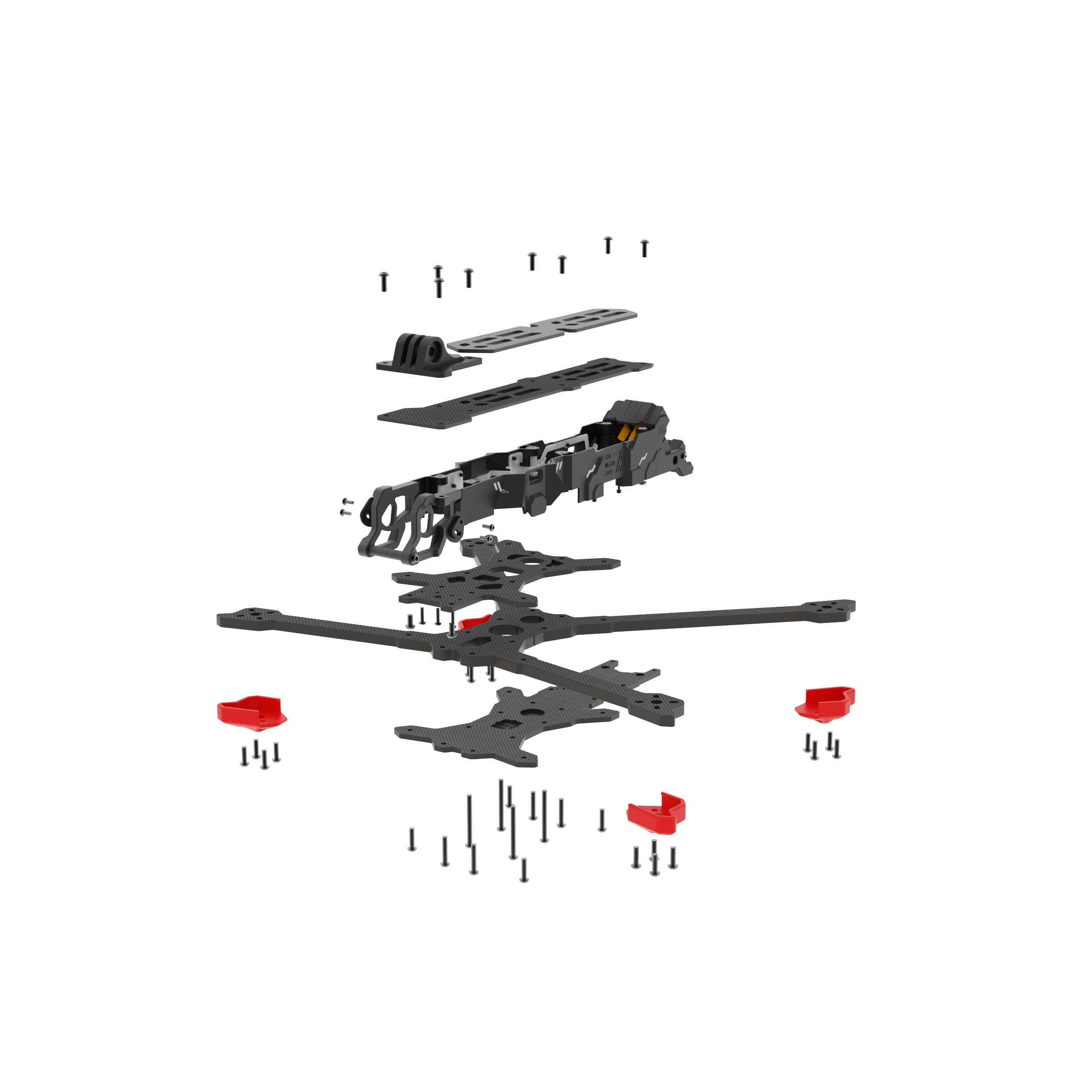

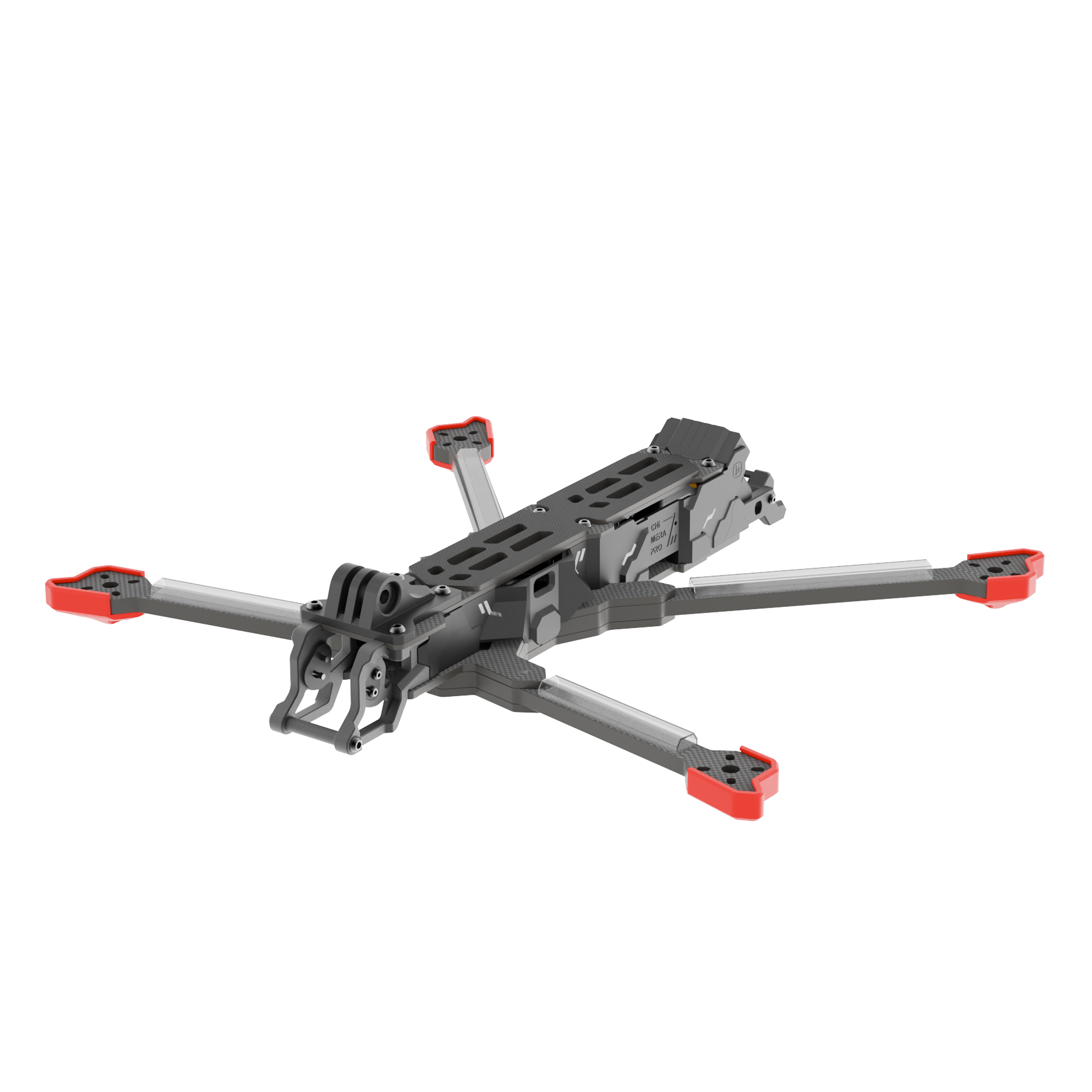

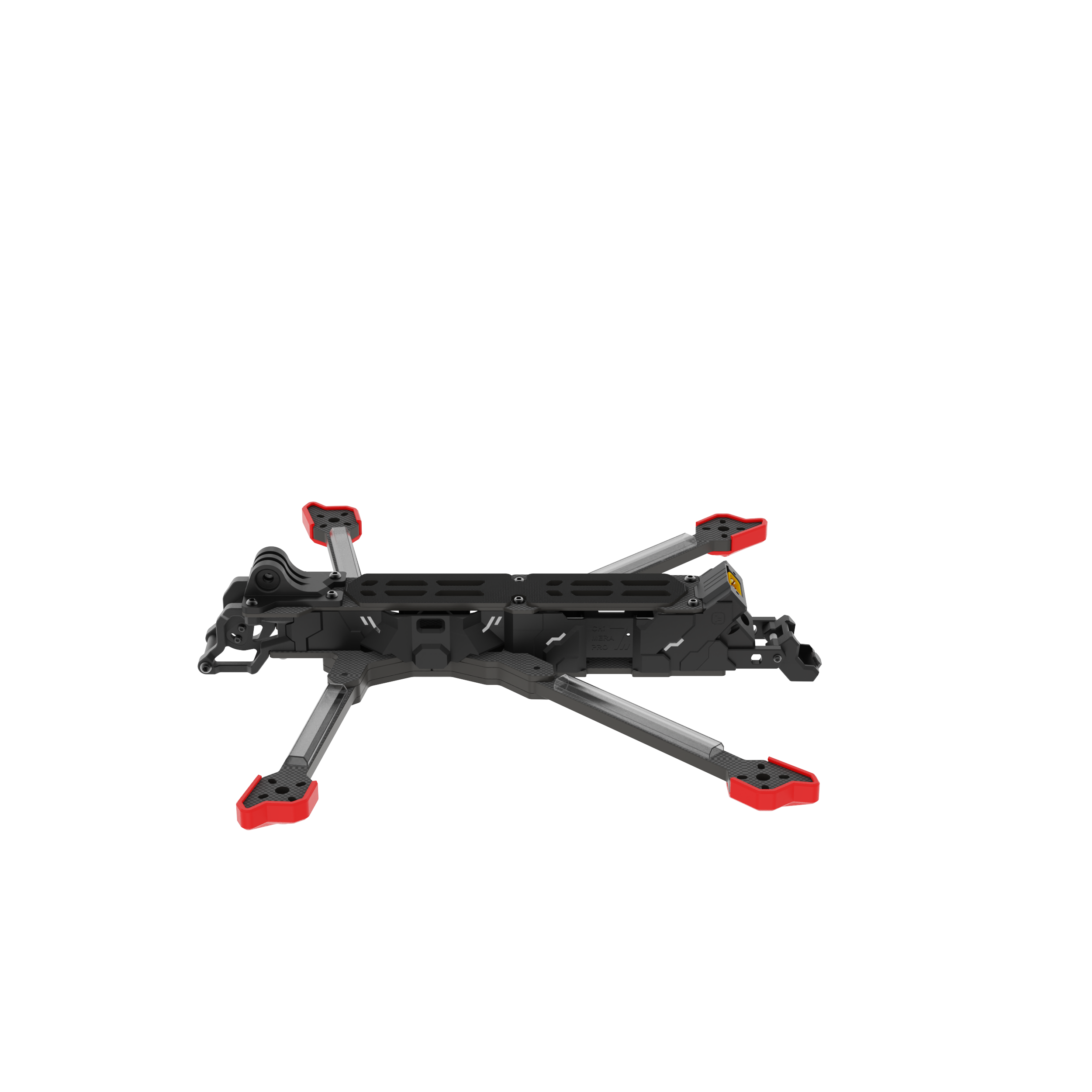

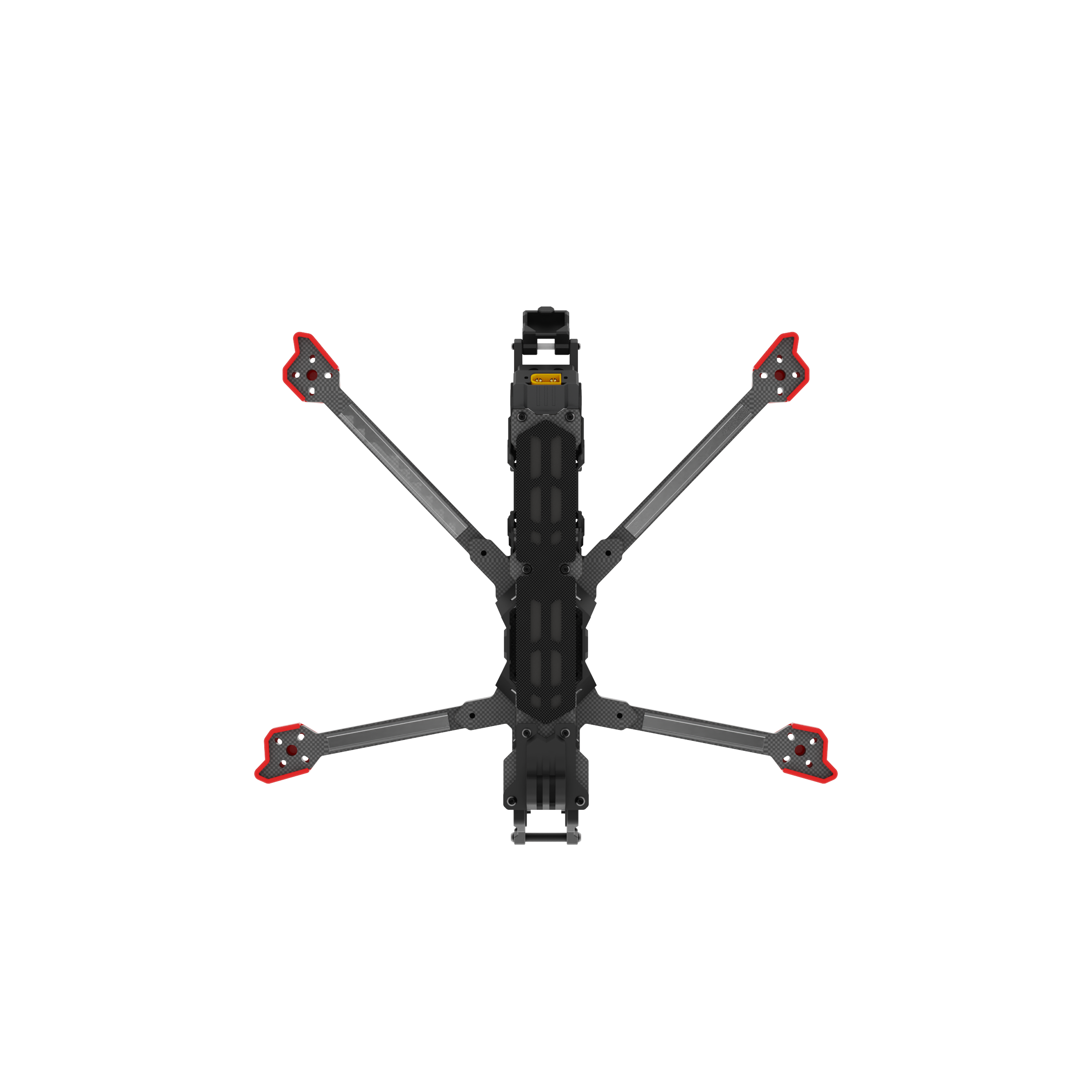

Product Name:Chimera7 Pro V2 Frame Kit

Wheelbase: 327mm

Frame Dimension: L270*W199*H34 mm

Frame Body Dimension: 34mm

Arm Thickness: 6mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Camera Plate Thickness: 3mm

Motor Mounting: 16x16mm / 19*19mm

VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm

Weight: 175grams (not including TPU parts)


1 x Chimera7 Pro V2 Frame Kit

1x O3 Air Unit Heatsink

1x O3 MIPI Digital Video Cable 215mm

2x O3 IPEX to RP-SMA Antenna Pigtails

1 x O3 Dual Antenna TPU

1 x GoPro TPU Base Mount

1 x Screw Bag

4 x TPU Armguard

1 x Front Bumper TPU

1 x Rear Bumper TPU

2 x Anti-Slip Battery Pad

2 x Battery Strap (20*250mm)
