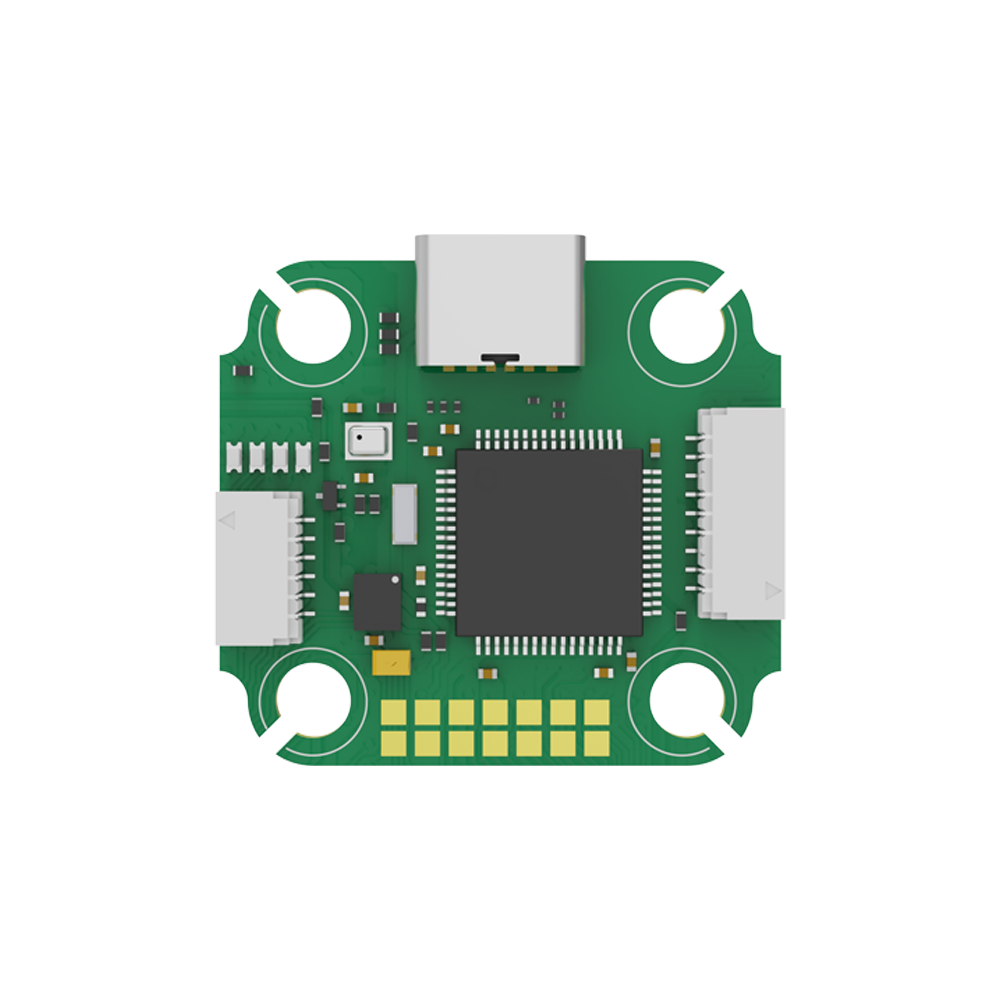

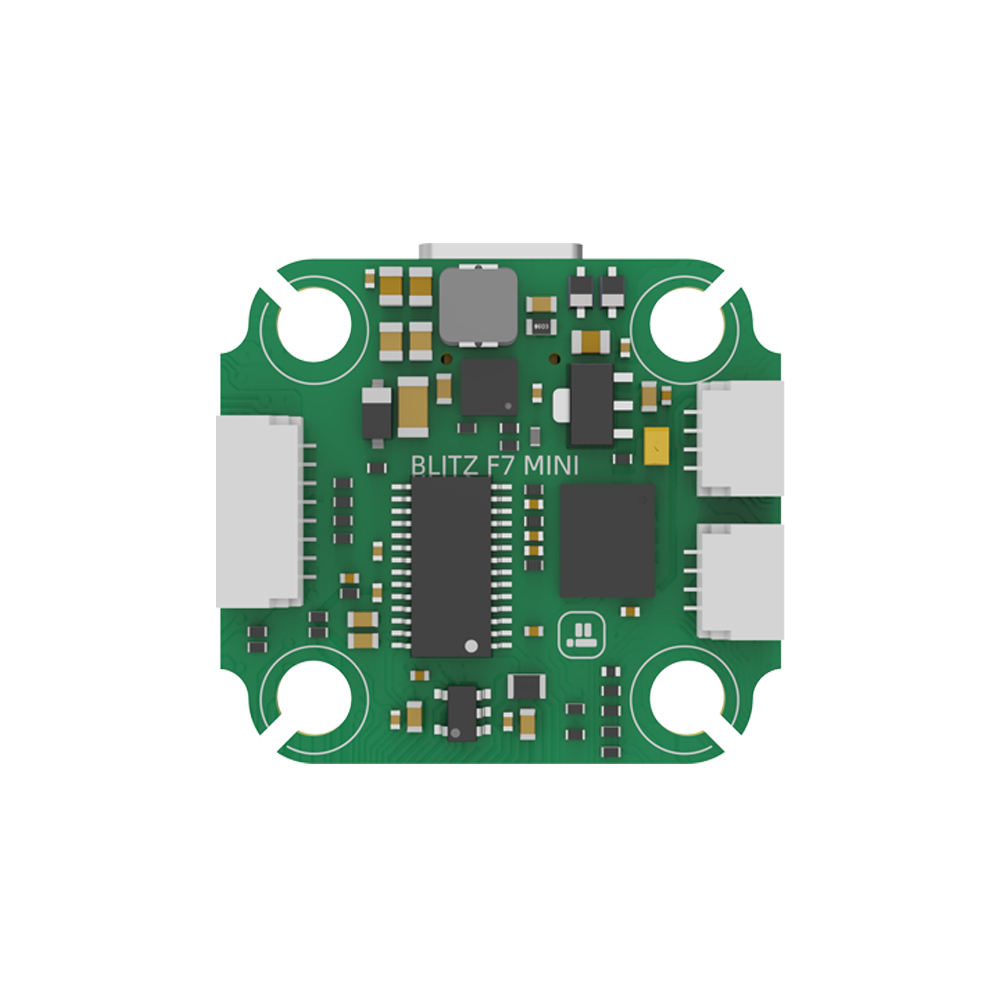

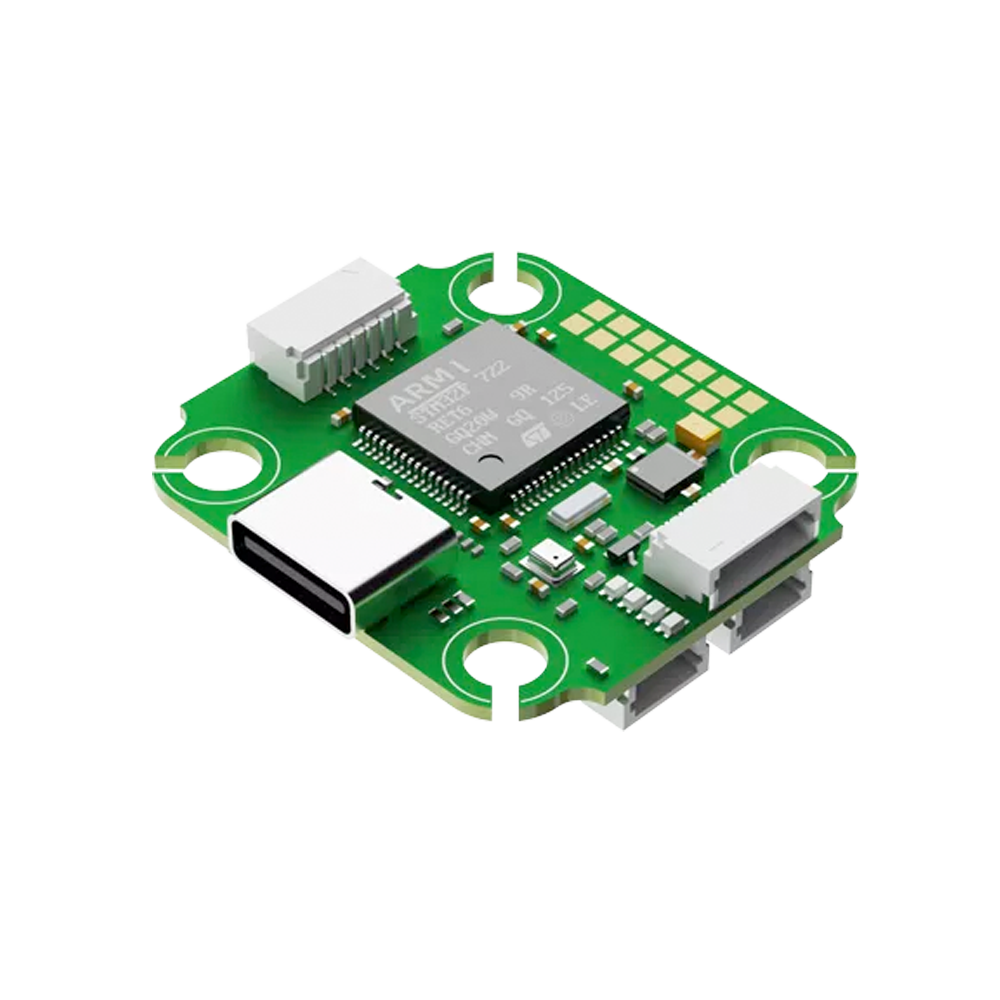

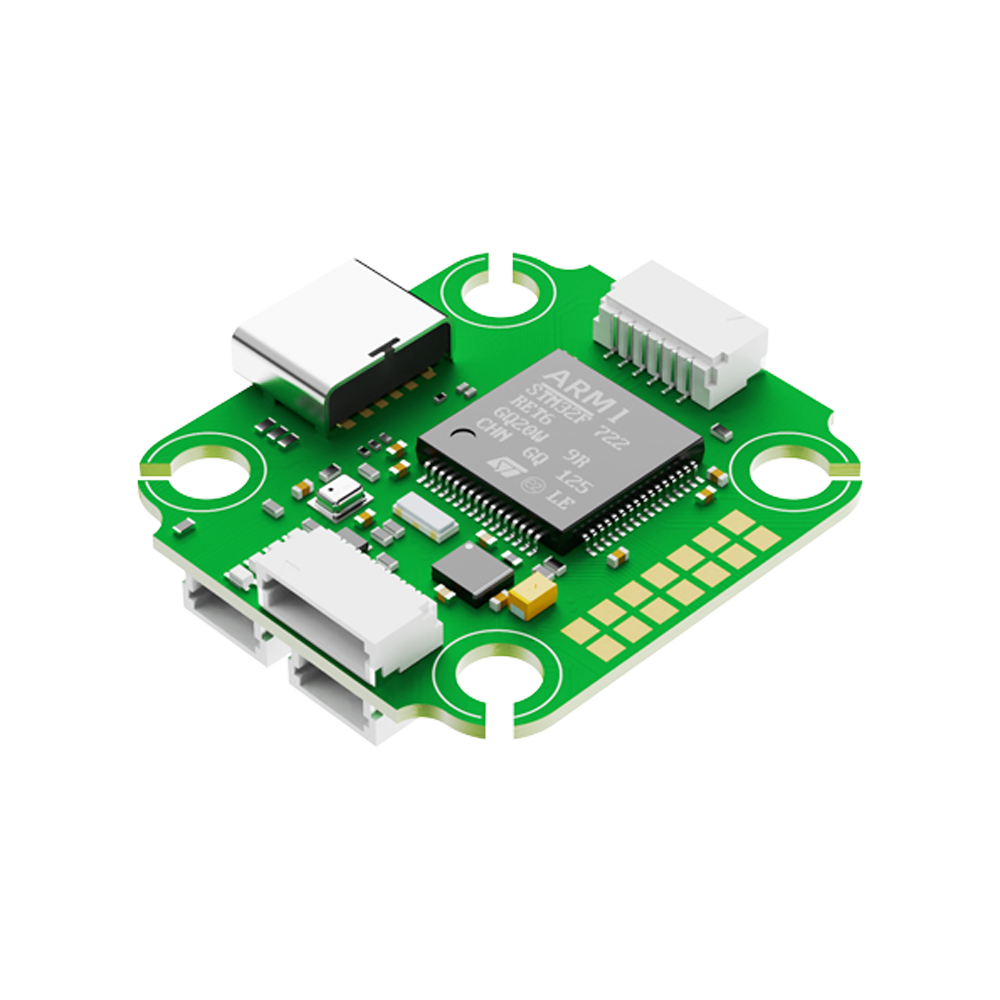

iFlight BLITZ Mini F7 V1.1
Производитель
iFlight
Категория
FC single
Процессор
STM32F722
Гироскоп
BMI270
Монт. размер
20x20мм
Improved circuit design, better components and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5×27 mm
Weight: 5g

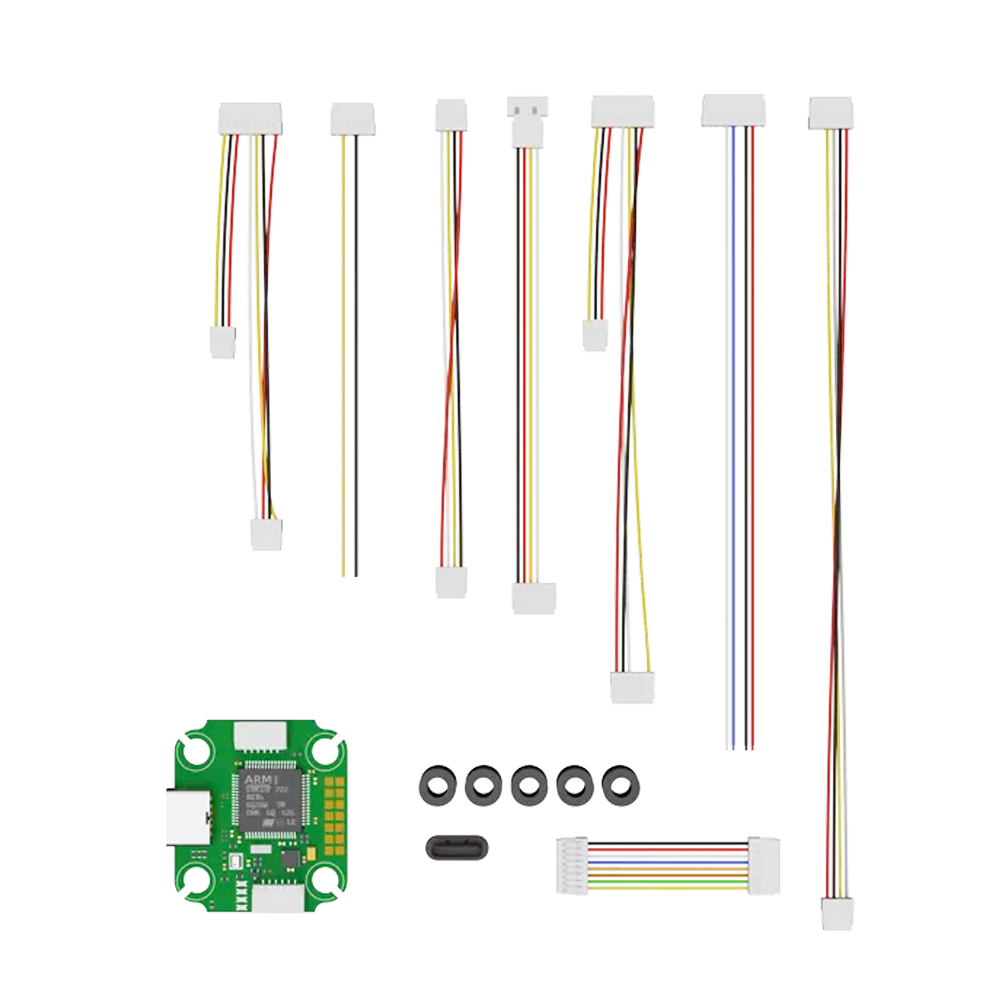

1 x BLITZ Mini F7 V1.1 Flight Controller
1 x FC connectors
1 x Silicon grommets
