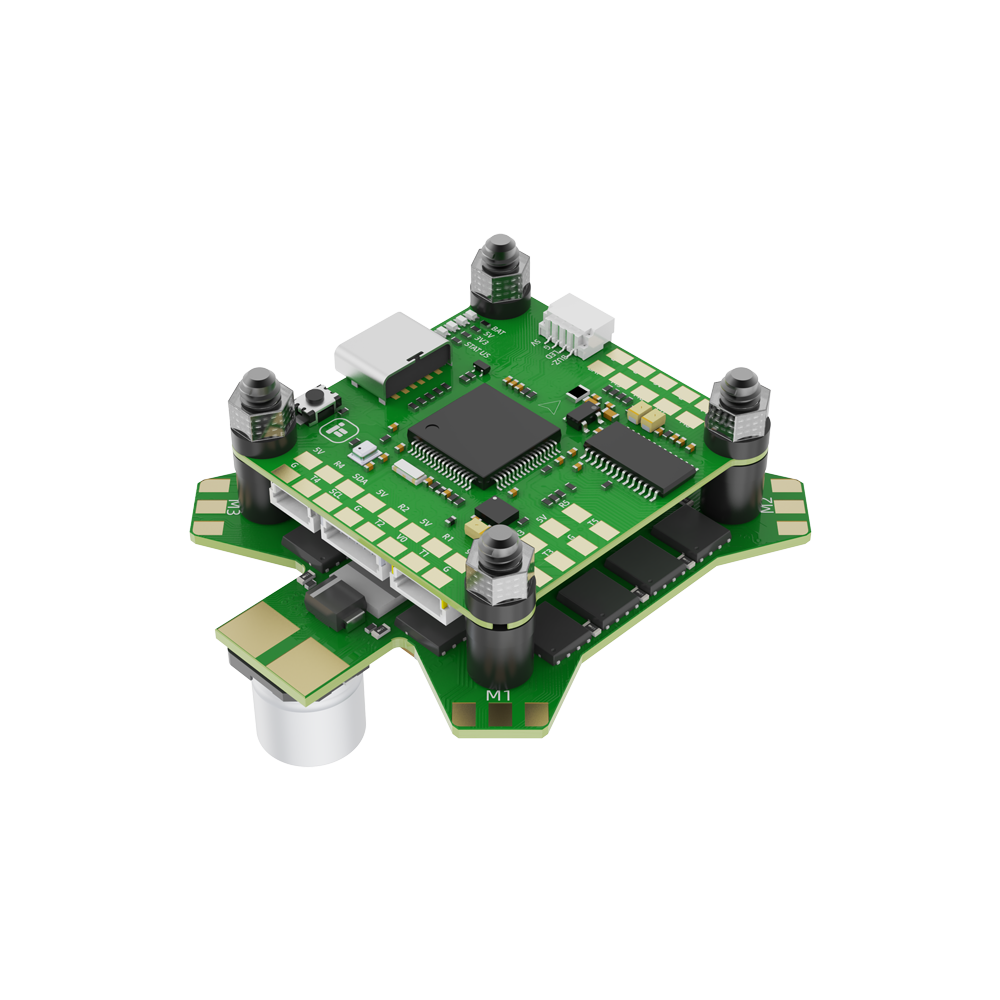

FC Specifications

MCU: STM32 F722

Gyro: BMI270

Barometer: DPS310

OSD Chip: AT7456E

Flash: 32MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

Dimensions: 36.5*35 mm

Weight: 7.8g

BEC: 5V 2.5A / 9V 2A

ESC Specifications

Supports: DShot150/300/600/MultiShot/ OneShot etc.

Mounting Holes: 30.5*30.5mm/Φ4mm

Supports 2-6S lipo input

Telemetry Output: NO

Target: Q-H-25 16.7

Current sensor: Yes

Constant: 45 Amps

Current rate: 200

Burst: 55 Amps

Weight: 14.7g

MCU: BB21

BEC: NO
