GepRC SPEEDX2 3110

Производитель

GepRC

Категория

Motor 3110

KV мотора

1250kv

900kv

Размер вала

Summary

The SPEEDX2 series motors have an innovative appearance and are designed with cutting-edge elements. This 3110 motor has two KV values of 900KV and 1250KV.

The performance of the SPEEDX2 3110 motor focuses on high efficiency and power saving. Its stator uses imported Kawasaki silicon steel sheet iron core, and the magnetic steel uses high-quality N52H. After rigorous testing, it saves 10% of power compared with conventional motors of the same level.

Feature

New appearance of the SPEEDX2 series motor.
The overall black system is matched with red secondary oxidation borders, which is full of sci-fi feeling.

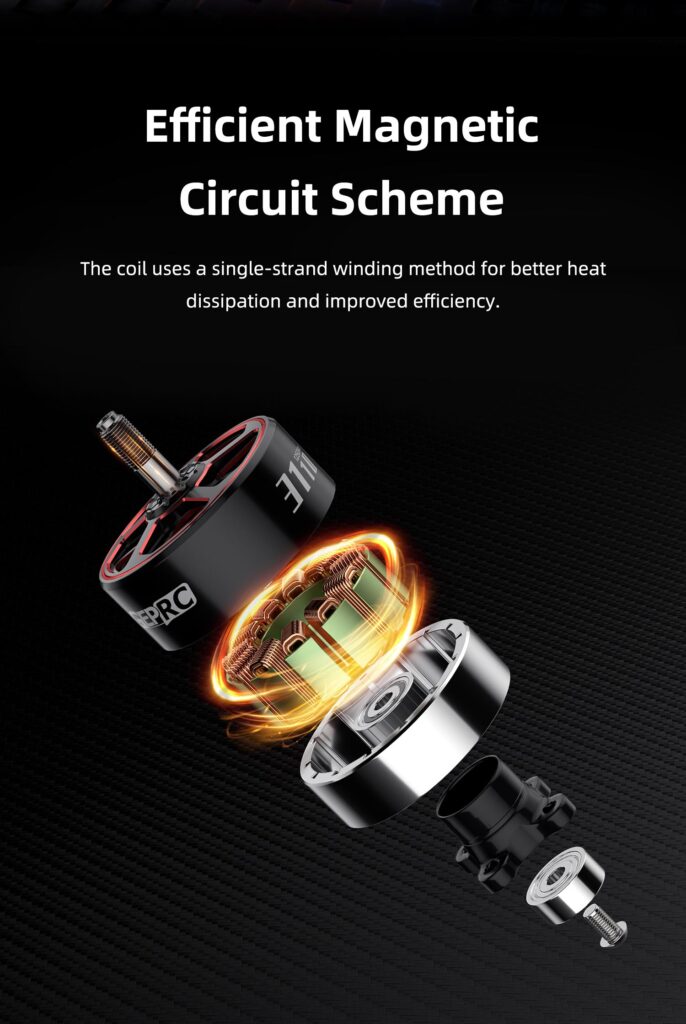

In terms of energy consumption of the magnetic circuit of the motor, the design is highly efficient, which saves 10% of the power compared with conventional motors of the same level.
The surface technology of the motor is treated with fine CD texture, which can effectively prevent scratches from affecting the appearance.

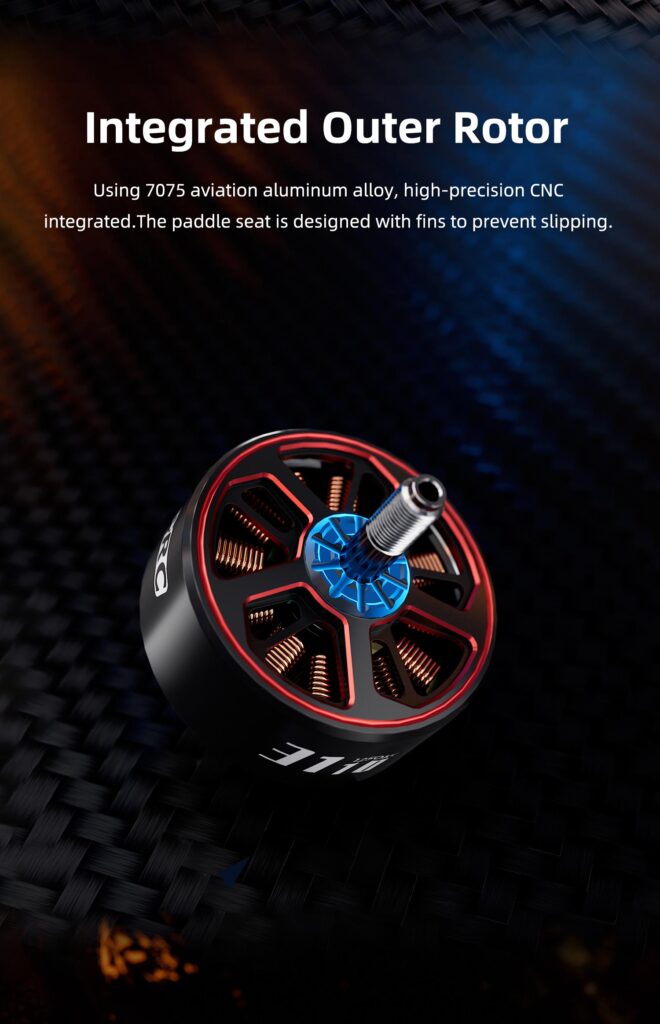

Using 7075 aviation aluminum alloy, high-precision CNC integral molding, lighter in weight.

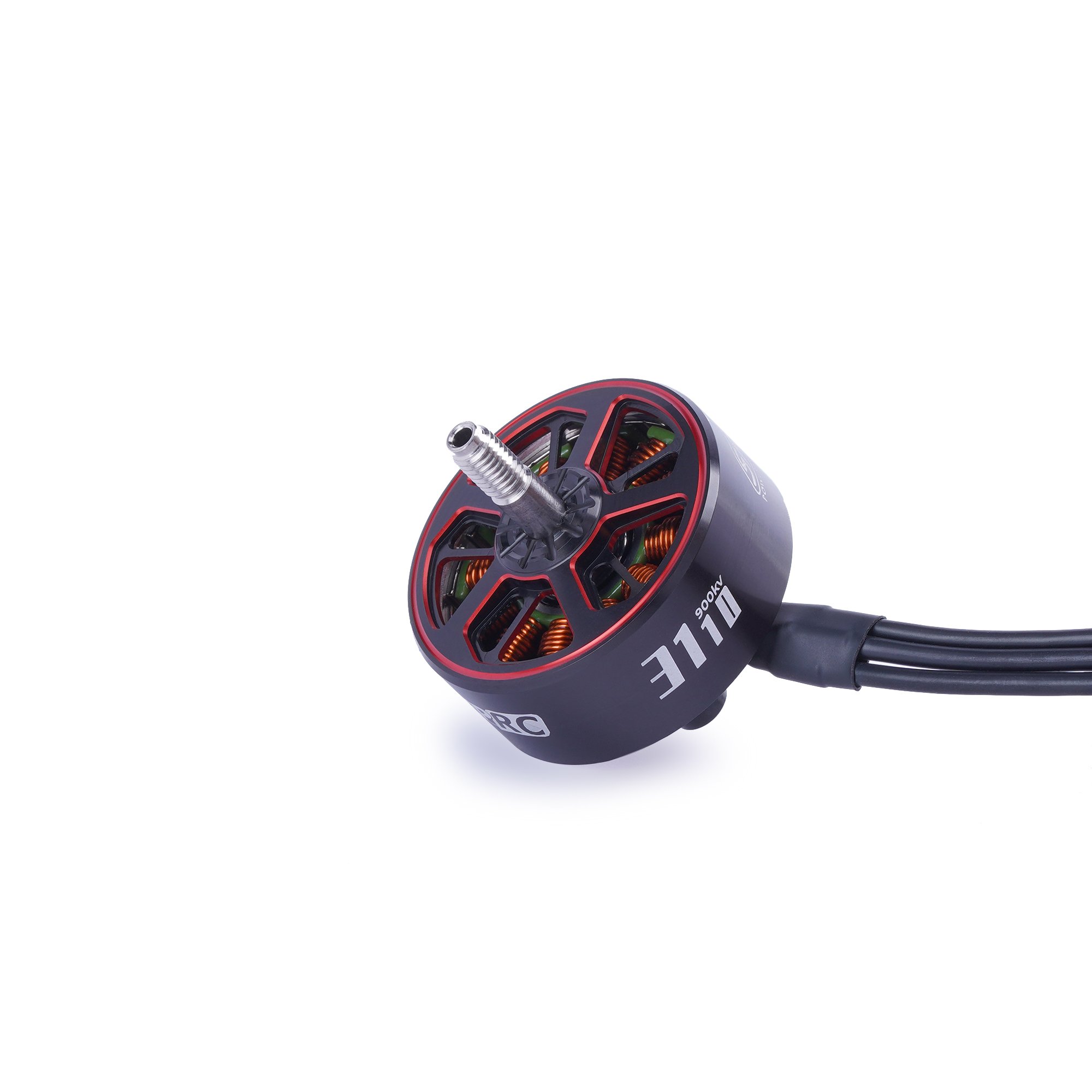

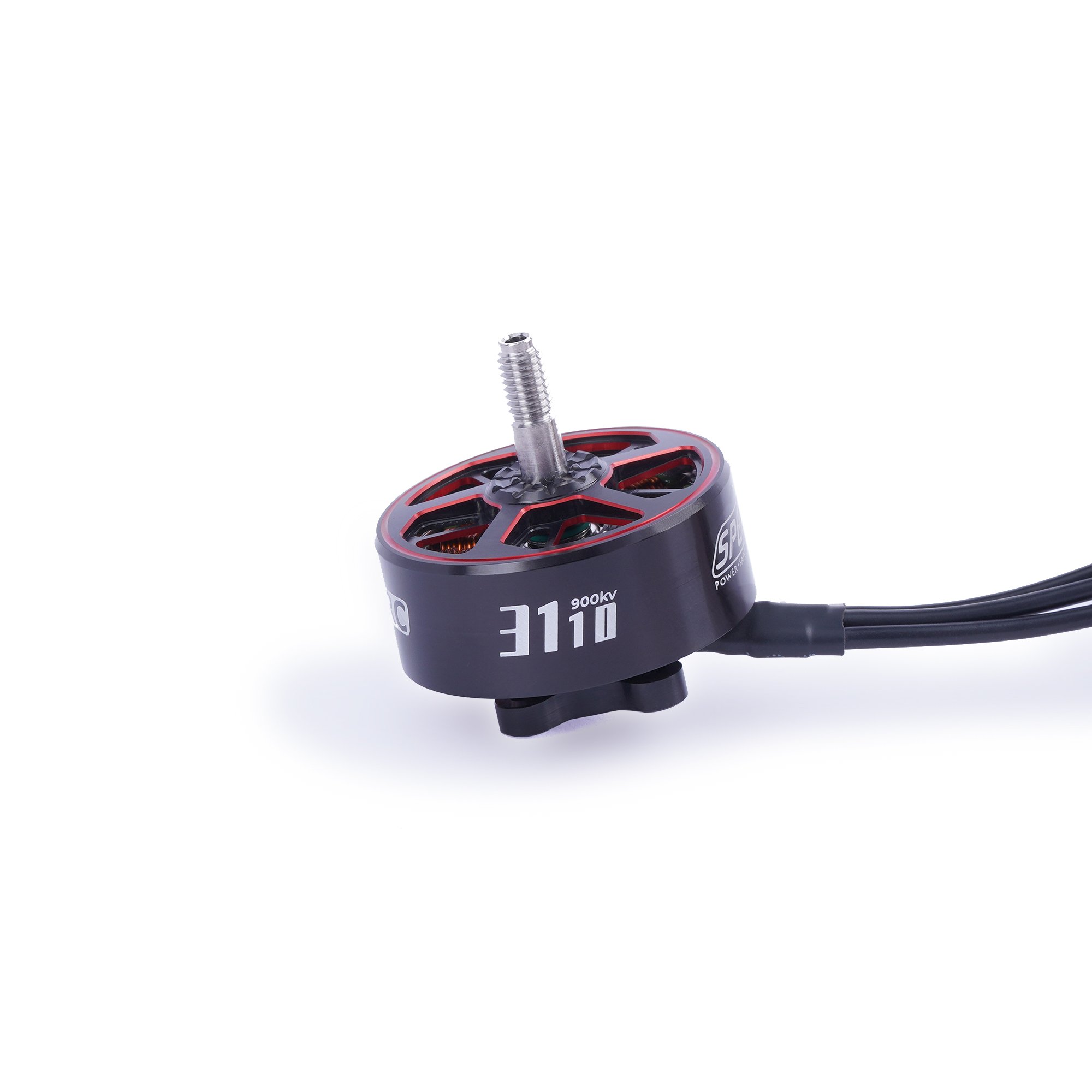

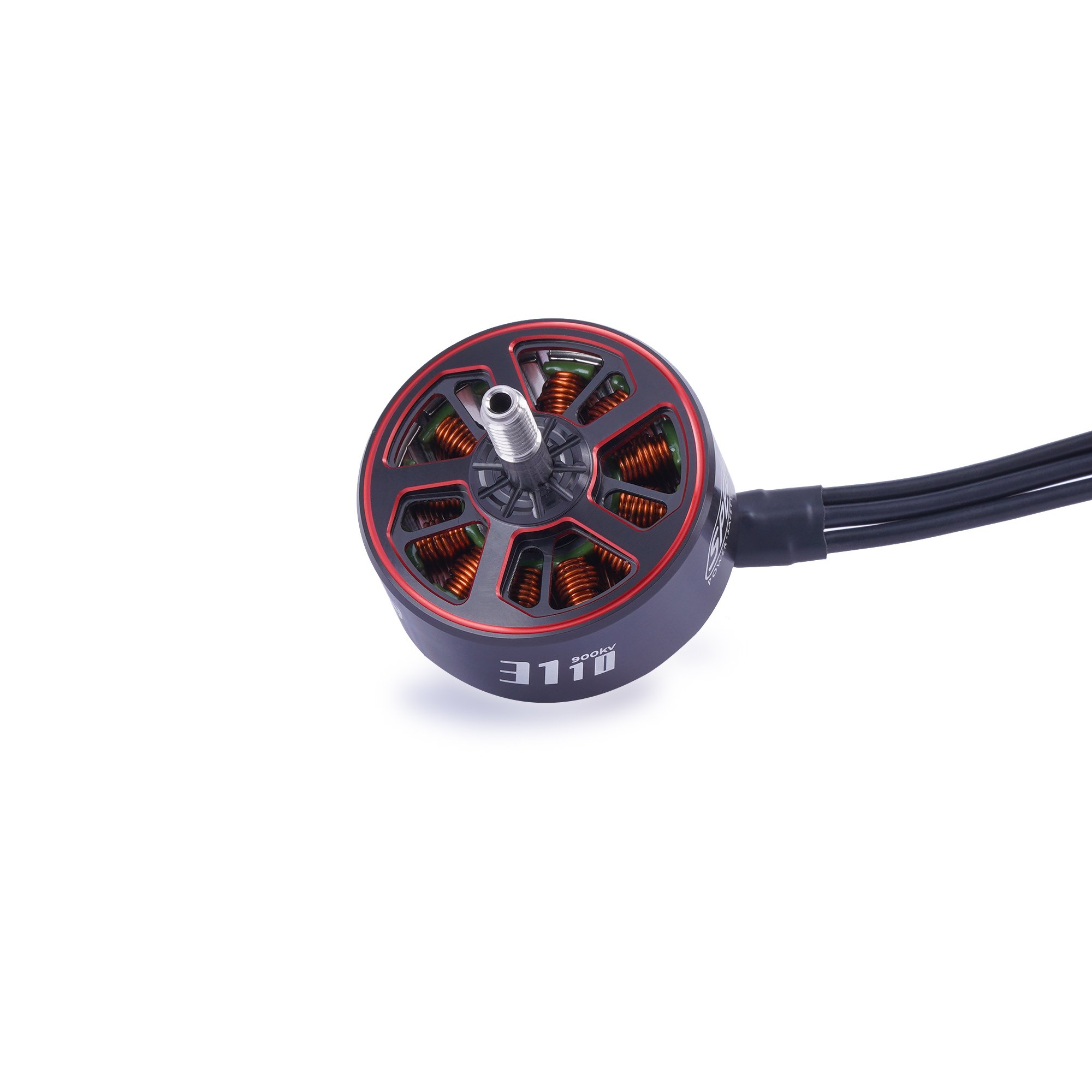

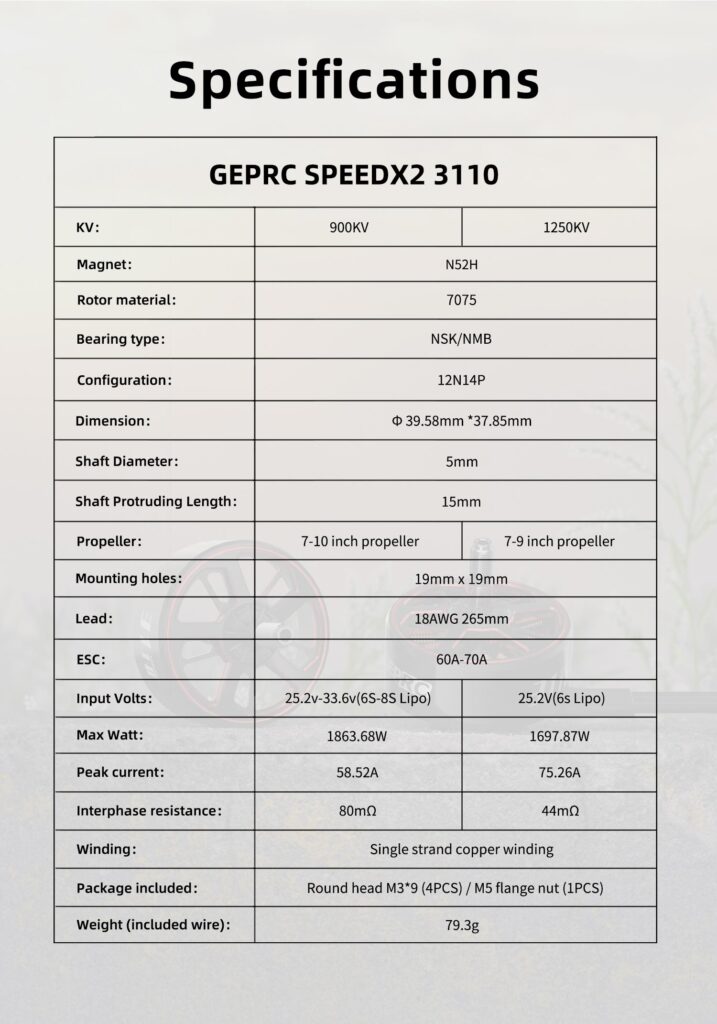

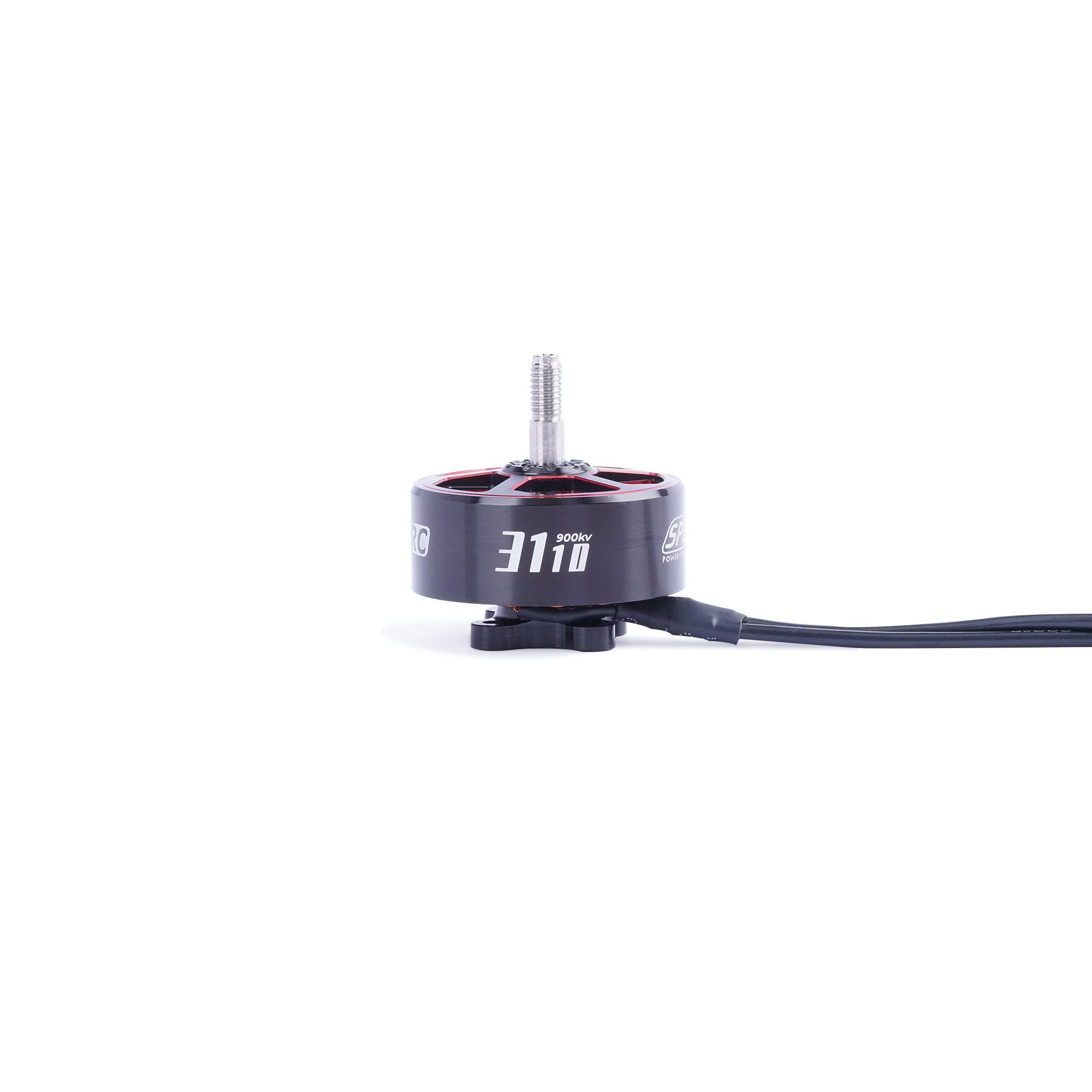

SPEEDX2 3110 900KV Motor

KV: 900KV
Configuration: 12N14P
Magnet: N52H ARC
Rotor material: 7075-T6 aviation aluminum alloy
Stator diameter: 31mm
Stator height: 10mm
Output shaft diameter: Φ5mm

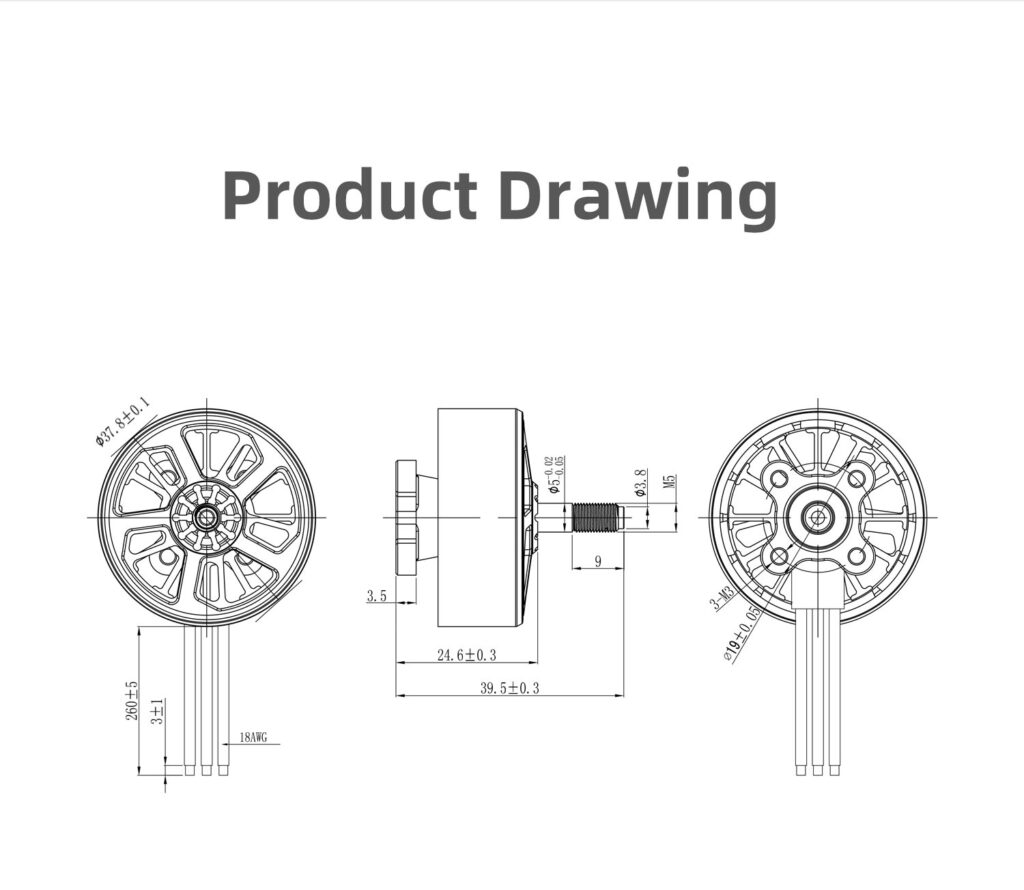

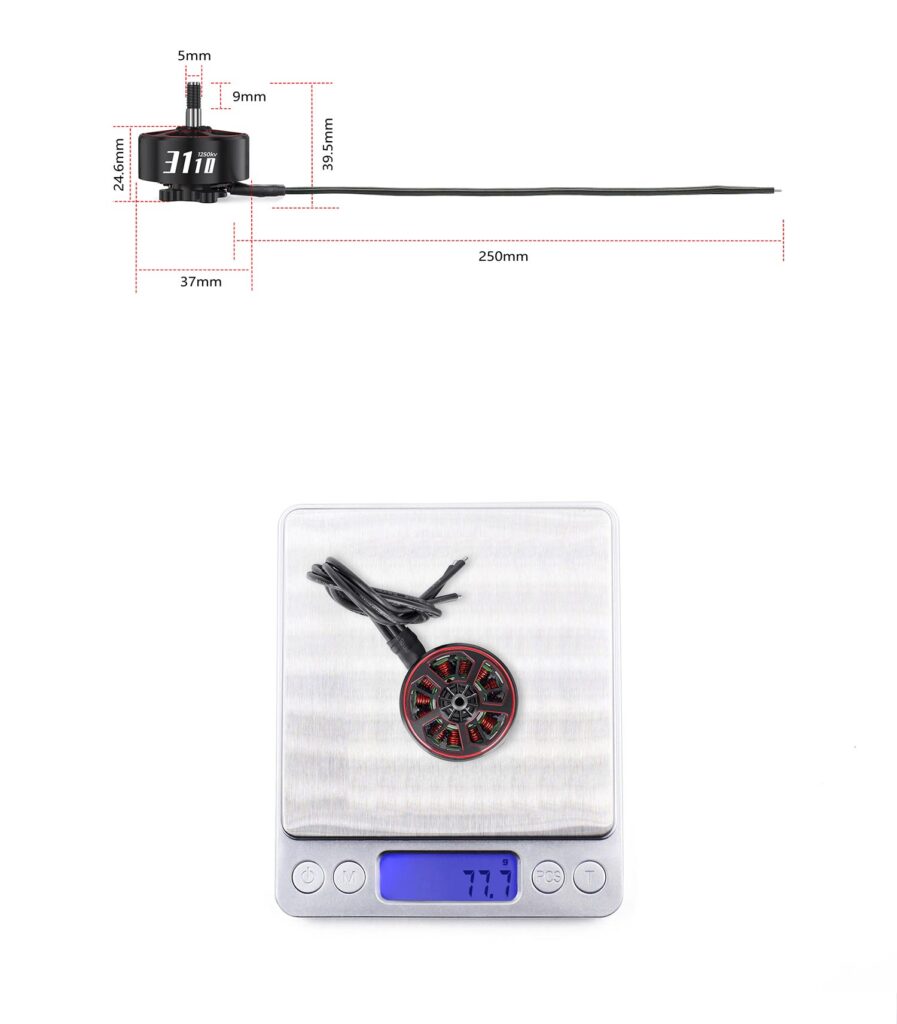

Dimensions: Φ39.58mm *37.85mm

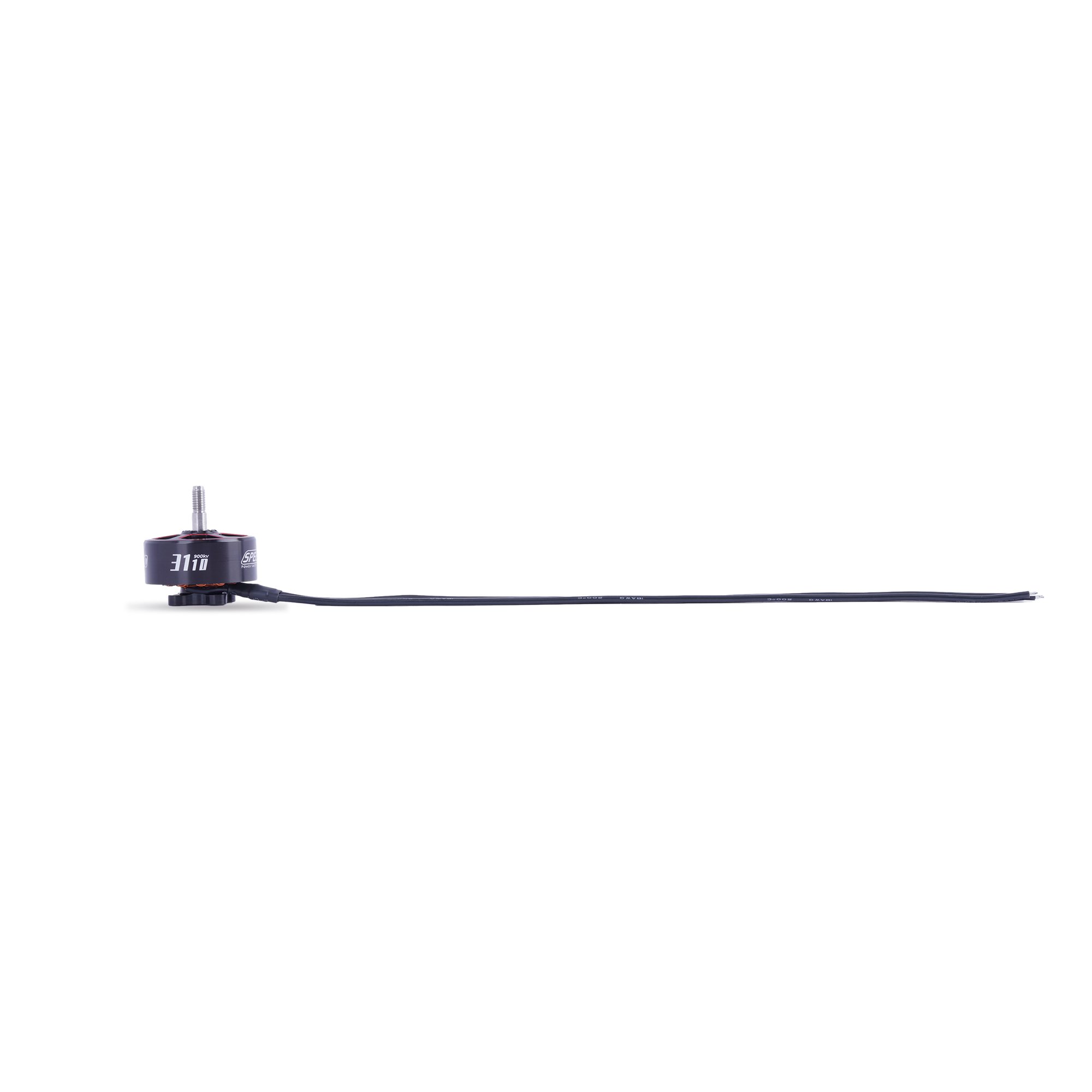

Outlet specification: 18AWG 265mm
Rated voltage: 25.2V LiPo 6S

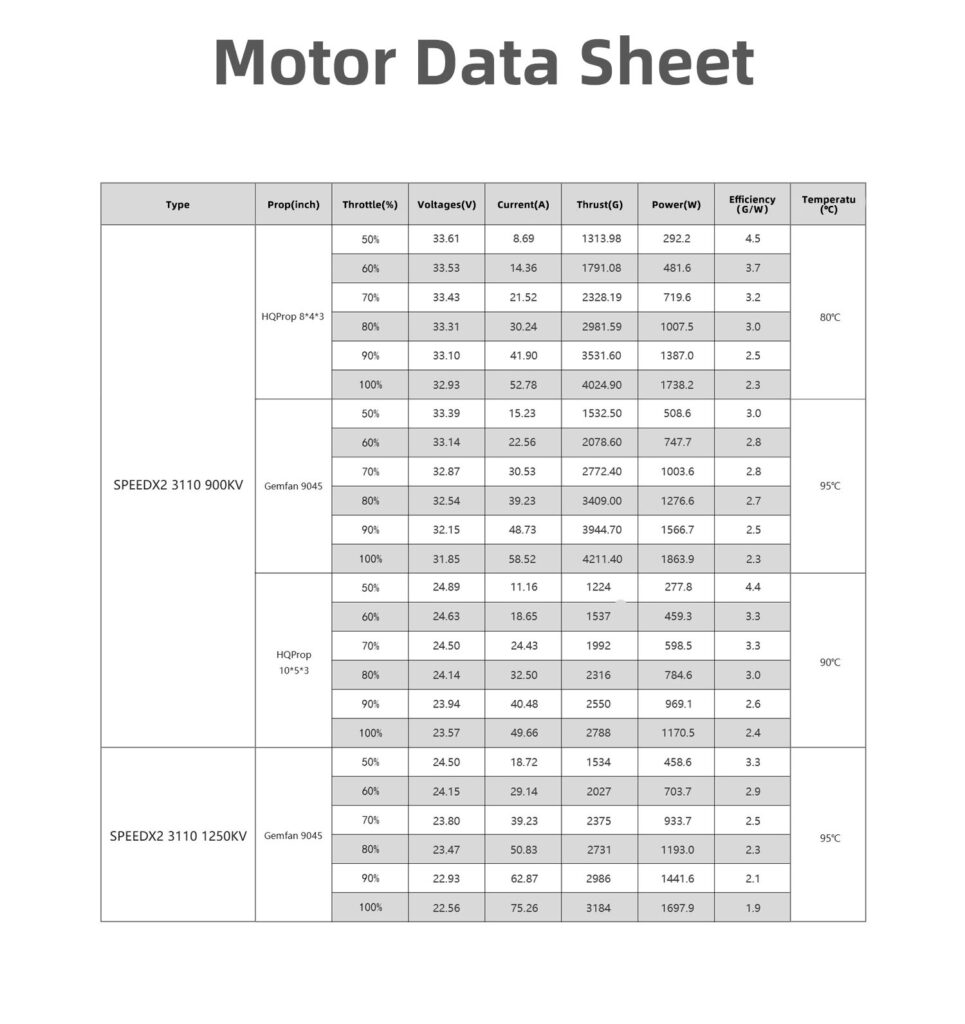

Maximum power: 1863.68W
Maximum current: 58.52A

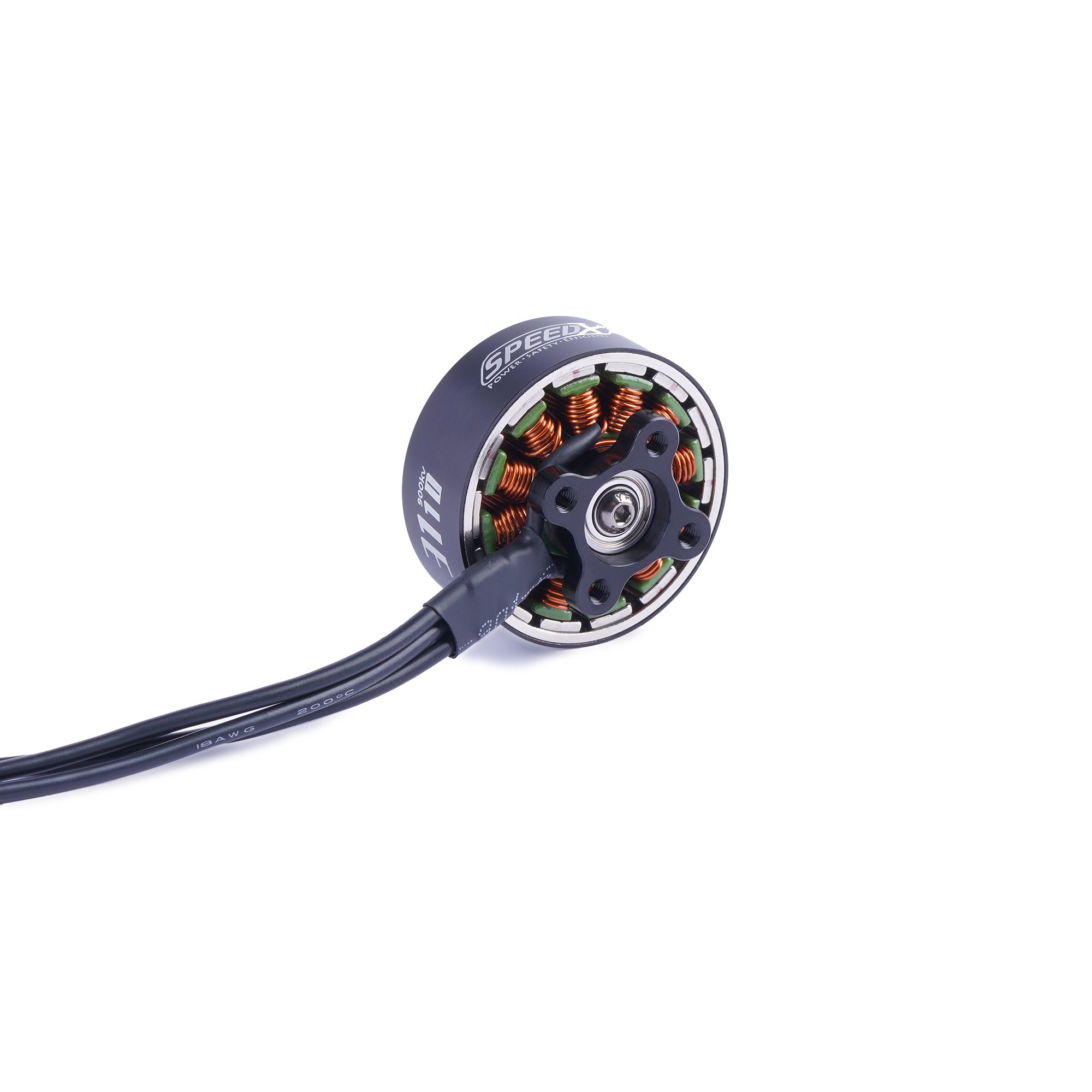

Mounting hole: 19x19mm (M3)
Color: black with red
Weight: 79.3g (including wire)
Applicable models: suitable for 7-10 inch long range FPV drones / 7 inch X8 models

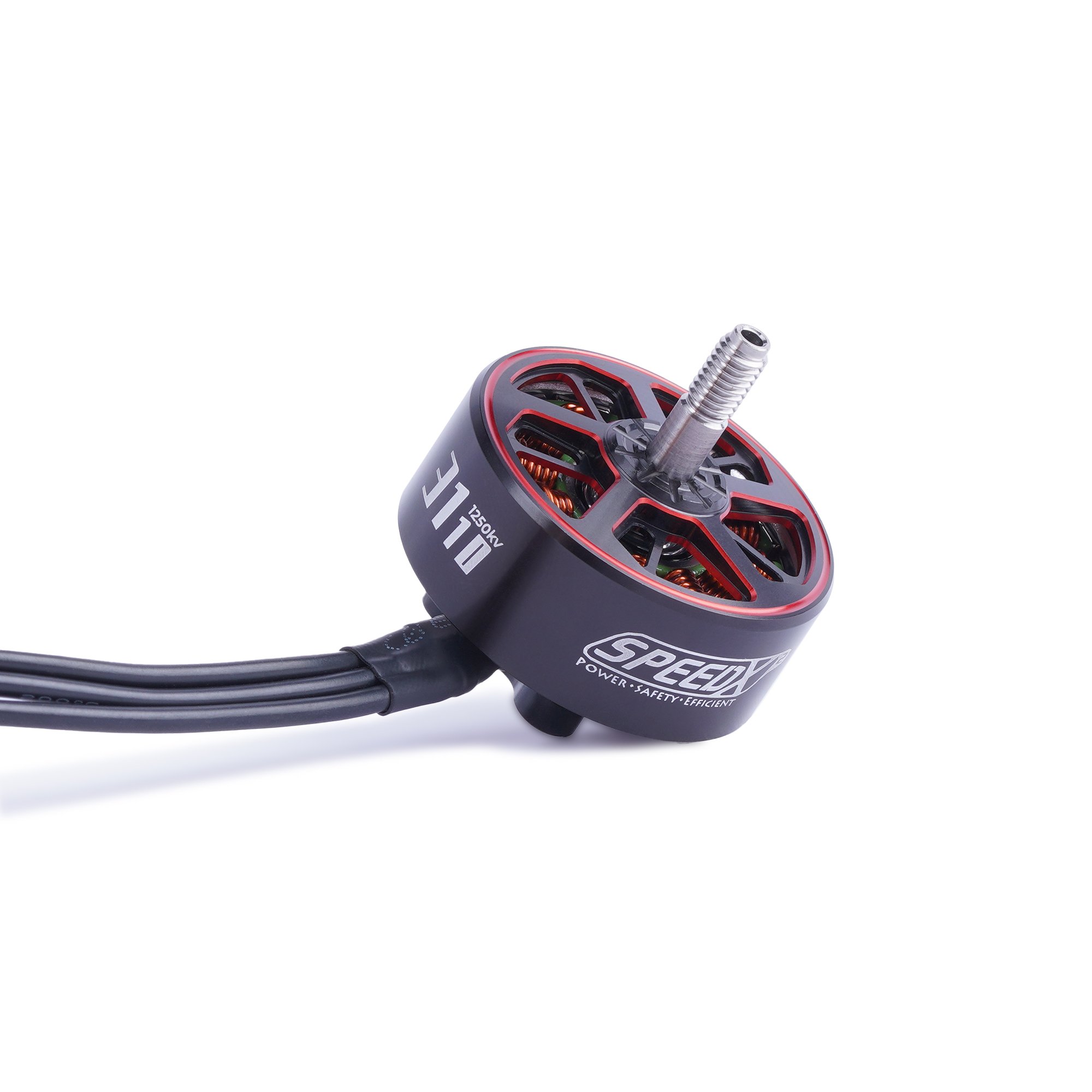

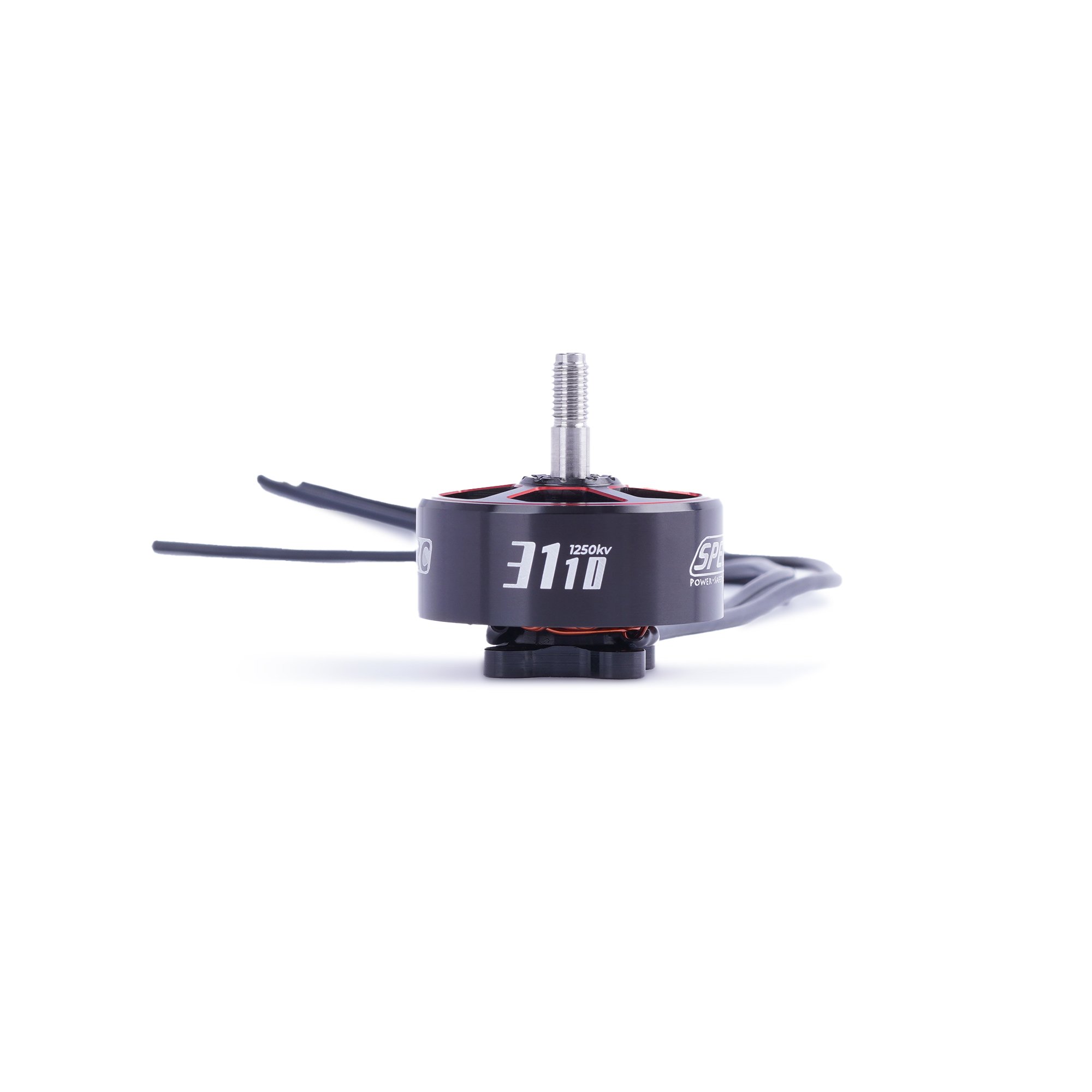

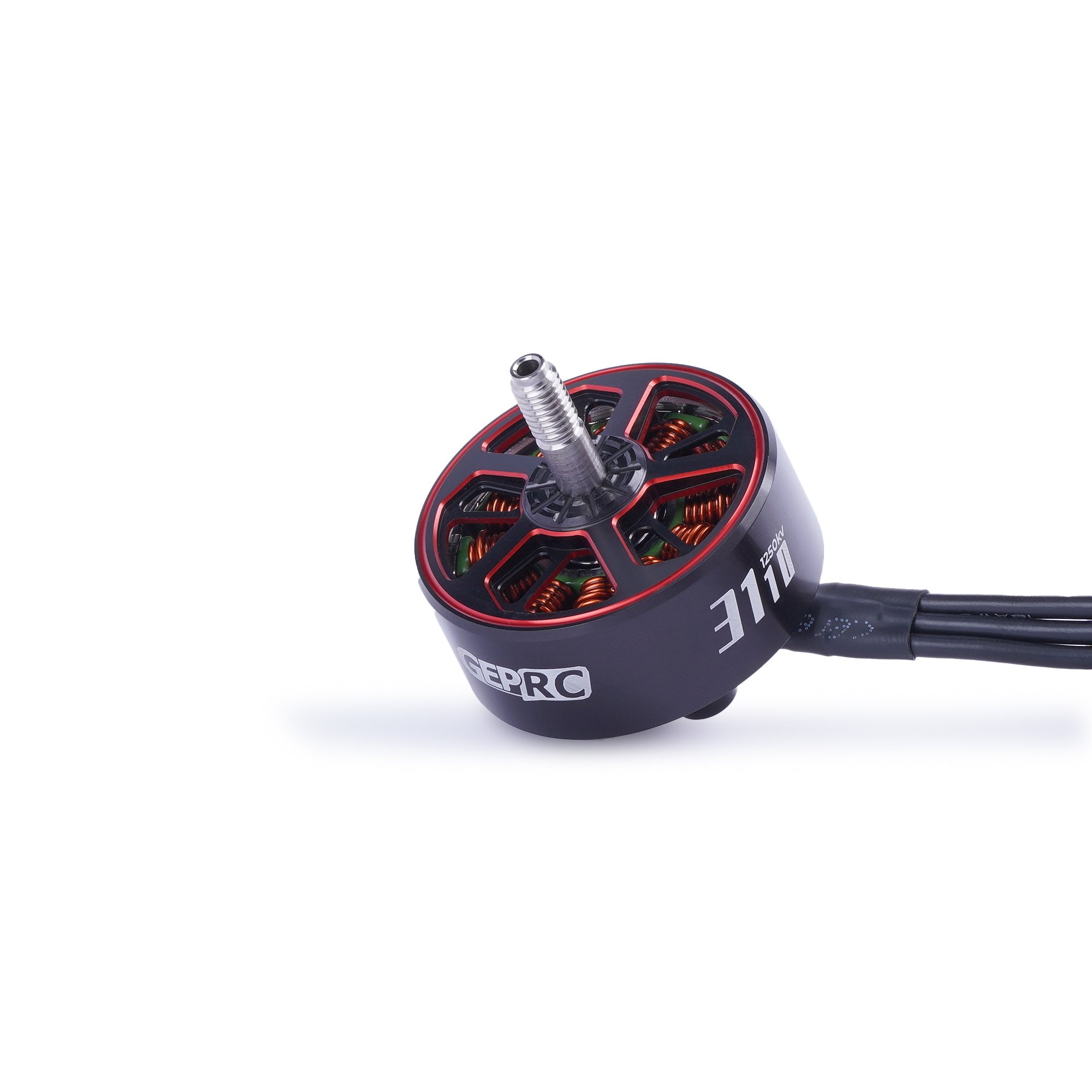

SPEEDX2 3110-1250KV Motor

KV:1250KV
Configuration: 12N14P
Magnet: N52H ARC
Rotor material: 7075-T6 aviation aluminum alloy
Stator diameter: 31mm
Stator height: 10mm
Output shaft diameter: Φ5mm
Dimensions: Φ39.58mm *37.85mm
Outlet specification: 18AWG 270mm
Rated voltage: 25.2V Lipo 6S
Maximum power: 1697.87W
Maximum current: 75.26A
Mounting hole: 19x19mm（M3）
Color: black with red
Weight: 79.3g (including wire)
Applicable models: suitable for 7-10 inch long range FPV drones / 7 inch X8 models
