GepRC GEP-LC75 V3

Производитель

GepRC

Категория

7.5" frame

Тип рамы

DC

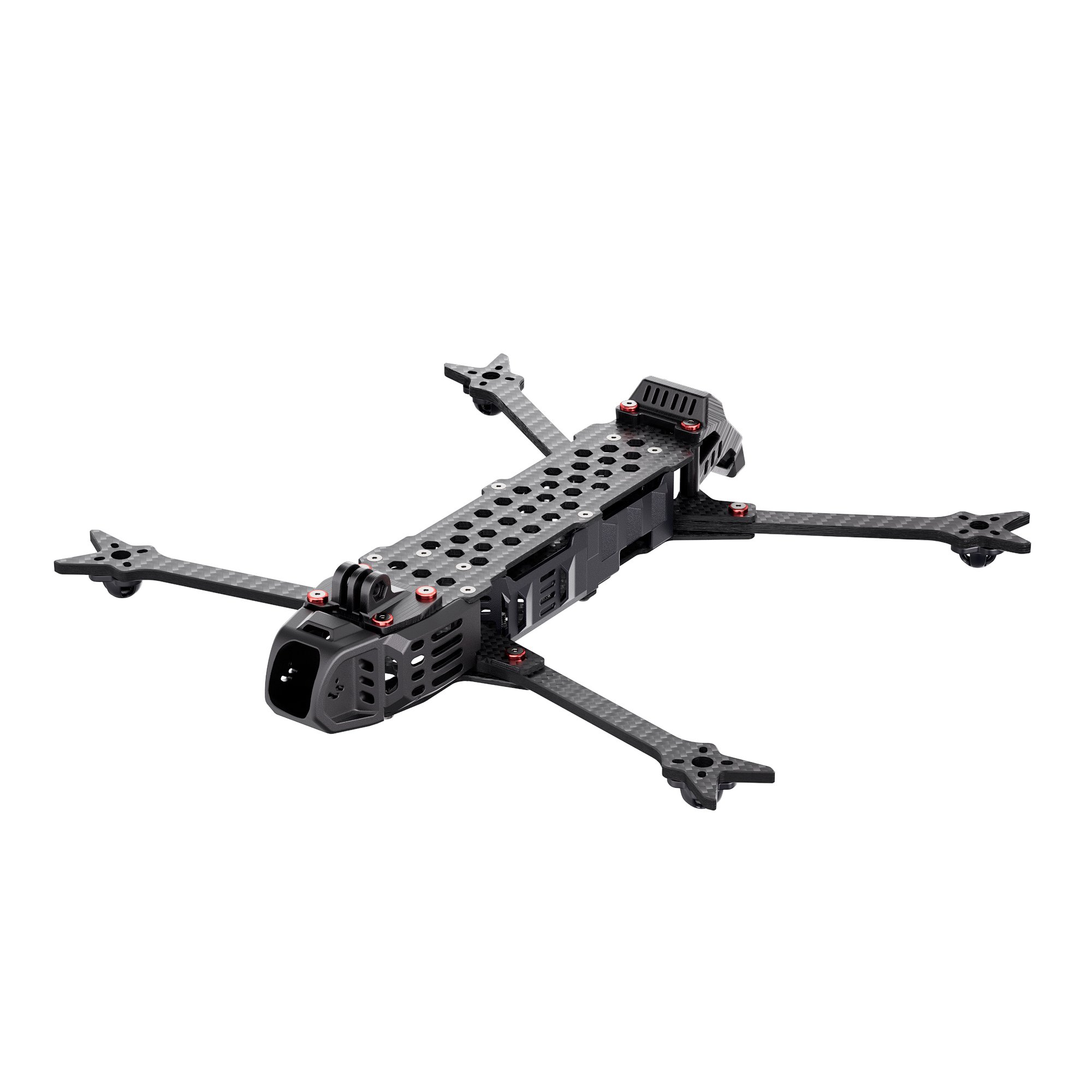

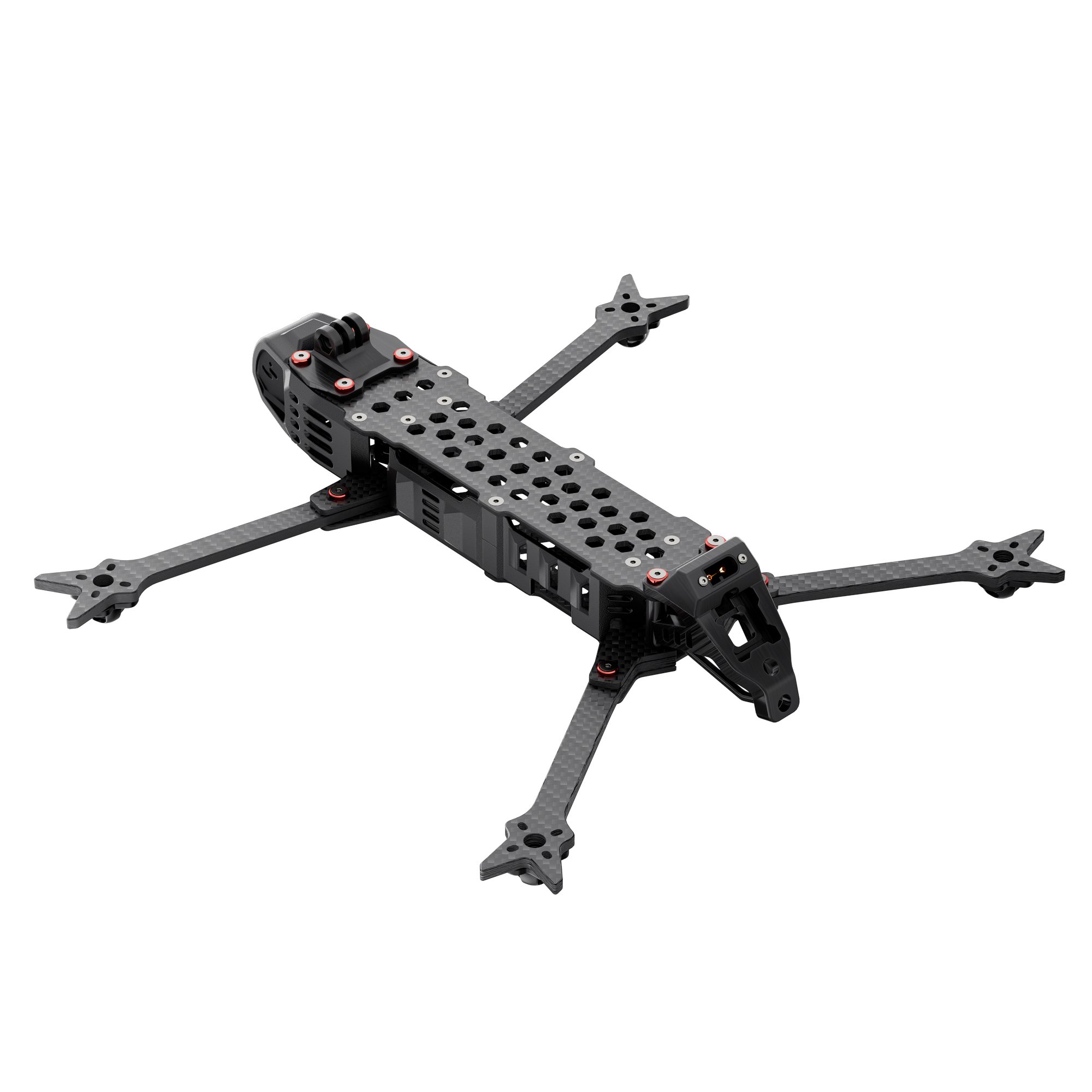

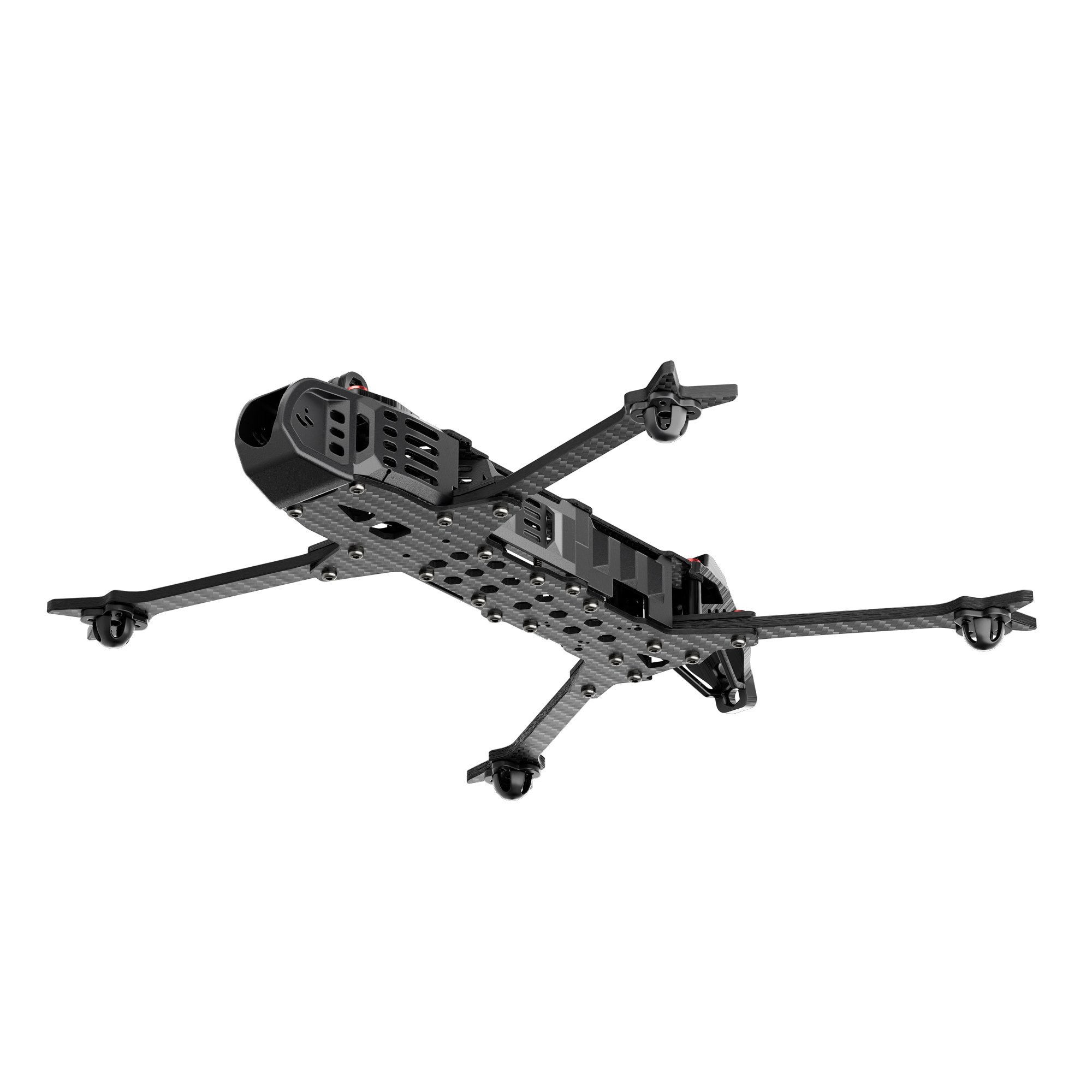

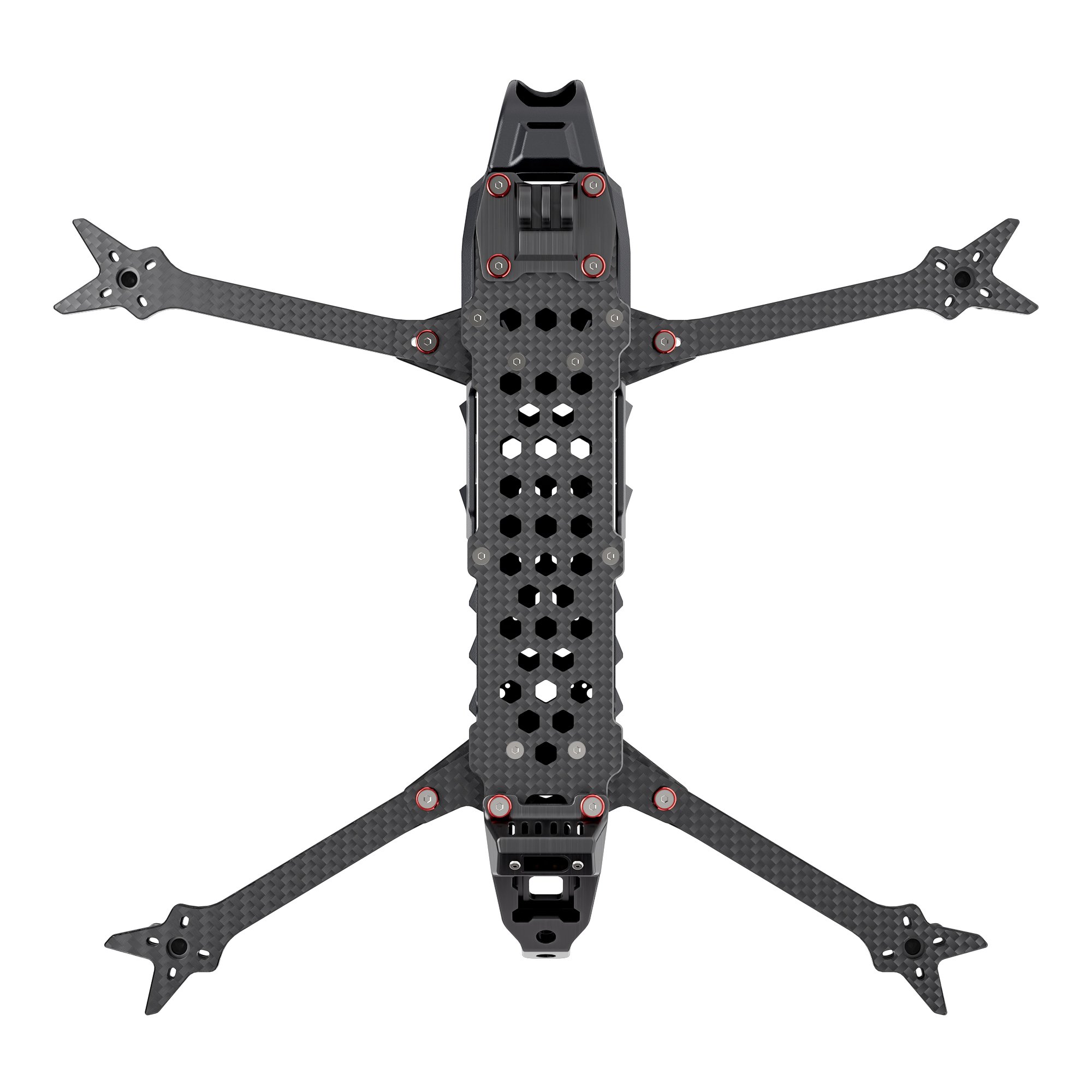

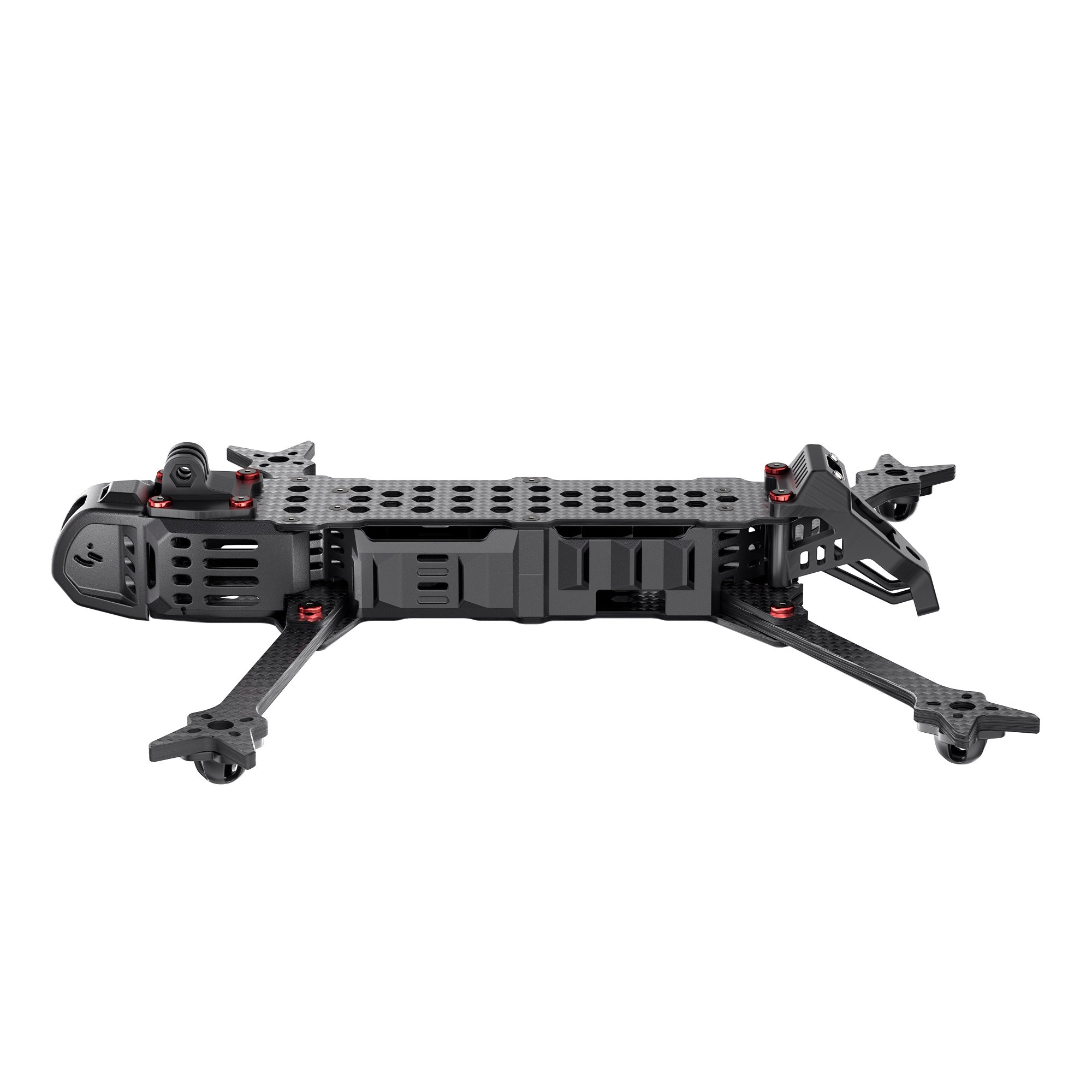

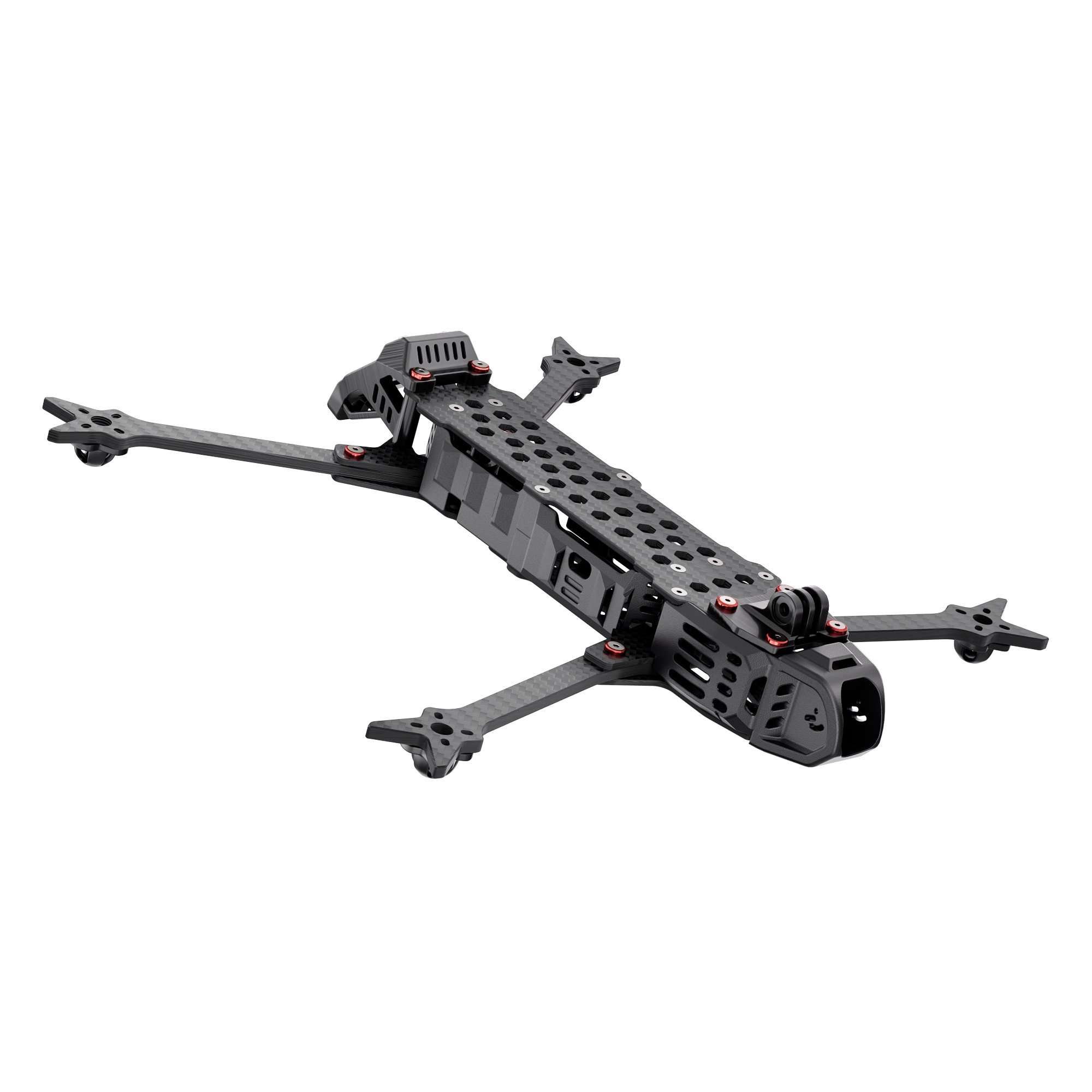

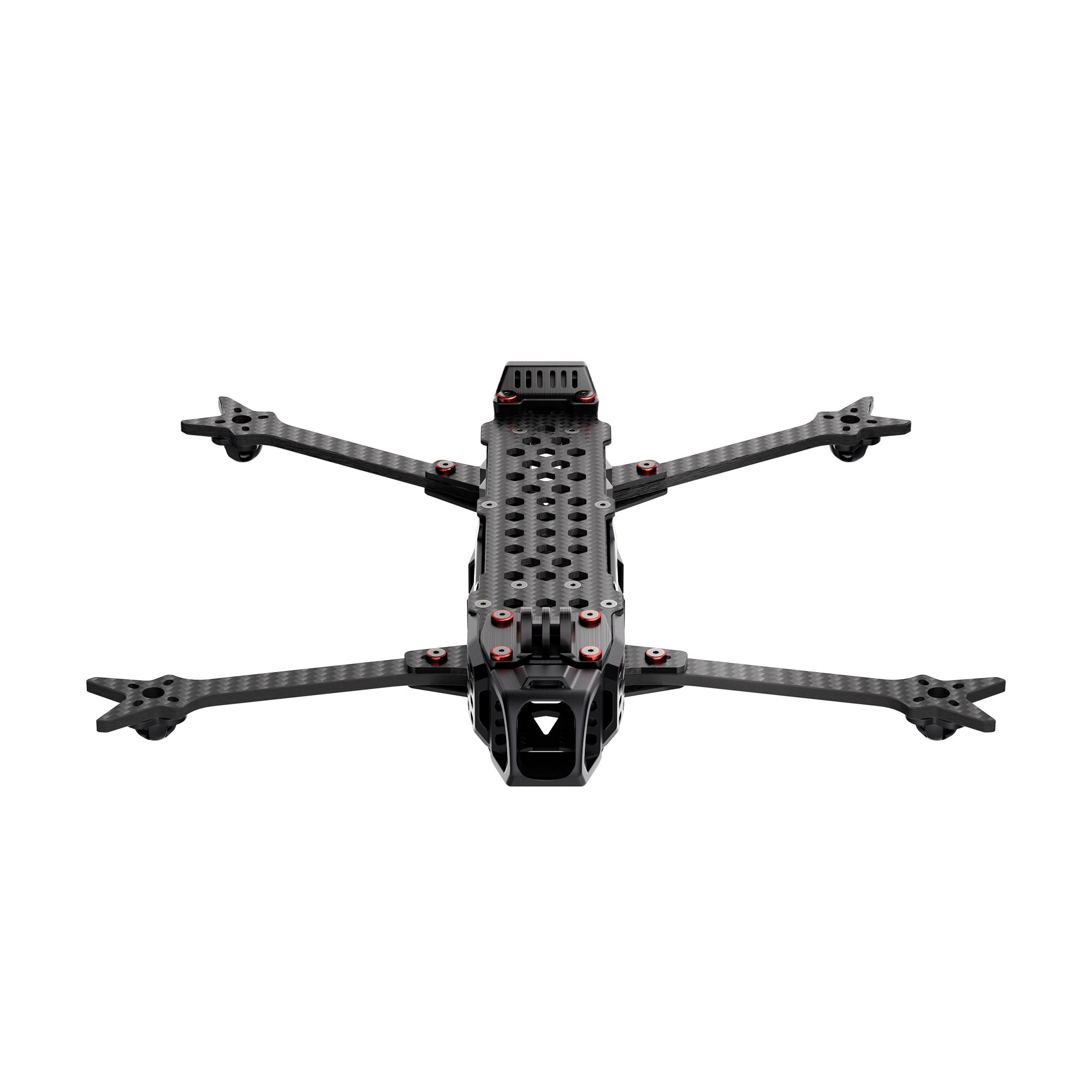

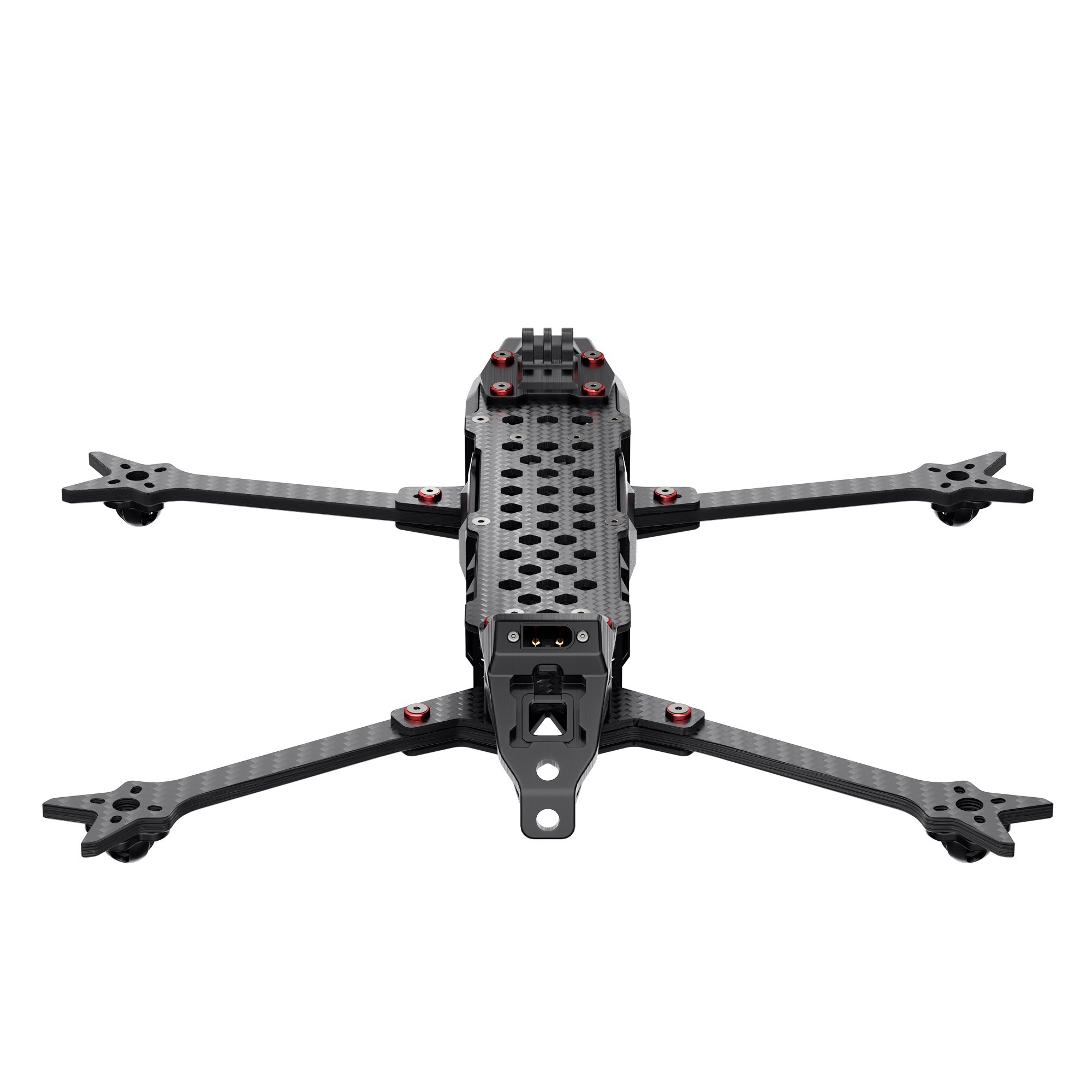

GEP-LC75 V3 is a long range frame, which uses H-shaped structure design and adds protective side panels to the fuselage to protect the electronic control system from dust pollution. The arm is made of 6mm thick carbon fiber plate to improve flight stability. The fuselage structure optimizes the strength of the main stress points to ensure strong crashworthiness.

  • Model: GEP-LC75 V3
  • Size: 7.5 inch
  • Wheelbase: 342mm
  • Top plate: 2.5mm
  • Bottom plate: 3.0mm
  • Arm plate: 6.0mm
  • FC mounting hole: 30.5mm*30.5mm
  • VTX mounting hole:20mm*20mm / 25.5mm*25.5mm
  • Motor mounting hole: 16mm*16mm / 19mm*19mm
  • Camera mounting hole: 19mm / 20mm
  • Recommended propeller size: 7-7.5inch
  • Weight: 266g
