GepRC GR2205

Производитель

GepRC

Категория

Motor 2205

KV мотора

2300kv

Размер вала

3мм

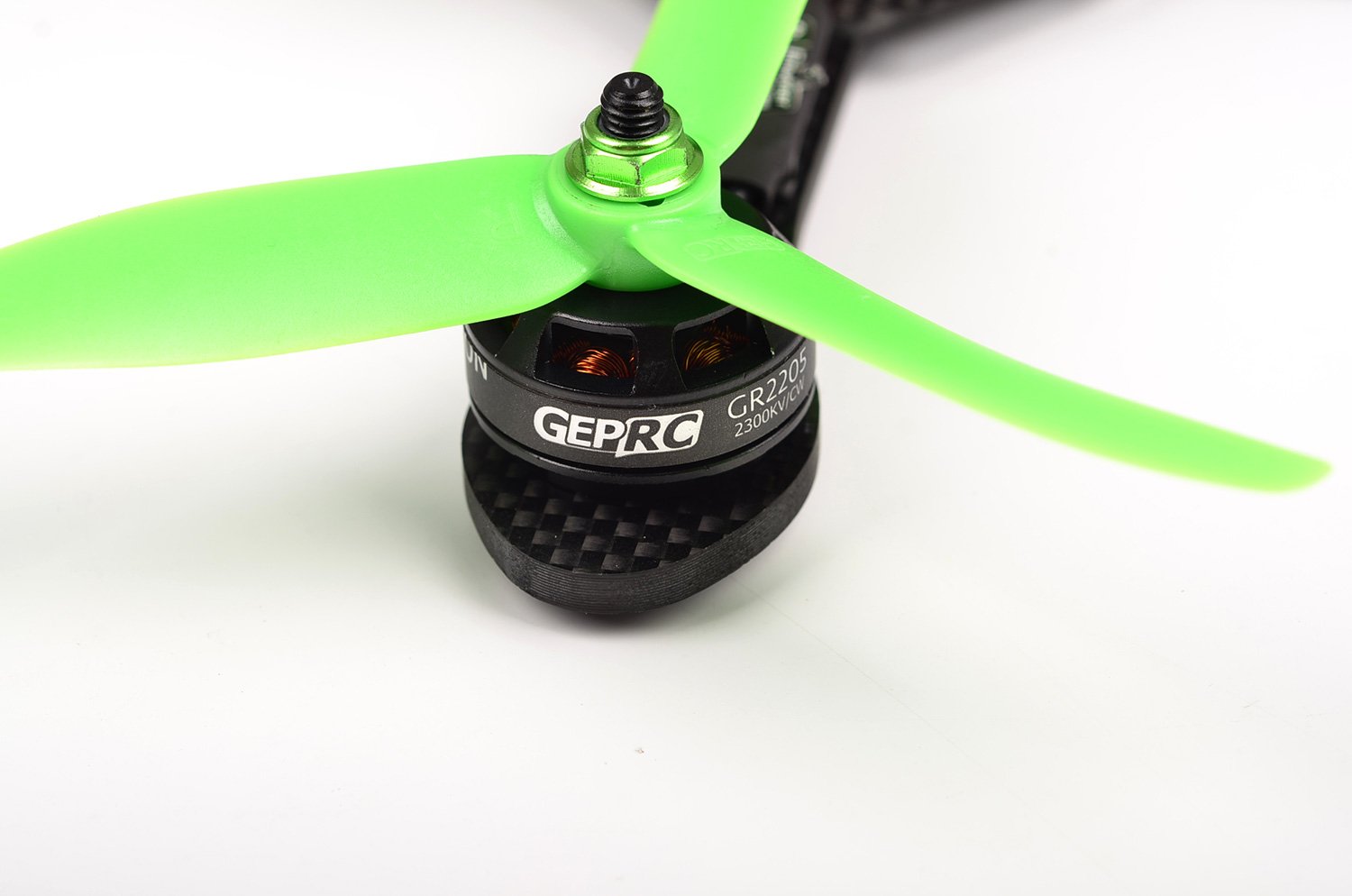

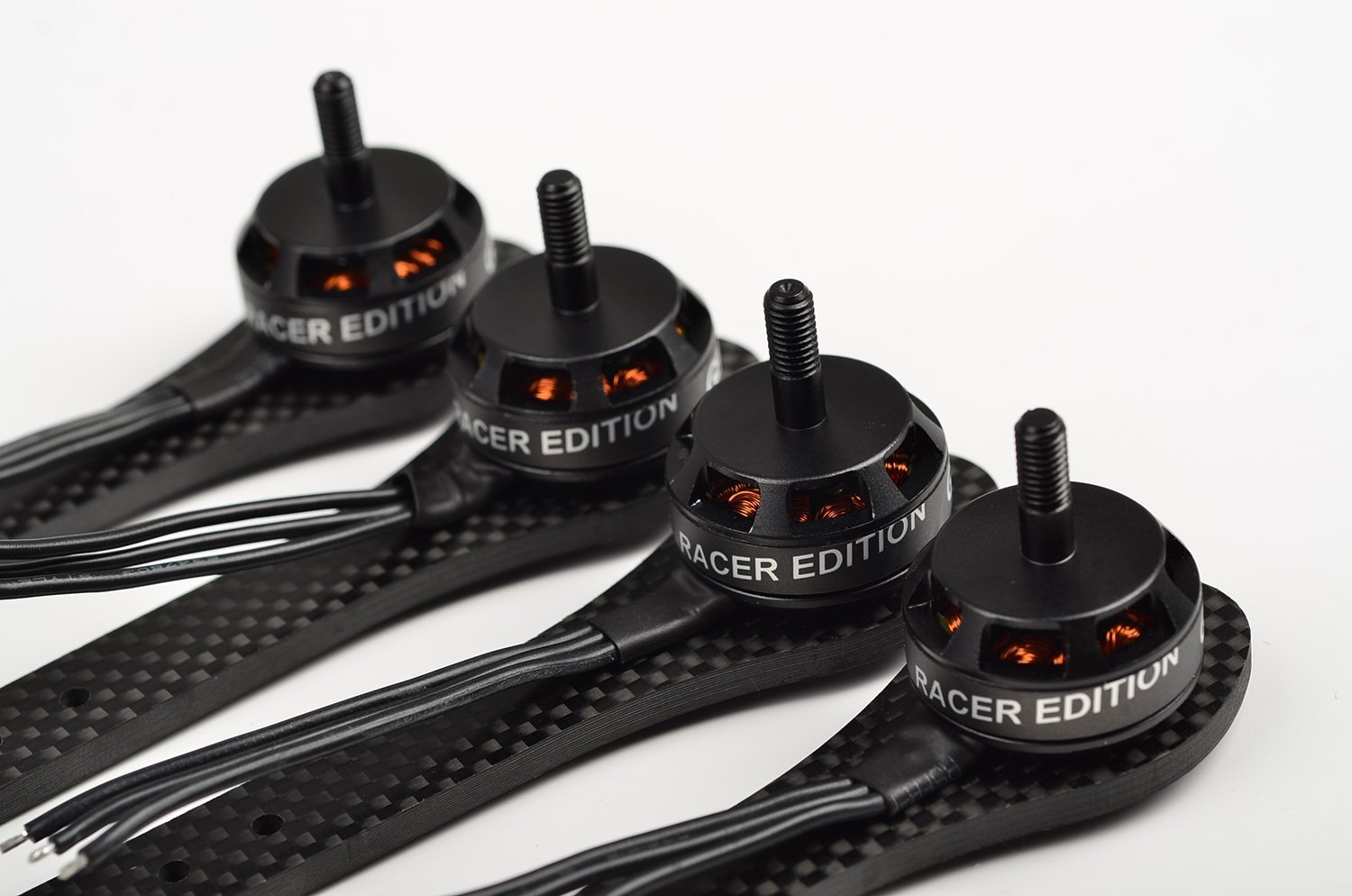

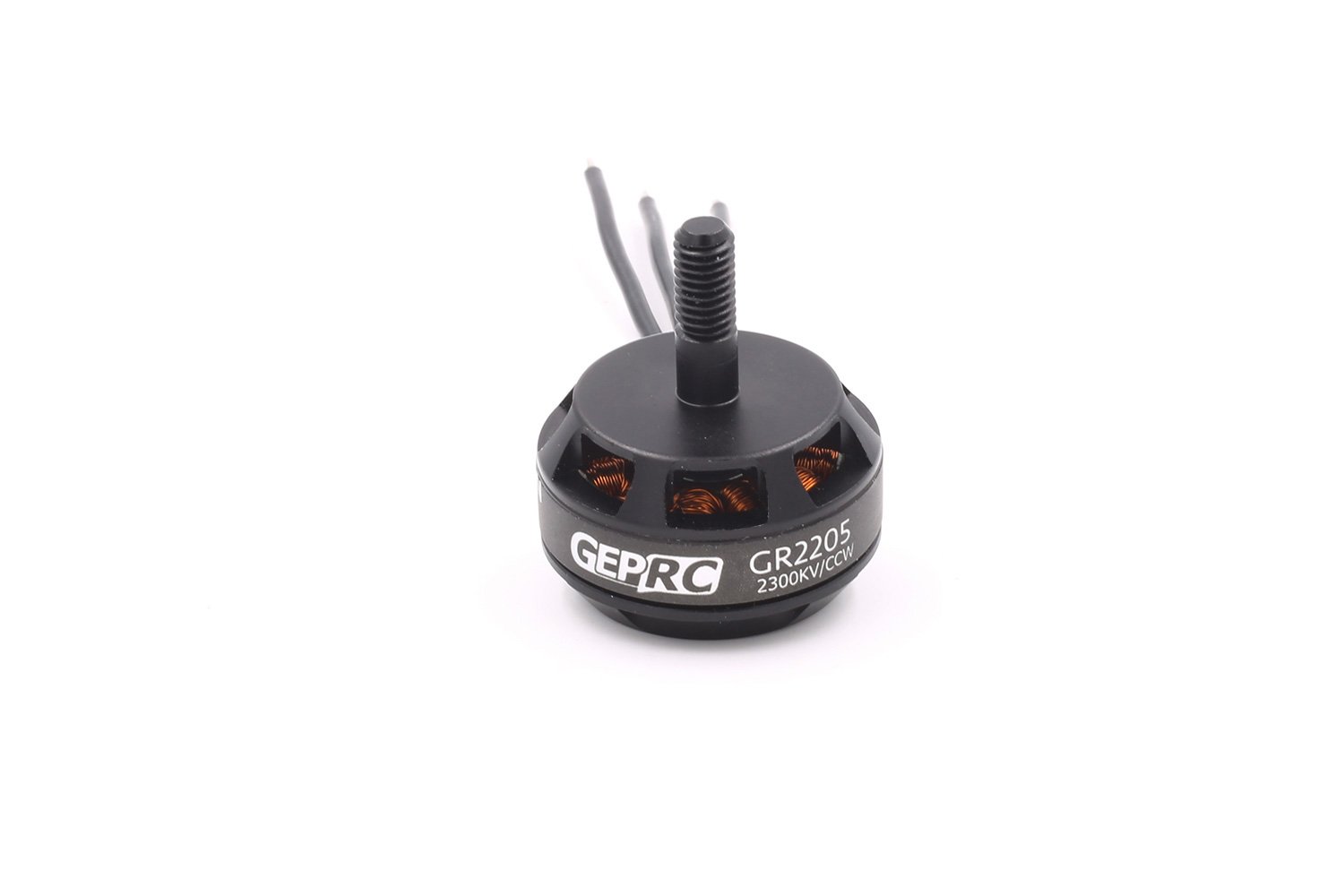

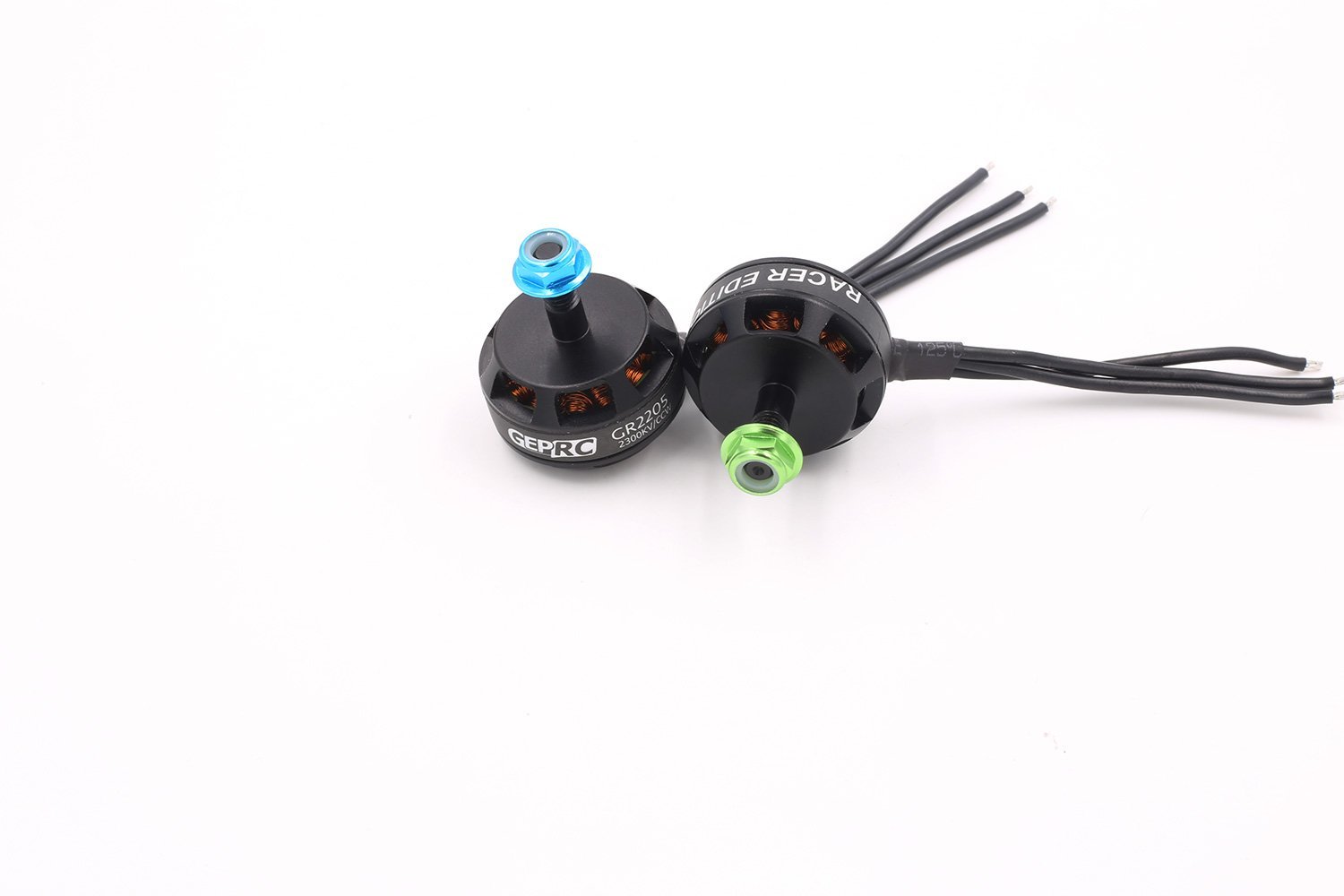

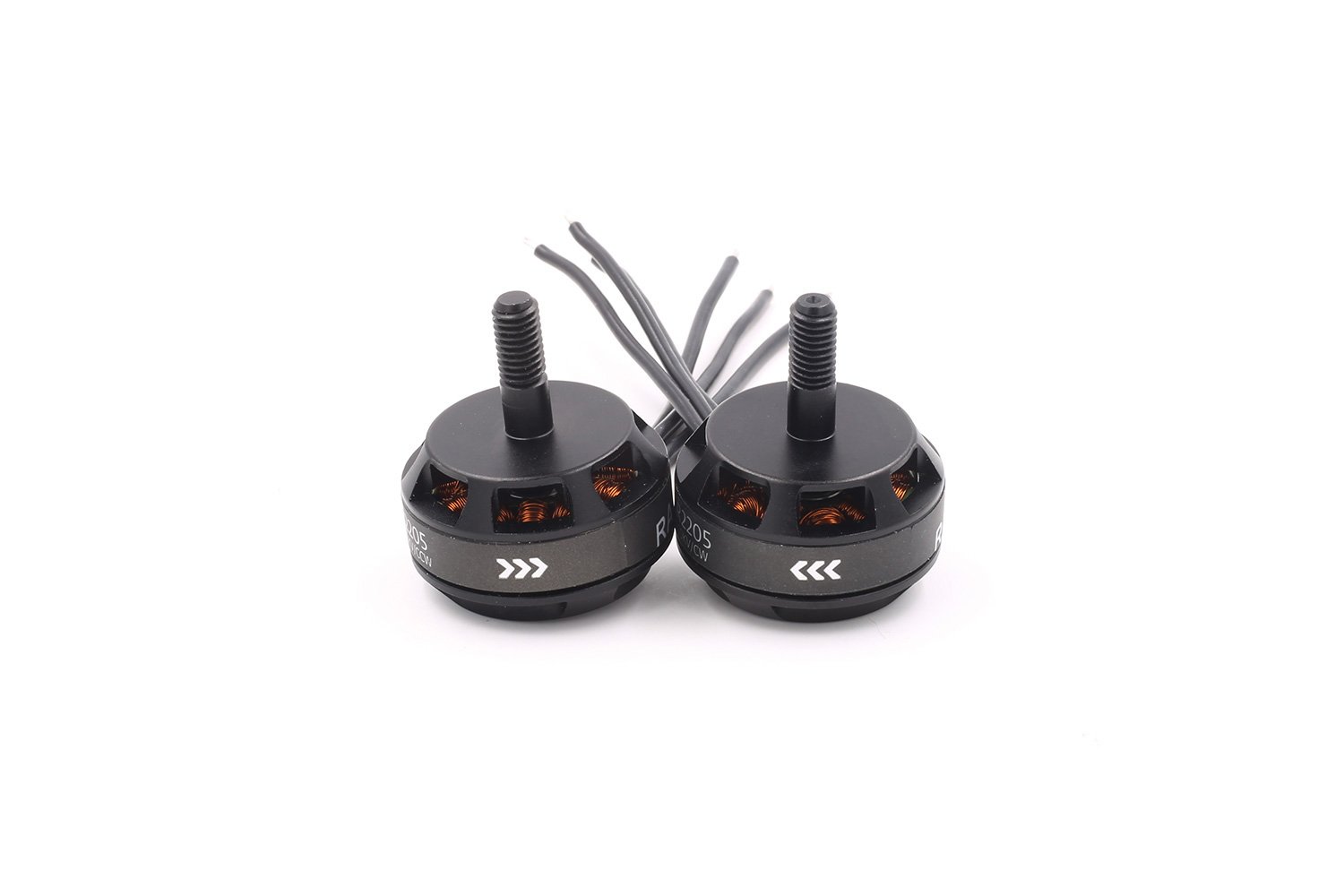

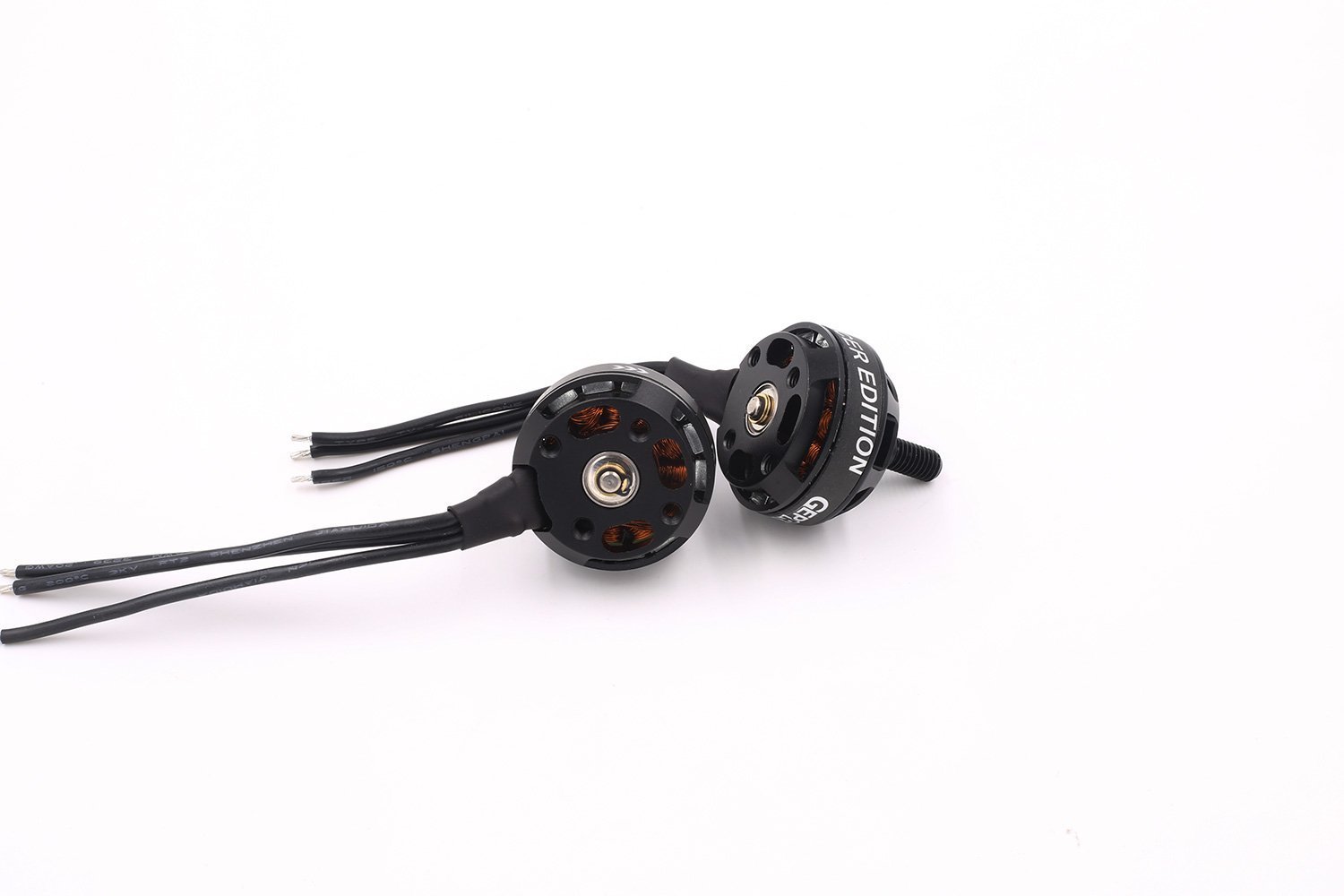

GEP-GR2205 2300kv Racer Edition Motor, We studied a lot of flying habits. Motor most of the accelerator will be in the range of 60-90%, So the power of the motor is very important, So we use magnetic N45SH label, SH model with high magnetic loss characteristics, can let the motor to ensure high-speed running off magnetic, protection of electric, magnetic. The appearance design of durable structure, very suitable for racing requirements. Freestyle flight effect also can output power be not of the common sort, make the plane landed at high speed, flexible.

Specifications：

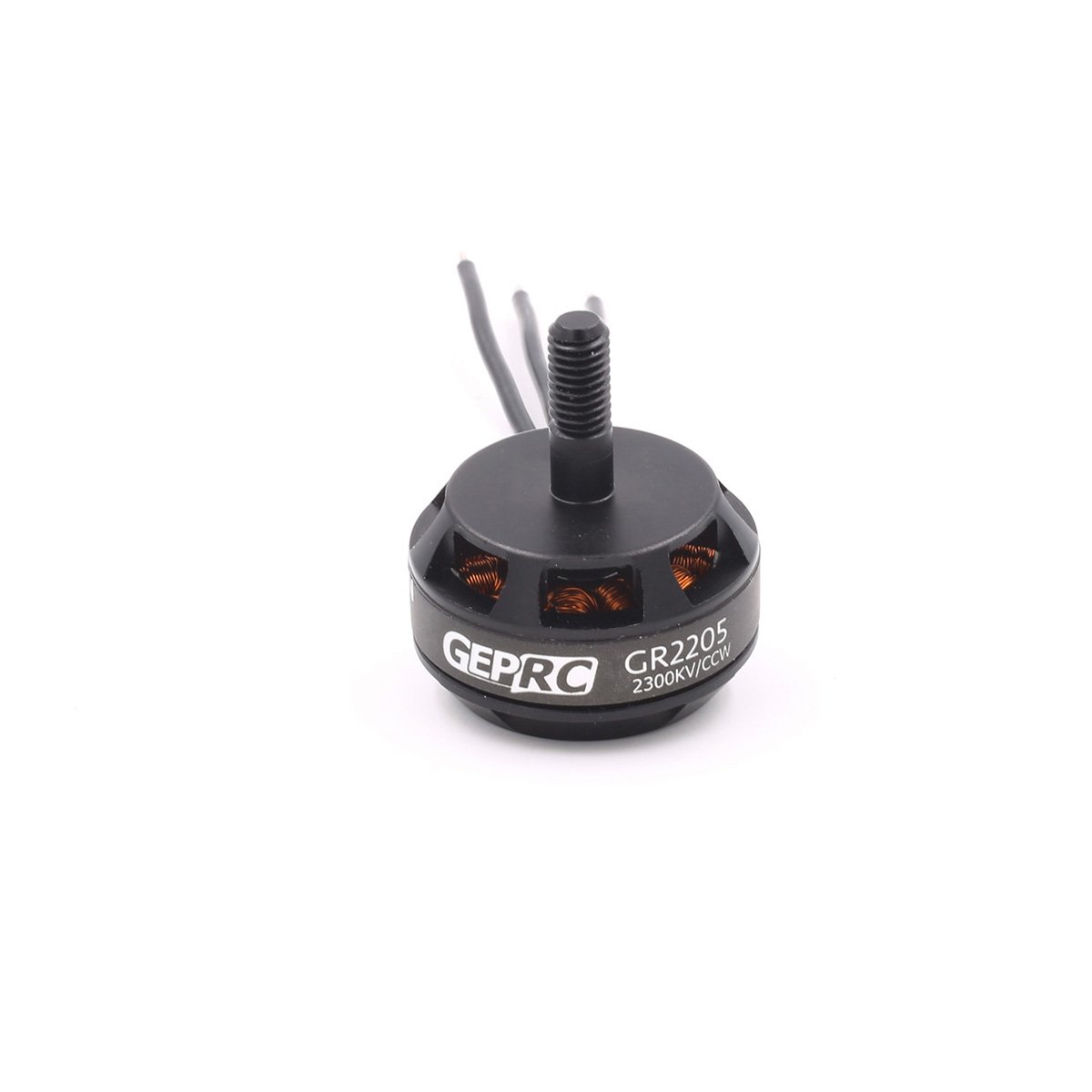

Model: GR2205
KV: 2300kv
Weight: Approx. 29g with wires
Wire AWG: 20AWG
Cable length: 70mm
Stator Diameter: 22mm
Stator Height: 5mm
Shaft Diameter: 3mm
Configuration: 12N14P
Motor Diameter: 28mm
Motor Height: 33mm
Prop Adapter Shaft Thread: M5
Input voltage: 3S-4S (12.6 – 16.8v)
KV2300 With DAL5045X3BN Max.thrust:1135g(4S 16.8V)

Features：

  1. The best effect and the best thrust of the accelerator is about 70%.
  2. Using N45SH magnet, both to ensure that the torque, not to lose magnetism

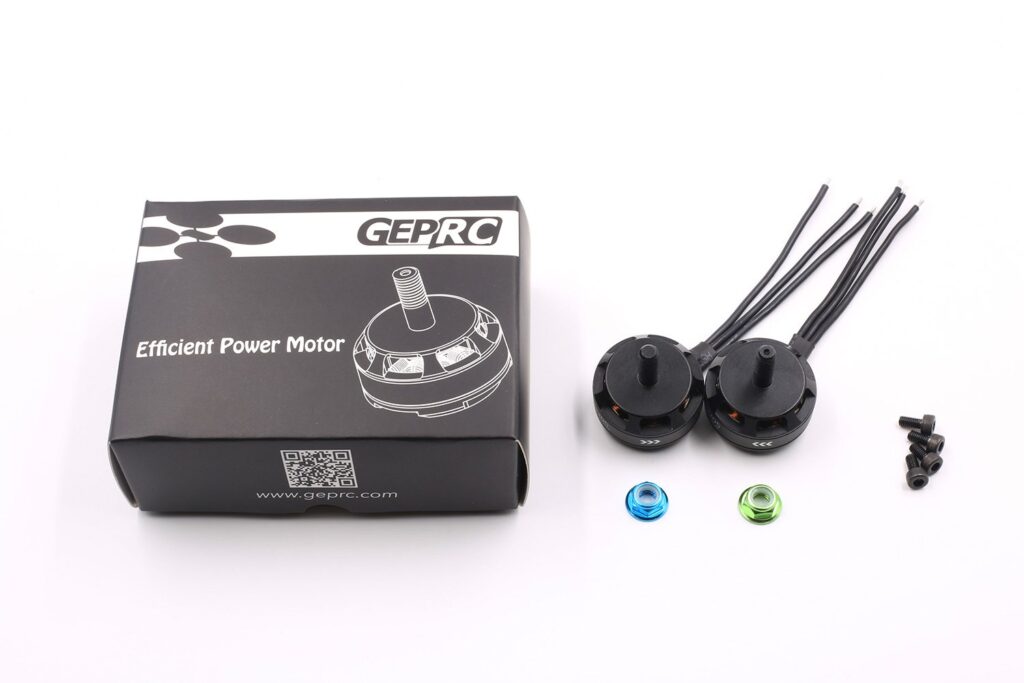

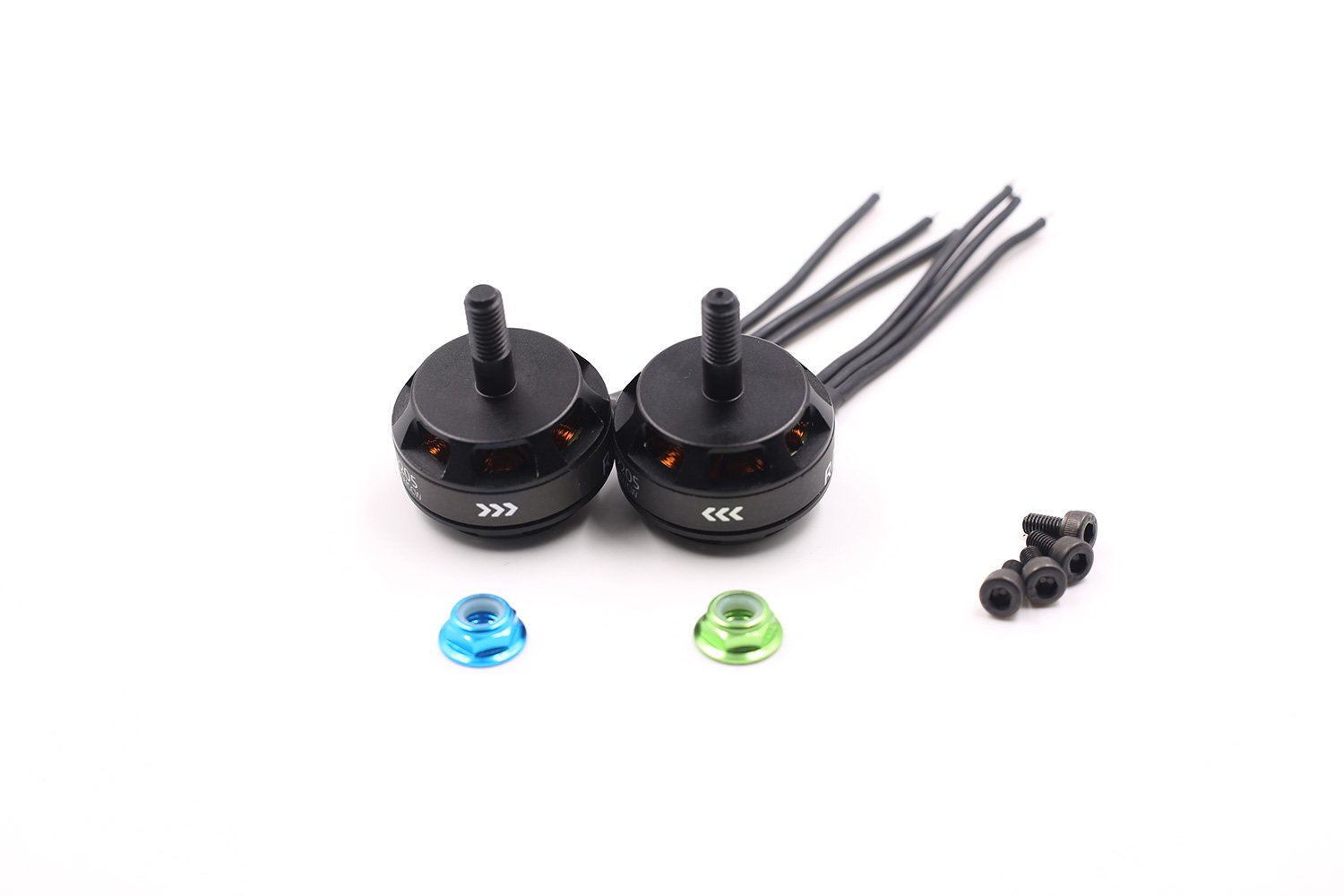

  3. 3.5 mm aluminum flange lock nut, very light
  4. Japan NMB bearings to ensure excellent operation of the motor
  5. M3 *6 mm YFS screw
  6. High temperature line 180℃
