GepRC GEP F722 45A AIO V2

Производитель

GepRC

Категория

FC AIO

Процессор

STM32F722

Гироскоп

ICM-42688-P

Монт. размер

25,5x25,5мм

Рабочий ток

45A

Прошивка ESC

BLHeli_S

Напряжение

до 6s

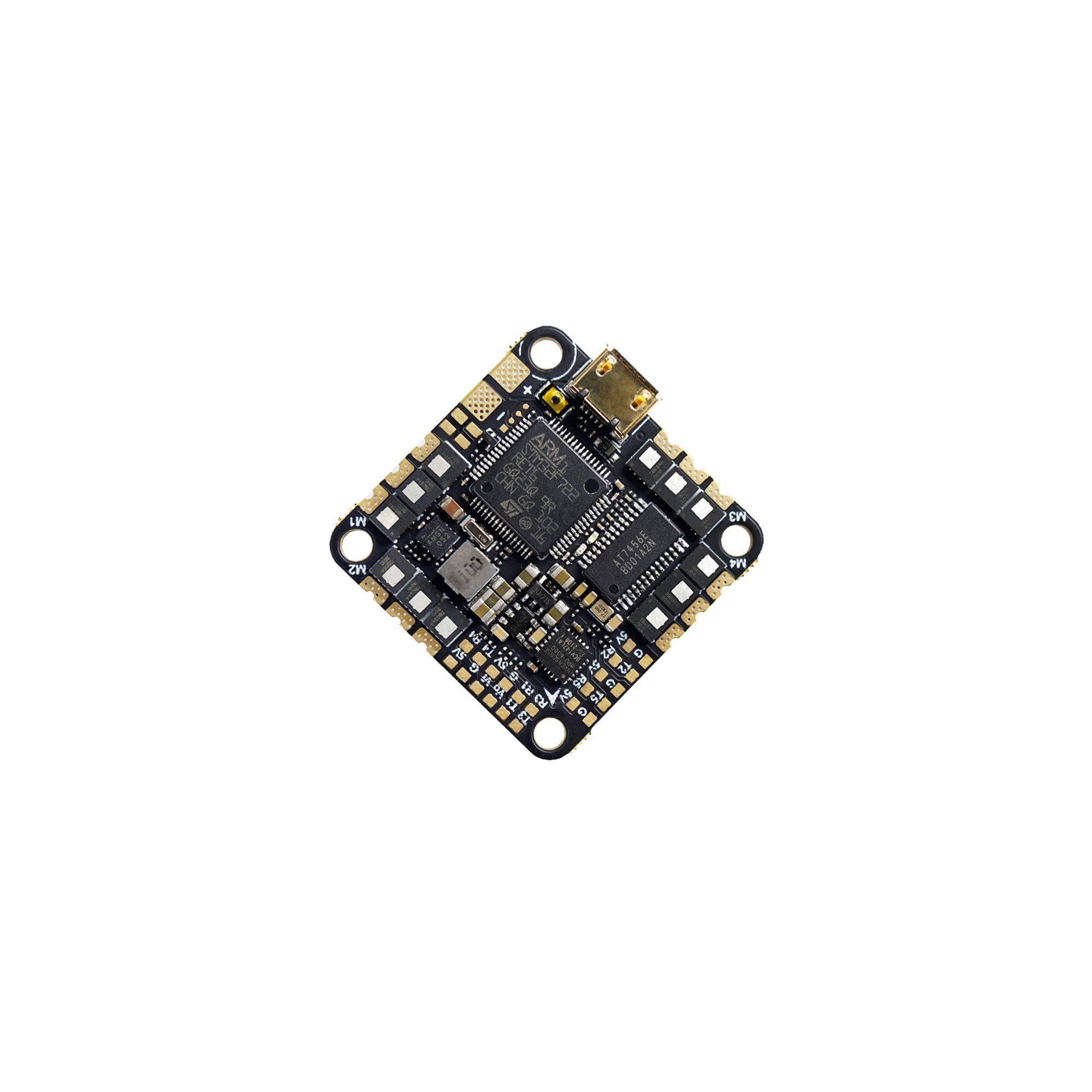

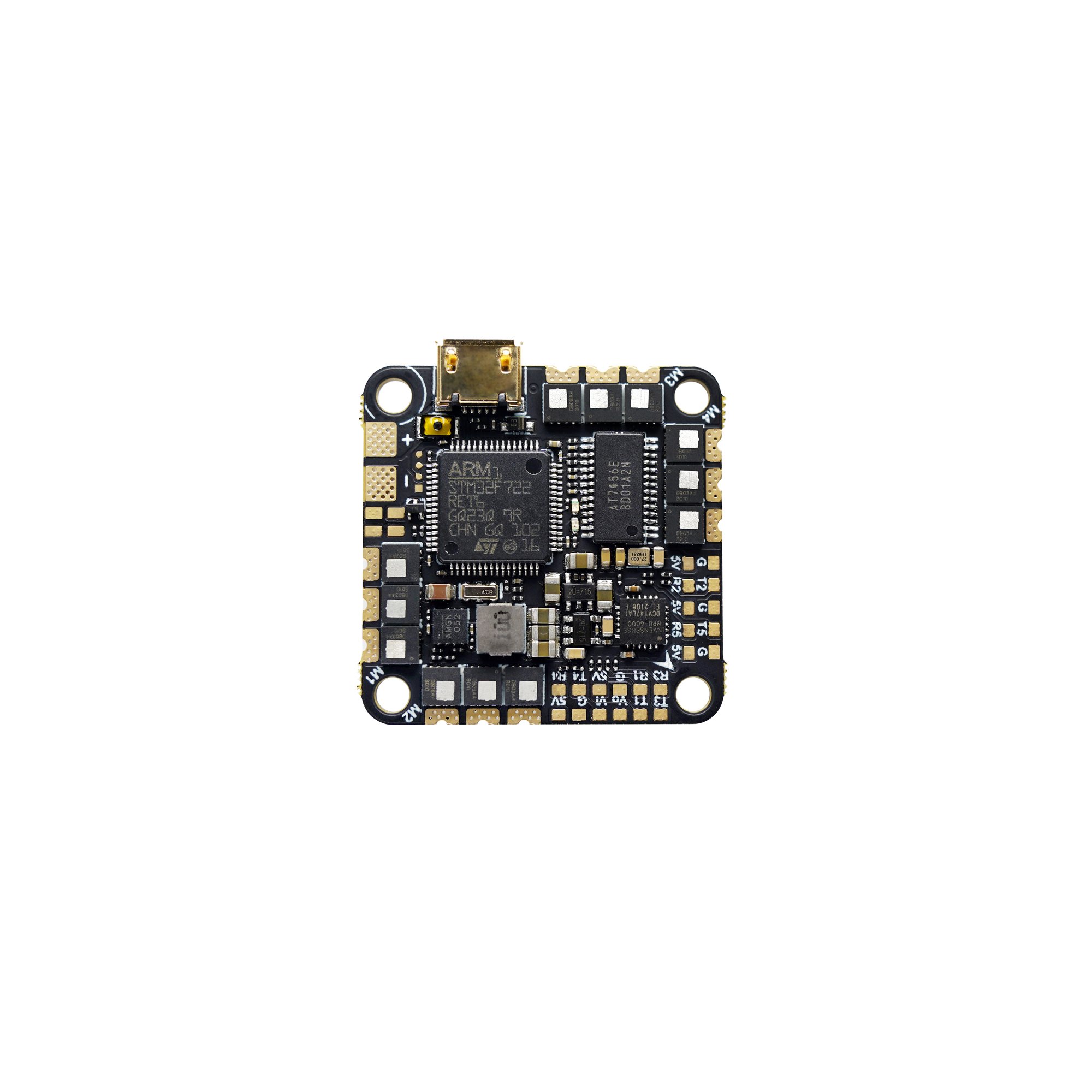

I am glad to introduce a new member of GEPRC FC AIO,GEP-F722-45A AIO, it is released now.

GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

We designed a 6-pin connector for DJI AIR UNIT MODULE,plug and play.

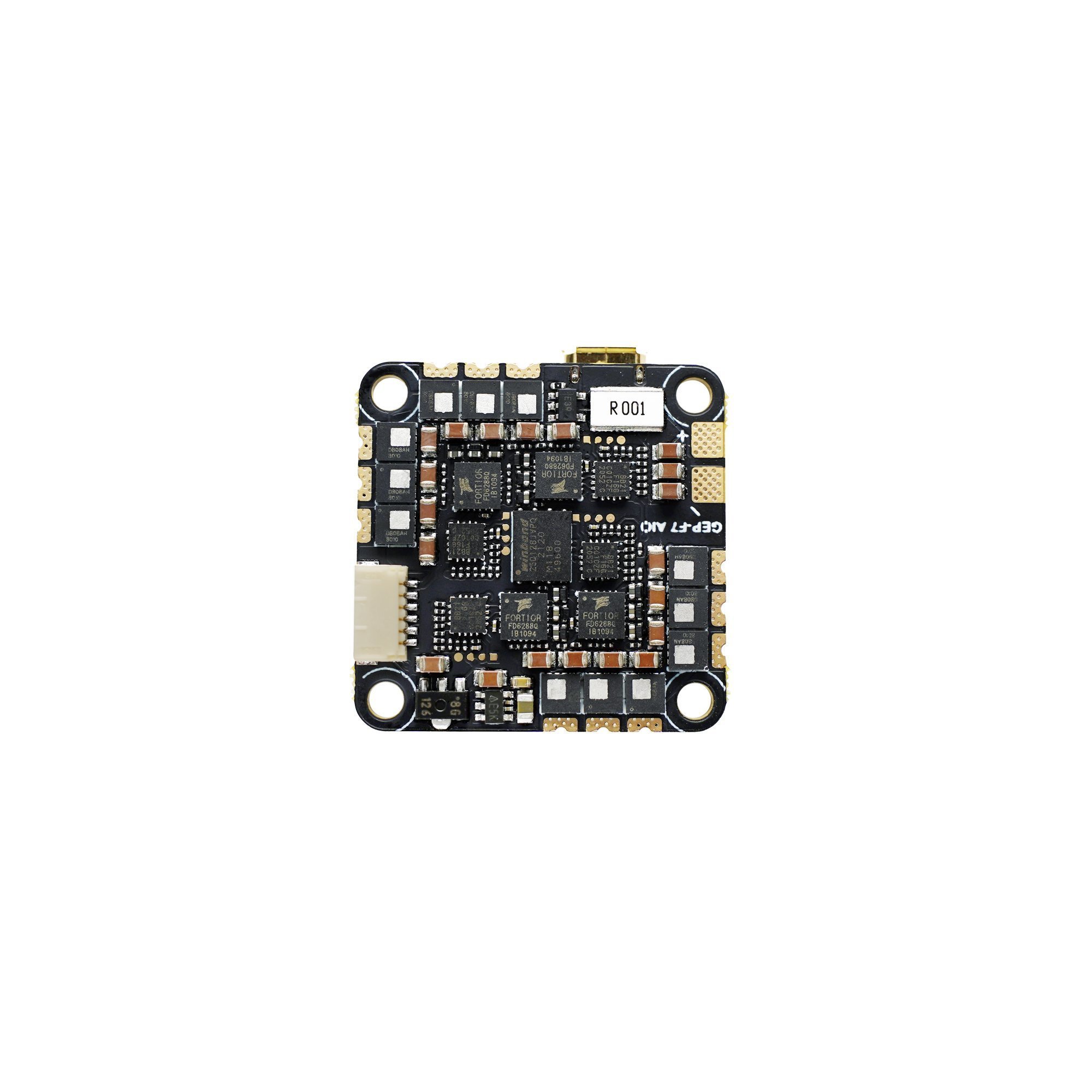

The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance Flight controller.

  • Model Name: GEP-F722-45A AIO V2
  • MCU: STM32F722
  • IMU: 42688 gyro/accelerometer(SPI)
  • Firmware target: GEPRC_F722_AIO
  • OSD: Betaflight OSD w/ AT7456Ev
  • UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
  • Beeper: YES
  • LED: YES
  • USB: Micro USB
  • BEC output: 5V@1A
  • Intergrated LC Filter
  • ESC MCU: 8BB21F16G
  • Continuous current: 45A
  • MAX current: 55A (10s)
  • Input: 2~6S
  • Supports: Dshot600,Oneshot,Multishot
  • BlackBox: 16Mb
  • Traget: G_H_30
  • Size: 32x32mm Board
  • Mounting Hole: 25.5×25.5mm

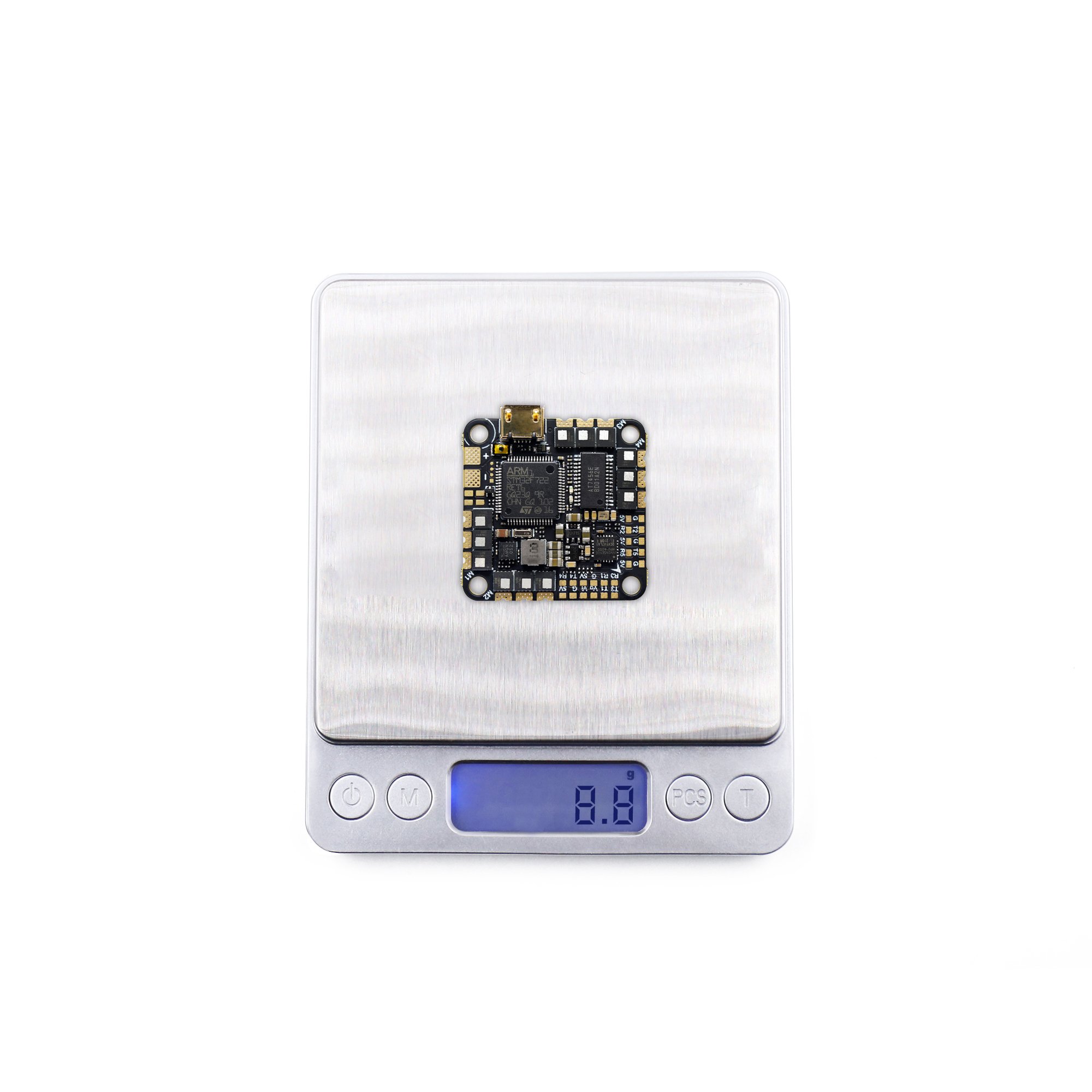

  • Weight: 8.8g

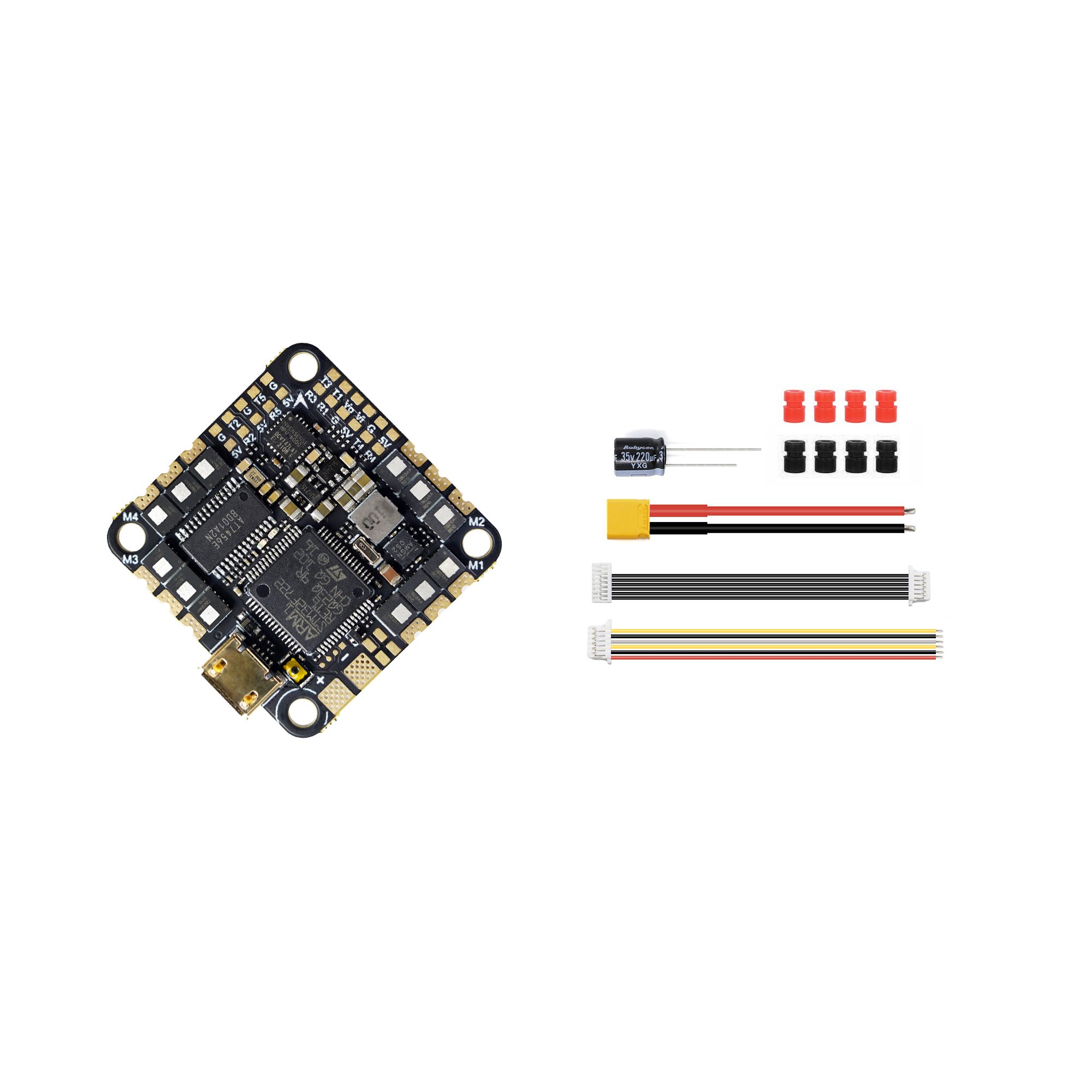

  • 1 x GEP-F722-45A AIO V2
  • 1 x XT30-7CM-18AWG Power cables
  • 1 x 35V220UF capacitor
  • 1 x SH1.0-6Pin to GH1.25-8Pin cables
  • 8 x M2*6.5mm Damping rings
