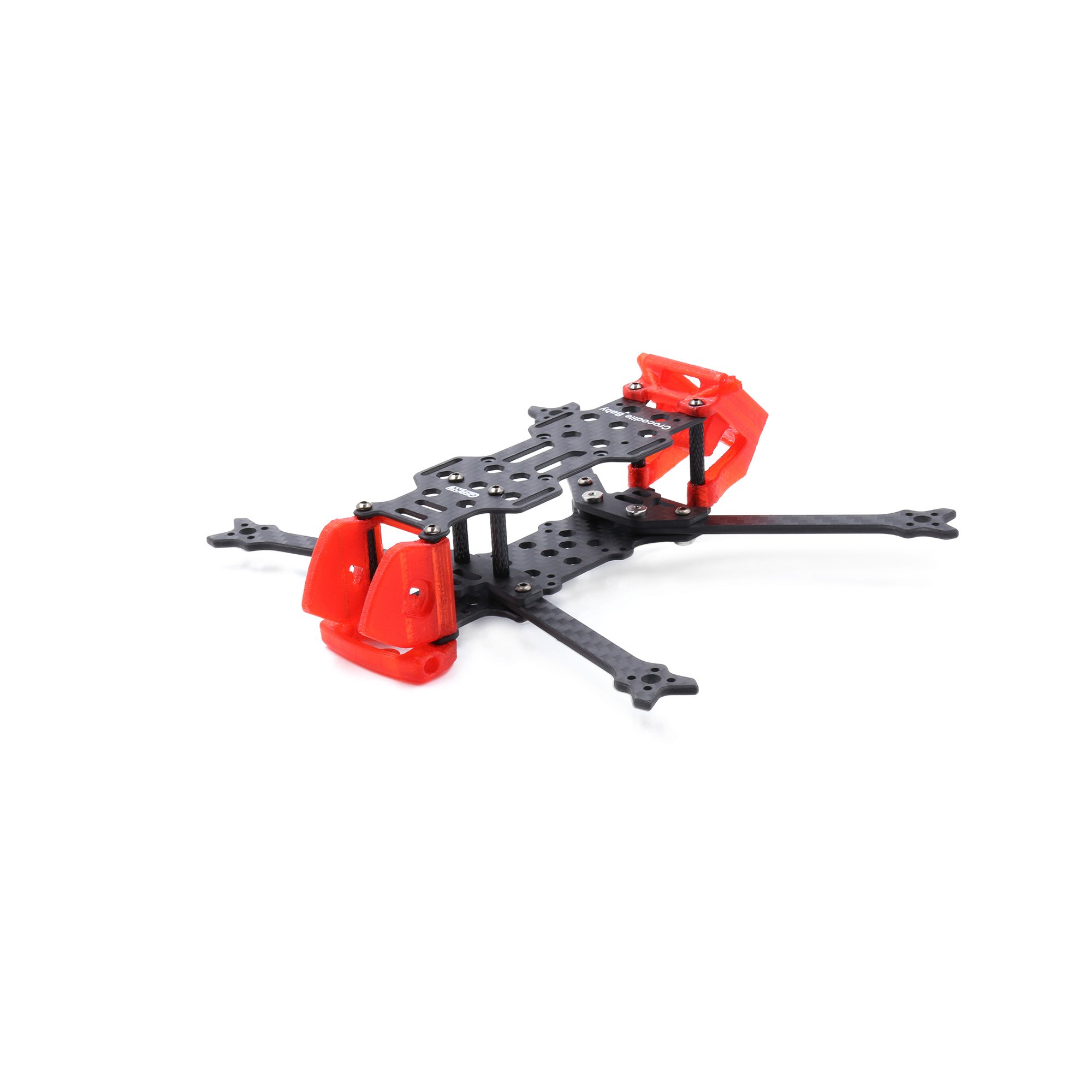

GepRC GEP-CB4

Производитель

GepRC

Категория

4'' frame

Тип рамы

DC

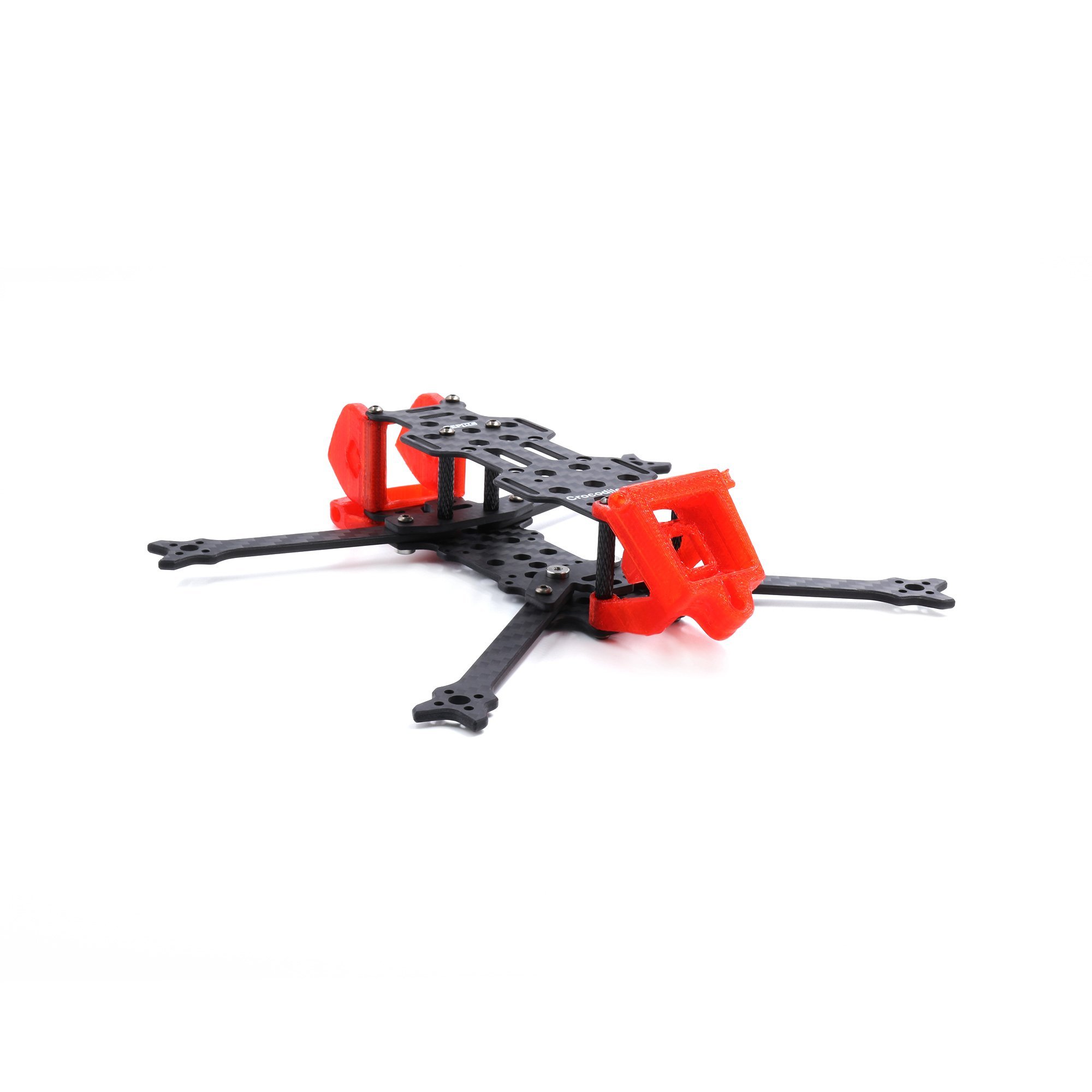

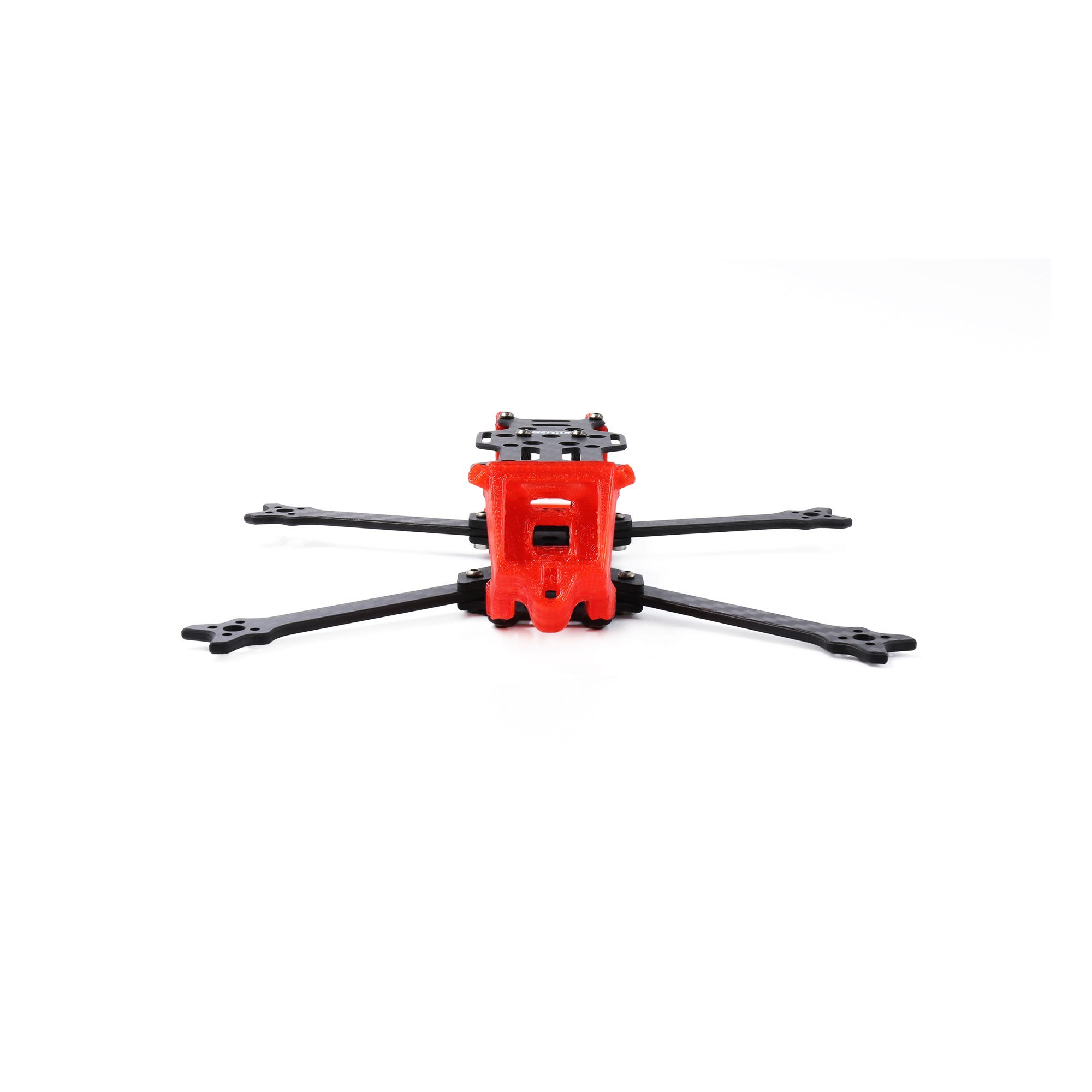

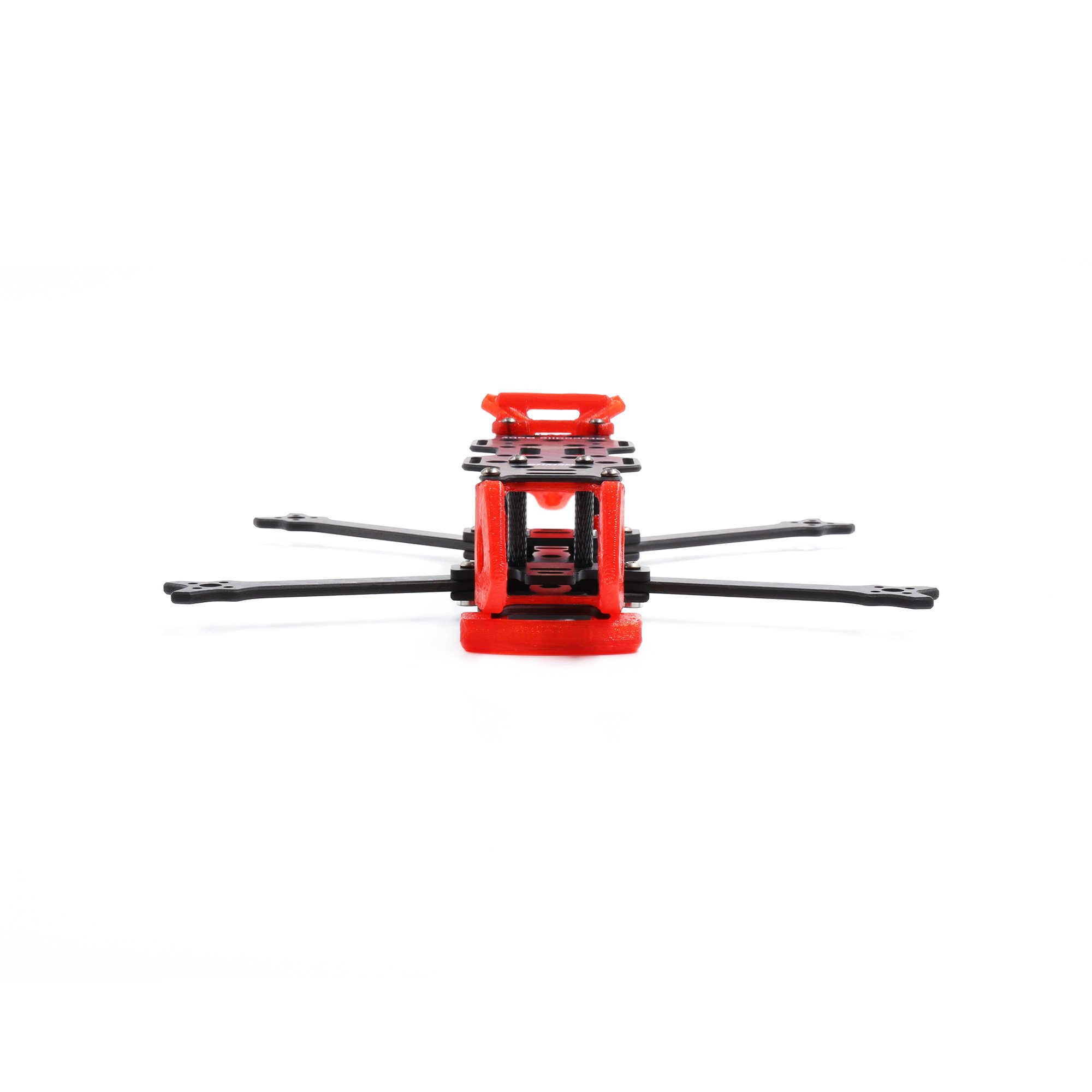

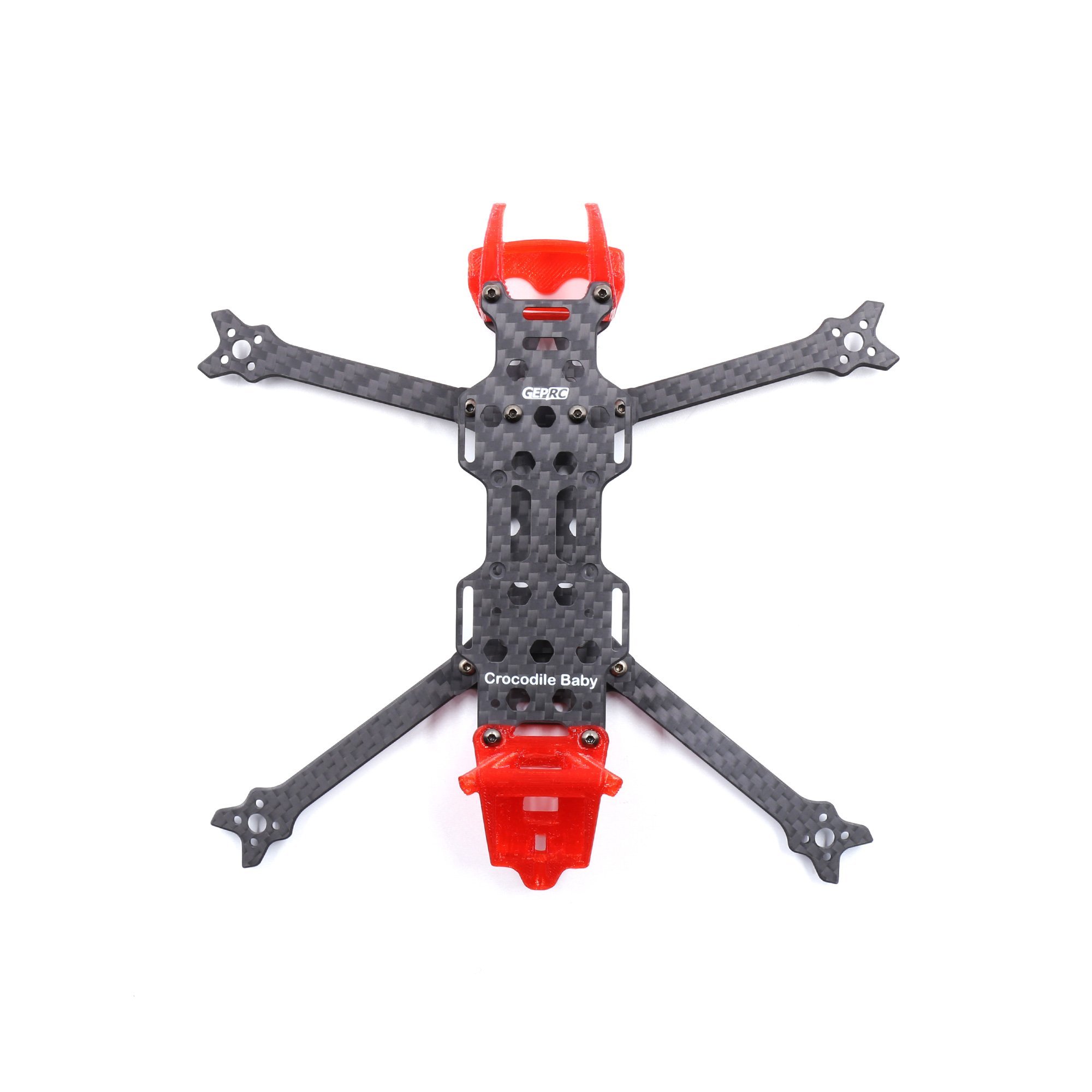

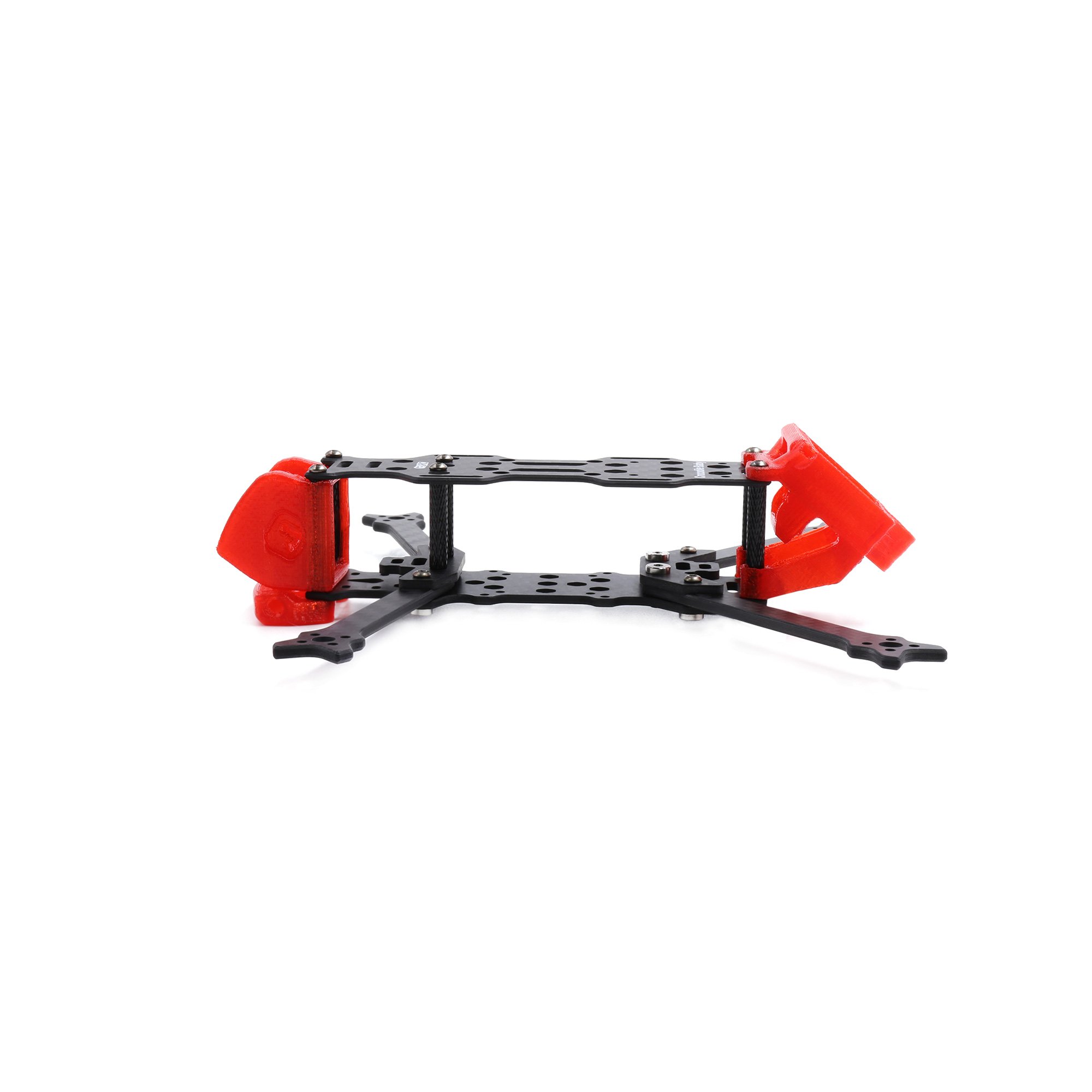

GEP-CB4 Frame is specially designed for Micro Long Range Flight, Maximum support 4 inch propeller.GEP-CB4 Frame is perfectly designed by GEPRC TEAM.Adopting the newly upgraded design of aerodynamics principle.The Light-weight design,The solid and durable structure,The full 3K carbon plates combine with delicate 3D print parts. Battery mounted above the drone,It can be stably and reliably flying and the Center of gravity extreme balanced,The sense of “Easy To Control “are literally breath-taking.With the New producing GEPRC 6S 3000mAh battery,It can easily achieve 28 minutes flight time and bring an incredible and wonderful experience.The flight time and clarity are incredible!

  • Brand:GEPRC
  • Name:GEP-CB4
  • Motor to Motor:174mm
  • Camera position size:20mm
  • Props Size:4inch
  • Thickness of arms plate:2.5mm
  • Thickness of Bottom plate:2mm
  • Thickness of Top plate:1.5mm

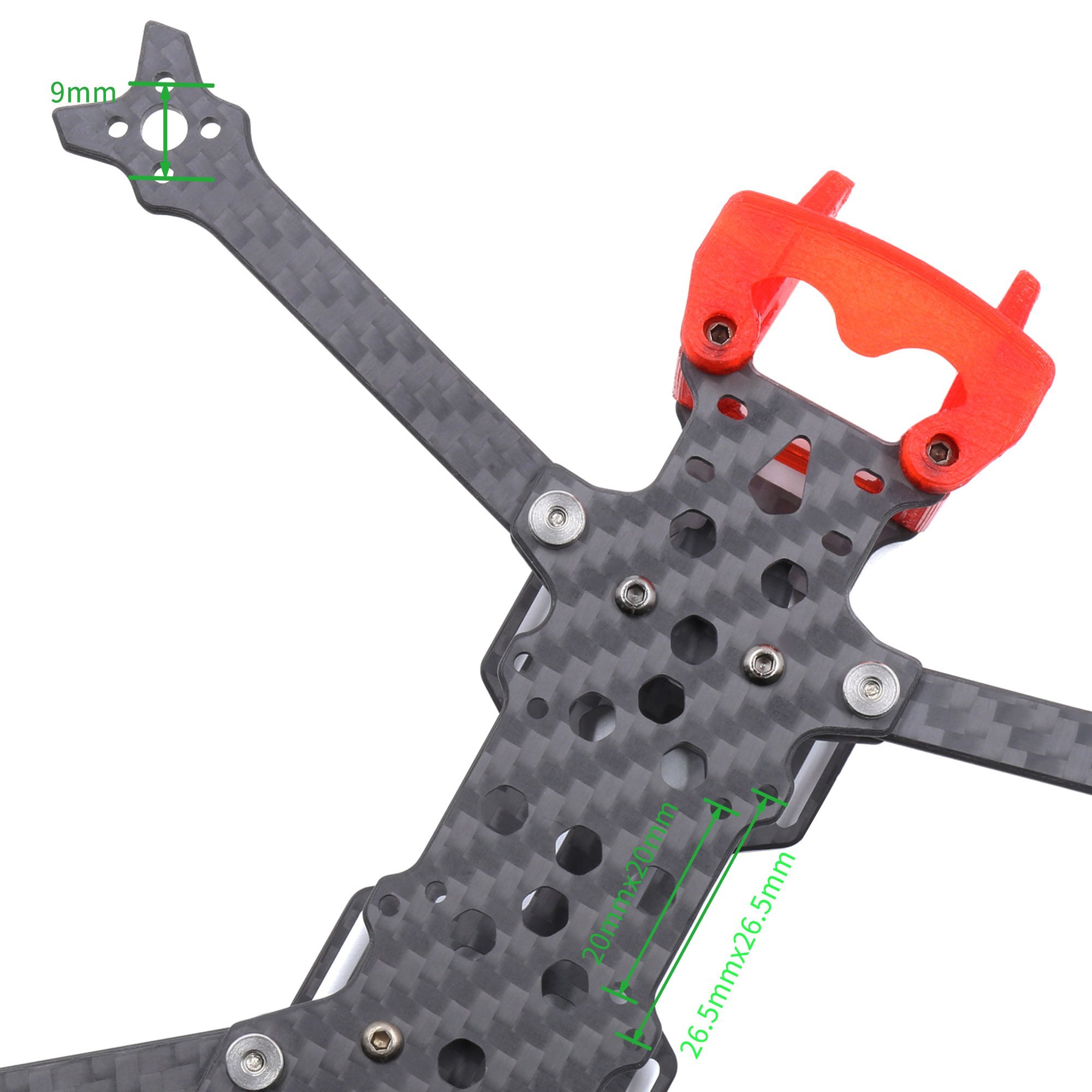

  • Flight control hole distance:20x20mmAnd26.5×26.5mm
  • The hole position of motor:9mm

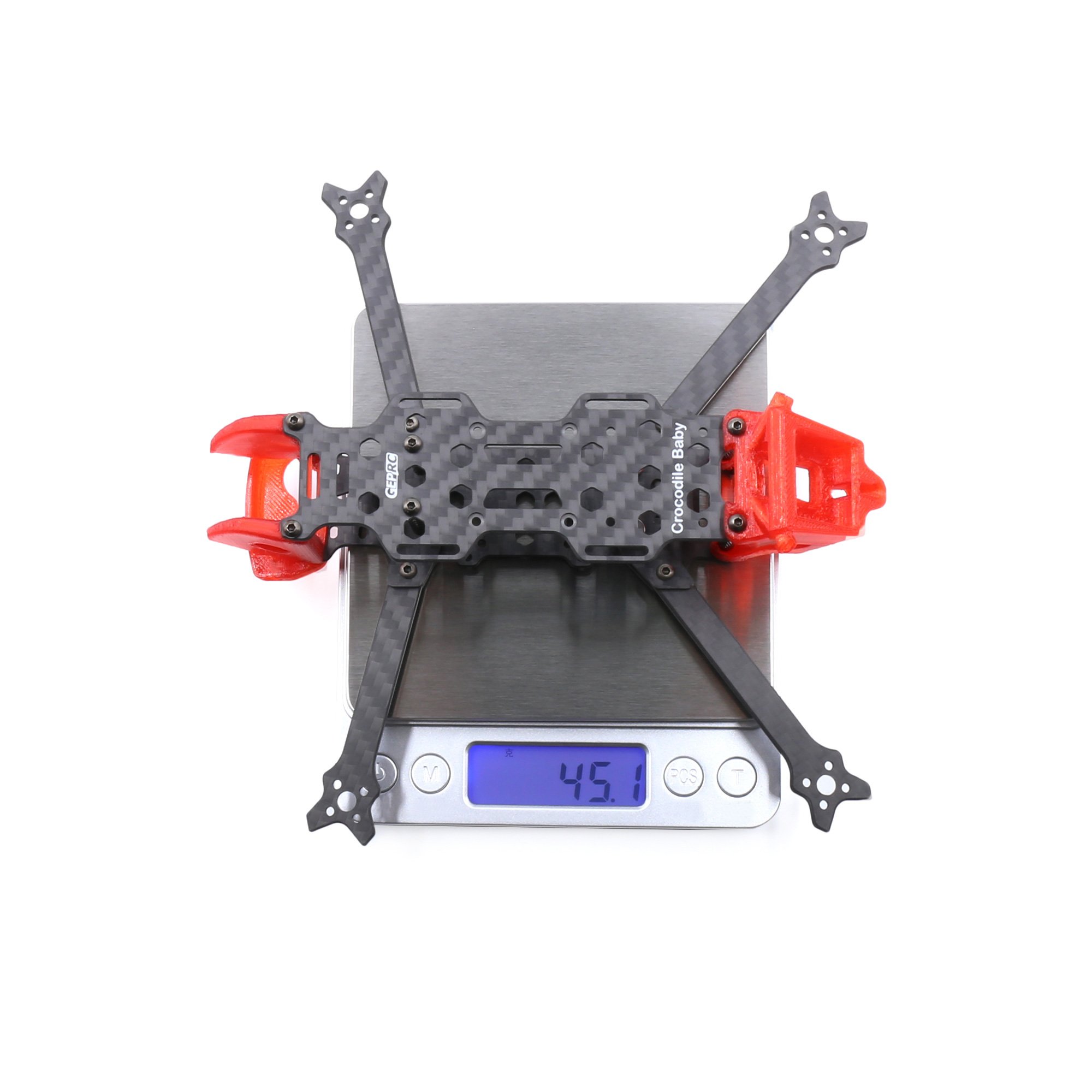

  • Weight:45g

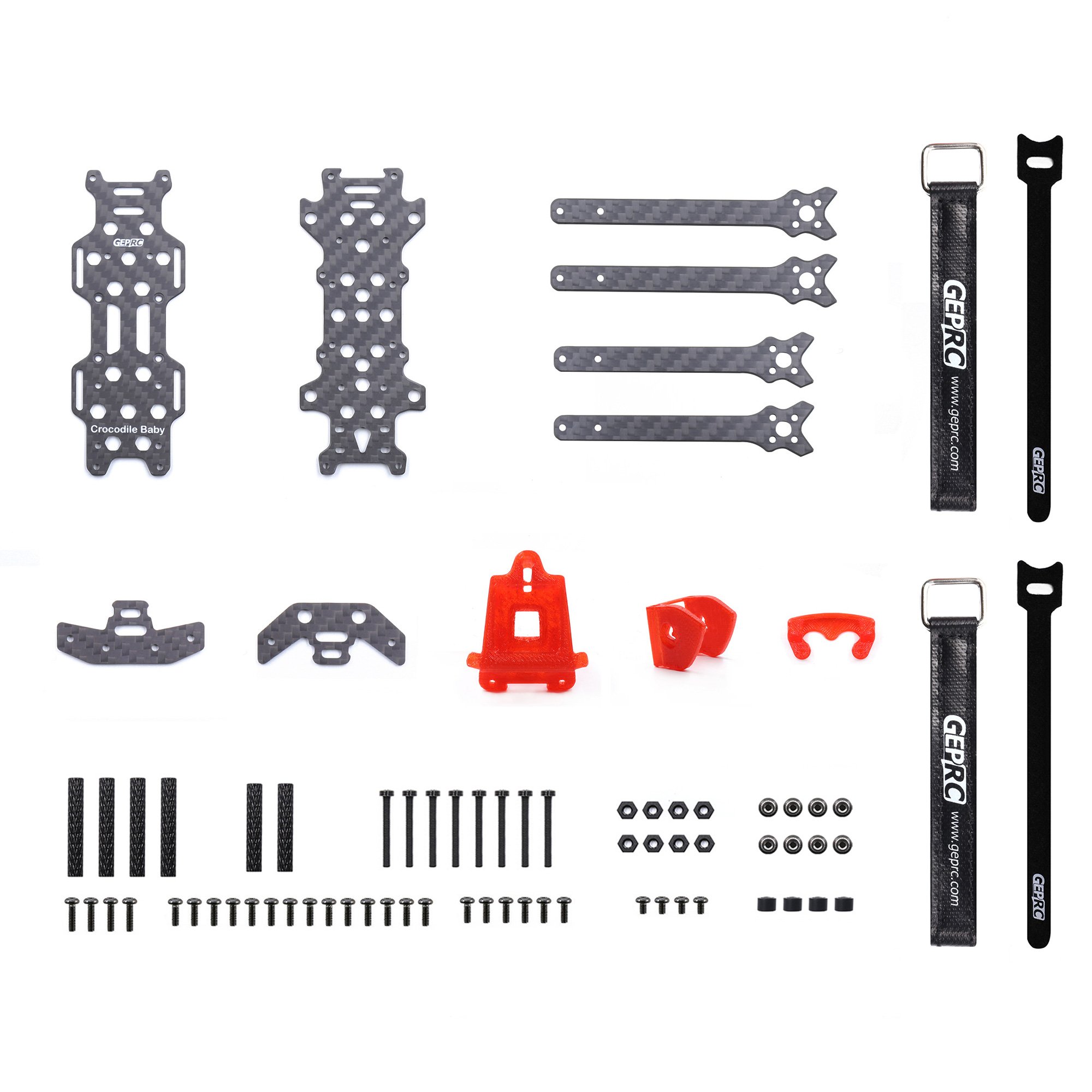

  • 1 x 2.0mm Bottom plate
  • 1 x 1.5mm Top plate
  • 2 x 2.5mm Front plate
  • 2 x 2.5mm Back Plate
  • 1 x 2.0mm Front Splint
  • 1 x 2.0mm Back Splint
  • 4 x(M2*25) Aluminum posts
  • 2 x(M2*20.5) Aluminum posts
  • 6 x(M2*6) Round head screws
  • 14 x(M2*8) Round head screws
  • 4 x(M2*10) Round head screws
  • 4 x(M2*4) Round head screws
  • 8 x(M2) Push block nuts
  • 8 x(M2*2) Plastic nuts
  • 8 x(M2*18) Plastic screws
  • 1 x 3D print crush barrier of camera
  • 1 x Fixing part of Antenna Red
  • 1 x Fixing part of TBS Antenna Red
  • 2 x Batteries pad
  • 8 x Landing shock absorption pad
  • 2 x Protective Tube of Antenna
  • 4 x Rubber Shock Pad
  • 2 x (M15*180mm) Batteries strap
  • 2 x (M15*180mm) Batteries strap
  • 1 x (1.5mm) L shape wrench
  • 1 x Plastic matching plate
