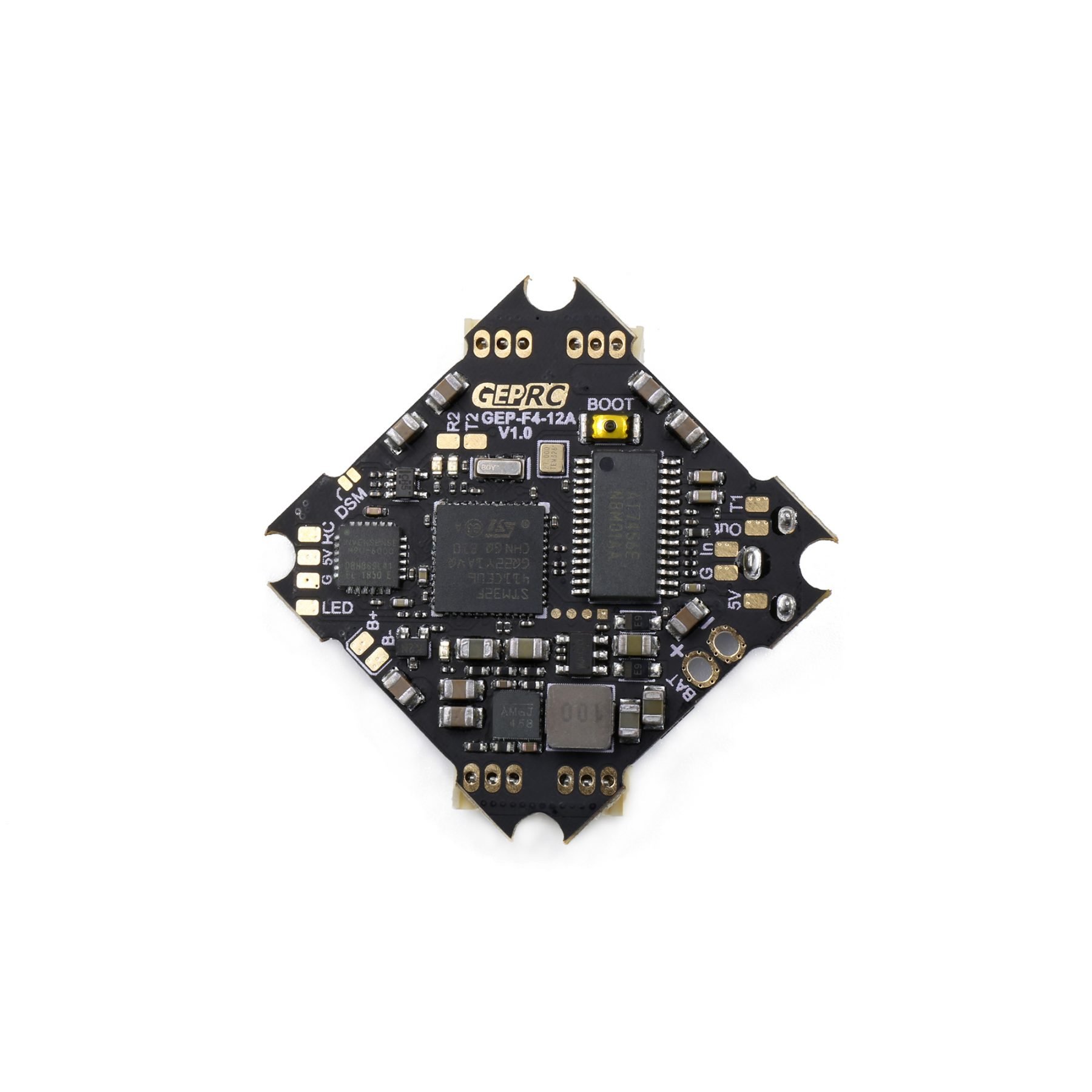

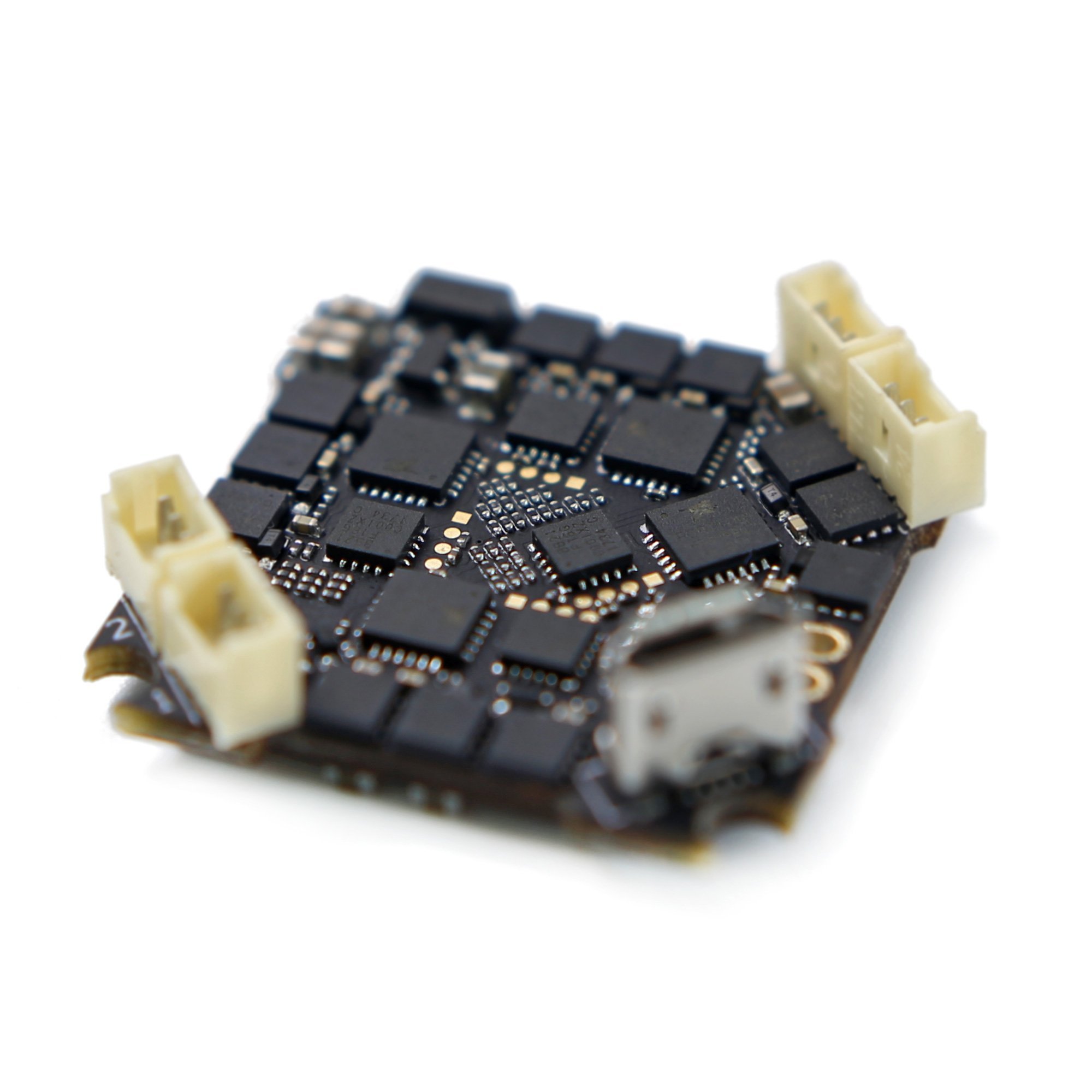

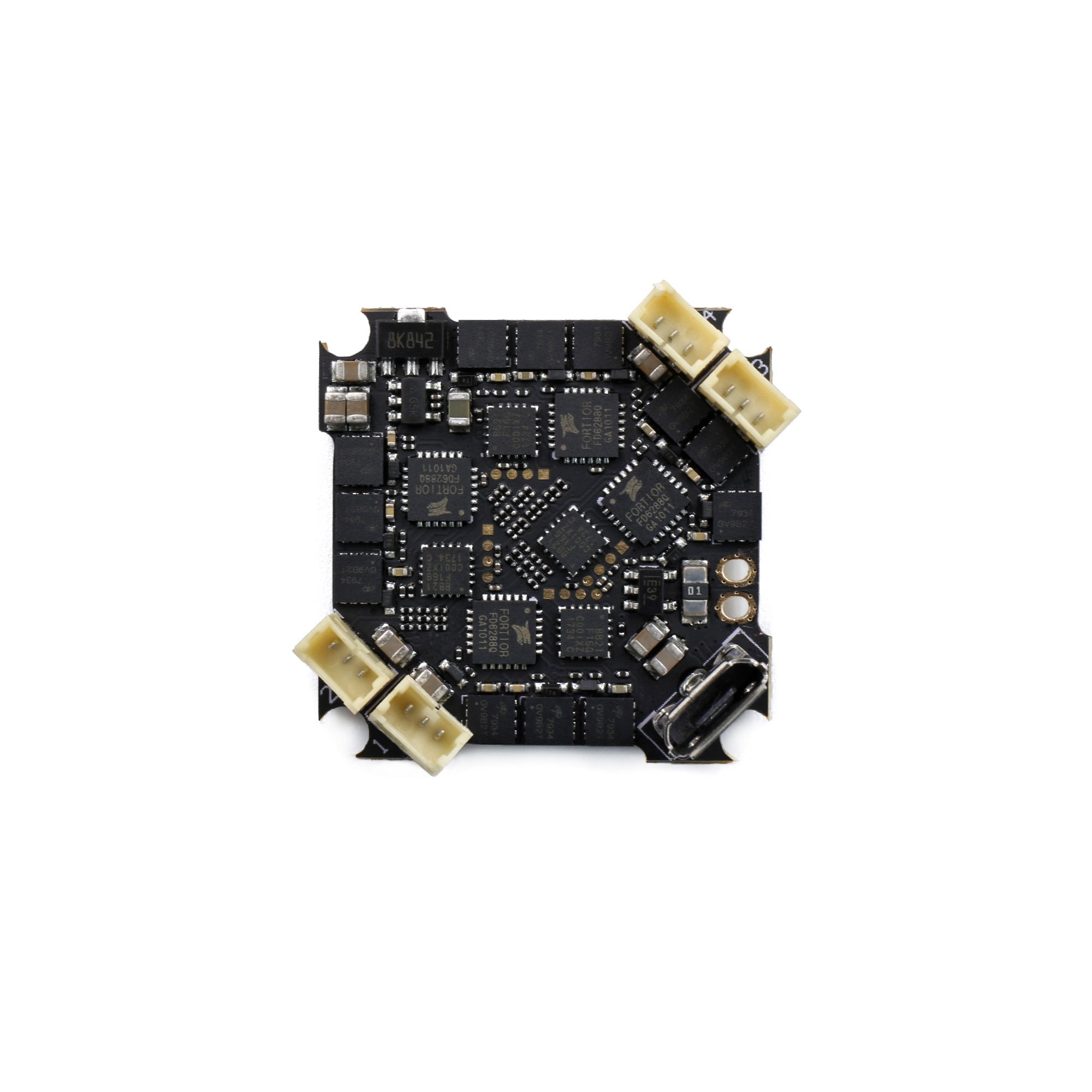

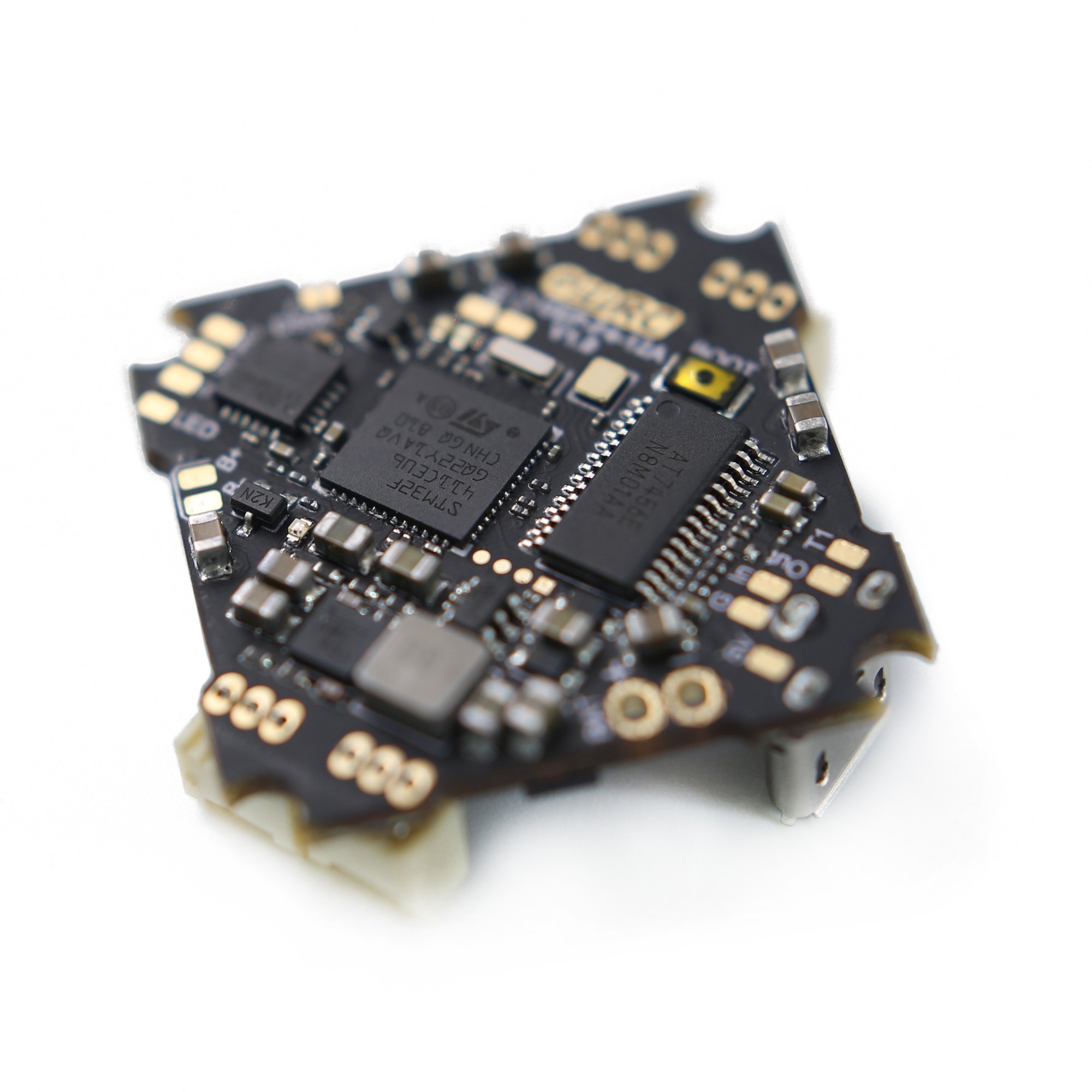

GepRC GEP 12A F4 AIO

Производитель

GepRC

Категория

FC AIO

Процессор

STM32F411

Гироскоп

BMI270

Монт. размер

25,5x25,5мм

Рабочий ток

12A

Прошивка ESC

BLHeli_S

Напряжение

до 4s

Crazy, tiny indoor Quad essential flight control, 4S battery will be popular.

After six months of research, the GEP-12A-F4 is success. This is a great project, Maximum support 4S battery, perfect use of 1103-1105 motor, F4 flight control chip ensures computing speed, MPU6000 gyroscope,OSD,Easy and super light, This is a new choice for Micro indoor quad.

  • Model Name:GEP-12A-F4
  • MCU: STM32F411
  • IMU: BMI270/42688 gyro/accelerometer (SPI)
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Baro:NO
  • BEC Output: 5V@1A
  • Integrated LC Filter
  • Firmware target: GEPRCF411
  • Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
  • Installing Hole: 25.5×25.5mm, M2
  • ESC MCU: 8BB21F16G
  • Continuous current: 12A
  • Input voltage:2-4s lipo
  • Supports Dshot600 ,Oneshot,Multishot
  • Current meter: 210
  • Target: G_H_30
  • BLheli_S 12A ESC GEP-12A-F4 the largest support 4S Lipo battery, with Current meter
  • Silica gel shock absorption, solve the problem of vibration
  • F411 Flight Controller
  • BMI270/42688 Gyro
  • Include Buzzer pad
  • weight: 5.6g

– 1 x GEP-12A-F4
– 1 x Power cable
– 8 x screw
– 4 x Soft silicone
