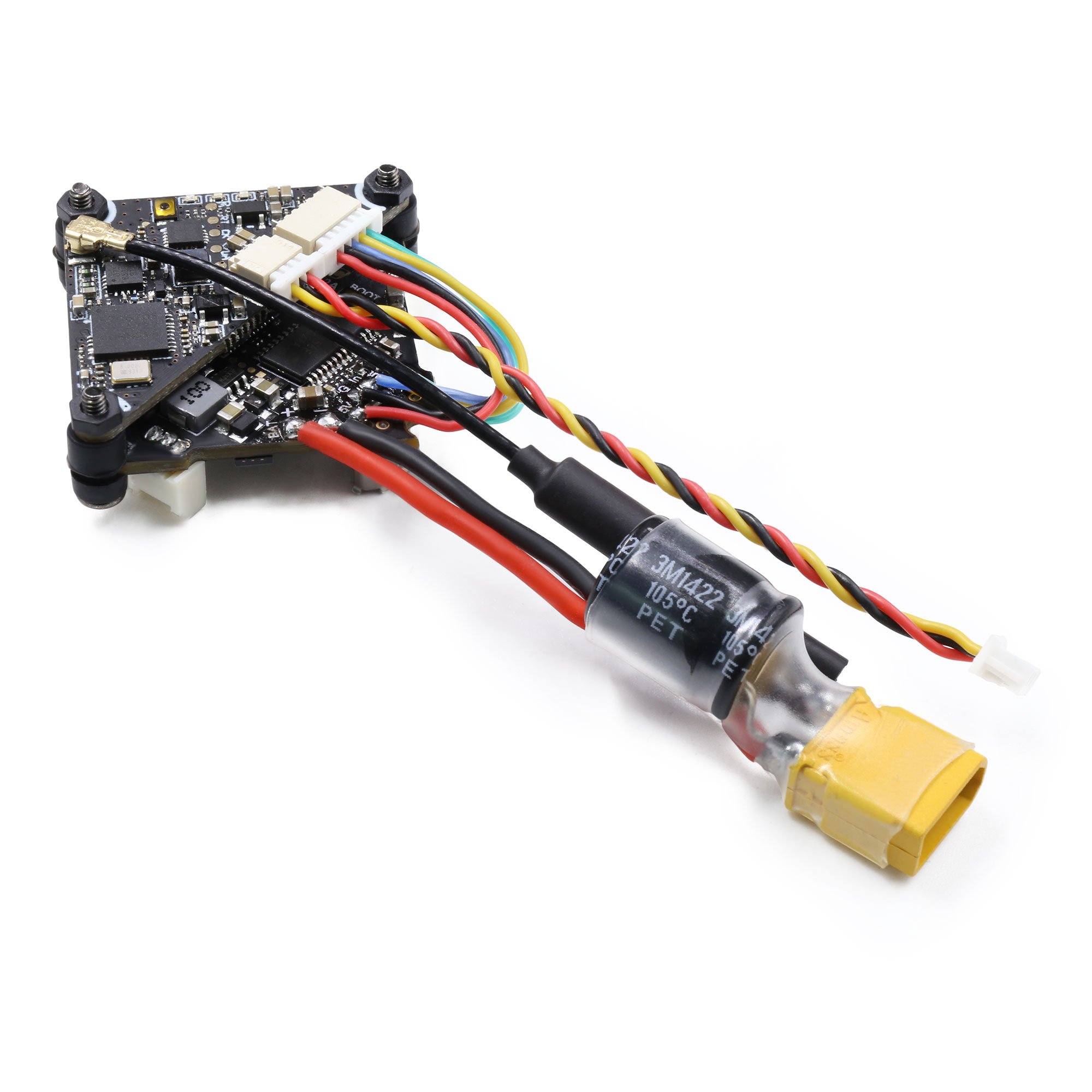

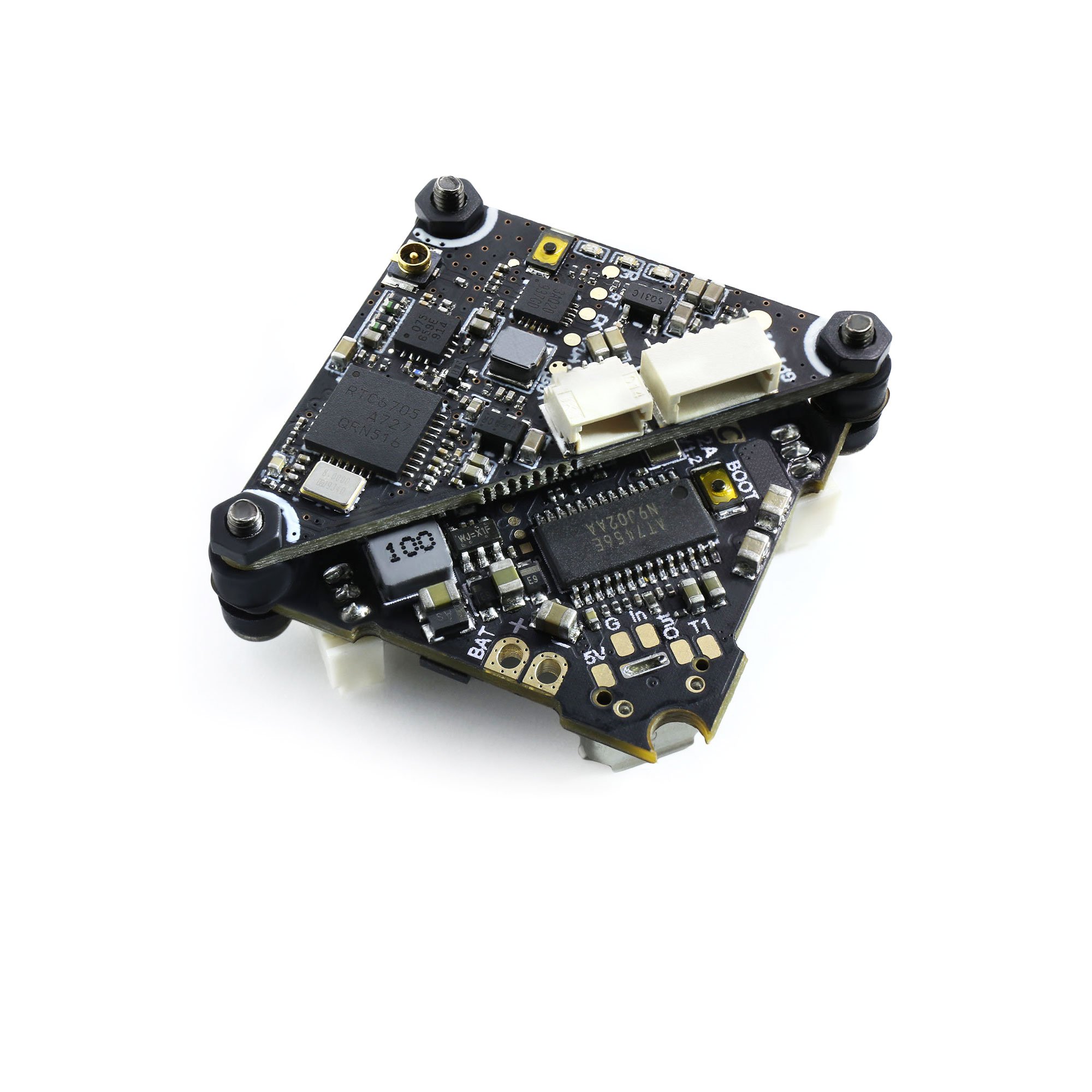

GepRC CEP-STABLE 12A Whoop Stack

Производитель

GepRC

Категория

FC stack

Процессор

STM32F411

Гироскоп

MPU6000

Монт. размер

25,5x25,5мм

Рабочий ток

12A

Напряжение

до 4s

Мощ. передатчика

200mW

Частота

5.8GHz

Ёмкость

300mAh

Crazy, tiny indoor through the machine must fly control, indoor through the machine into the 4S battery era.

After a long time of research, STABLE 12A Whoop Stack finally came out, the maximum support 4S battery, perfect use of 1103-1105 motor, F4 flight control chip can complete the required operation, MPU6000 gyroscope to ensure the hand, with OSD adjustable parameters, very convenient, very light weight, is the indoor traverser of the choice.Coupled with a 200mW map transmission specifically designed for Whoop classes and toothpick racks, it has stable signals, clean graphics, and light weight.Easy to use.

GEP-12A-F4 Flight contorller:

  • Model Name:GEP-12A-F4
  • MCU: STM32F411
  • IMU: MPU6000 gyro/accelerometer (SPI)
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Baro:NO
  • BEC Output: 5V@1A
  • Integrated LC Filter
  • Firmware target: GEPRCF411
  • Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
  • Installing Hole: 25.5×25.5mm, M2
  • ESC MCU: BB21F16G
  • Continuous current: 12A
  • Input:2-4s lipo
  • Supports Dshot600 ,Oneshot,Multishot
  • Current meter: 210
  • Target: G_H_30

VTX Specifications:

  • Model Name:GEP-VTX200-Whoop
  • Item name: 25~200mw 48CH VTX FPV Transmitter
  • Output power: Pit/25/100/200mw switchable
  • Channels: 48CH
  • Input voltage: 4.5V –  5.3V
  • Current consumption: 300mA(type)
  • Antenna: RG178 antenna U.FL interface
  • Frequency: 5.8GHz 5 bands 48 channels With Raceband
  • Video Format:PAL/NTSC
  • Control protocol：IRC Tramp
  • Weight: 2g without antenna

– 1 x GEP-12A-F4
– 1 x GEP-VTX200-Whoop
– 1 x Power cable
– 8 x screw
– 4 x Soft silicone
