FOXEER Super Mini
Производитель
Foxeer
Категория
Камеры аналог
Размеры камеры
11.8mm
Частота
2.4GHz

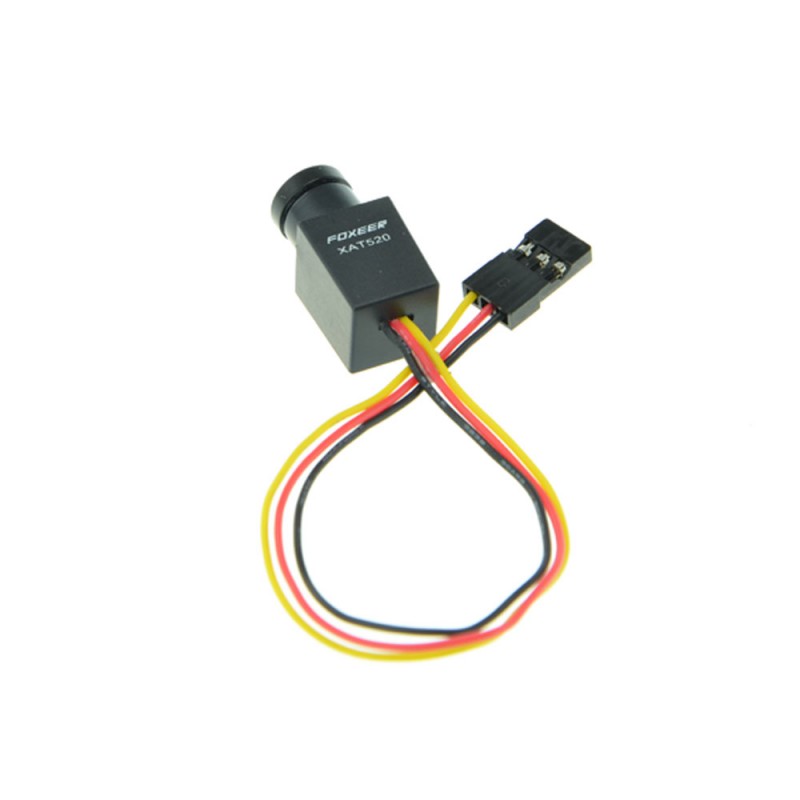

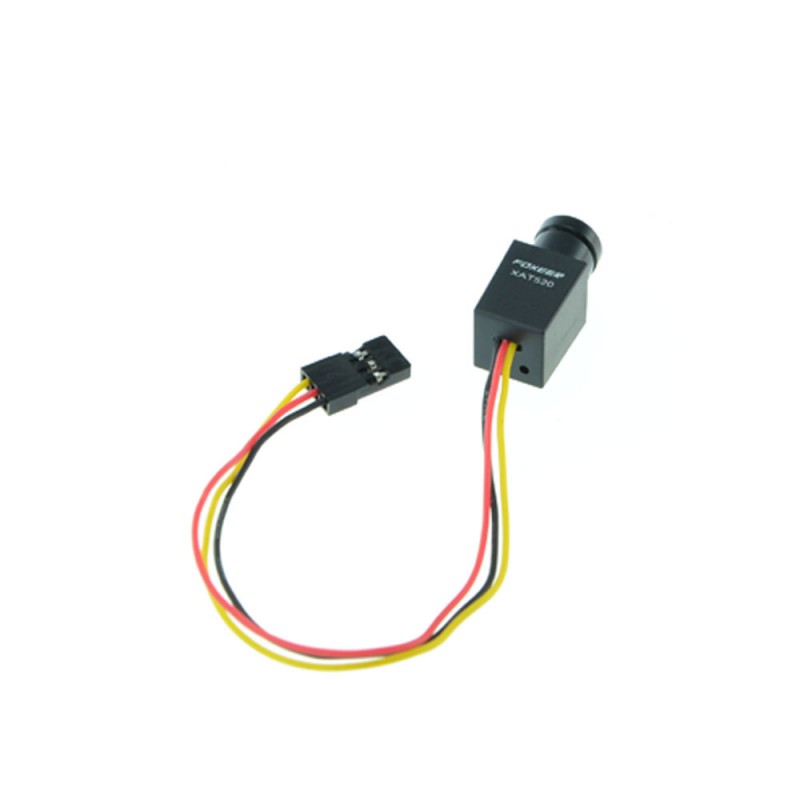

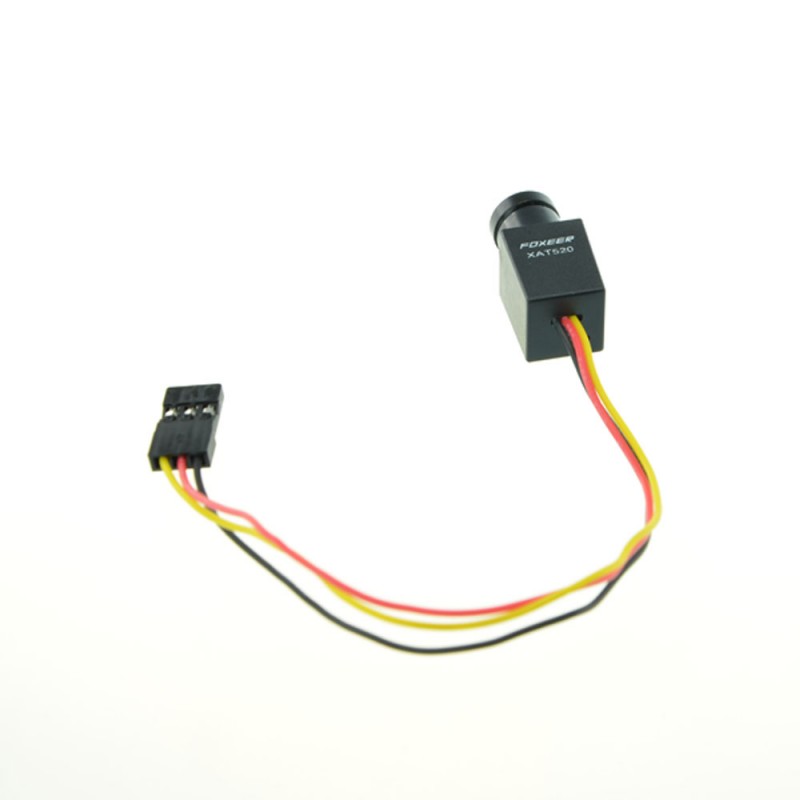

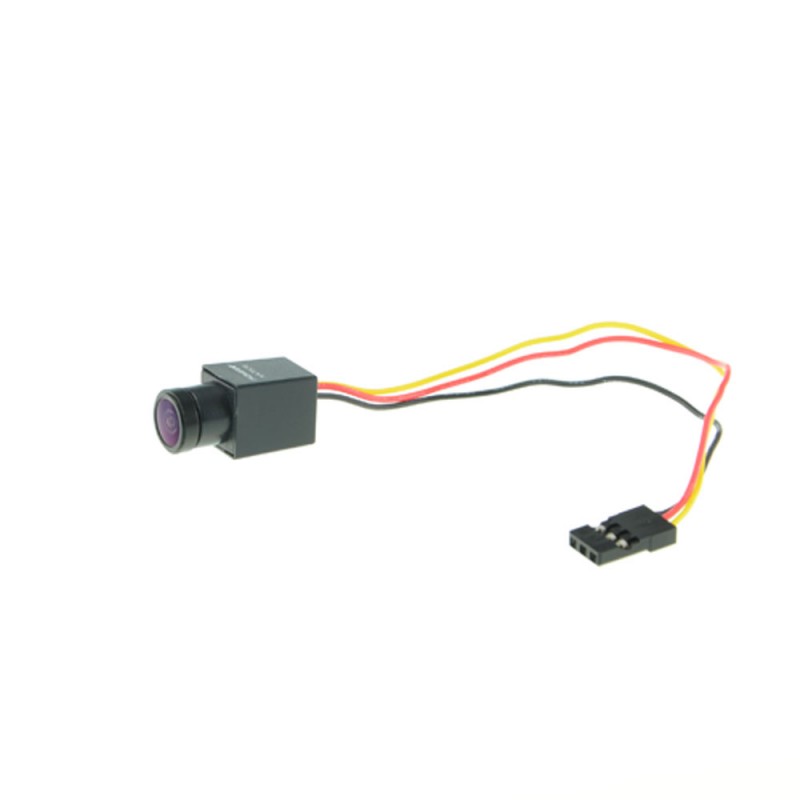

It’s an ultra small high definition FPV camera with excellent night vision. It features 11.8X11.8X24.5mm size, 4.5g weight as well as 5~24V wide voltage. Very easy to install and conceal, Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
| Sensor Type | Sony 1/3″ CMOS Sensor |
| Pixel | NTSC: 656(H)×492(V)/PAL: 786(H)×576(V) |
| Tv System | PAL/NTSC Based on Country |
| Resolution | 520TVL |
| Scanning System | 2:1 Interlace |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.008Lux/F1.2 |
| S/N Ratio | 52dB |
| ELECTRONIC SHUTTER | AUTO(1/60 S TO 1/100000 S)/OUT (1/50 S TO 1/100000)S |
| Operation Temperature | 100dB |
| DAY/NIGHT | – 10° C ~ +50°C, less than 90% RH |
| Connection | PIN1-Red DC PIN2-Black GND PIN3-Yellow Video |
| Input Voltage | 5V-24V |
| Current | 60mA |
| Dimension | 11.8mm x 11.8mm x 24.5mm |
| Weight | 4.5g |
