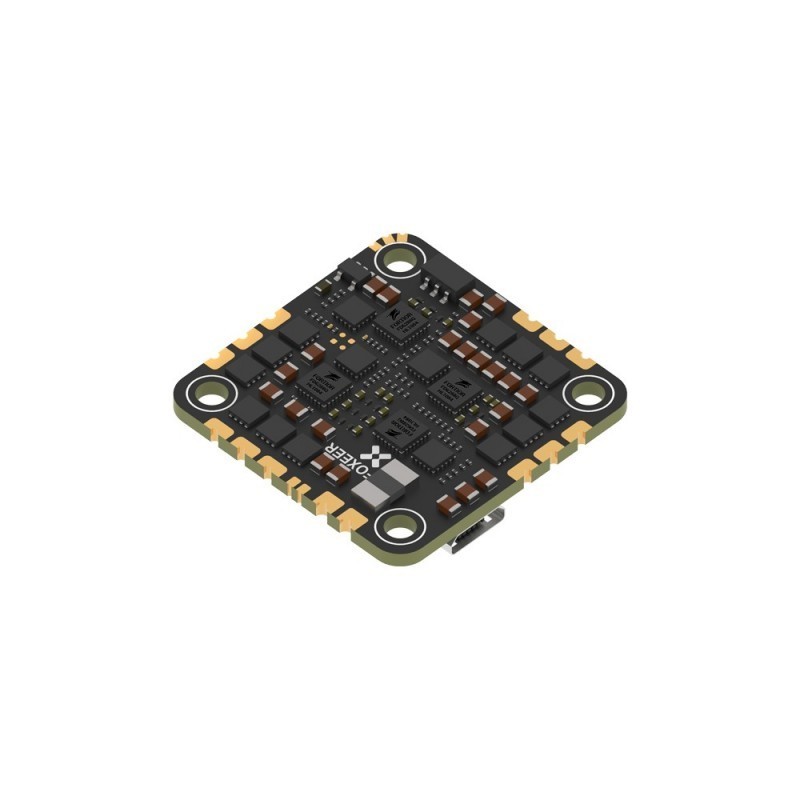

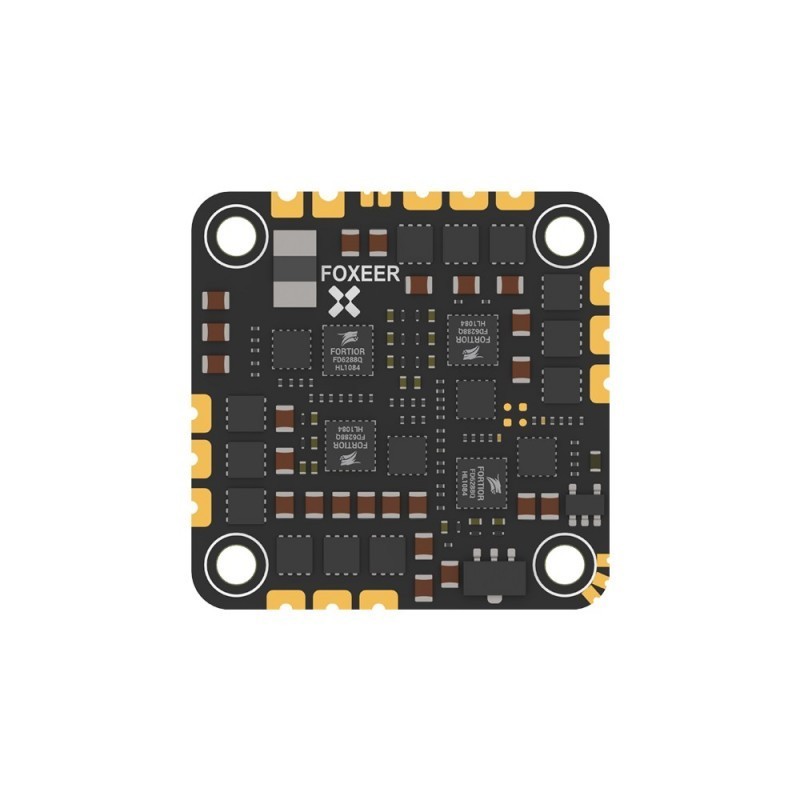

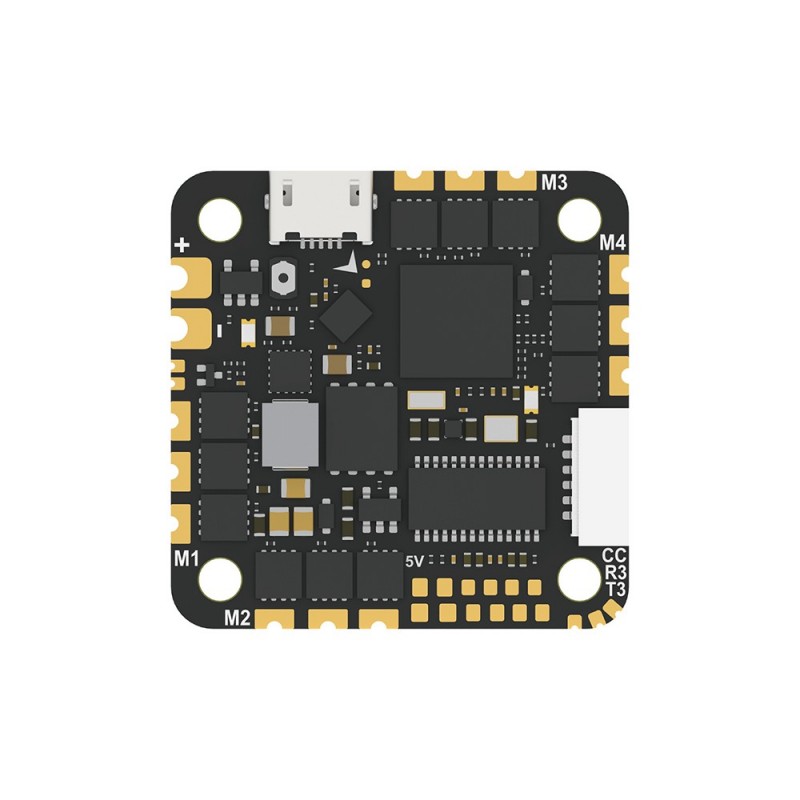

FOXEER Reaper V4 F745 35A AIO
Производитель
Foxeer
Категория
FC AIO
Процессор
STM32F745
Гироскоп
MPU6000
Монт. размер
25,5x25,5мм
Рабочий ток
35A
Напряжение
до 4s
| Model | FOXEER Reaper AIO V4 |
| CPU | STM32F745 |
| Power Supply | 2~4S Lipo |
| BEC Output | DC5V/2A |
| OSD | BF OSD |
| Black Box | 16M Flash Memory |
| UART | 5 Set |
| USB | Micro USB |
| Fireware | BF:FOXEERF745V4_AIO |
| DJI Connector | Supported, 8pin |

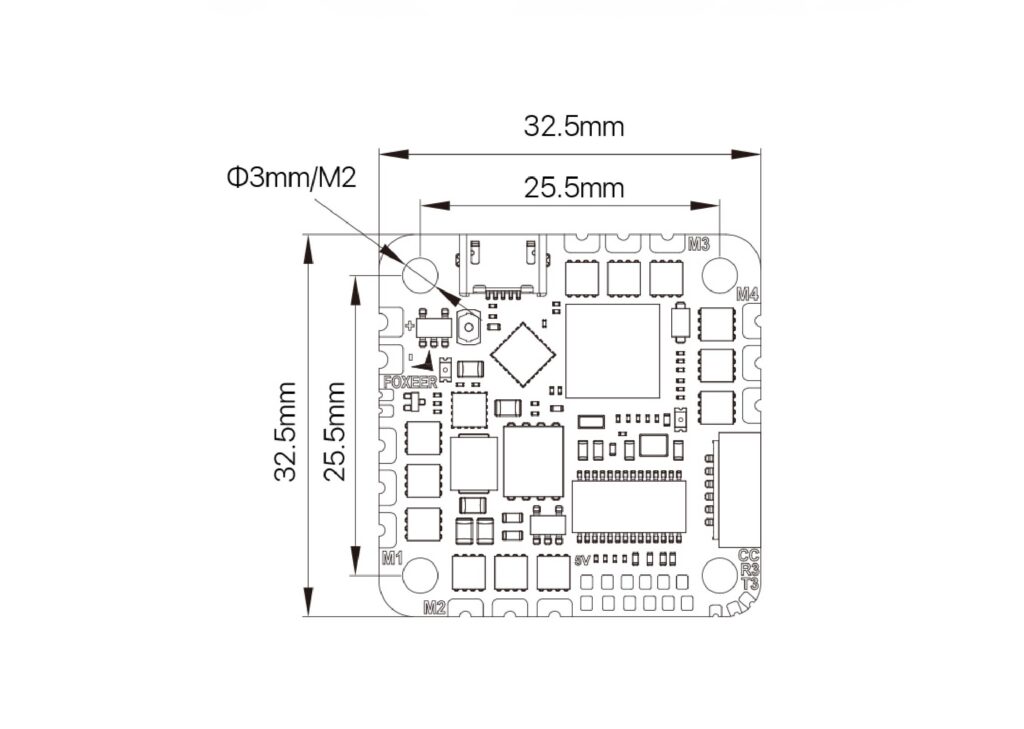

| Size | 32.5X32.5mm |
| Mounting Hole | 25.5X25.5mm,Φ3mm/M2 |
| Weight(g) | 8.6g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Package Includes | 1*AIO, Rubbers Columns, XT30 Cable, DJI Cable, Capacity |
| Firmware | G-H-30 BLS 16.7 |
| Continuous /Burst Current | 35A x 4/ 45A x 4 |
| Input Voltage | 2~6S Lipo(8.4~25.2V) |
| Telemetry | No |
| ESC Programming | BLHeli-S |
| Stick Programming | Supported |
| Current sensor: | Supported |
| Current scale: | 100 |
| Input signal: | Dshot300/600 |
