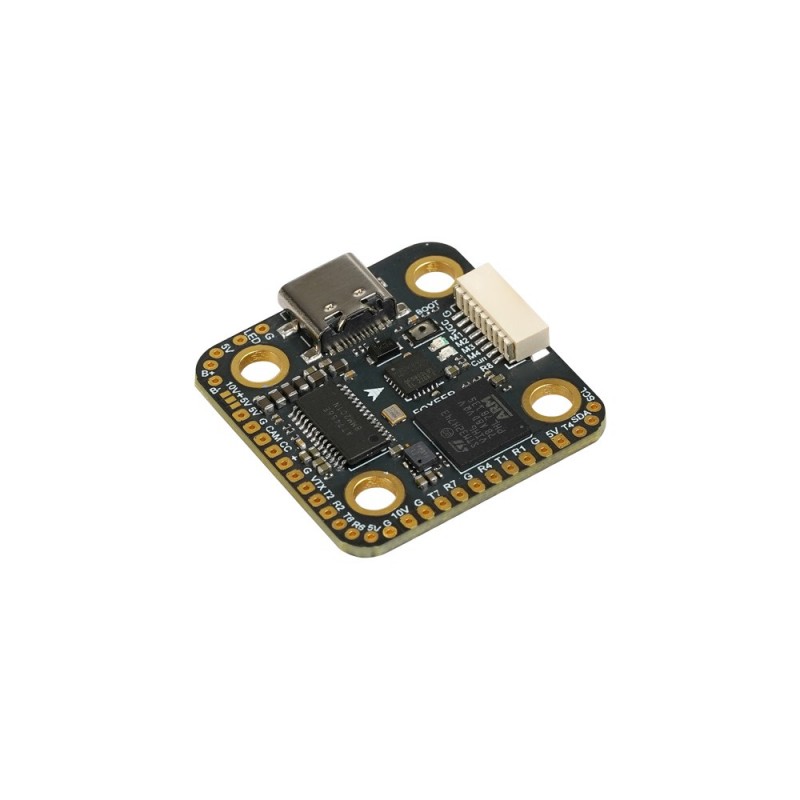

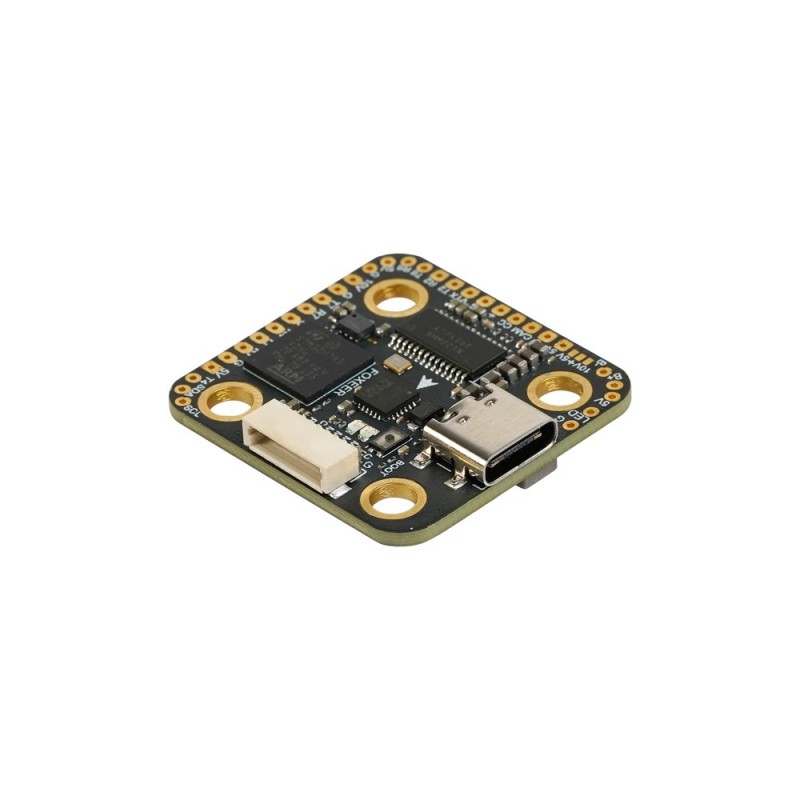

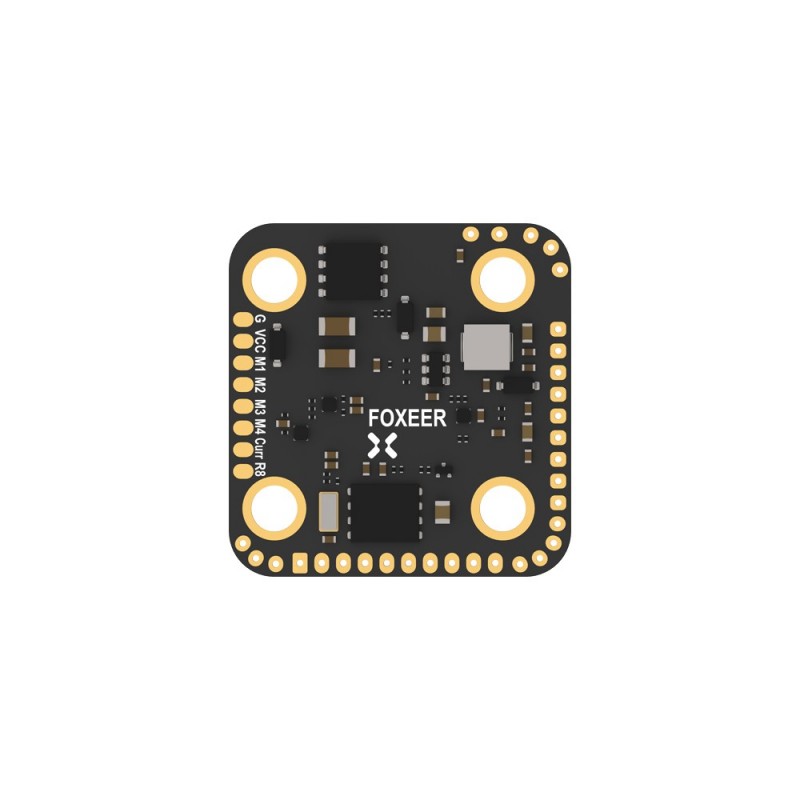

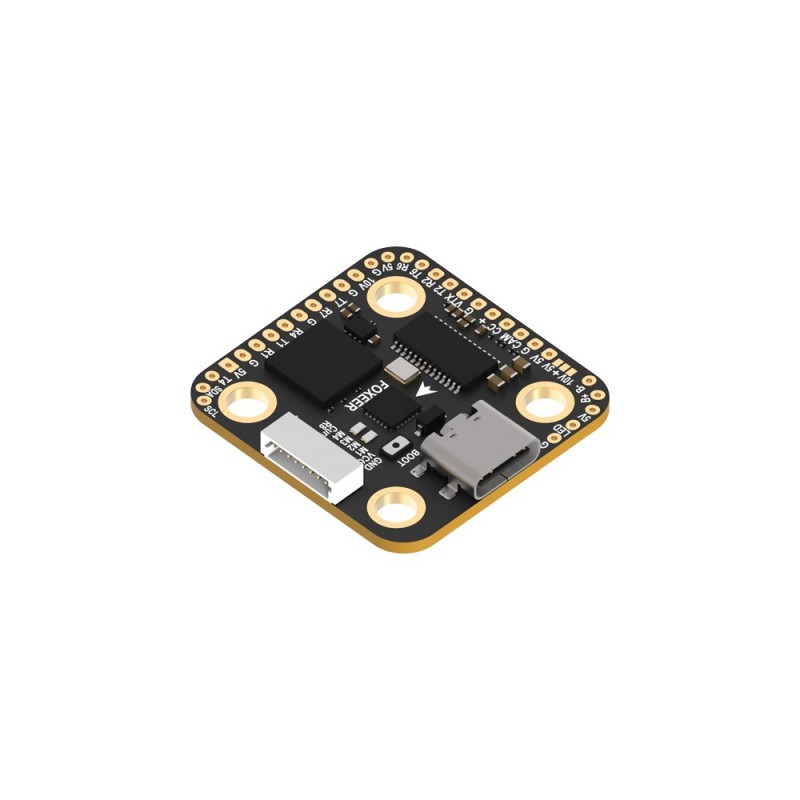

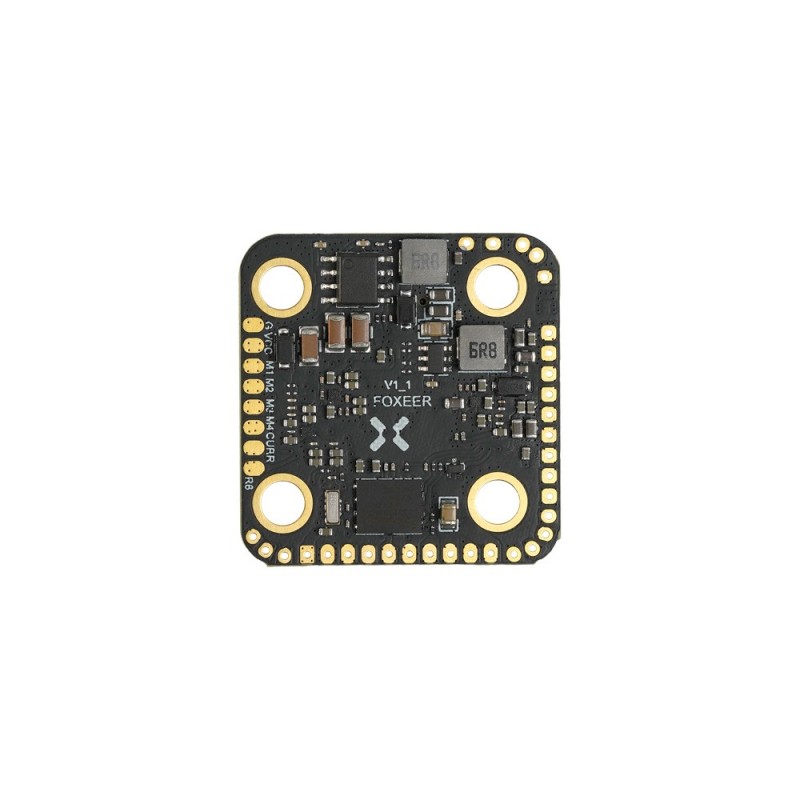

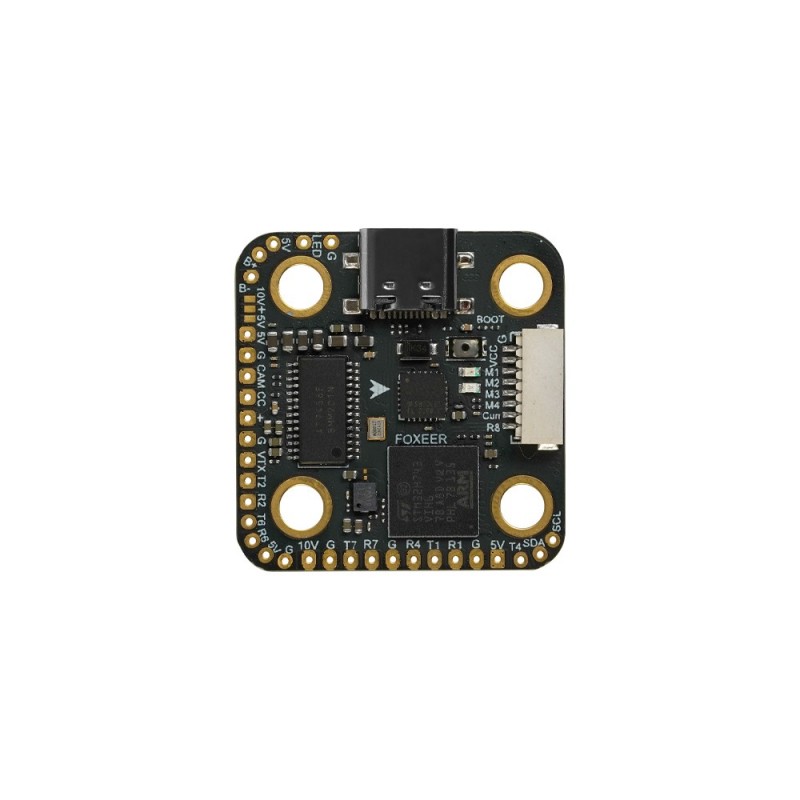

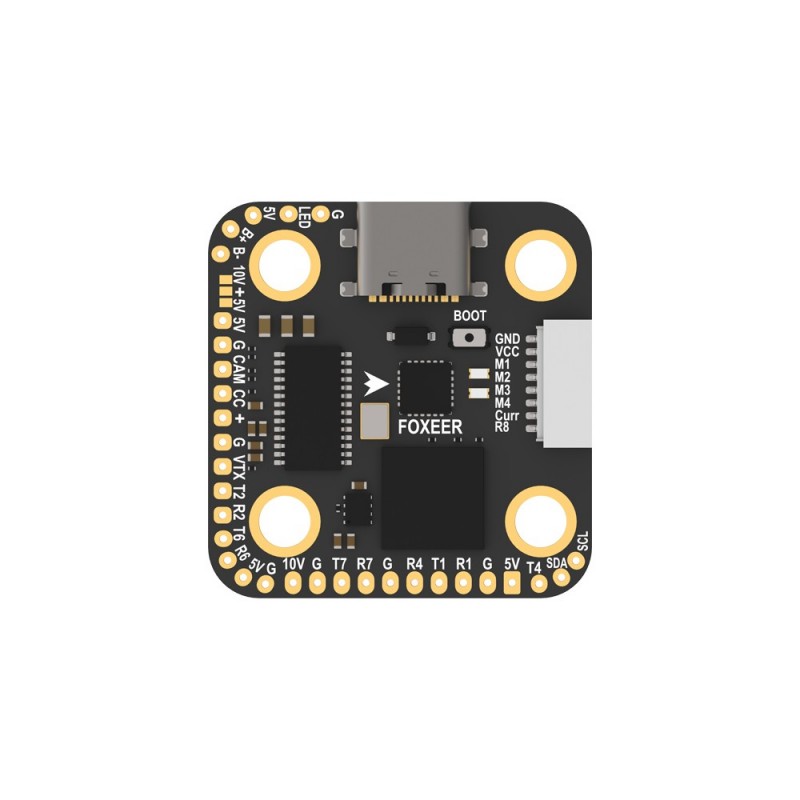

FOXEER H7 Mini Single
Производитель
Foxeer
Категория
FC single
Процессор
STM32H743
Гироскоп
MPU6000
Монт. размер
20x20мм
Напряжение
до 8s
| Model | Foxeer H7 |
| CPU | STM32H743 |
| Gyro | MPU6000 |
| Barometer | DPS310 |
| Power Supply | 4~8S Lipo |
| BEC Output | DC5V/2A; DC10V/2A |
| OSD | BF OSD |
| Black Box | 16M Flash Memory |
| UART | 6 Sets+Rx8 |
| ESC Telemetry | RX8 |
| Buzzer | YES |
| Smart Audio | YES |
| LED | 1 Set 2812 LED |
| USB | Type-C |
| Servo | S1,S2 |
| Firmware | BetaFlight:FOXEERH743 |

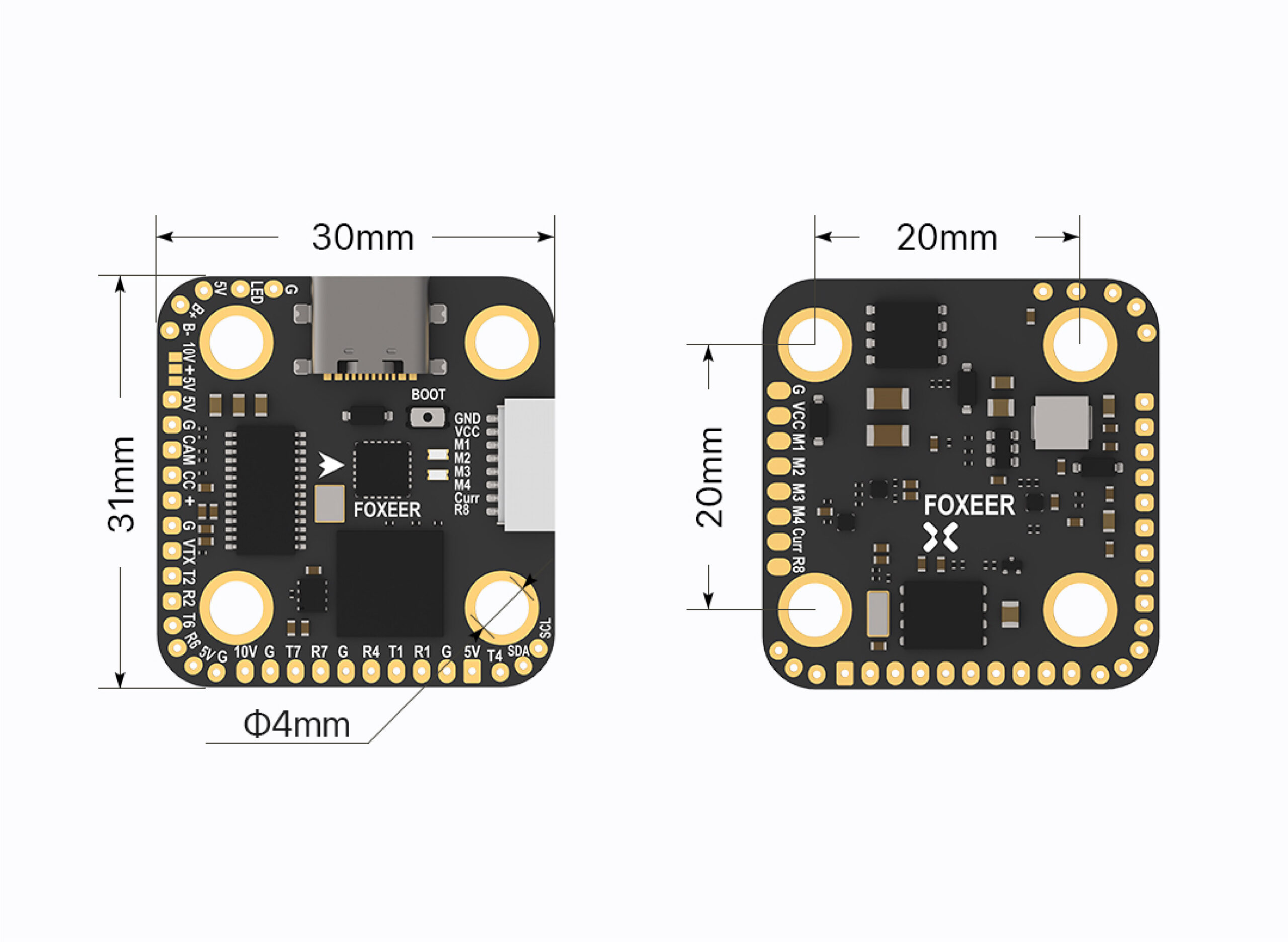

| Size | 30*31mm |
| Mounting Hole | 20X20mm,Φ4mm |
| Weight(g) | 5.6g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Package Includes | 1*FC, 4*Rubbers Columns |
