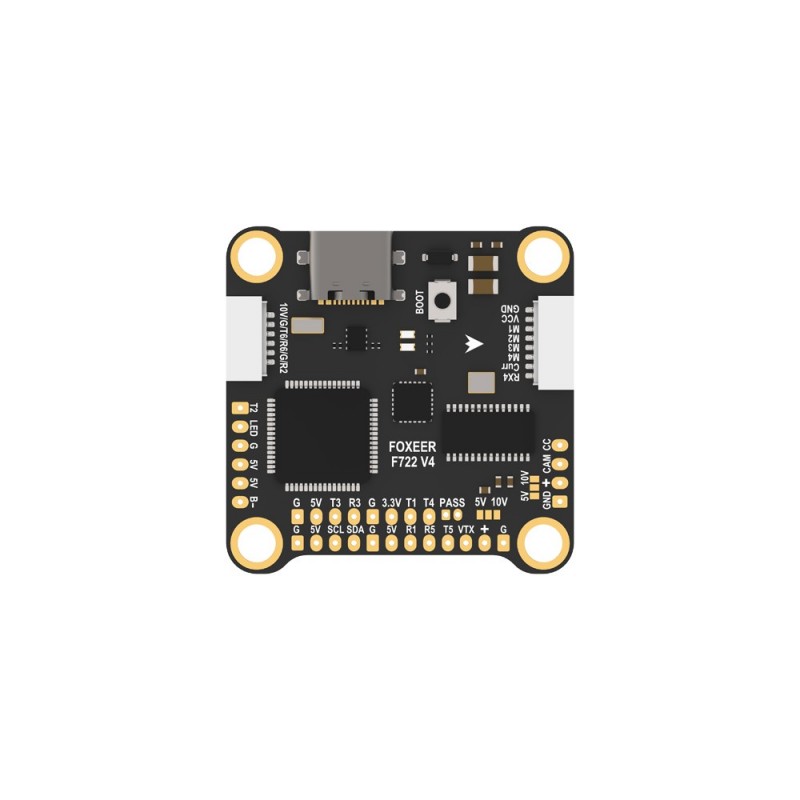

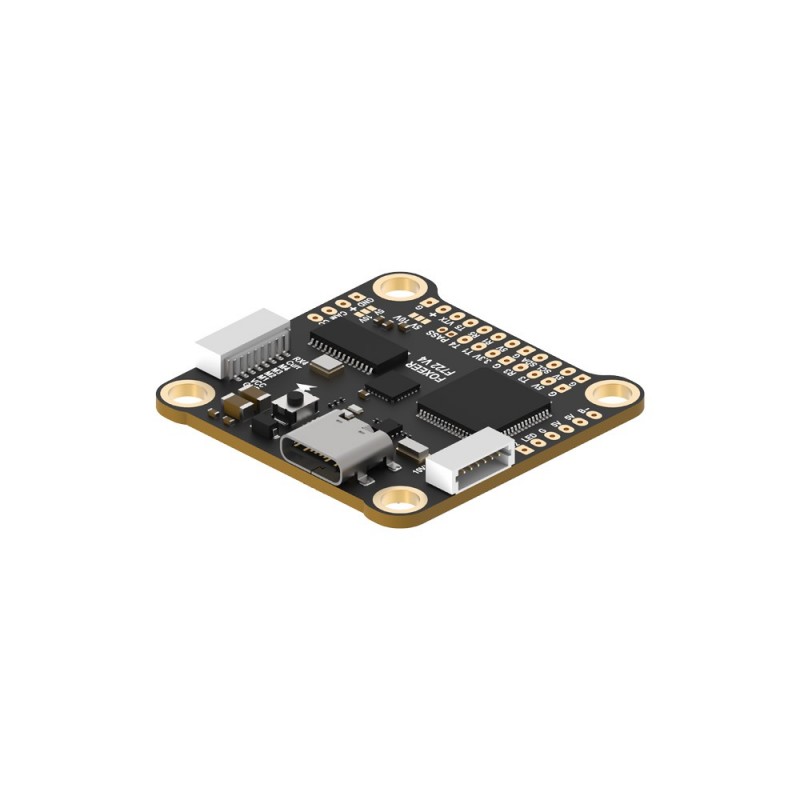

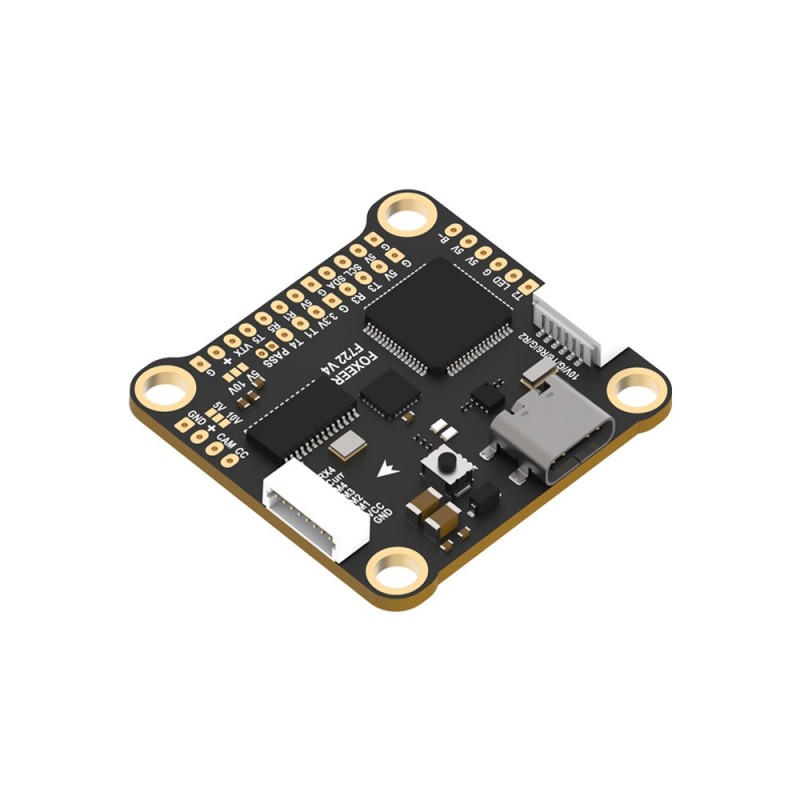

FOXEER F722 V4 Single
Производитель
Foxeer
Категория
FC single
Процессор
STM32F722
Гироскоп
ICM-42688-P
MPU6000
Монт. размер
30,5x30,5мм
Напряжение
до 8s
| Model | F722 V4 MPU6000 |
| CPU | STM32F722RET6 |
| Gyro | MPU6000 |
| Barometer | DPS310 |
| Power Supply | 4~8S Lipo |
| BEC Output | DC5V/2A; DC10V/2A |
| OSD | BF OSD |
| Black Box | 16M Flash Memory |
| UART | 5 Sets+Rx4 |
| ESC Telemetry | RX4 |
| Buzzer | YES |

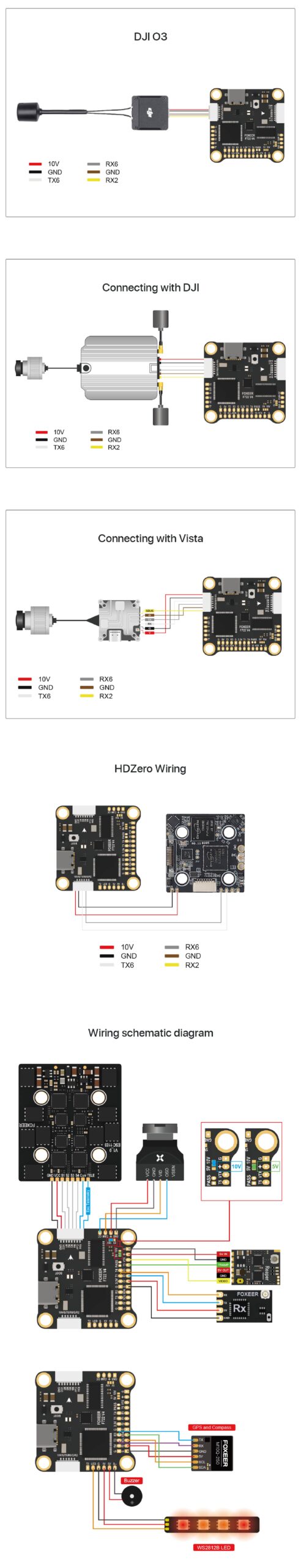

| Connector | DJI/HDzero |
| Smart Audio | YES |
| LED | 1 Set 2812 LED |
| USB | Type-C |
| X8 Supported | Need CLI |
| Firmware | BetaFlight:FOXEERF722V4; |

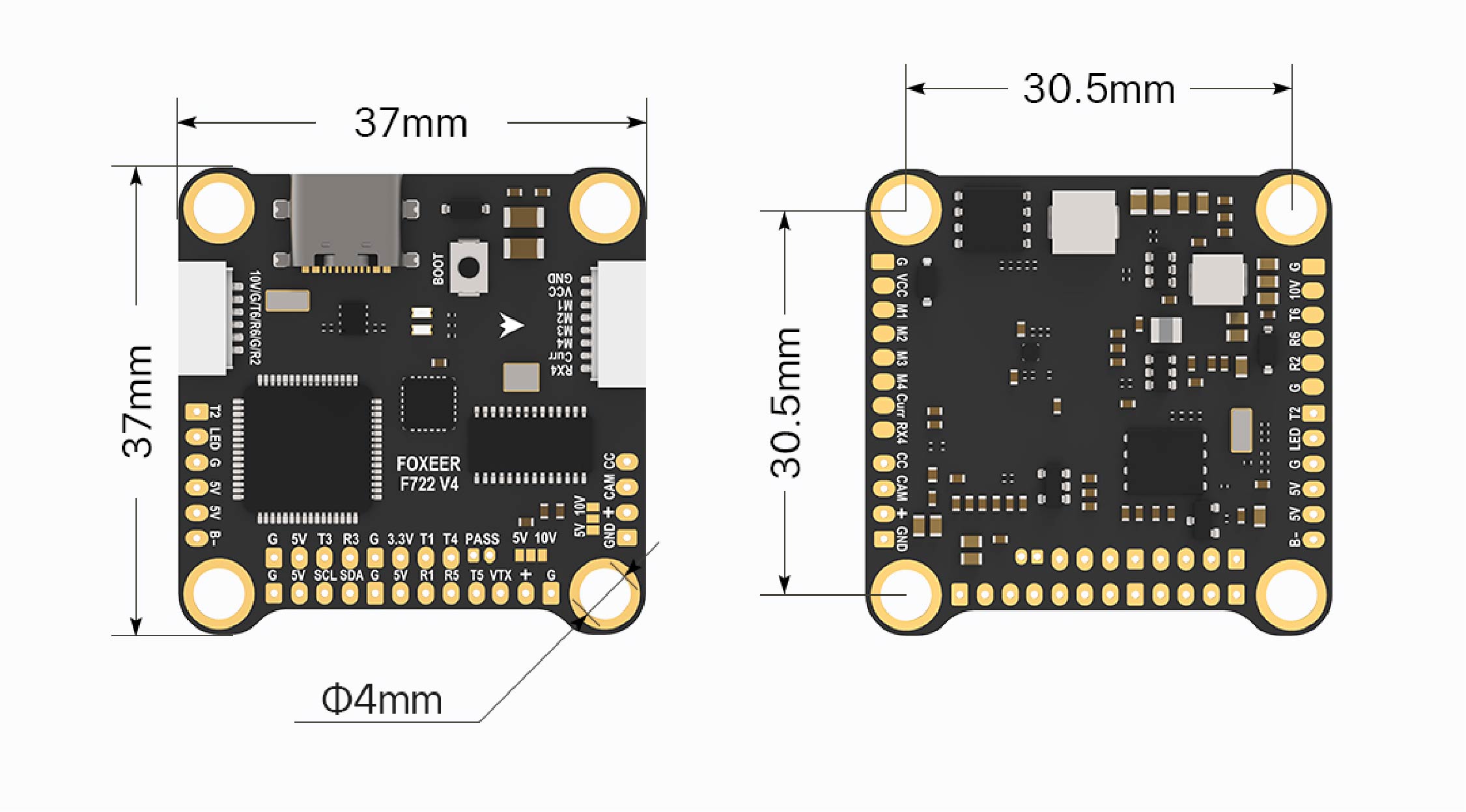

| Size | 37X37mm |
| Mounting Hole | 30.5X30.5mm,Φ4mm |
| Weight(g) | 7.7g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Package Includes | 1*FC, 4*Rubbers Columns, 1*Cable |
