BetaFPV X-Knight 360

Производитель

BetaFPV

Категория

5'' frame

Тип рамы

True X

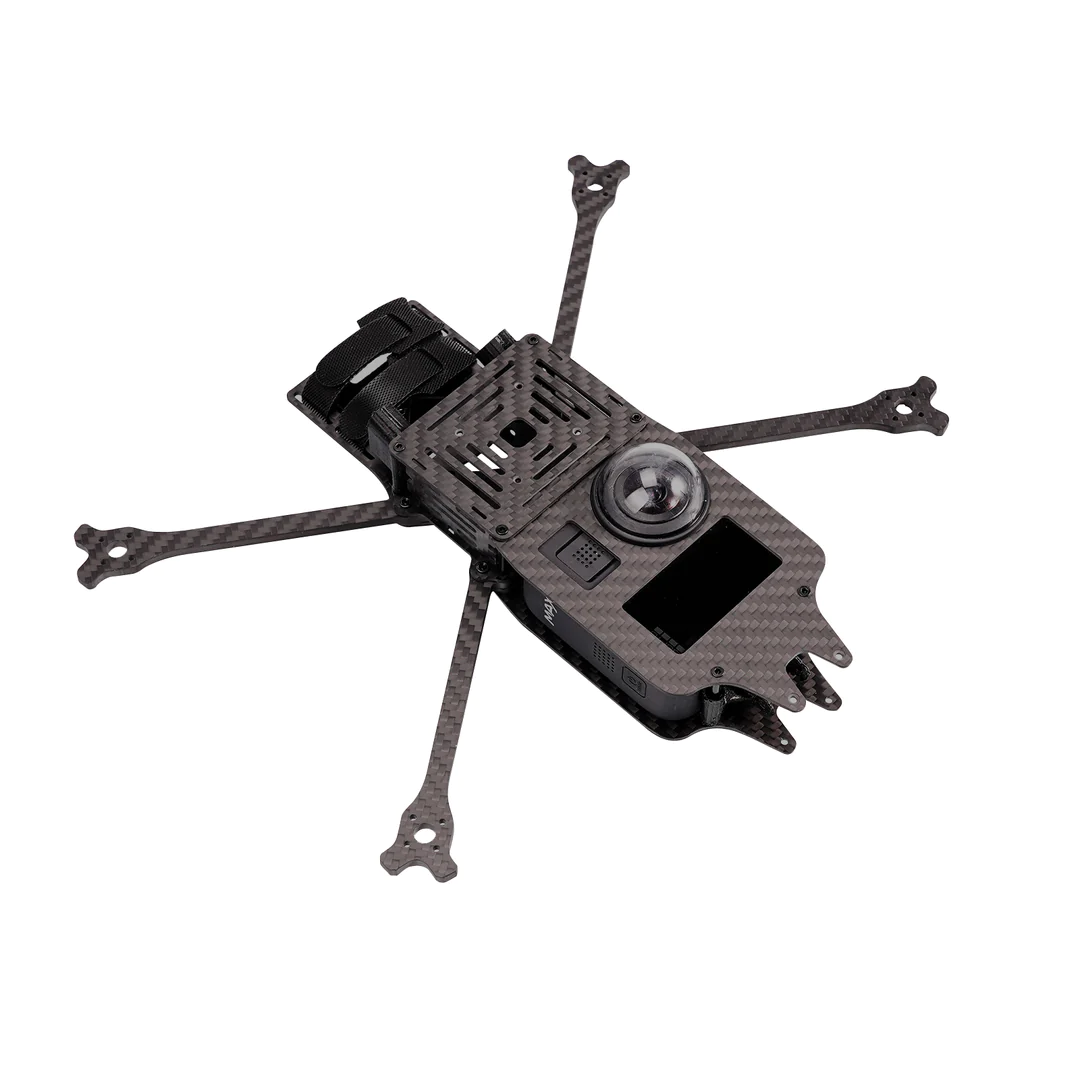

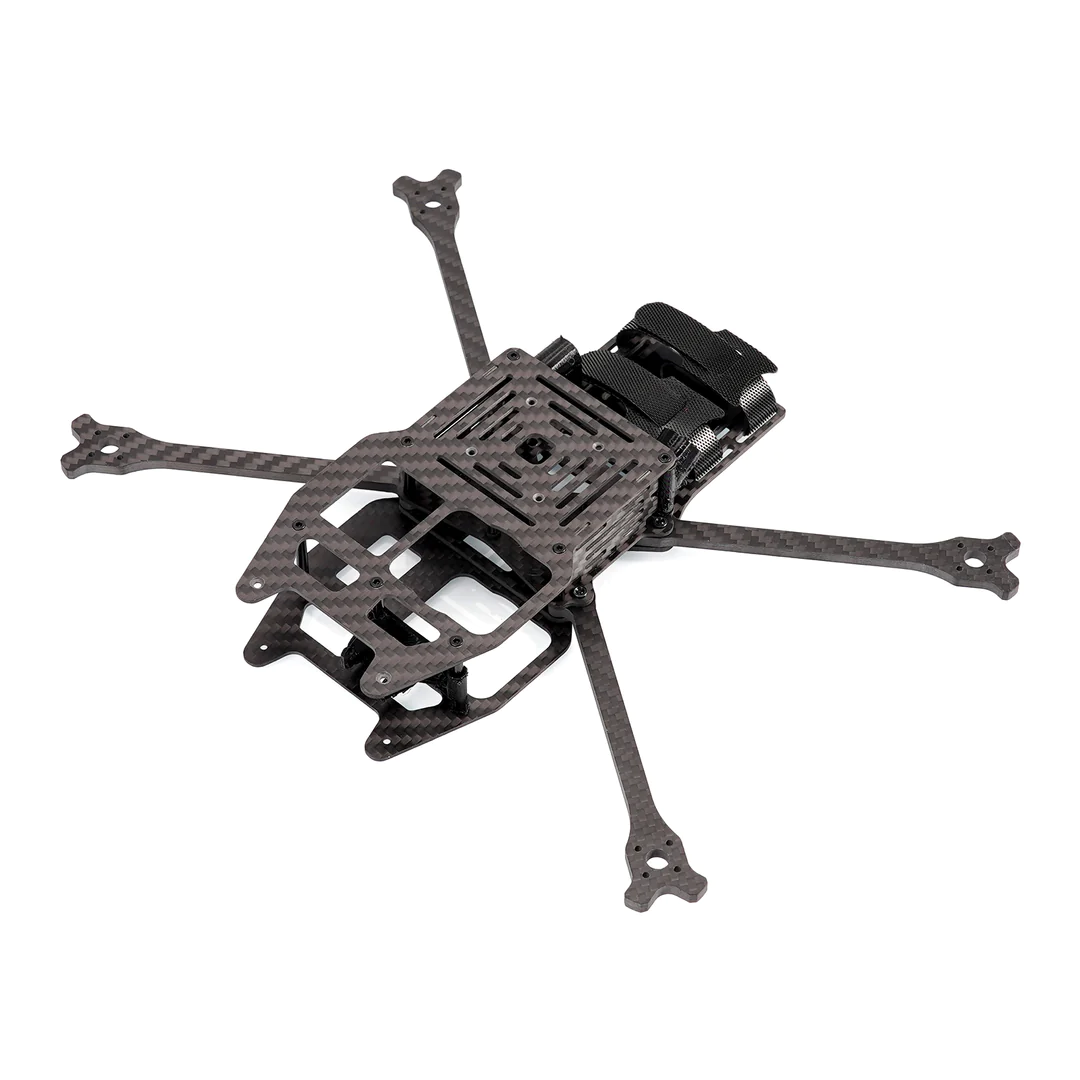

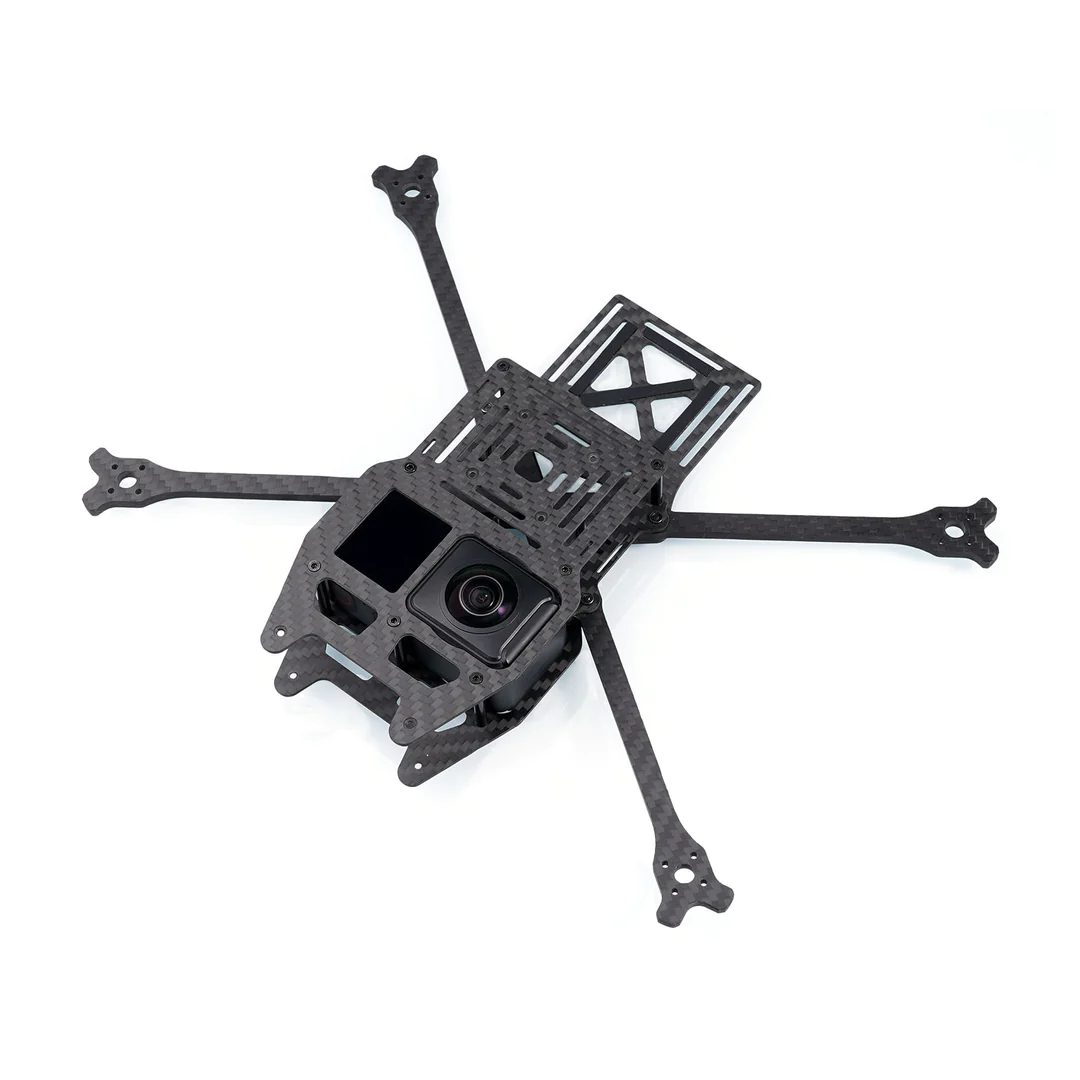

X-Knight 360 Carbon Frame Kit is an innovative, versatile and functional design frame that is is designed to work seamlessly with Insta ONE R Camera and GoPro MAX. With the flat designed frame kit and the 360 camera, pilots can capture an aerial 360 video and hide the drone entirely from sight. What’s more, this frame adopts carbon material and becomes the ultimate durability while maintaining minimal weight. Meanwhile, with this kit, pilots can build their own invisible drones like  X-knight 360 FPV Quadcopter and X-knight 360 FPV Quadcopter(HD Digital VTX).

Whether you’re using this frame as a 5″ or 6″ cinematic rig or you’re using its invisible 360-fpv-drone-feature, the frame will be your best choice!

We also release the Insta Sticky Lens Guard to help pilots protect your ONE R camera, bring pilots more choice on flight landing.

  • Item: X-Knight360 Frame Kit
  • Material: Carbon Fiber
  • Wheelbase: 250mm

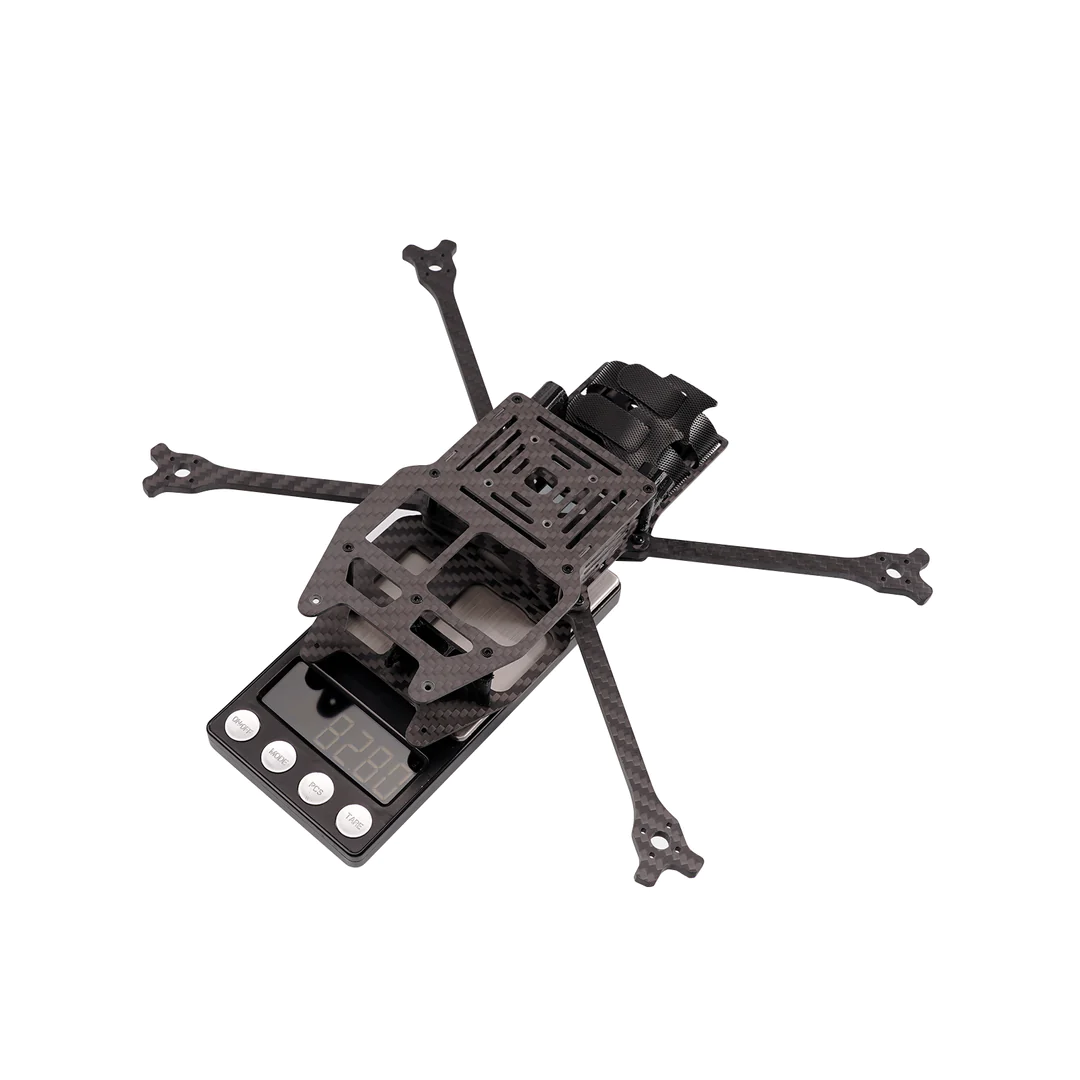

  • Weight: 82.8g
  • Frame height: 30mm
  • Top plate thickness: 1.5mm
  • Bottom plate thickness: 2mm
  • Arm thickness: 4mm
  • Battery protected plate thickness: 1.5mm
  • Motor mounting hole:  12 x 12
  • FC mounting hole: 26.5mm x 26.5mm

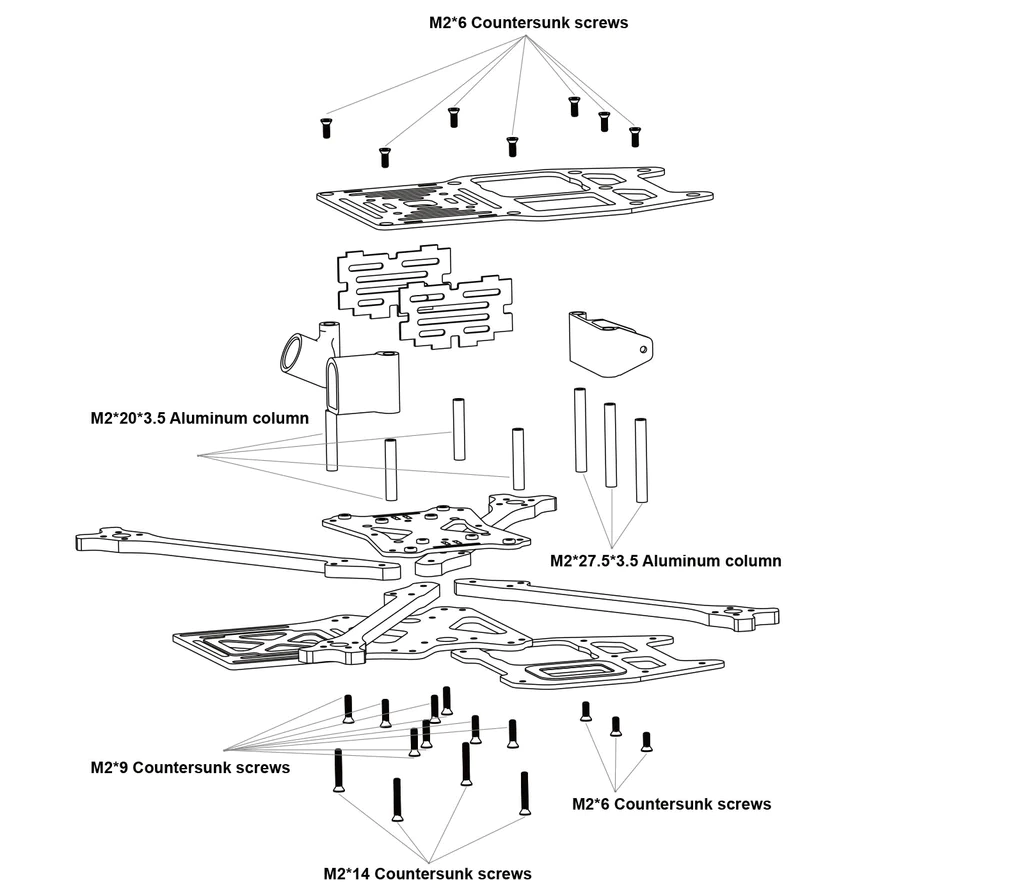

How to Assemble for Insta ONE R

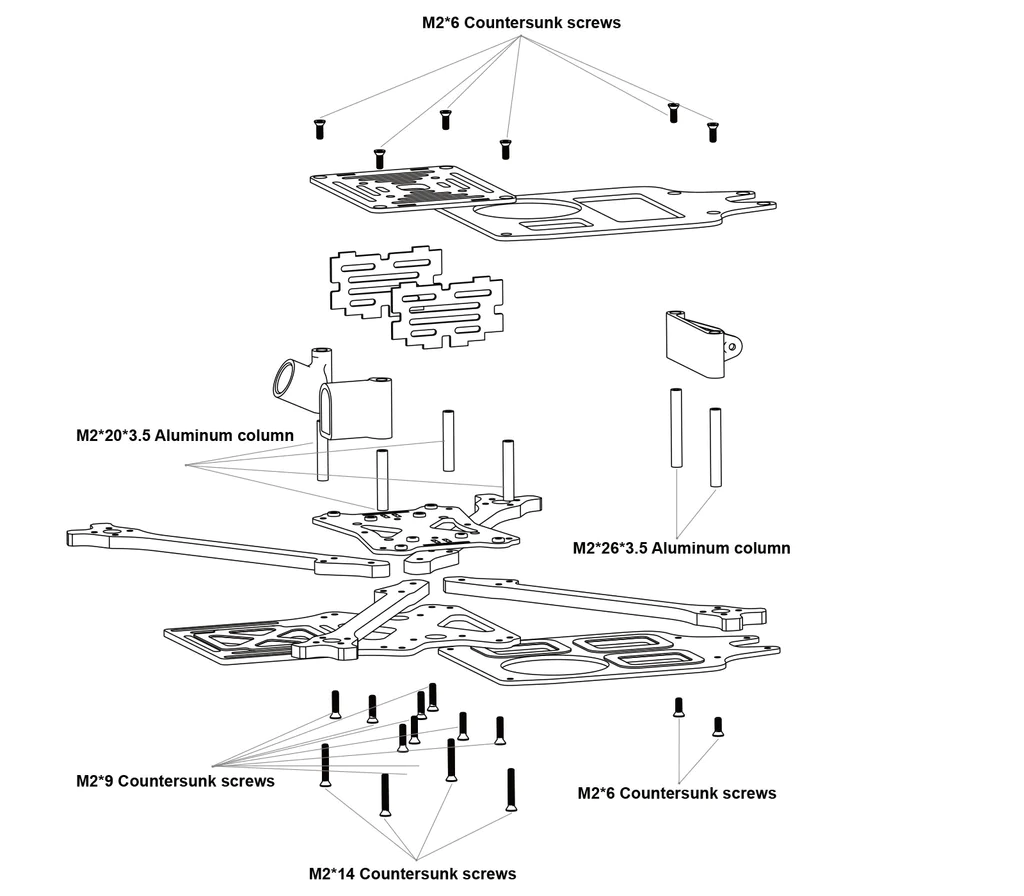

How to Assemble for GoPro Max

  • 2 * Insta ONE R Top Plates
  • 2 * Insta ONE R Bottom Plates
  • 4 * Arms
  • 2 * Side Plates
  • 4 * Screw Bags
  • 2 * Anti-slip Mats
  • 1 * XT60 Power cable
  • 3 * 3D Printouts
  • 3 * Wires

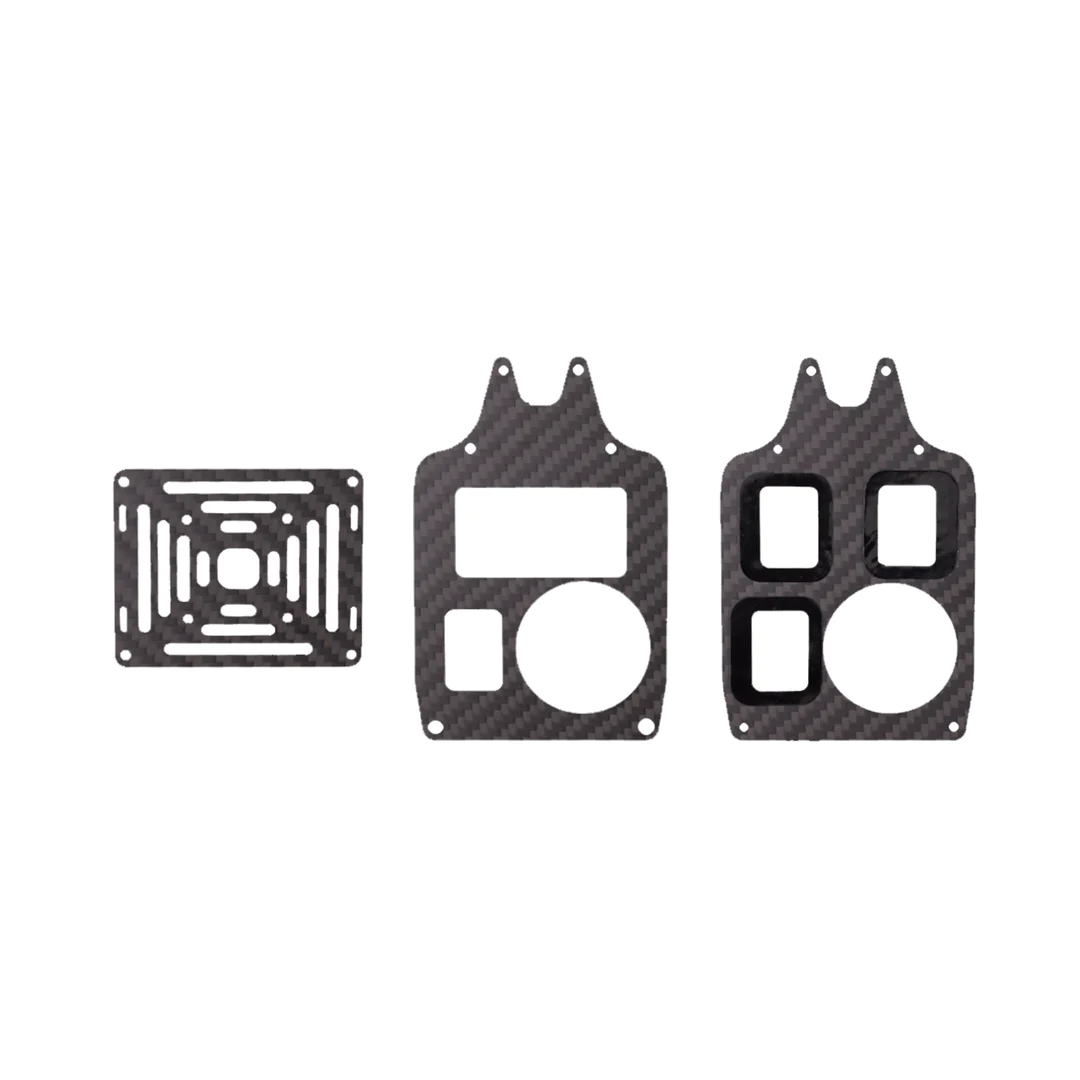

Support GoPro Max Parts

  • 2 * GoPro MAX Top Plate
  • 1 * GoPro MAX Bottom Plate
