BetaFPV Pavo Pico

Производитель

BetaFPV

Категория

80 whoop

Тип рамы

CineWhoop

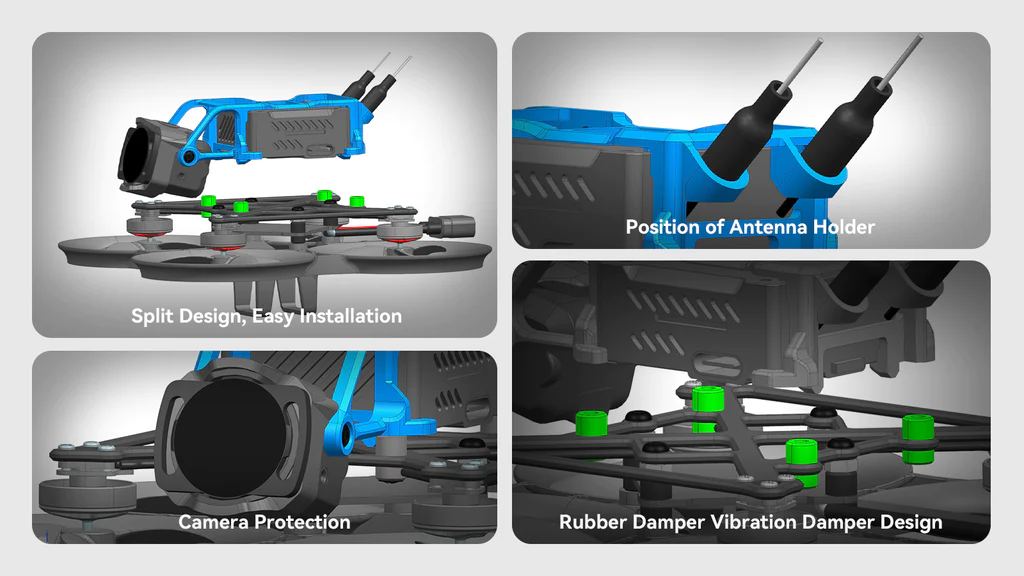

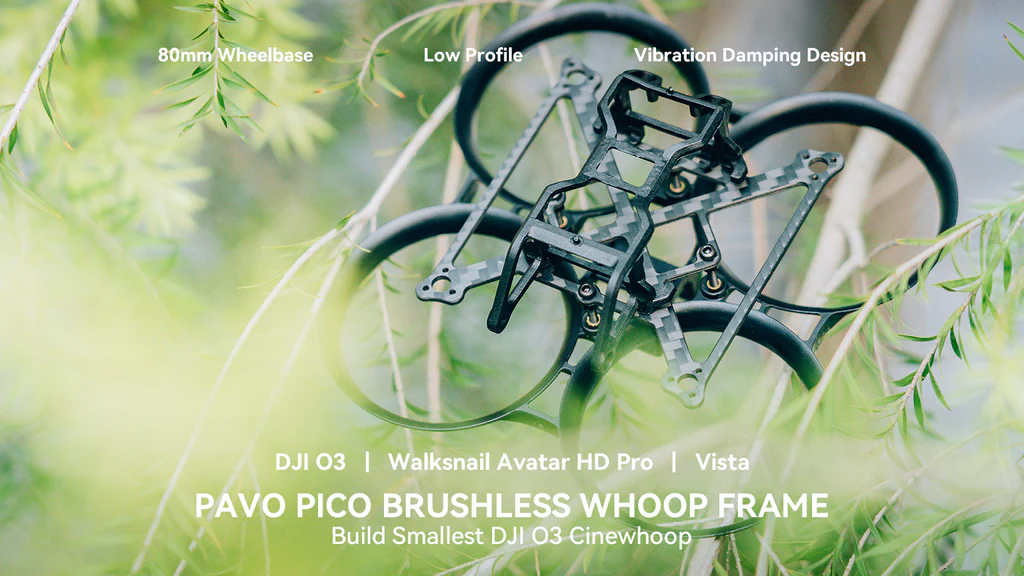

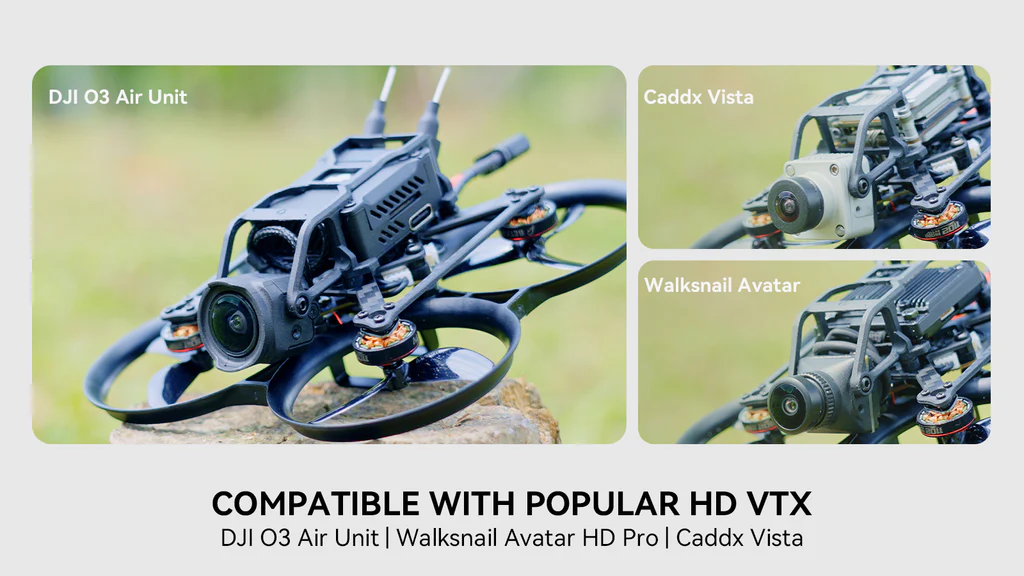

Pavo Pico is the Smallest 2S Sub100g DJI O3 Cinewhoop frame, compatible with other mainstream HD digital VTX on the market, such as Walksnail Avatar Pro Kit, Vista Kit, etc. Based on feedback from pilots during the BETA TEST before, we have made upgrades to the frame, such as lowering the battery slot height and adding filters and camera protection parts. These improvements will maximize the advantages of the camera and HD digital VTX providing, enabling a unique and unparalleled flying experience for pilots.

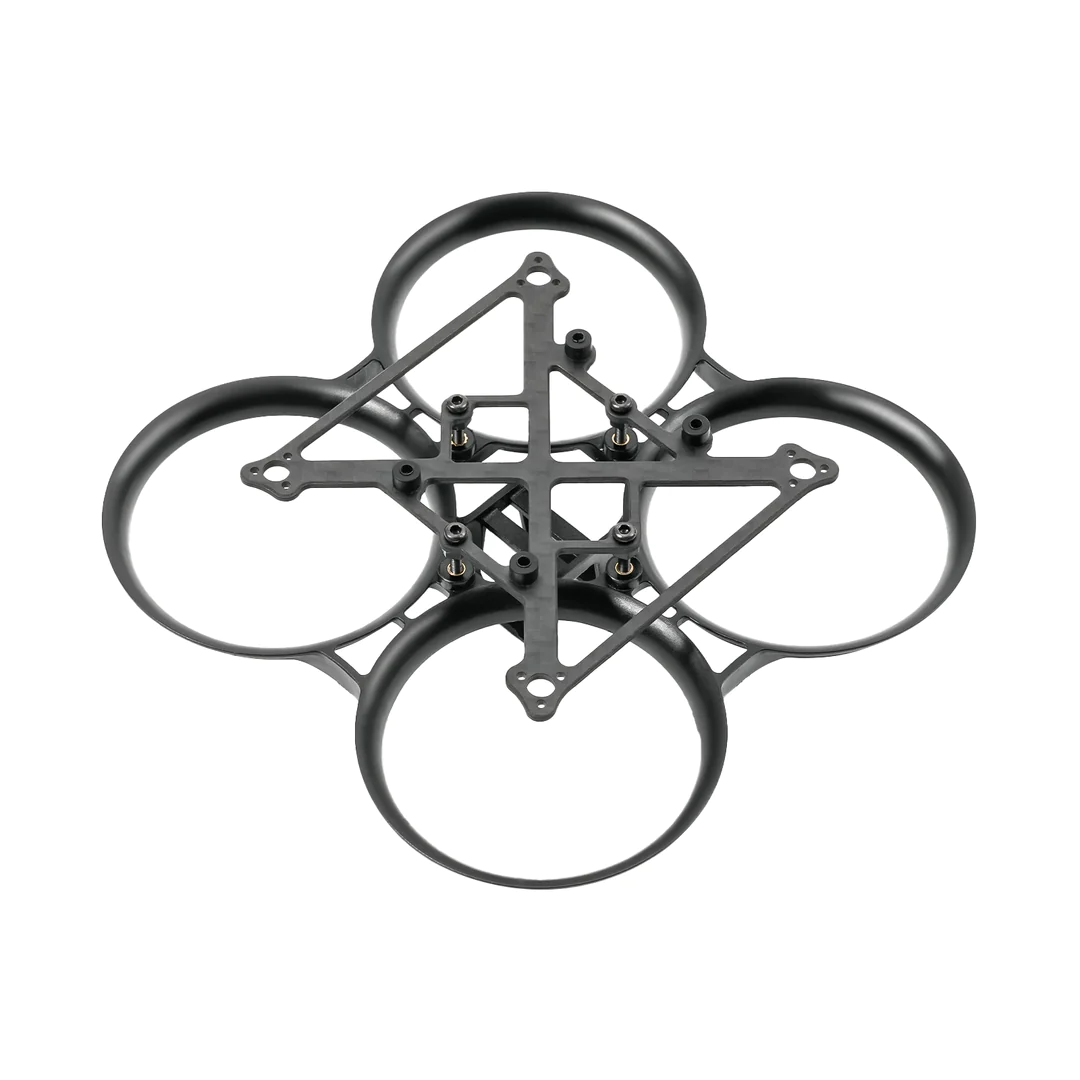

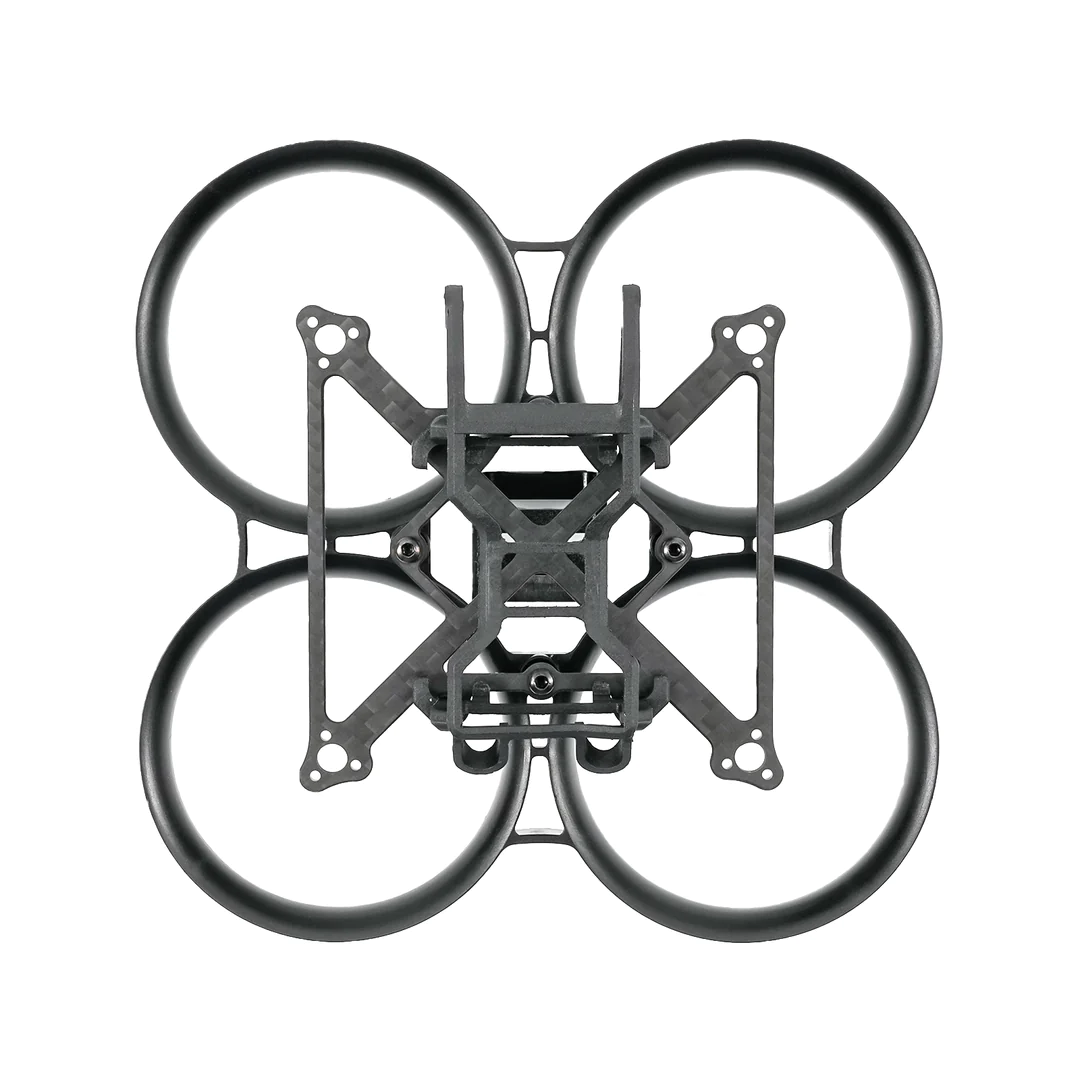

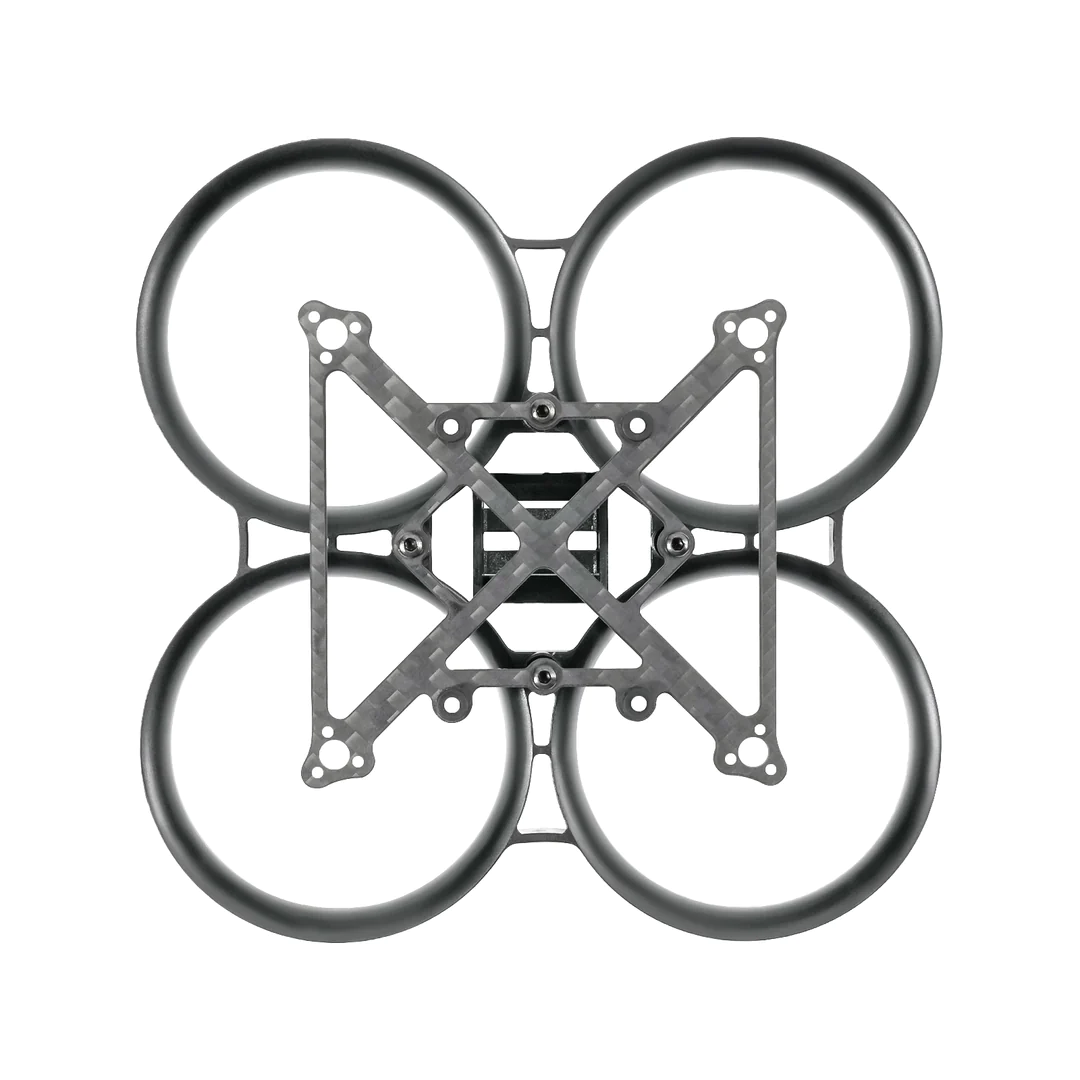

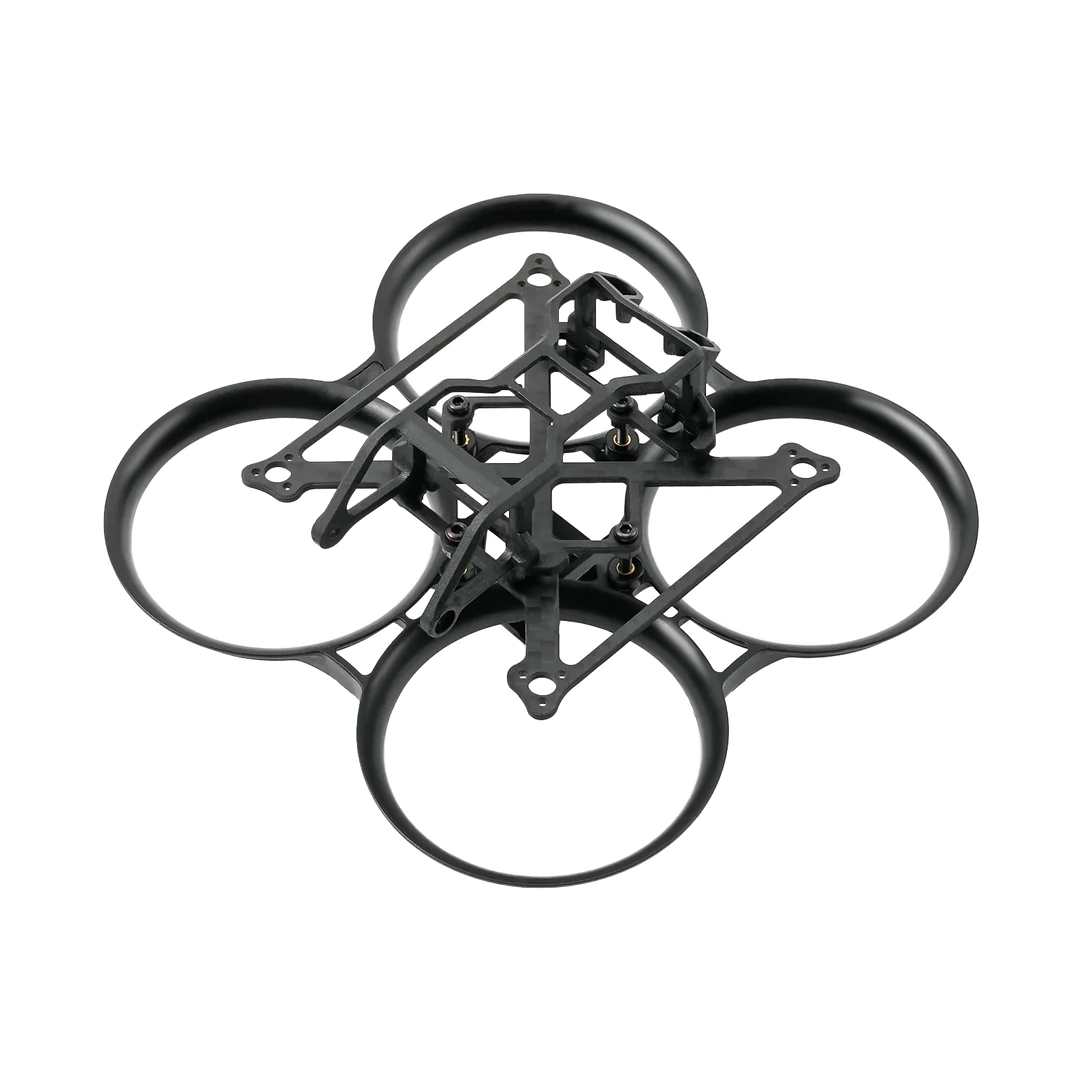

  • Item: Pavo Pico Brushless Whoop Frame
  • Material: PA12

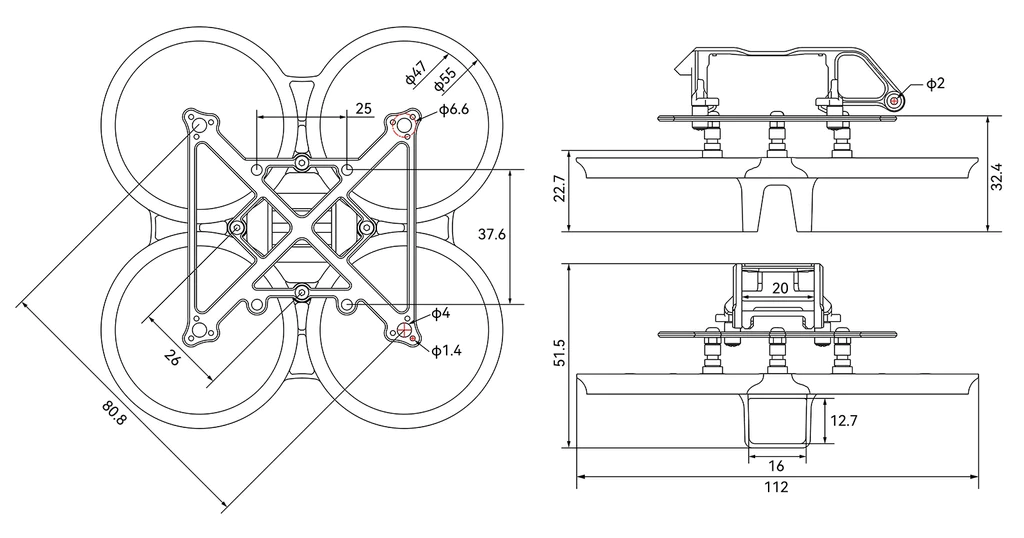

  • Wheelbase: 80.8mm
  • Battery Slot Size: 16mm*12.7mm
  • Camera Installation Spacing: 19mm/20mm

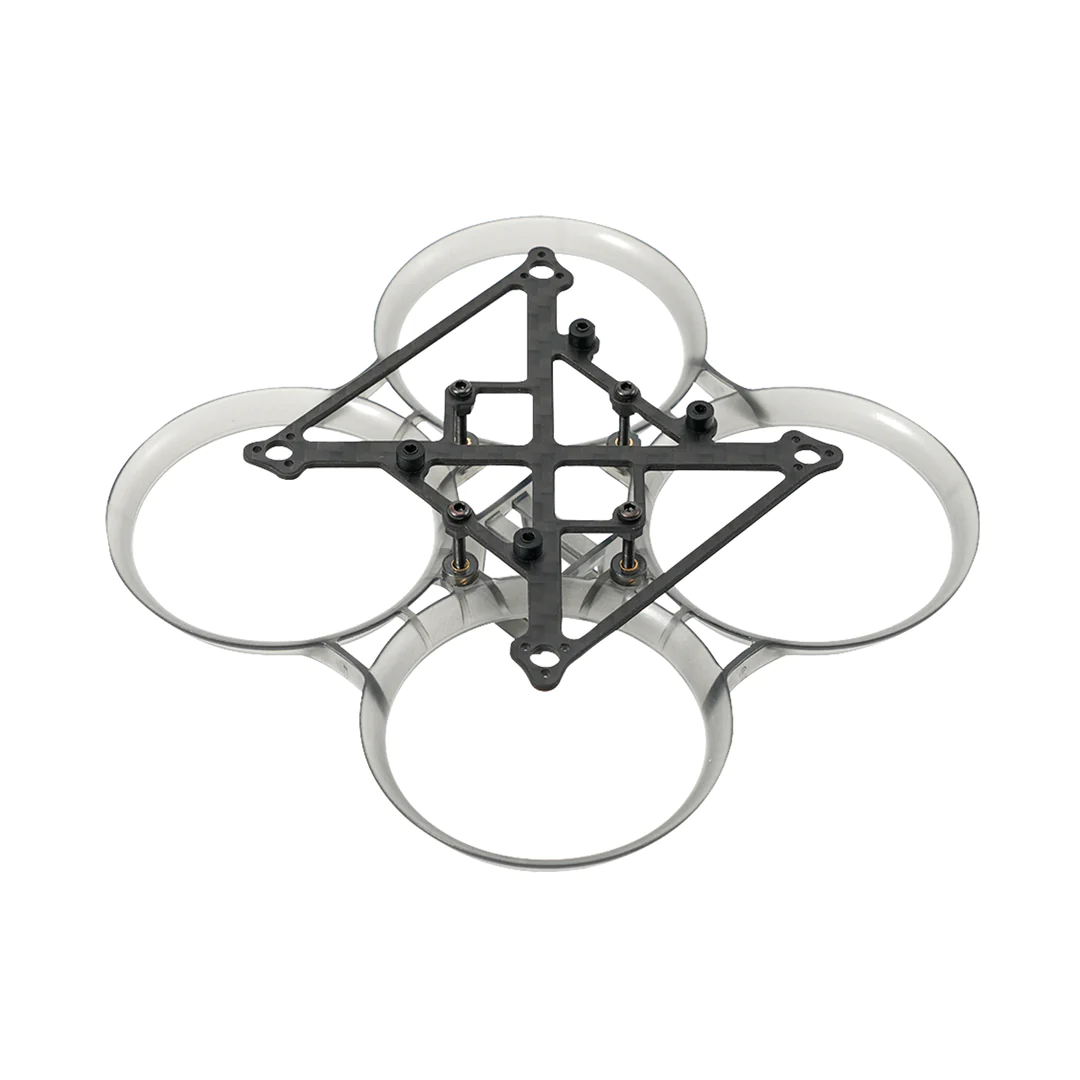

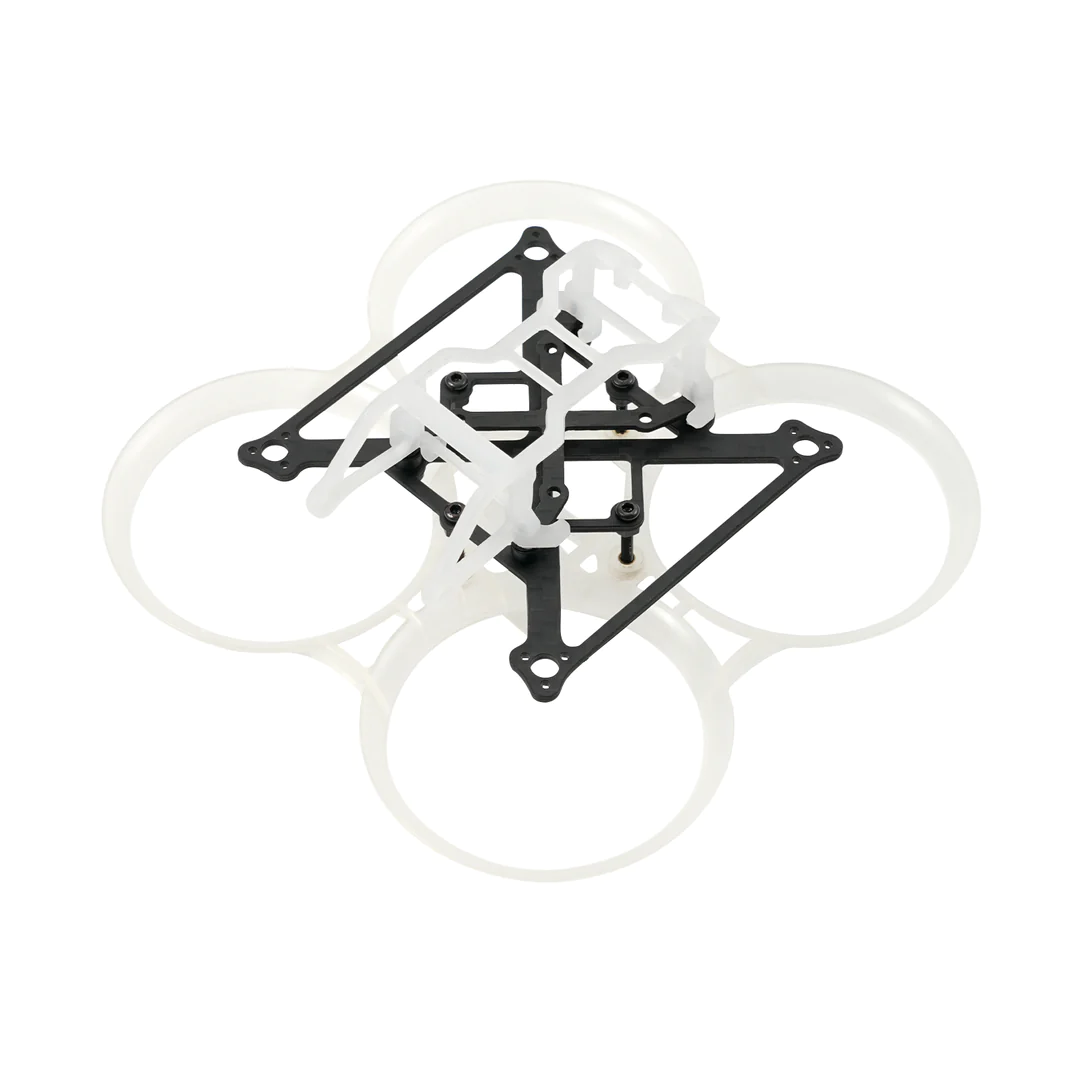

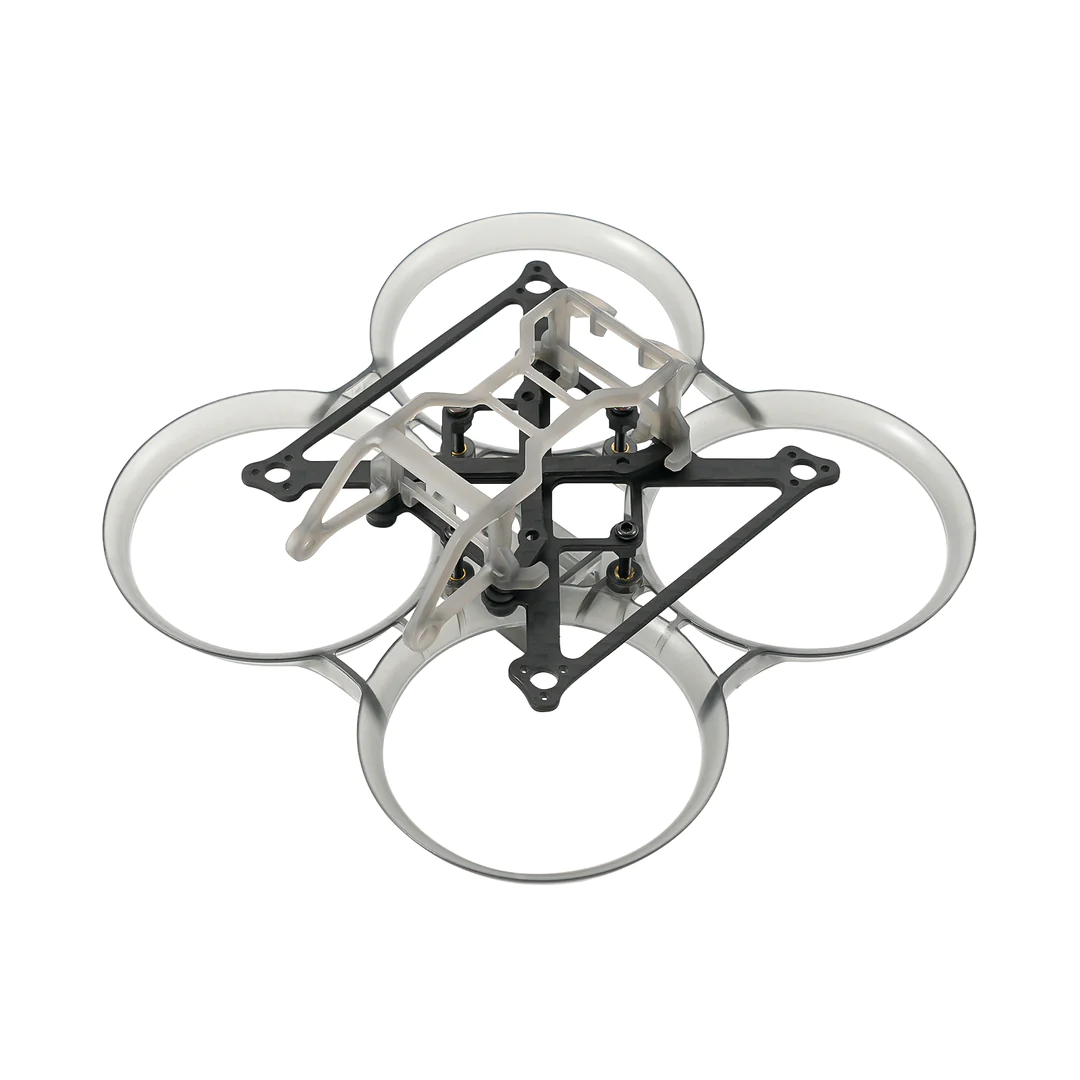

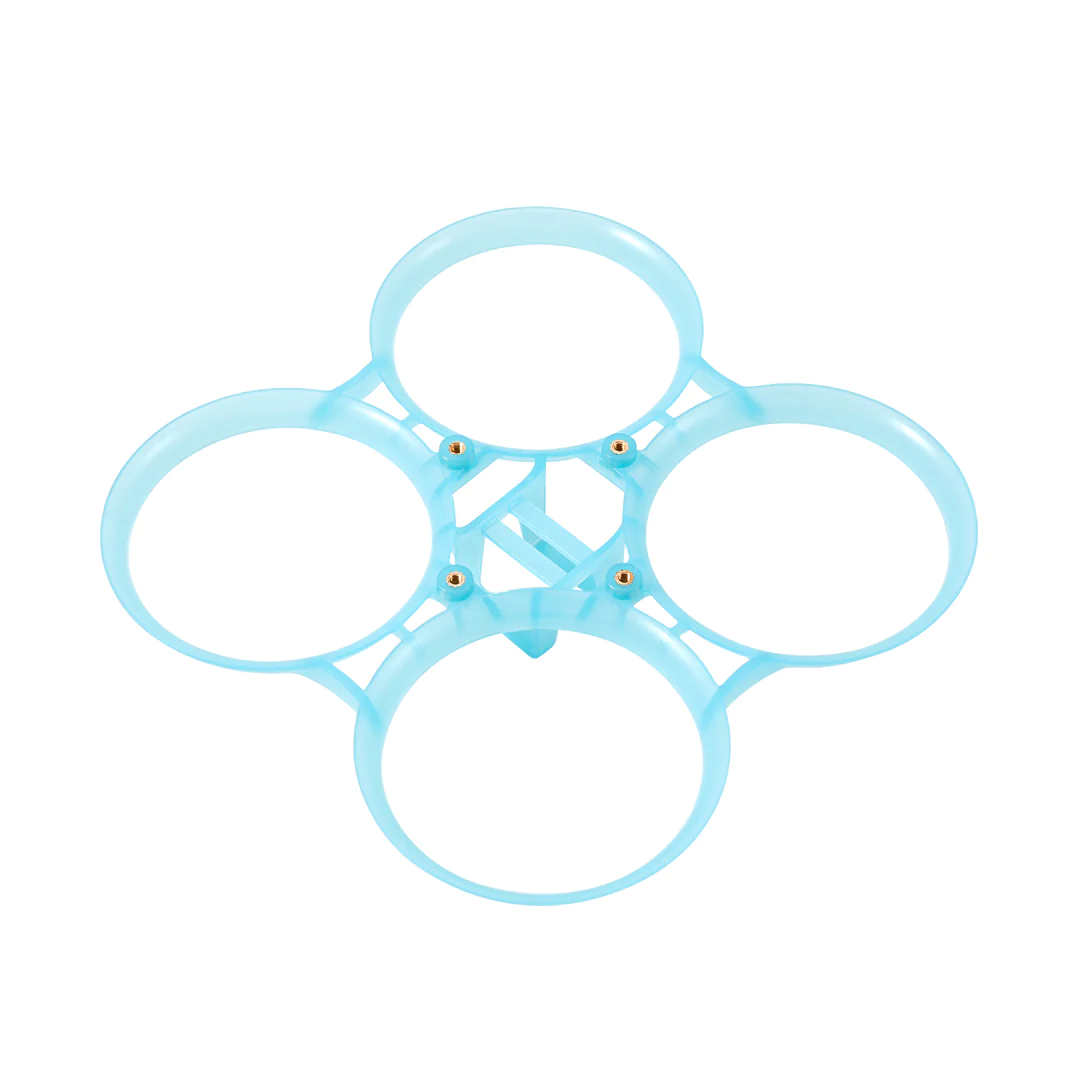

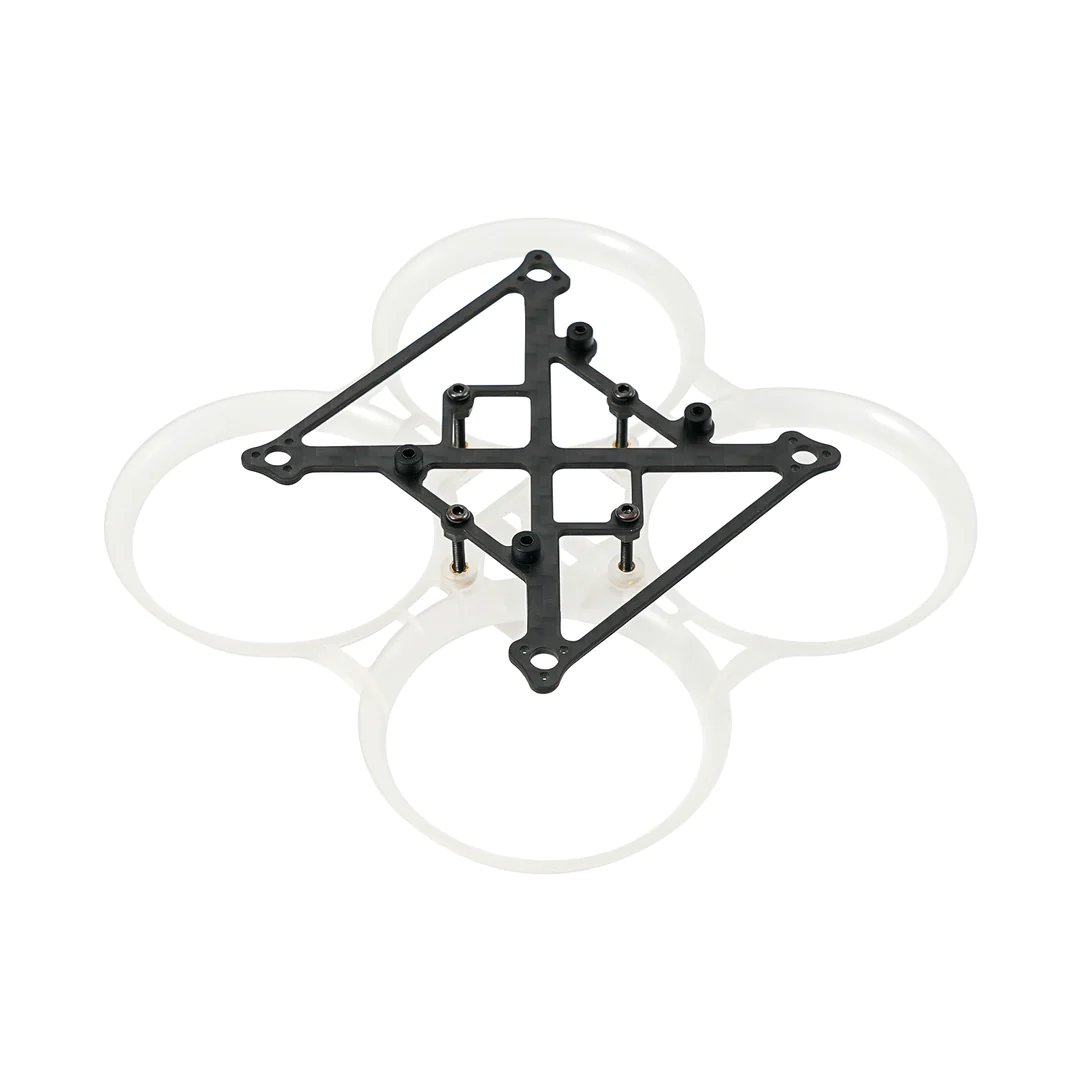

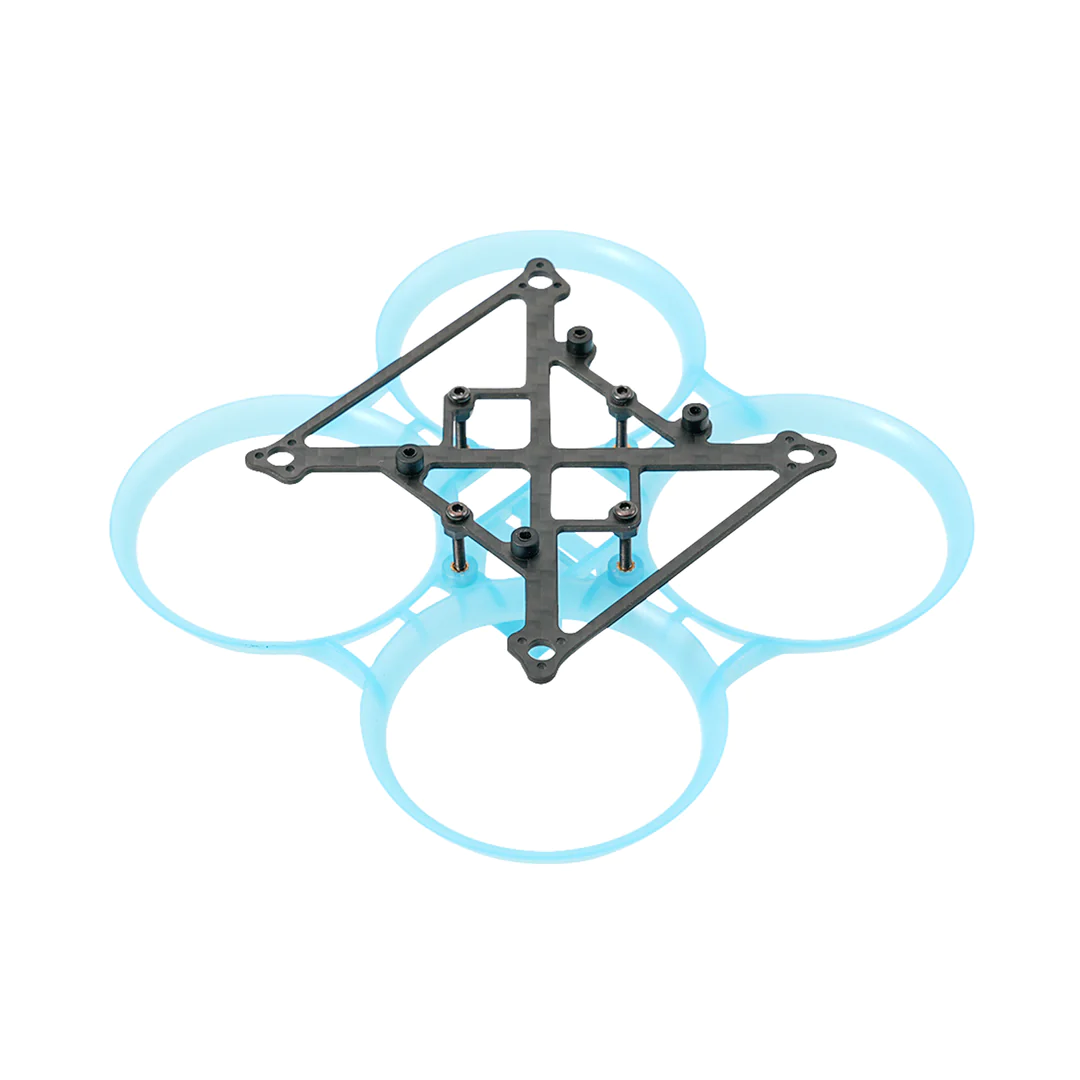

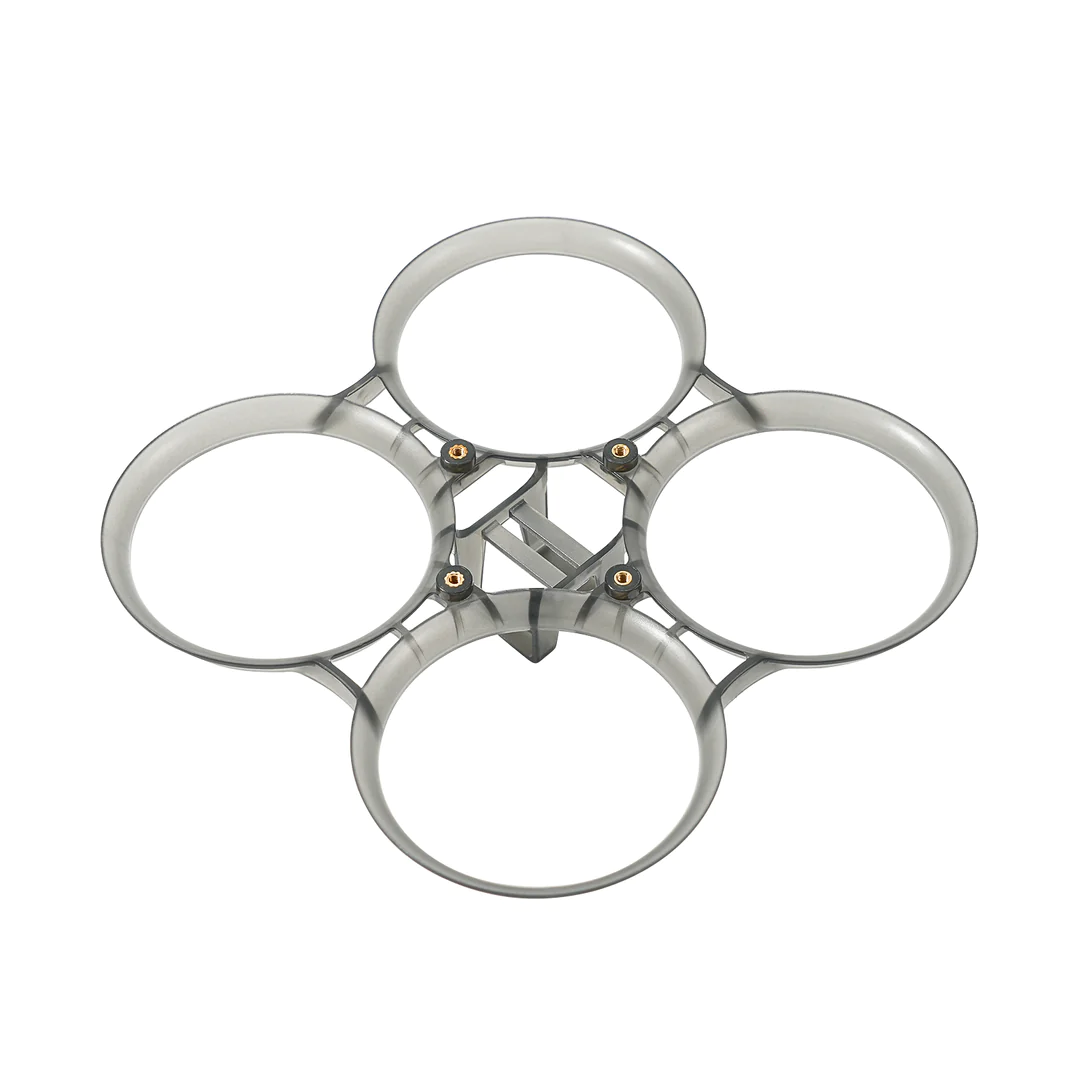

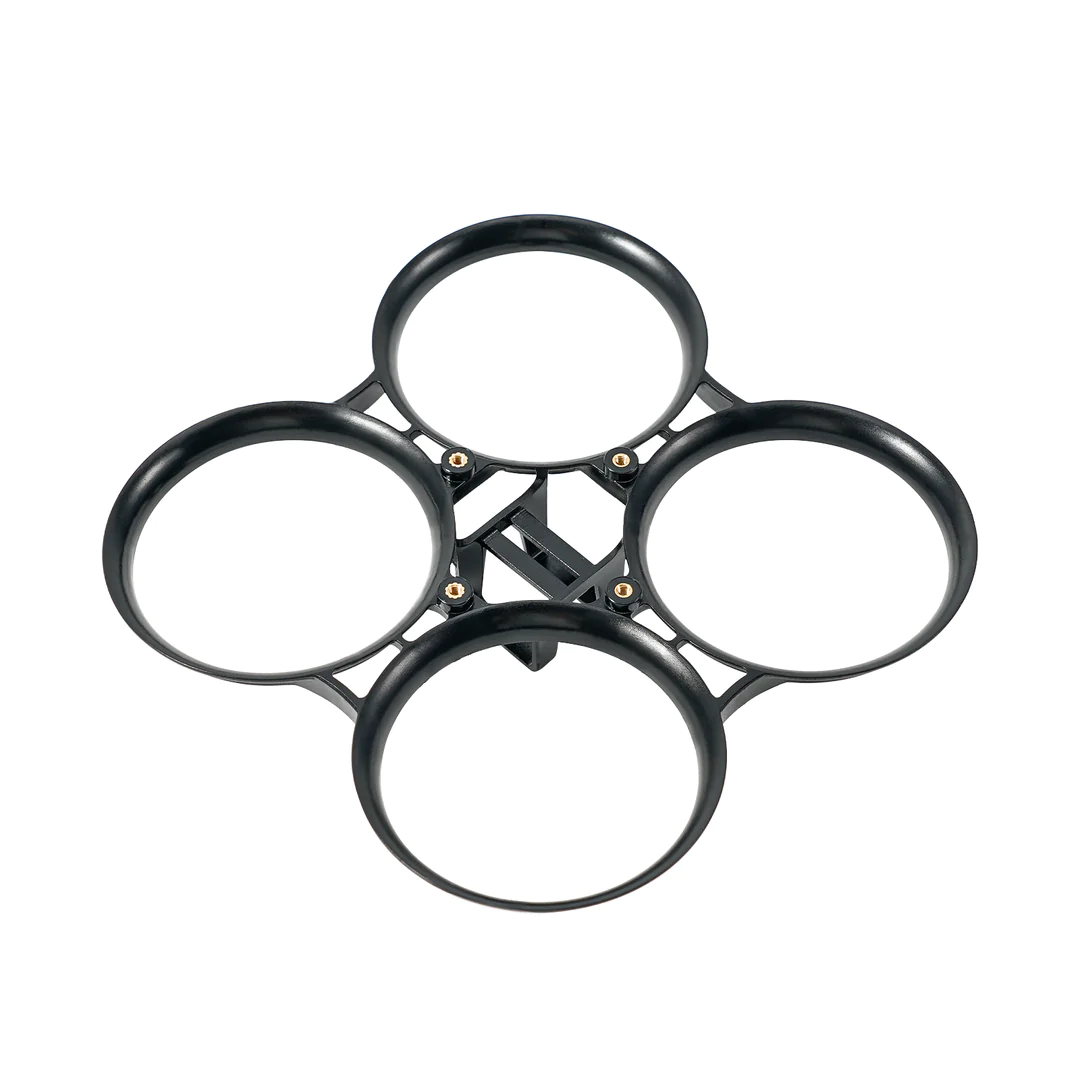

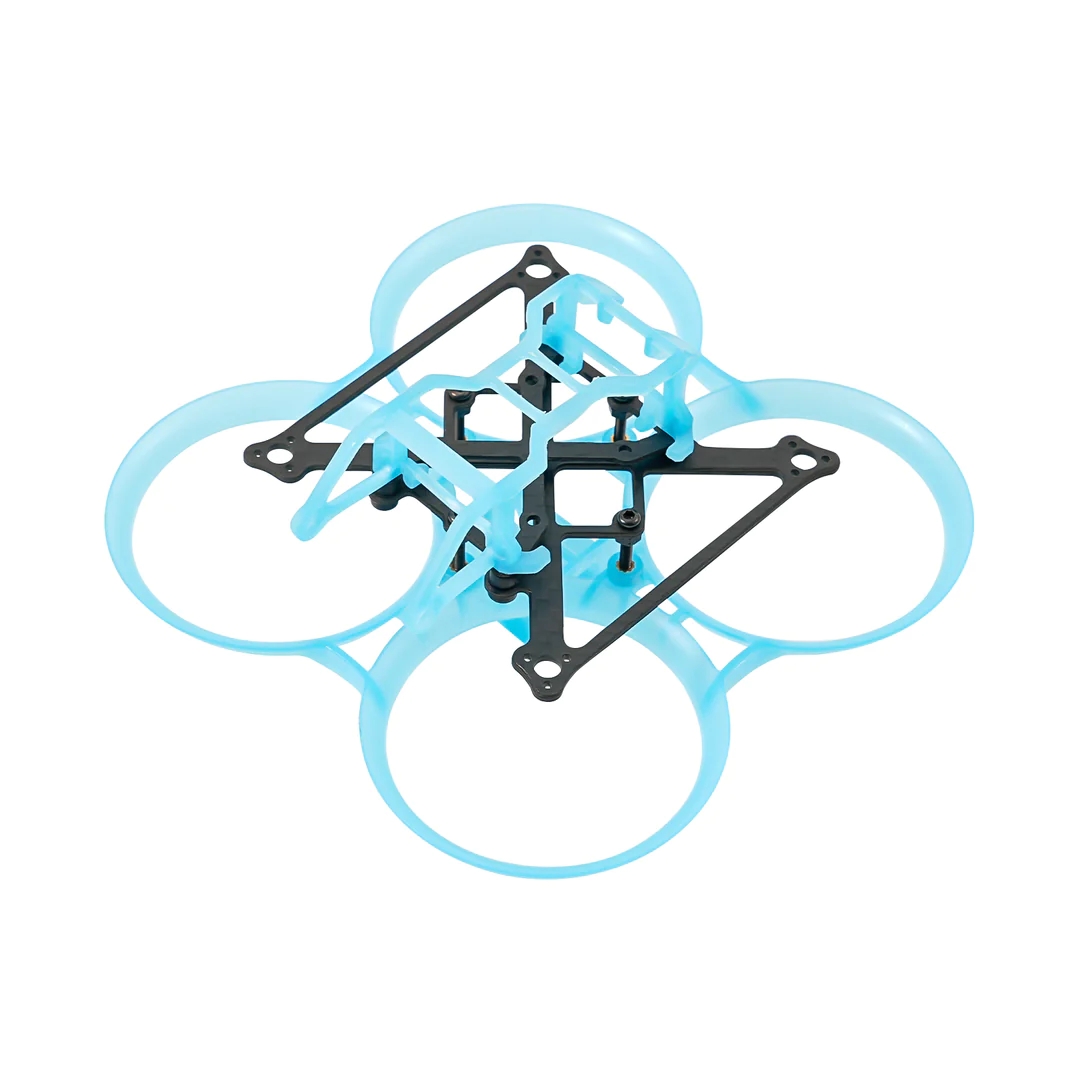

  • Color: Black/Blue/Transparent/Transparent grey

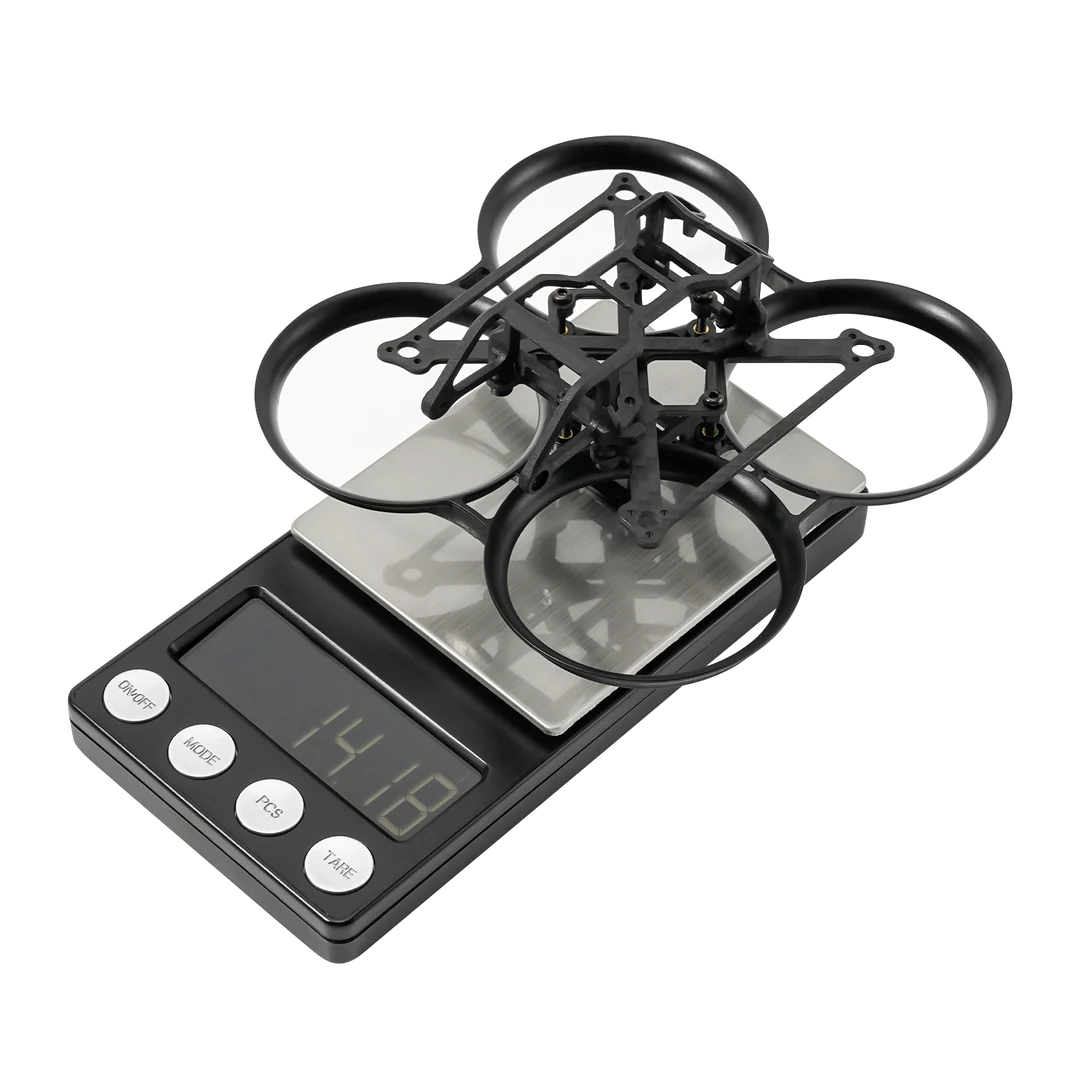

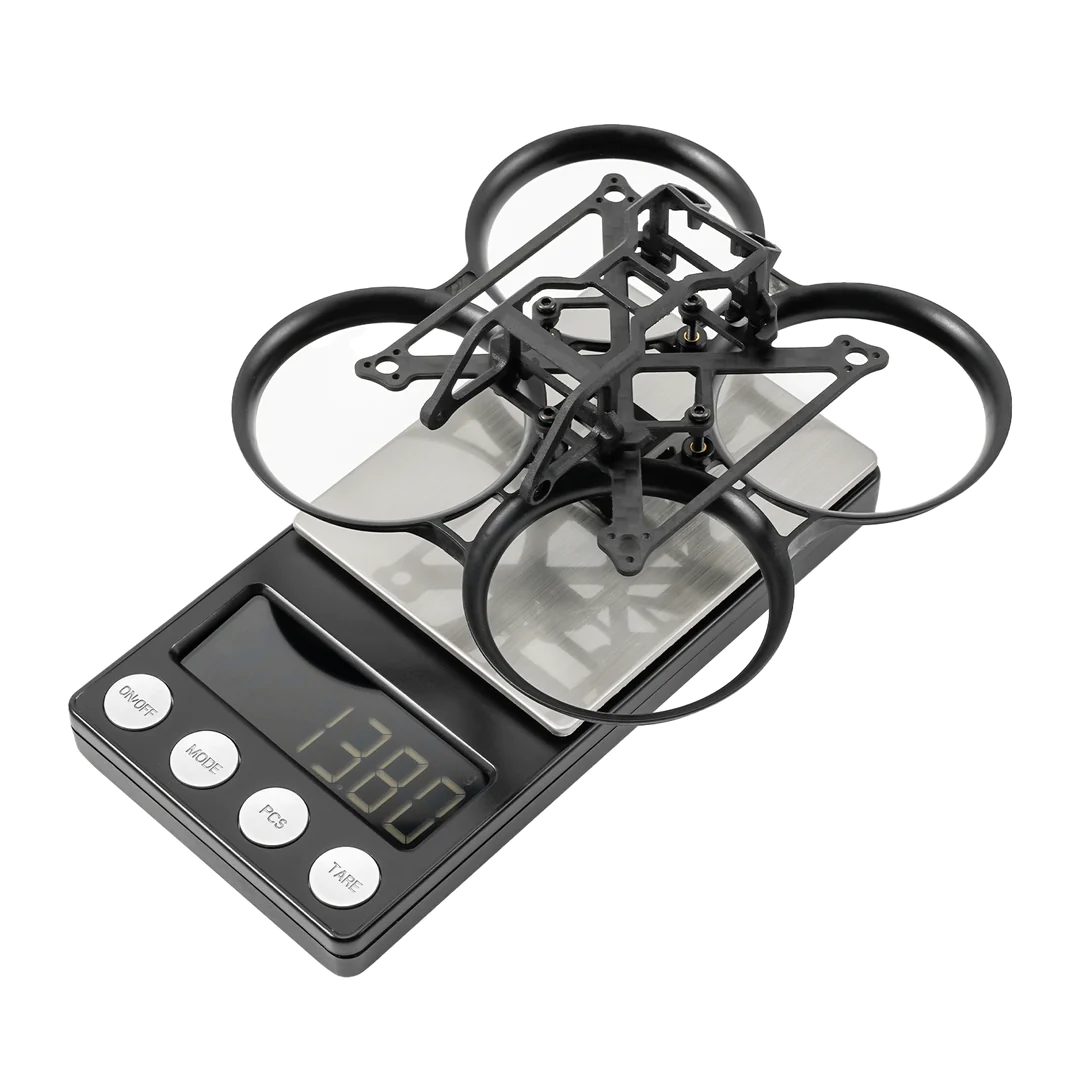

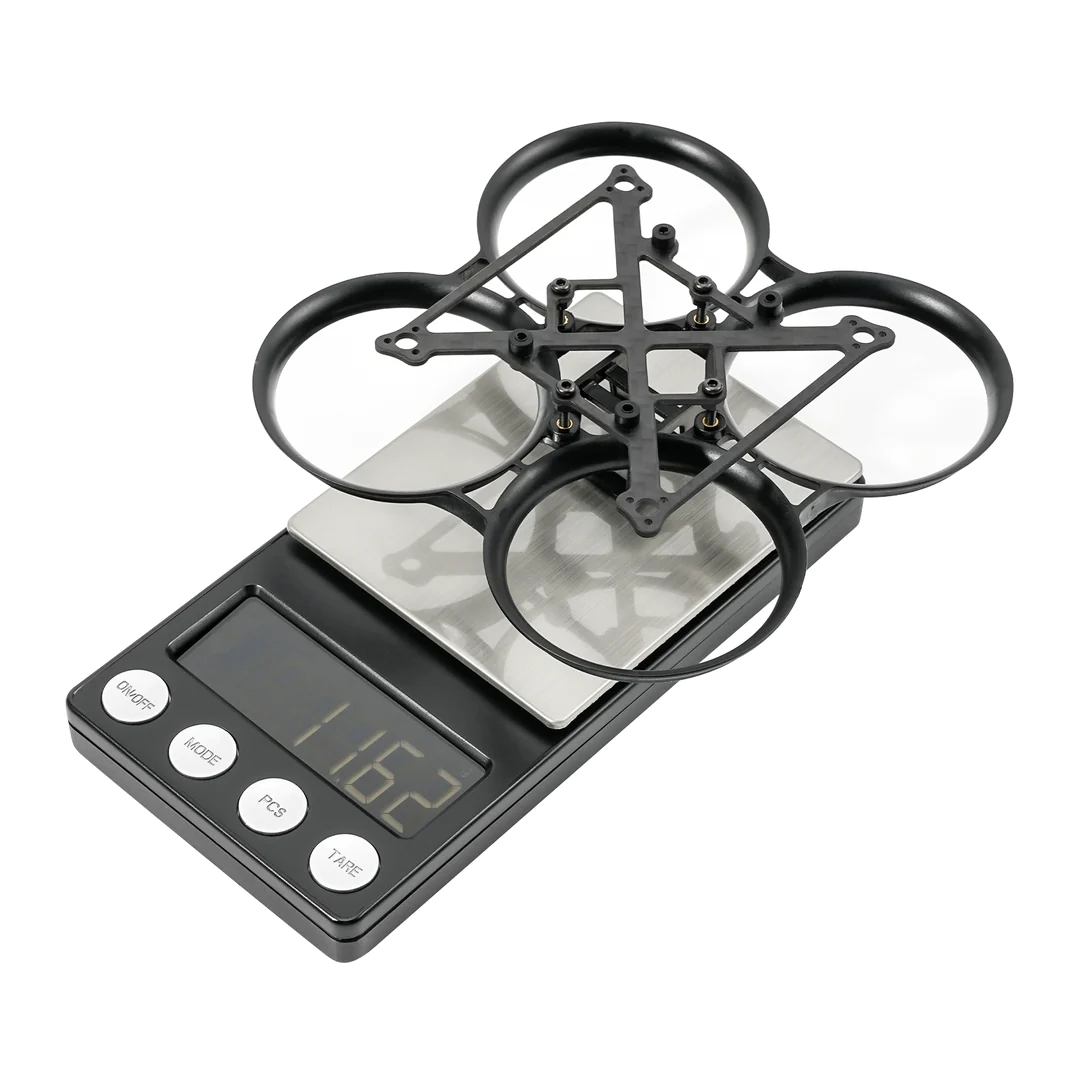

  • Weight: 13.80g/11.62g
  • Motor Mounting Hole Position: 3-M1.4-φ6.6mm
  • FC Pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3

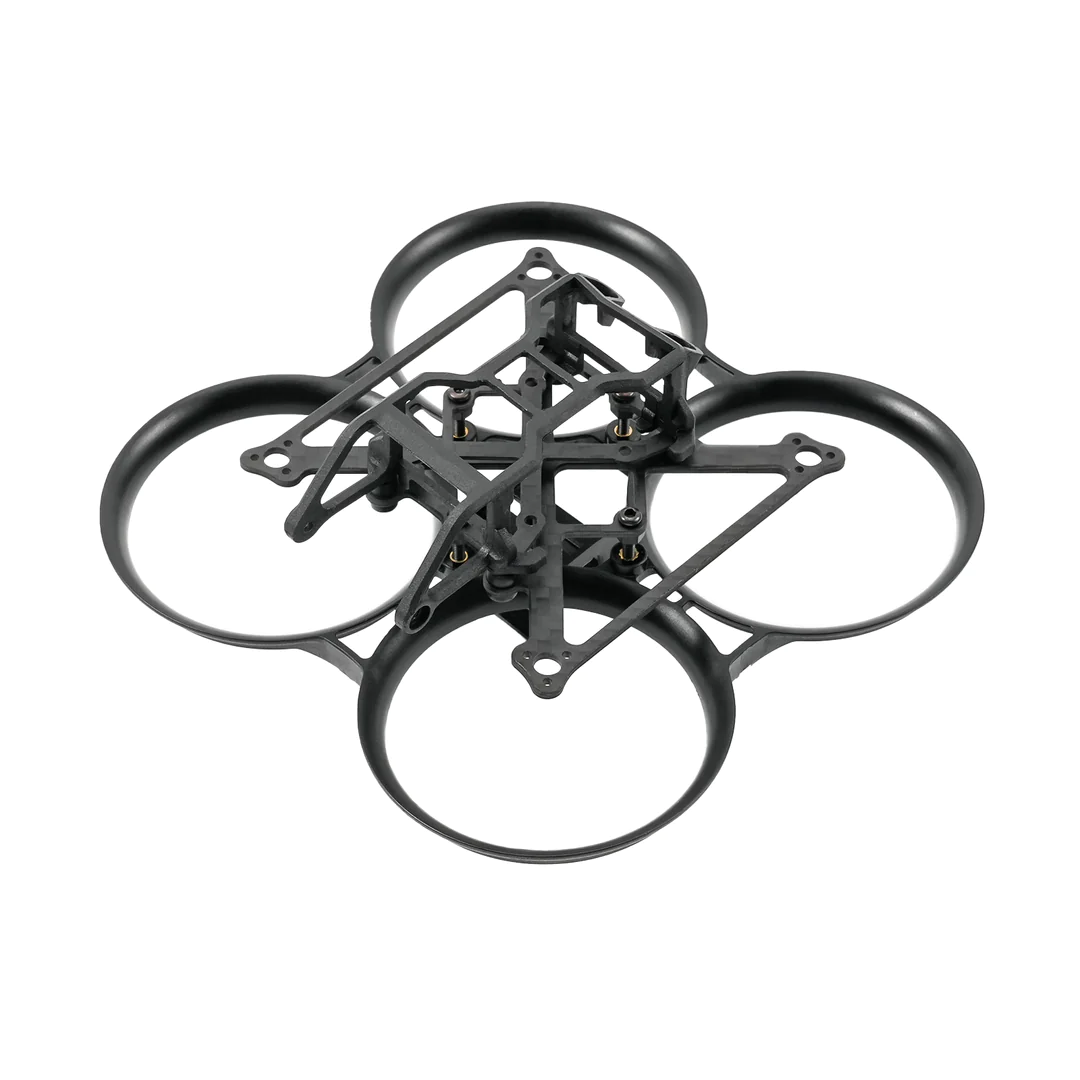

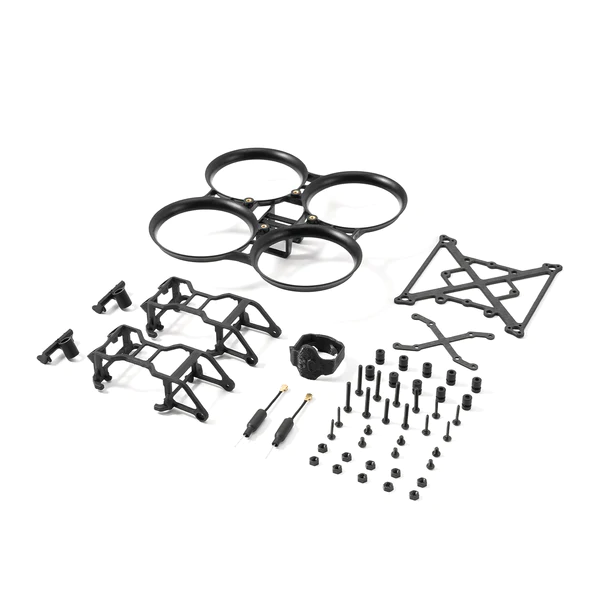

  • 1 * Pavo Pico Frame
  • 1 * Pavo Pico Top Plate
  • 1 * Frame FC Screw Package
  • 1 * VTX Bracket Screw Package
  • 1 * 20*20mm VTX Mounting Plate
  • 2 * DJI O3 HD Digital VTX Mounting Bracket
  • 2 * DJI O3 HD Digital VTX Antenna Mount
  • 2 * 5.8g Copper Tube Antenna
