BetaFPV F722 35A V2 AIO

Производитель

BetaFPV

Категория

FC AIO

Процессор

STM32F722

Гироскоп

ICM-42688-P

Монт. размер

25,5x25,5мм

Рабочий ток

35A

Прошивка ESC

BLHeli_32

Напряжение

до 6s

F722 35A AIO Brushless Flight Controller is very reliable to meet your advanced FPV needs. Comes with an F722 chip this board provides a great performance capability and high processing speed, which brings pilots a stable and smooth flight. Featuring a 6-pin plug&play port, it can directly connect HD Digital VTX with NO soldering work. With the support of up to 6S input voltage, this FC pushes FPV racer to the max.

Specification of FC

  • Item: F722 35A AIO Brushless Flight Controller

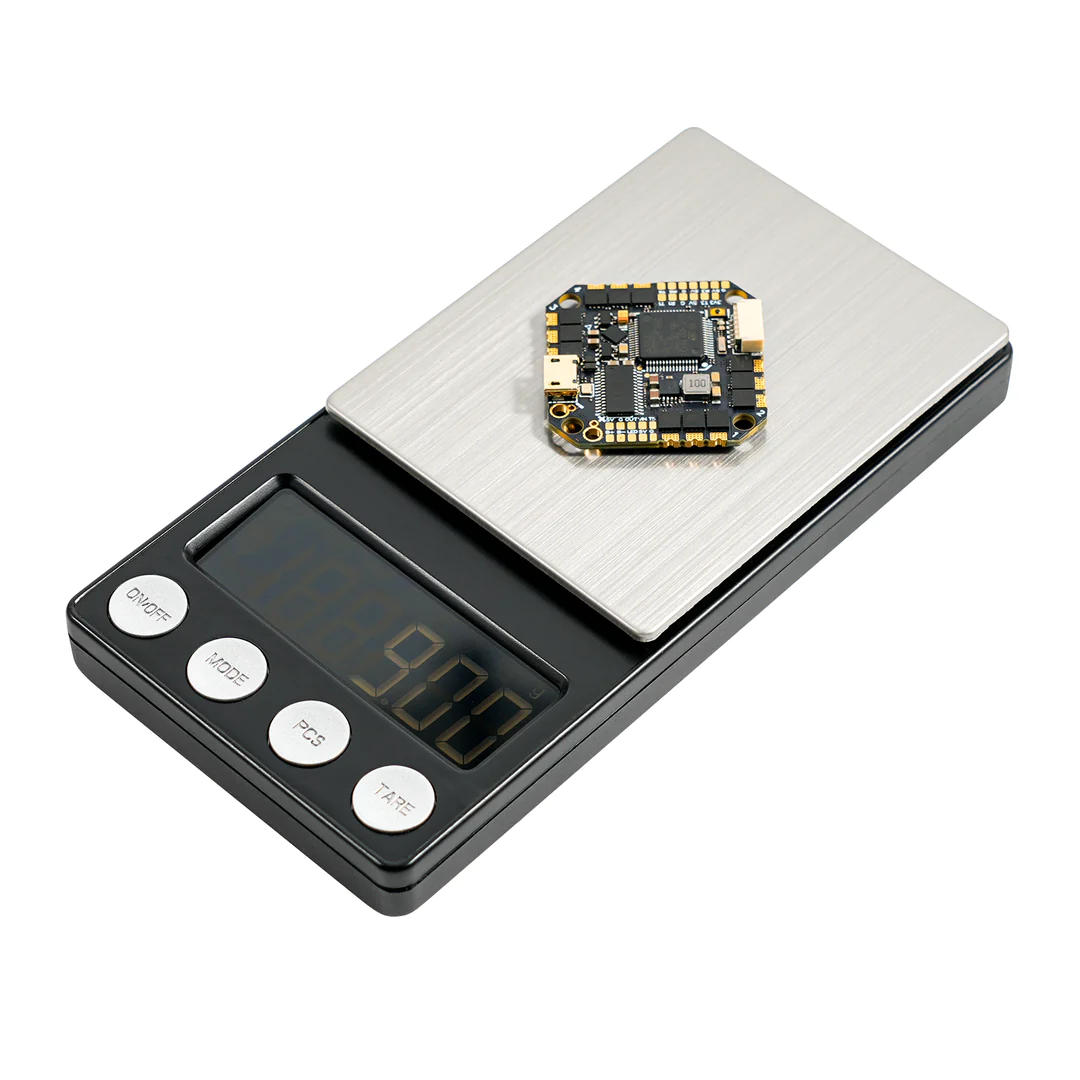

  • Weight: 9.00g (BLHeli_32)
  • CPU: STM32F722RET6
  • Six-Axis: ICM42688

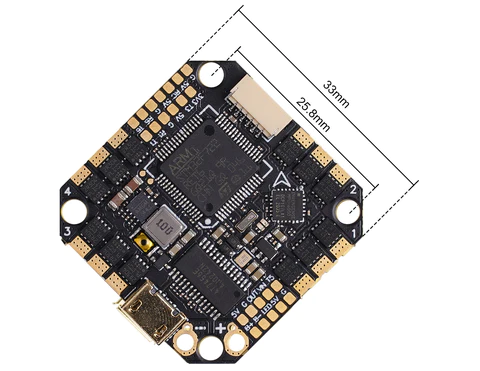

  • Mounting hole size: 26mm*26mm
  • Firmware version: betaflight_4.3.0_STM32F7X2
  • OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
  • Support programmable LED like WS2812 etc
  • Built-in current sensor
  • Blackbox: 16MB (V2 with BLHeli_32 ESC included)

Specification of ESC

  • Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)
  • Input voltage: 2S-6S Lipo
  • Continuous current: 35A
  • Peak current: 40A
  • ESC firmware: BETAFPV_35A_V2_BLHeli_32_Multi_32_9 (BLHeli_32)
  • Indicators: Power indicator (Red) / FC indicator (Blue)
  • Capacitance: CS|5*10*13mm|470μF|35V
  • Connector: 80mm 14AWG silicone cable with XT60
  • Recommended motors: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series

  • 1 * F722 35A AIO Brushless Flight Controller (V1 or V2)
  • 1 * Cable Pigtail (XT60)
  • 1 * Capacitance
  • 1 * 6-Pin Connector for HD Digital VTX
  • 4 * M2x10mm Screws
  • 8 * M2 Nuts
