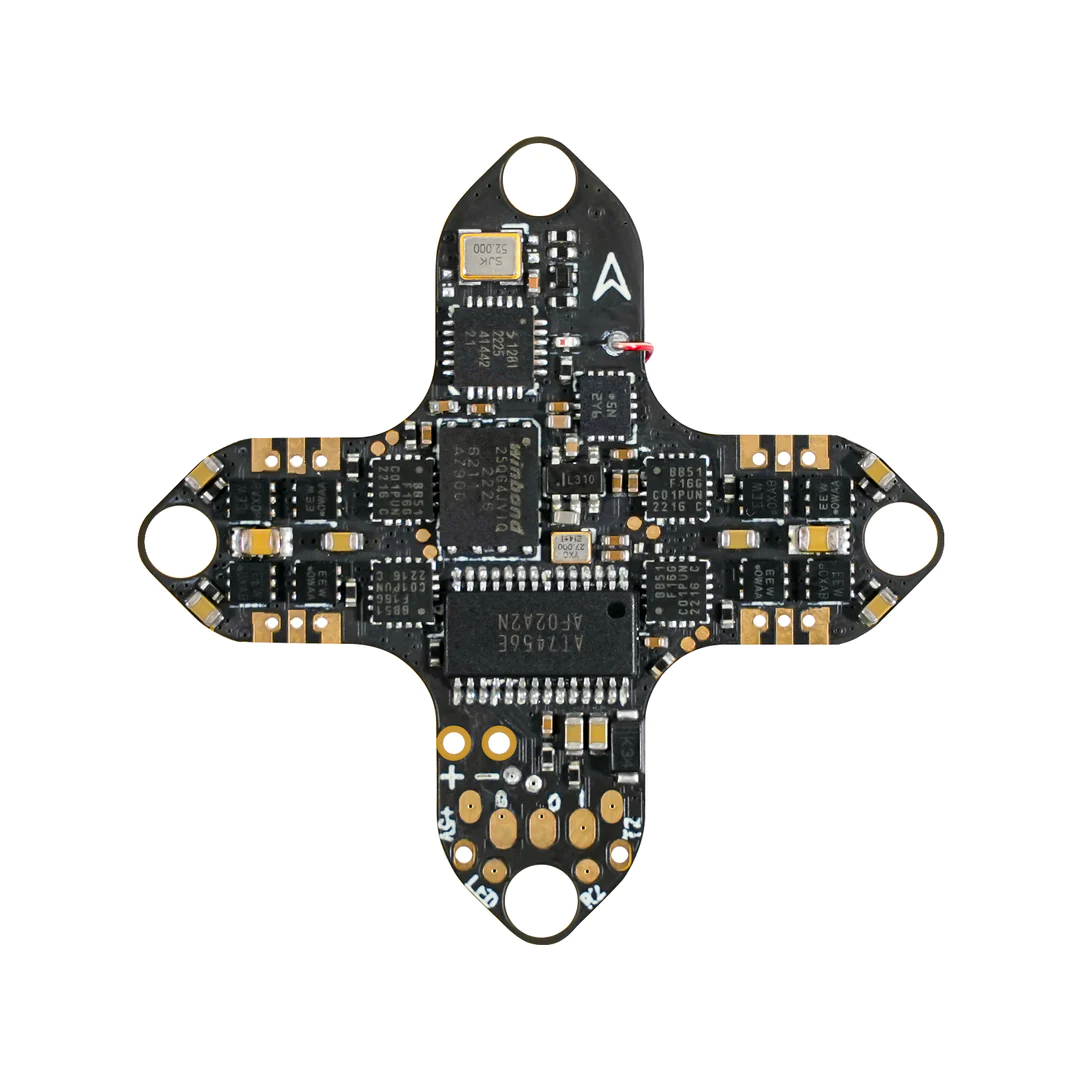

BetaFPV F4 5A AIO
Производитель
BetaFPV
Категория
FC AIO
Процессор
STM32F411
Гироскоп
BMI270
Монт. размер
26×26мм
Рабочий ток
5A
Прошивка ESC
Bluejay
Напряжение
до 1s

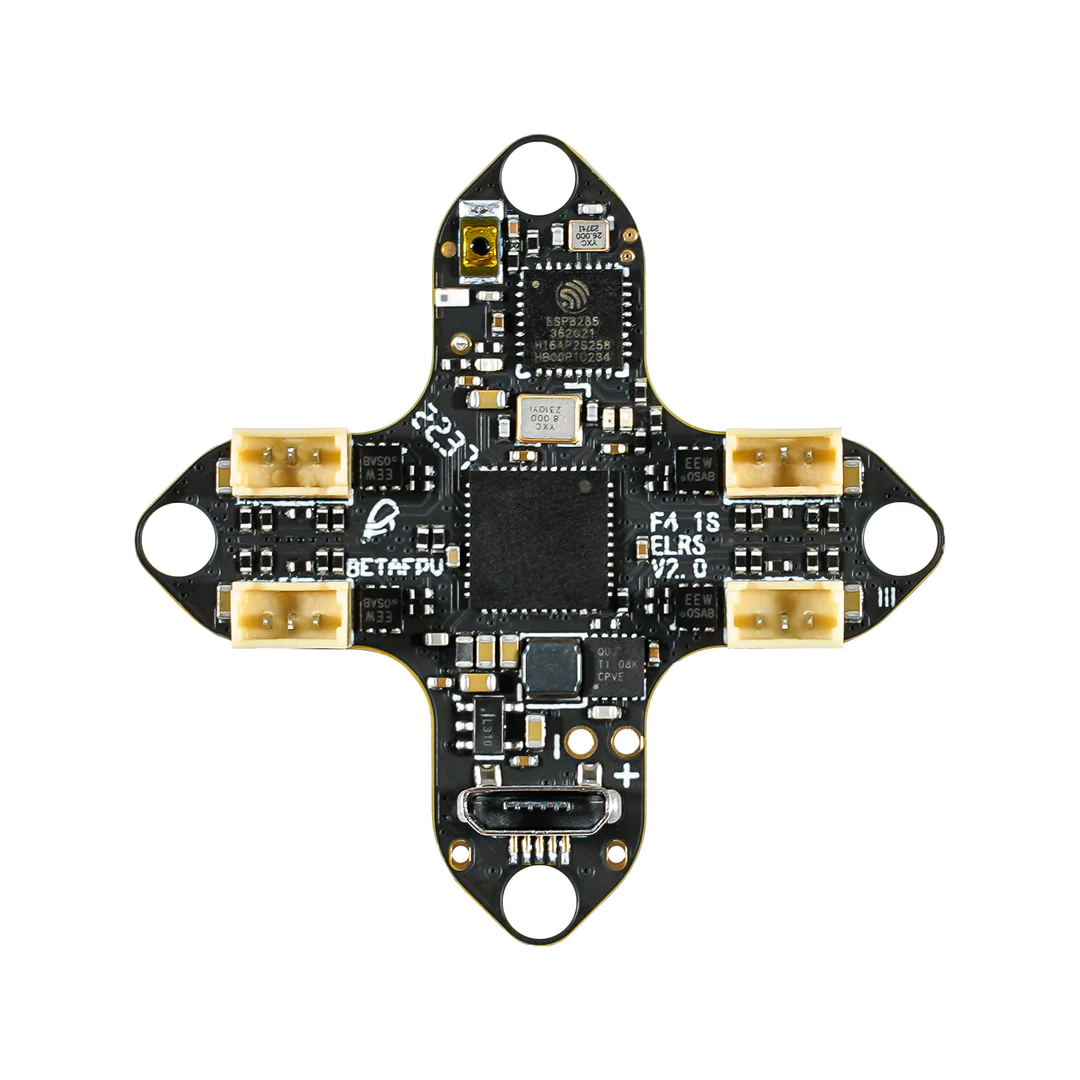

The F4 1S 5A AIO Brushless Flight Controller is back in stock with new and upgraded features. The new board integrates Serial ExpressLRS 2.4G receiver. Compared with the original built-in SPI ELRS 2.4G receiver, it could flash the newest ELRS official firmware like V3.0 easily. Also, we updated the FC with high-quality BMI270 gyro, BB51 ESC hardware with Bluejay ESC firmware, and 8MB Betaflight Blackbox flash.
Specification of FC
- CPU: STM32F411CEU6 (100MHZ)
- Six-Axis: BMI270
- Built-in Receiver: Serial ExpressLRS 2.4G/SPI CC2500 (Frsky)
- Receiver antenna: Line antenna
- FC Size: 30*30mm
- Mounting Hole Size: 26*26mm
- Firmware version: betaflight_4.3.0_BETAFPVF411 (ELRS)/betaflight_4.2.11_BETAFPVF411RX (Frsky)
- OSD: Built-in BetaFlight OSD
- Blackbox: 8MB
- Recommend VTX: >=200mW, like BETAFPV M03 350mW VTX or TBS Unify VTX
- Power Cable: 55mm, with BT2.0 connector

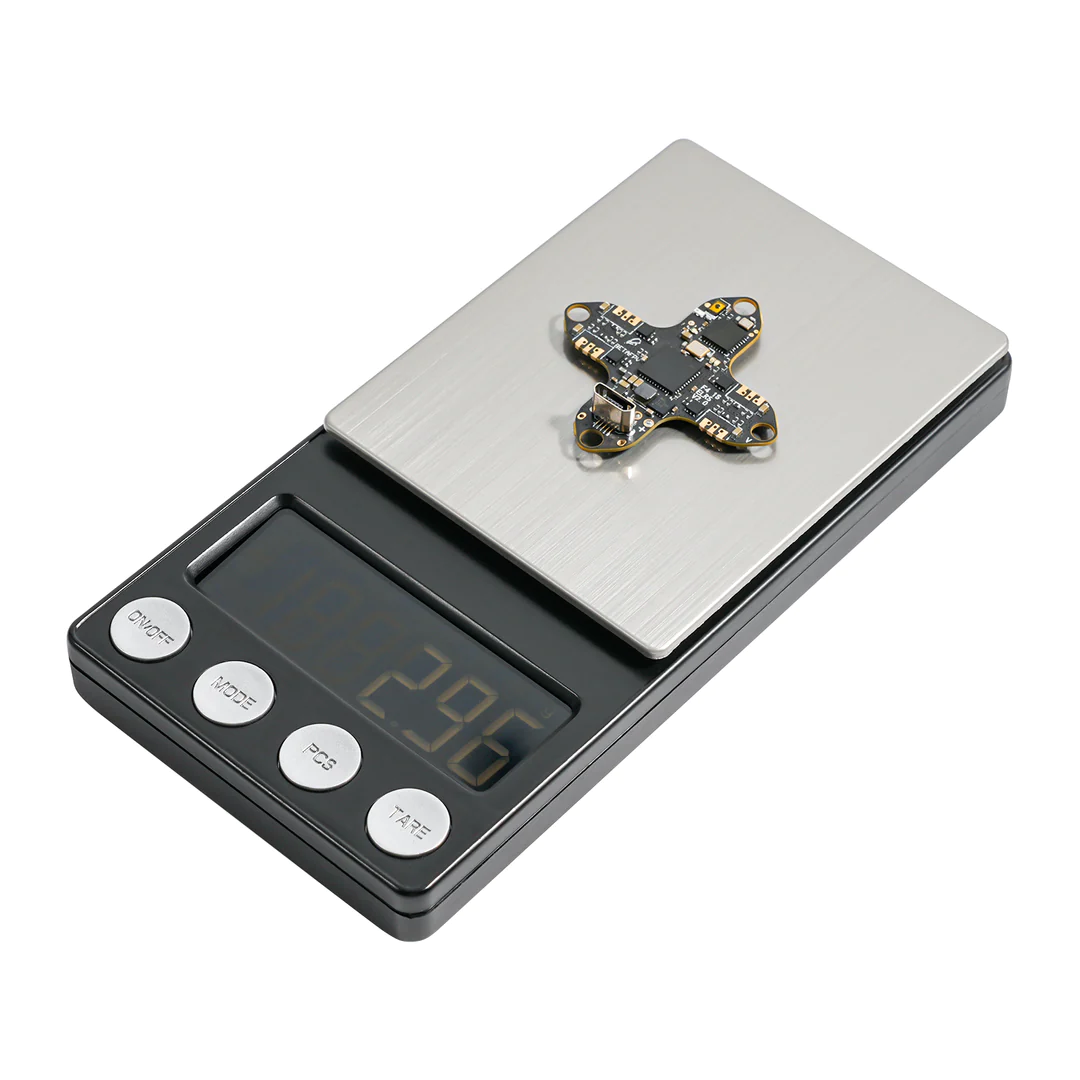

- Weight: 2.96g (without motor connectors) / 3.64g (with motor connectors), excluding power cable
Specification of ESC
- Power supply: 1S
- Current: 5A continuous and peak 6A (3 seconds)
- ESC firmware: A_X_5_.HEX for Bluejay BB51 hardware
- Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

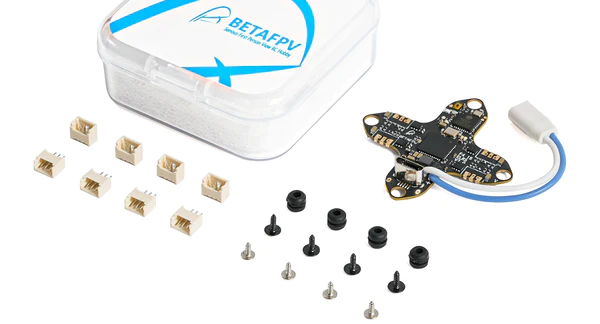

- 1 * F4 1S 5A AIO Brushless Flight Controller (ELRS or Frsky)
- 4 * M1.2x4mm Screws
- 4 * M1.4x5mm Screws
- 4 * Anti-vibration Rubber Dampers
- 8 * Motor Pin Connectors (Light version included)
