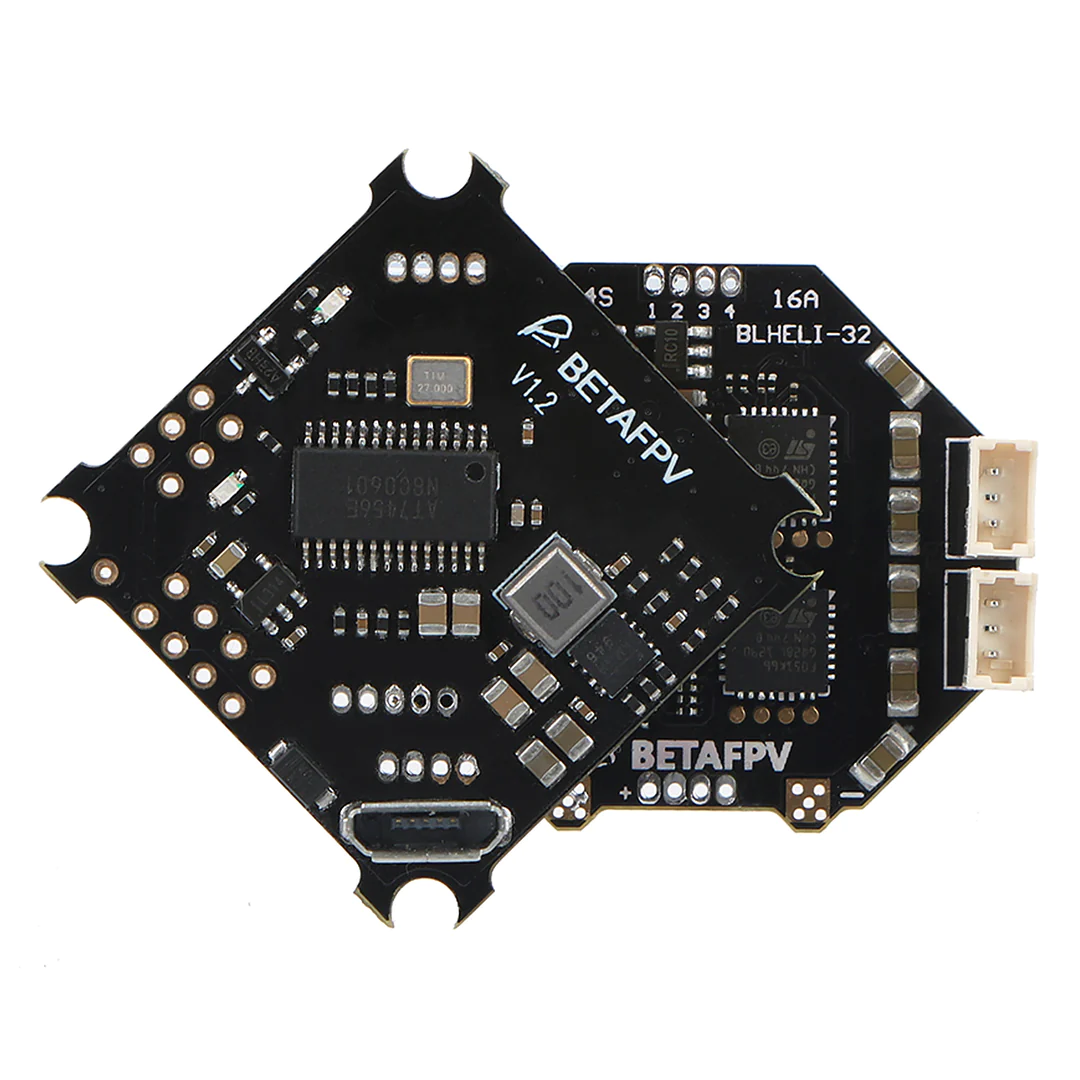

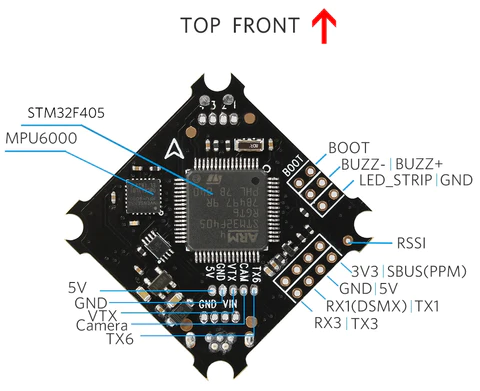

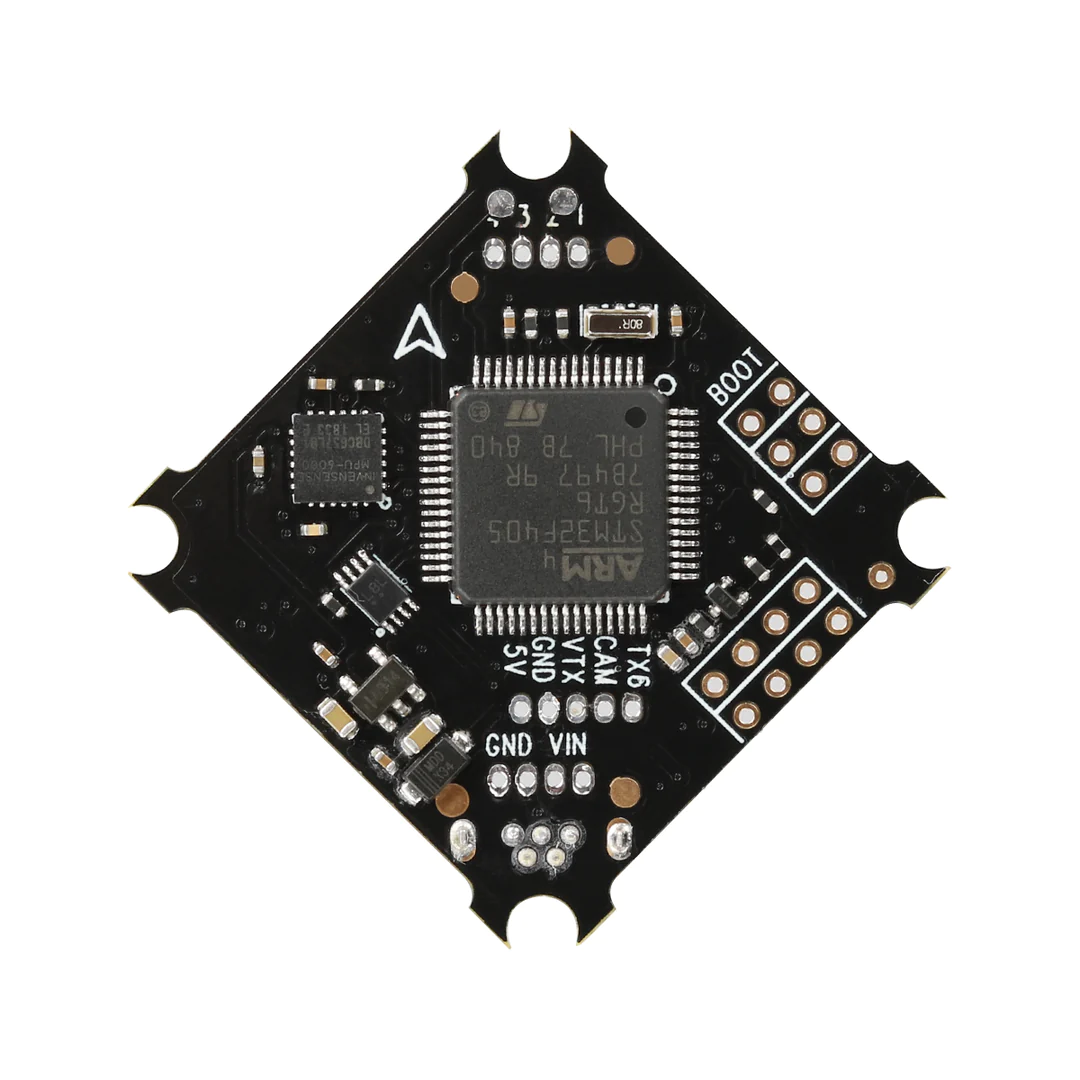

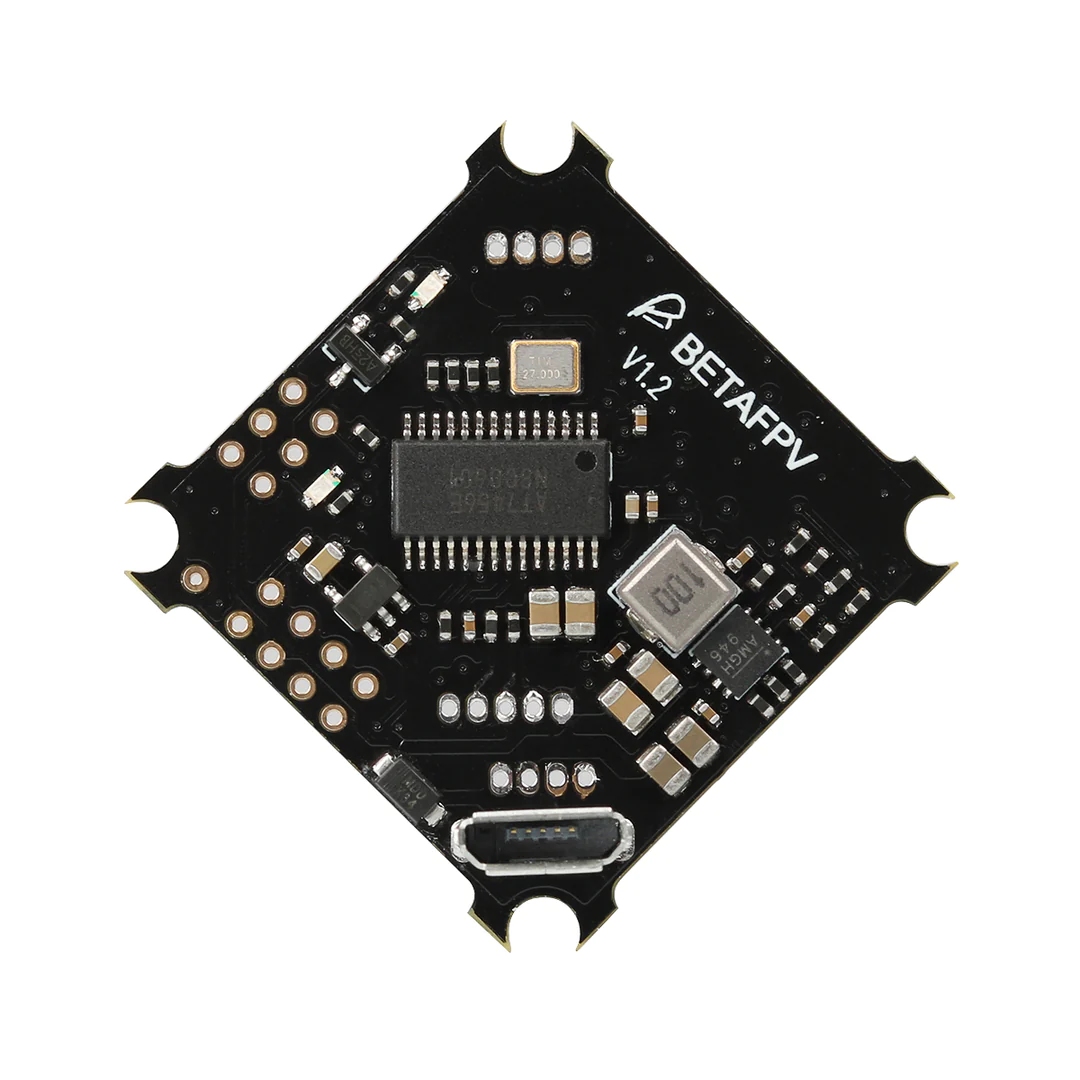

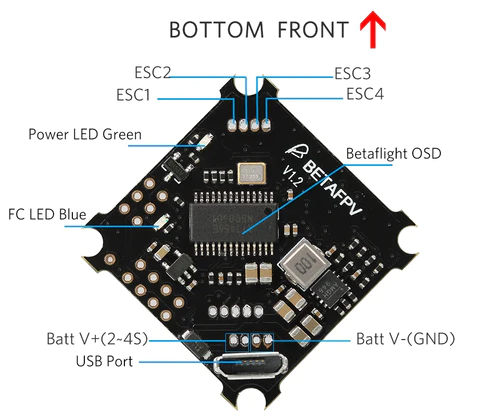

SPECIFICATIONS OF FC

• CPU: STM32F405 (Overclock to 240MHz)
• Six-Axis: MPU6000
• Size: 26mm x 26mm, whoop mounting pattern
• Firmware version: Betaflight OMNIBUSF4SD (OBSD)
• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

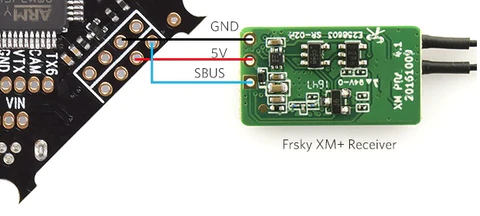

• TX02、RX02 ports is available, so that it could support TBS micro receiver
• RSSI ports is available
• Buzzer solder pads
• Support programable LED like WS2812 etc
• Weight: 2.7g

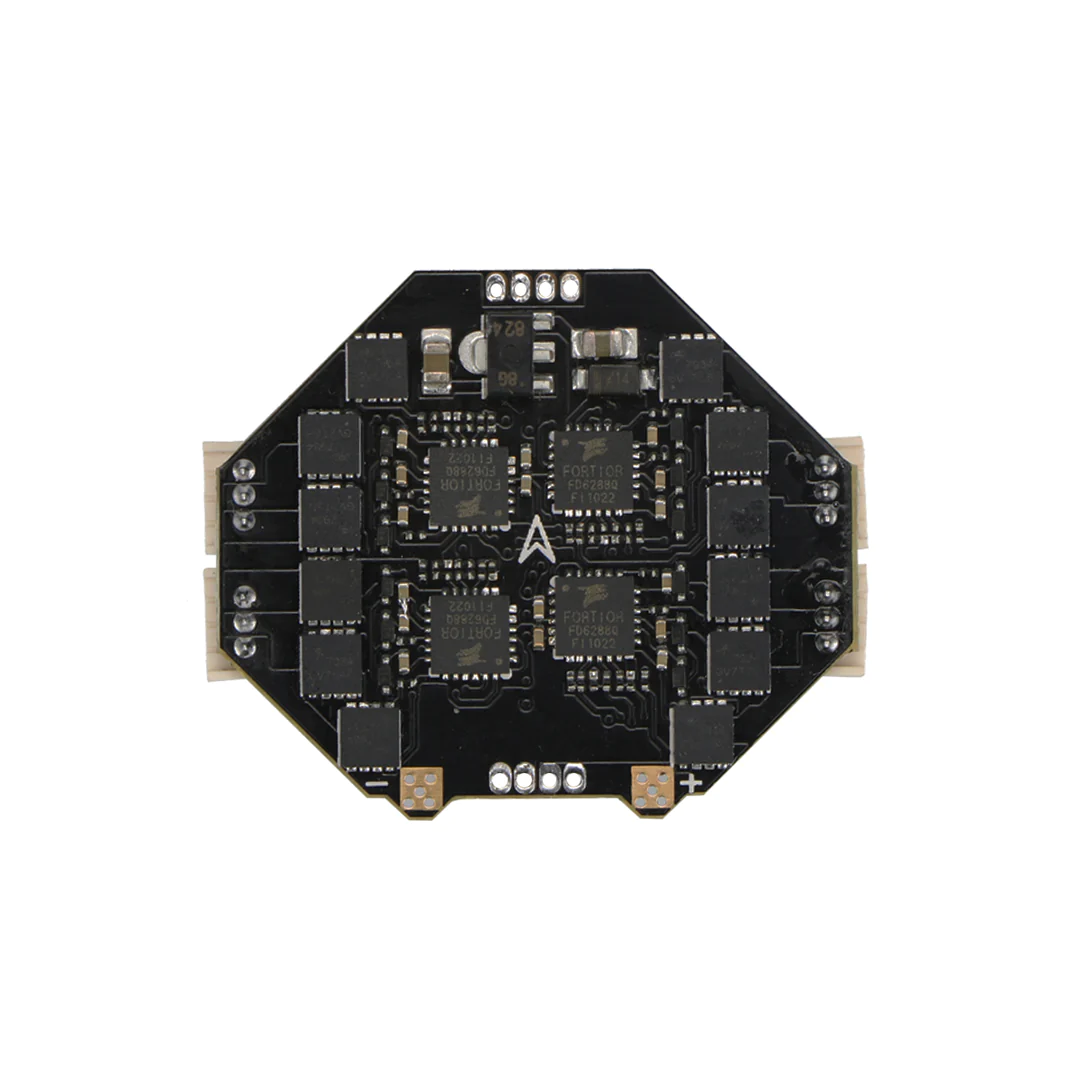

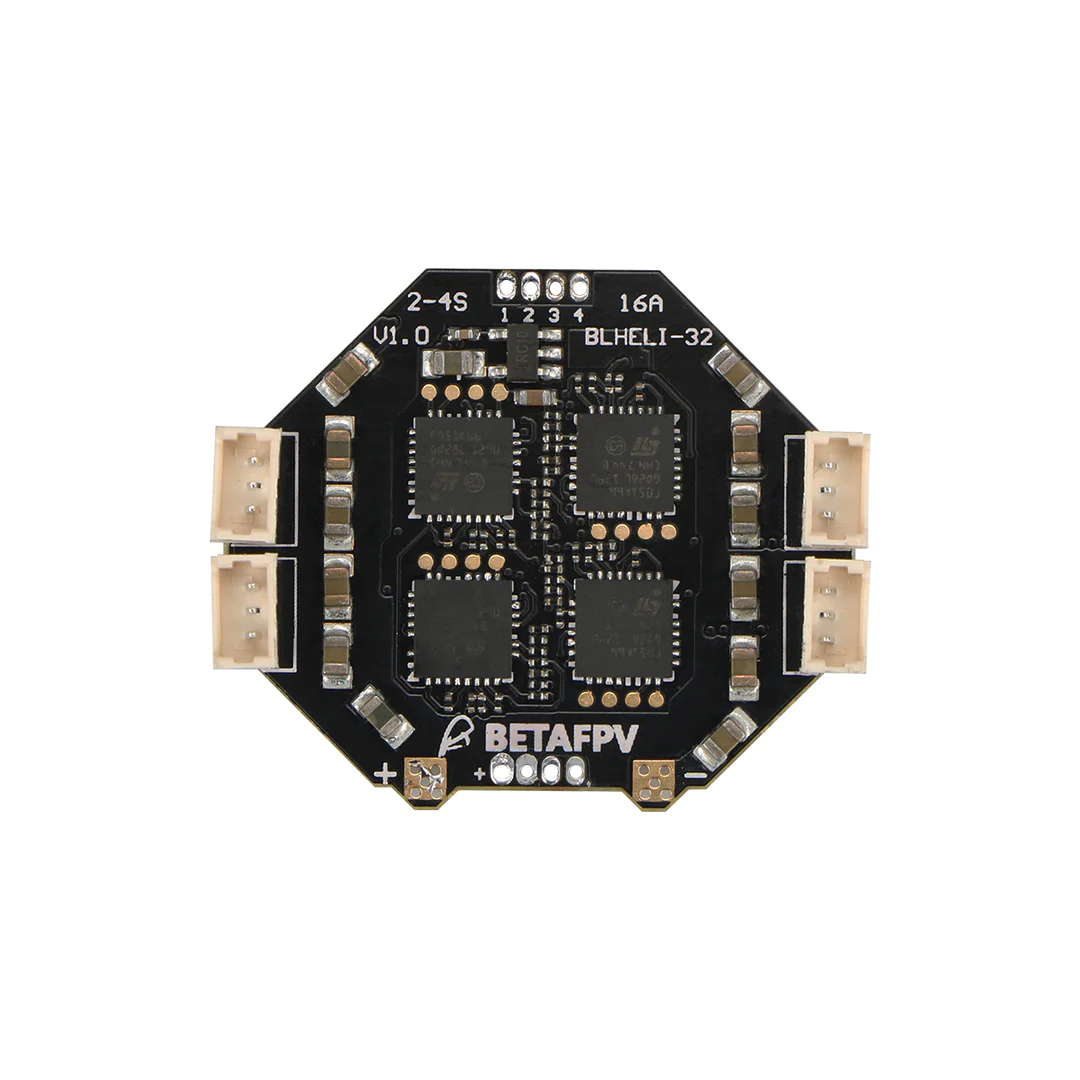

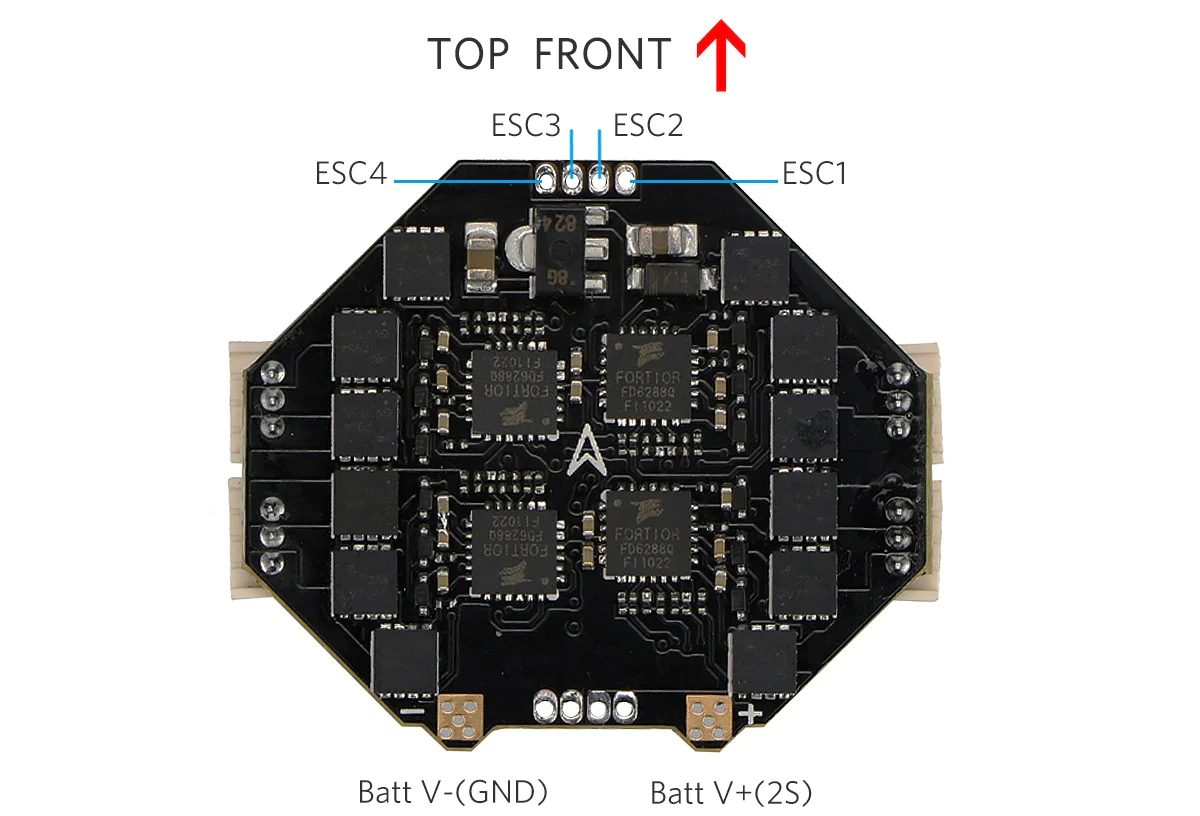

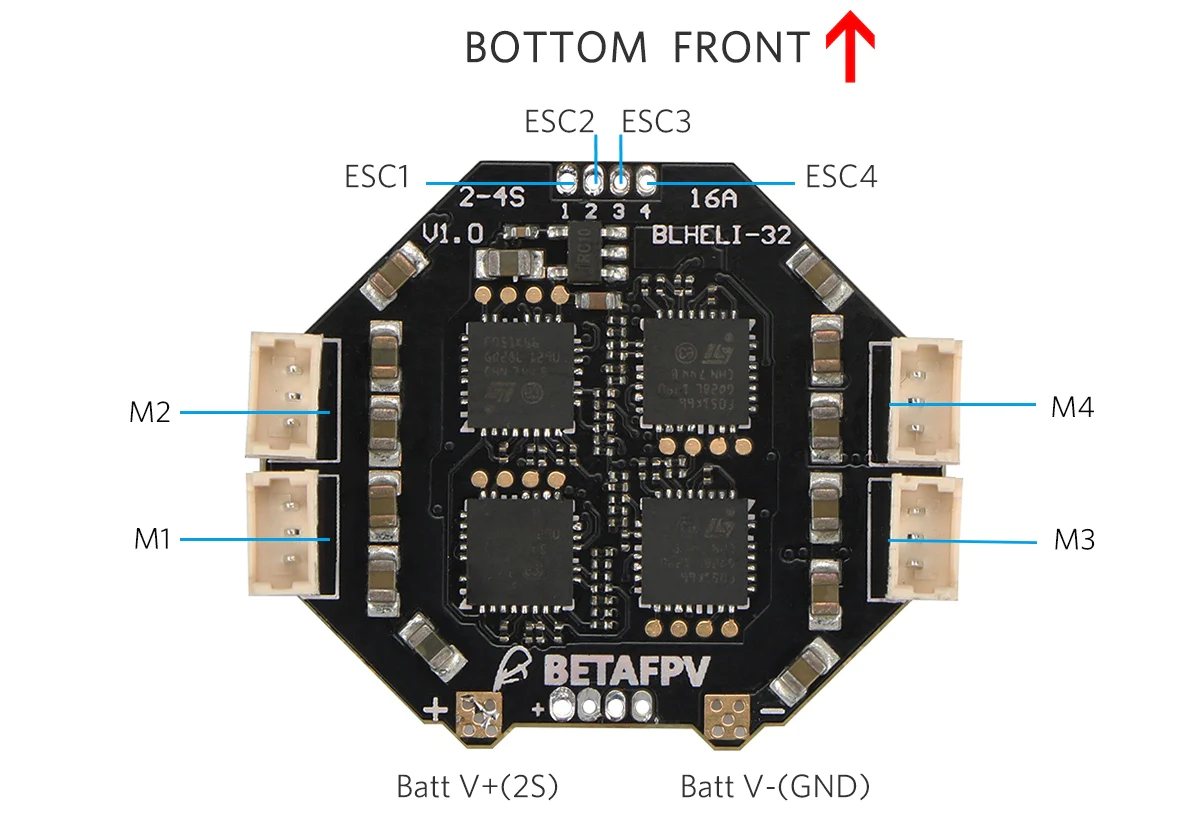

SPECIFICATIONS OF ESC

This ESC used to design for 4S battery. But under more extreme testing, it could only stand 2-3S voltage input. DO NOT POWER WITH 4S BATTERY.

• Support BLHELI_32
• Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
• Input voltage: 2-3S lipo
• Cotinue current: 16A
• Peak current: 25A
• Firmware target: BETAFPV-16A-32bit
• MCU:STM32F051
• Motor Connectors: 1.25mm header pins connector
