BetaFPV F4 12A V3 AIO
Производитель
BetaFPV
Категория
FC AIO
Процессор
STM32F405
Гироскоп
ICM-42688-P
Монт. размер
26×26мм
Рабочий ток
12A
Прошивка ESC
Bluejay
Напряжение
до 2s

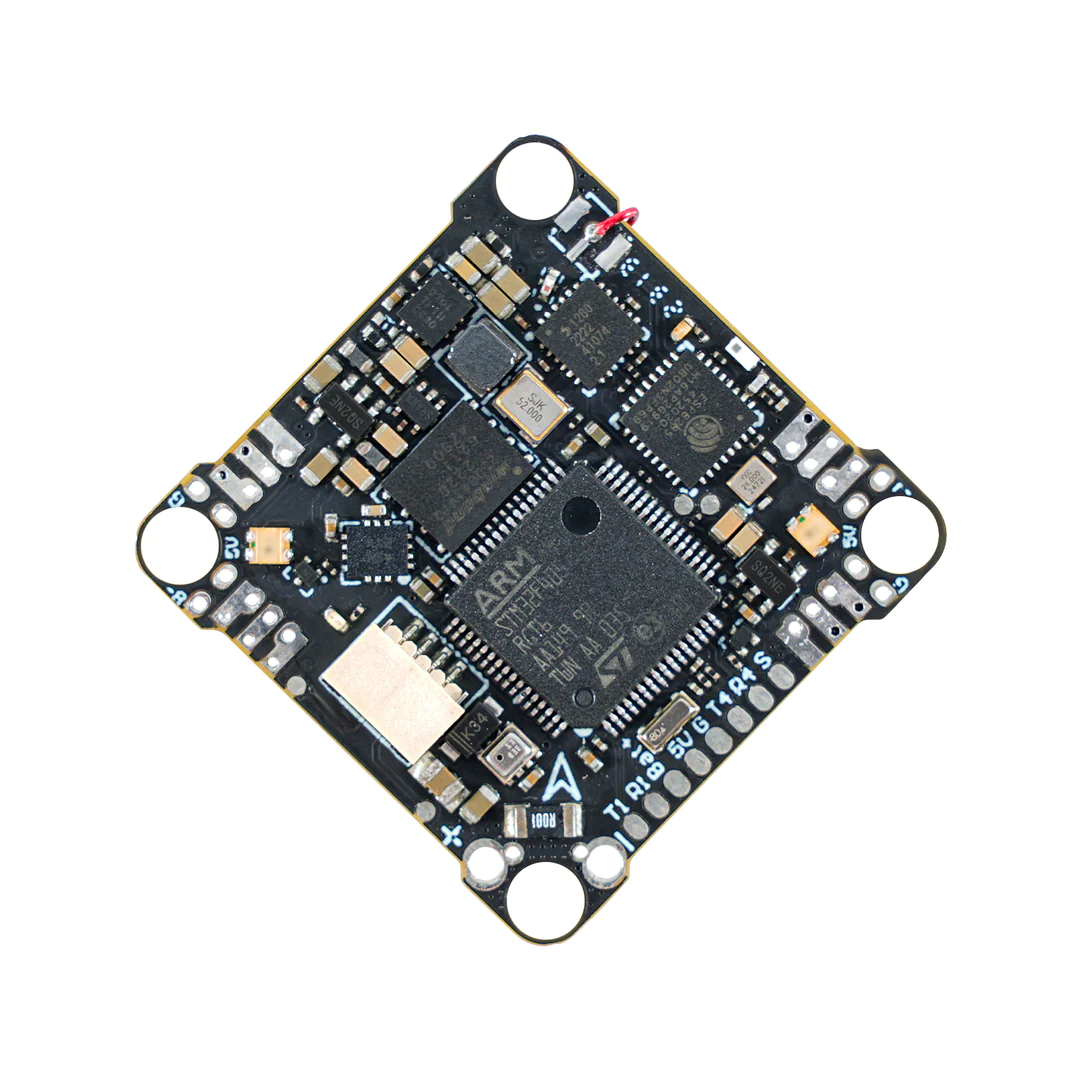

F4 1S 12A AIO Brushless FC V3, the FIRST flight controller designed specifically for HD VTX. This powerful controller features an STM32F405/AT32F435 chip for high-performance calculations and a 5V 3A BEC solution for the HD VTX. It weighs only 4.2 grams and includes a Serial ELRS 2.4G receiver, 16MB Black Box, Barometer, and Current meter. Designed for HD VTX, it removes the OSD chip AT7456E and also added support for external GPS through Betaflight 4.4.0.

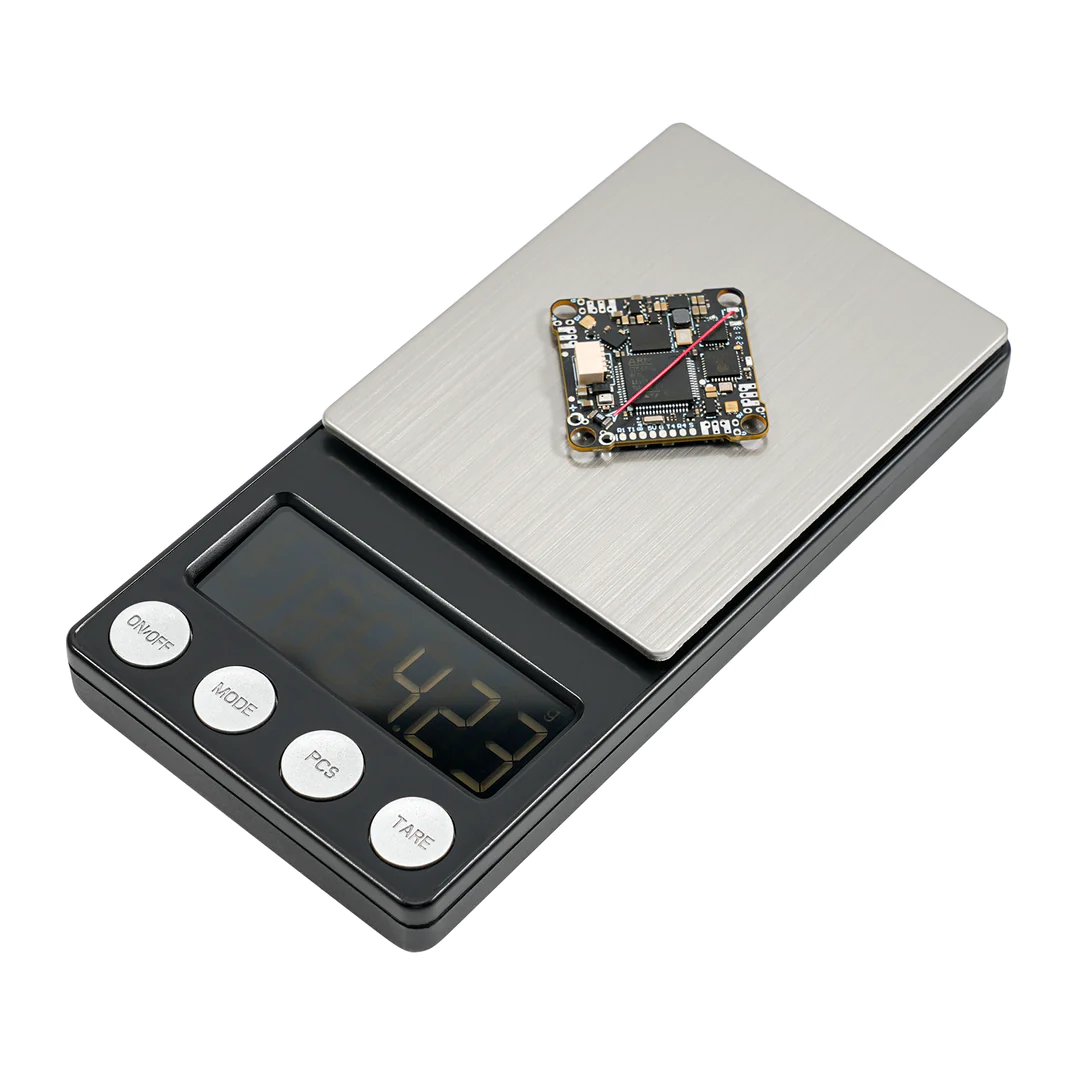

- Weight: 4.2g (without power cable and motor connector)

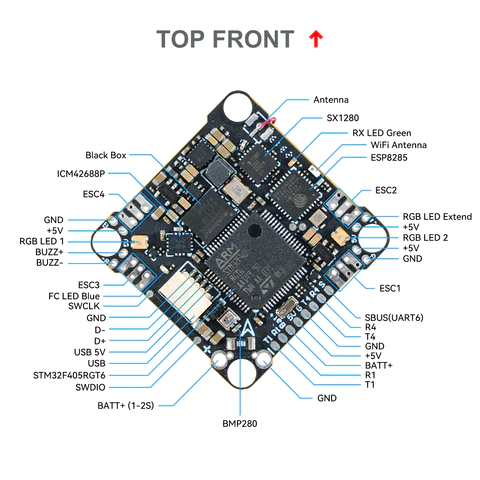

- Six-Axis: ICM42688P (SPI connection)
- MCU: STM32F405RGT6 (168MHz) / AT32F435RGT7 (288MHz)
- Firmware version: Betaflight_4.4.1_BETAFPVF405 (STM32F405) / ATBetaflight_4.3.2_BETAFPVF435_RC3 (AT32F435)
- Receiver: Serial ELRS 2.4G Receiver
- Receiver firmware version: BETAFPV AIO 2400 RX ELRS V2.5.2
- Antenna: Enameled wire
- Blackbox Memory: 16MB
- Sensor: Barometer (BMP280), Voltage&Current
- Mounting Hole Size: 26mm x 26mm (suitable for whoop pattern mounting hole)
- BEC*: 5V 2A@4V supply, 5V 3A@8V supply
- USB Port: SH1.0 4-Pin

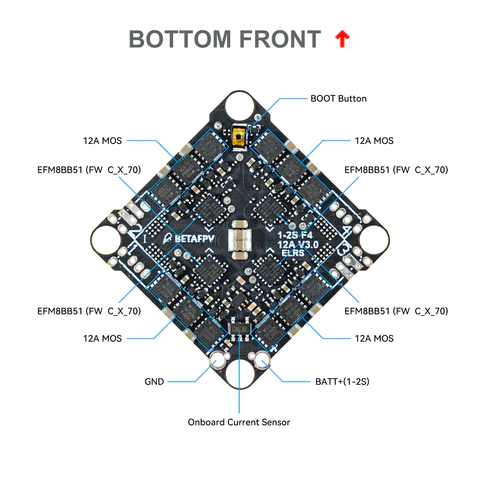

- Built-in ESC with 12A continuous and peak 25A current
- ESC input voltage: 1-2S
- ESC firmware: C_X_70_48_V0.19.2.hex for BB51 Bluejay hardware
- Signal support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

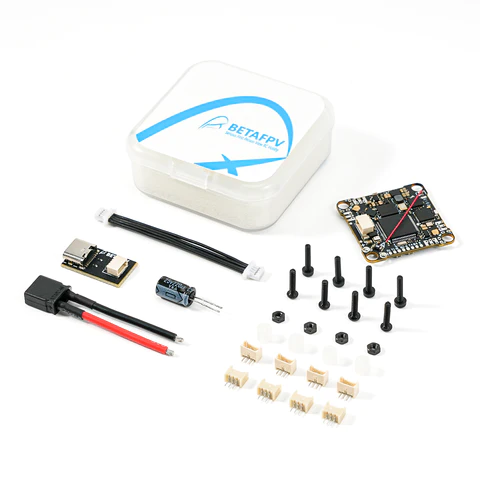

- 1 * F4 1S 12A AIO FC V3
- 4 * M2*10 machine screw
- 4 * M2*10 nylon screw
- 4 * M2 nuts
- 4 * shock absorbing ball
- 4 * JST1.25mm angle socket
- 4 * JST1.25mm straight socket
- 1 * SH1.0 4Pin adapter cable
- 1 * Type-C to SH1.0 adapter
- 1 * XT30 power cord
- 1 * filter capacitor
