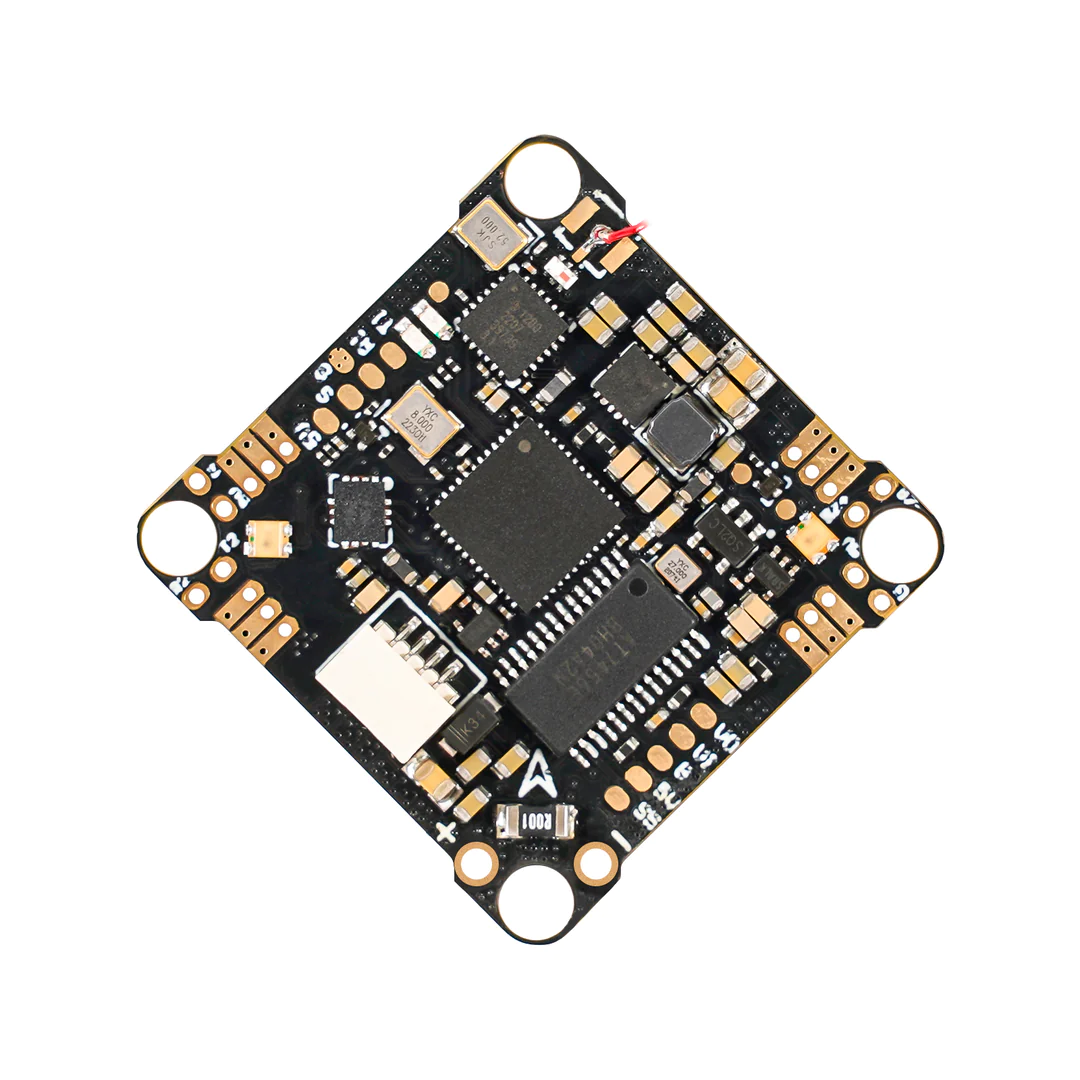

BetaFPV F4 12A AIO
Производитель
BetaFPV
Категория
FC AIO
Процессор
STM32F411
Гироскоп
BMI270
Монт. размер
26×26мм
Рабочий ток
12A
Прошивка ESC
Bluejay
Напряжение
до 2s

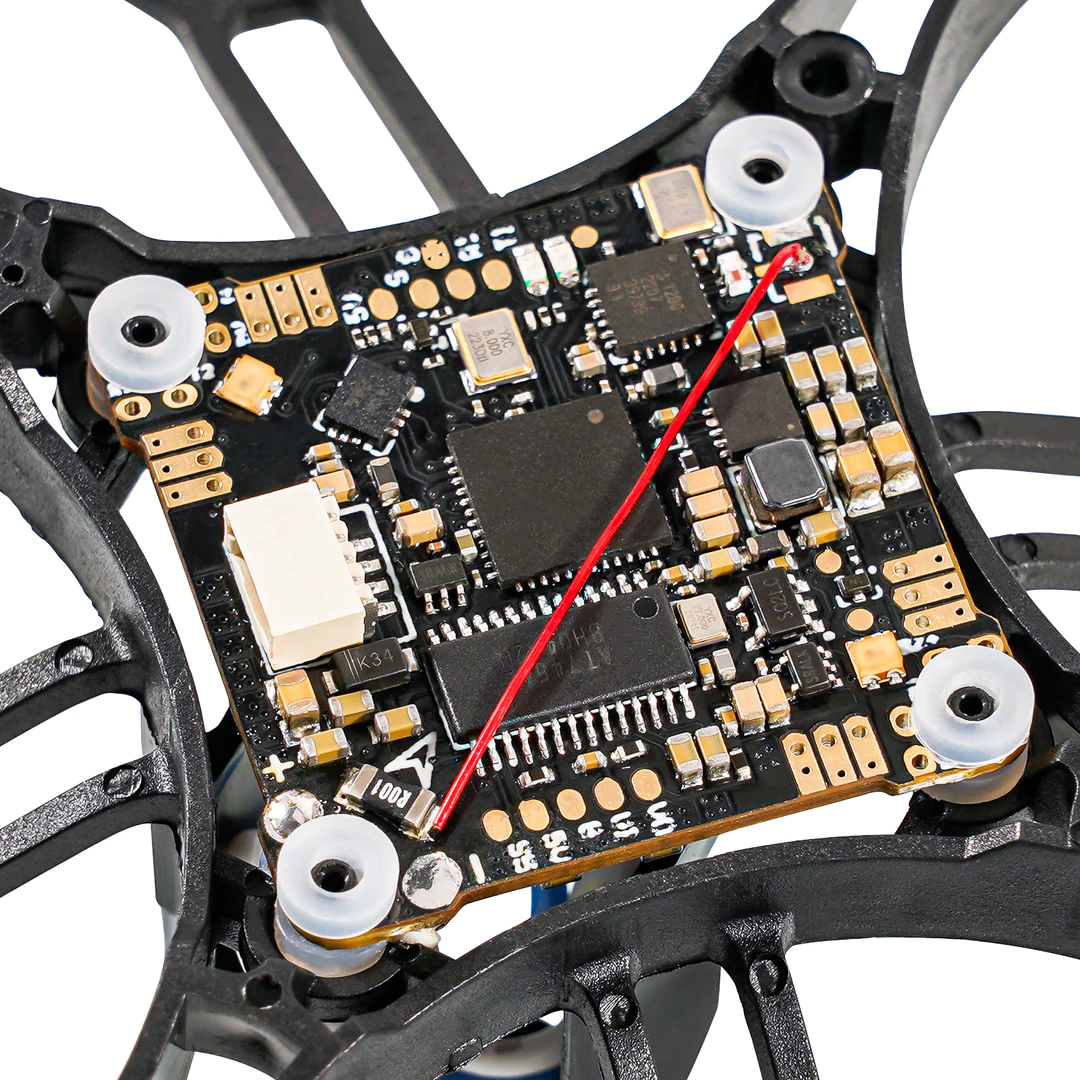

F4 1S 12A AIO Brushless Flight Controller V2.2 is the default FC for Cetus X brushless whoop quadcopter, also great for 85mm whoop drones like Meteor85 and 3″ toothpick drones like HX115 SE Toothpick Drone and HX115 LR Toothpick Drone. We updated the FC to V2.2 with BMI270 gyro and BB51 ESC hardware in place of ICM20689 gyro and BB21 ESC hardware.

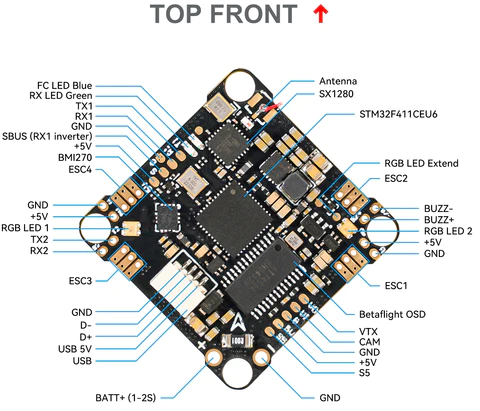

Specification of FC
- Item: F4 1S 12A AIO FC

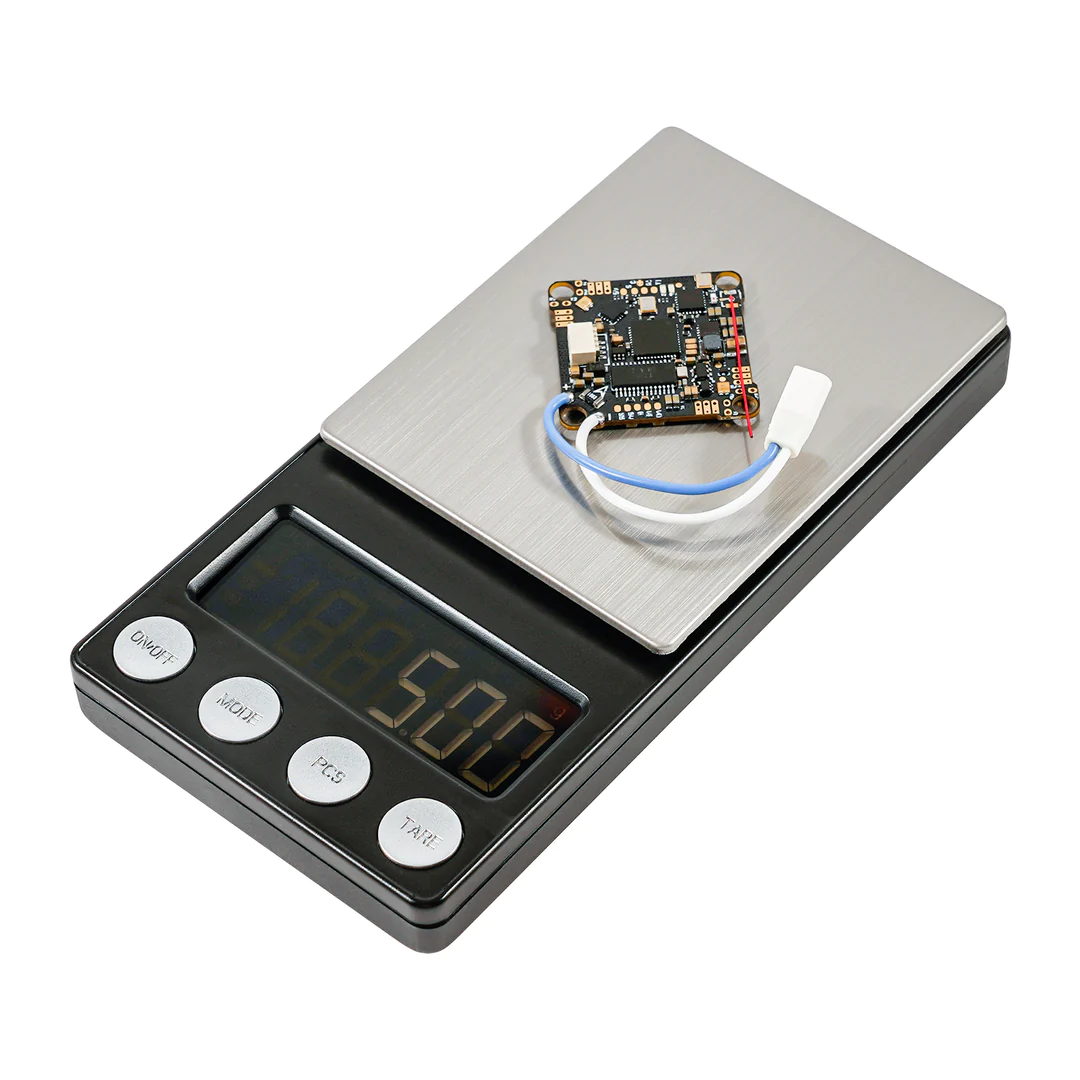

- Weight: 4.74 g (without power cable and BT2.0 connector)
- CPU: STM32F411CEU6 (100MHZ )
- Six-Axis: BMI270 (SPI connection)
- Firmware version: betaflight_4.3.1_BETAFPVF4SX1280 (ELRS) /betaflight_4.2.11_BETAFPVF411RX (Frsky)
- OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

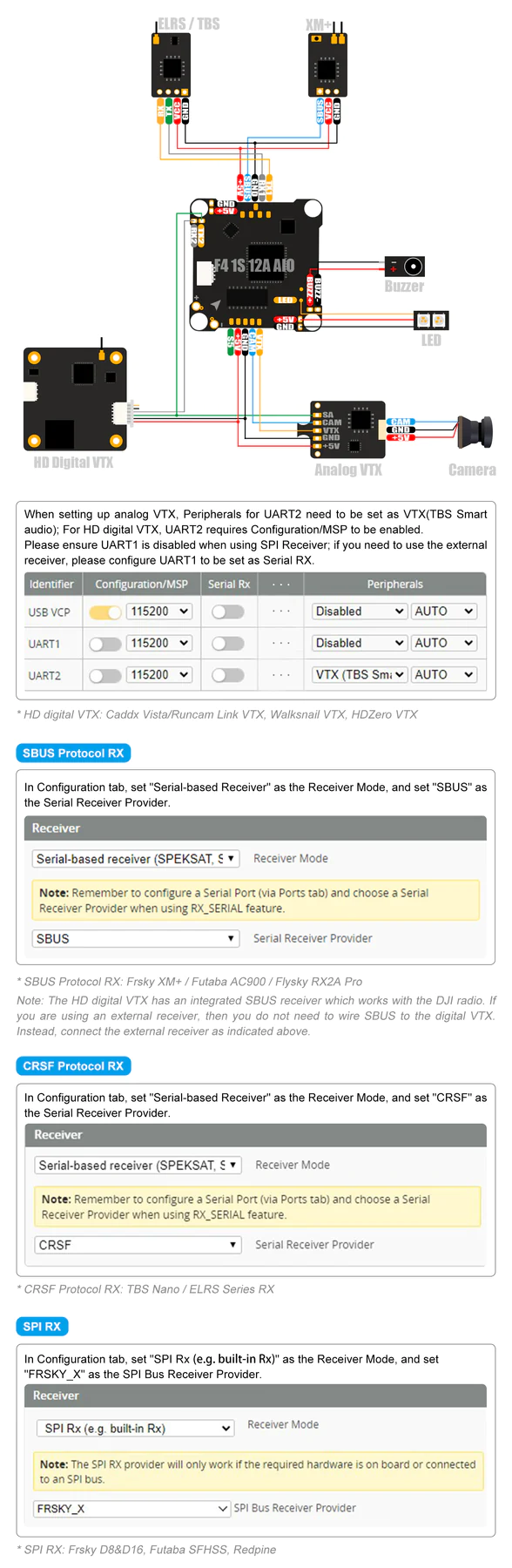

- Receiver: SPI ELRS 2.4G Receiver/SPI Frsky
- Motor Pin Connector: 1.25mm Header Pins
- Mounting Hole Size: 26mm x 26mm (suitable for whoop pattern mounting hole)
- USB Port: SH1.0 4-Pin

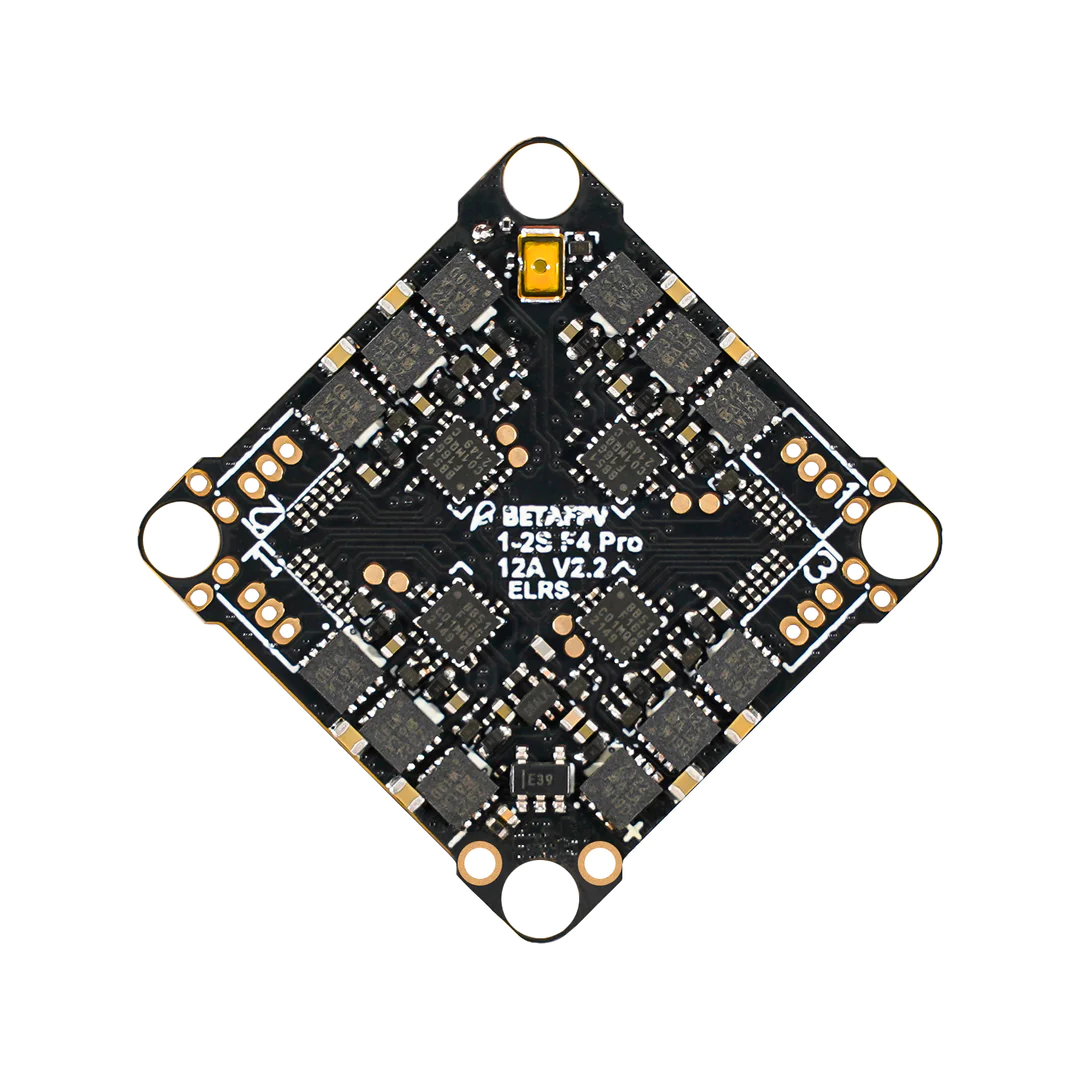

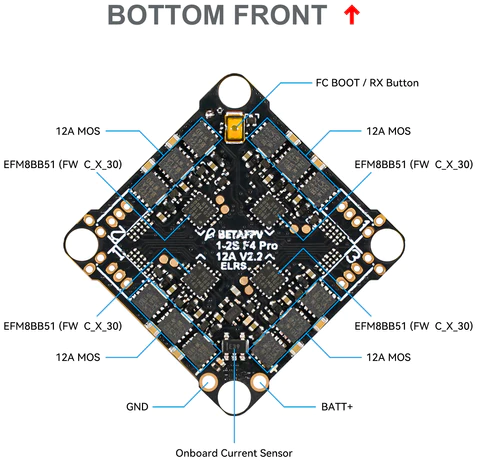

Specification of 1S 12A ESC
- Built-in ESC with 12A continuous and peak 25A current
- Input voltage: 1S-2S
- ESC firmware: C_X_30_48_V0.18.1.hex for Bluejay BB51 hardware
- Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM

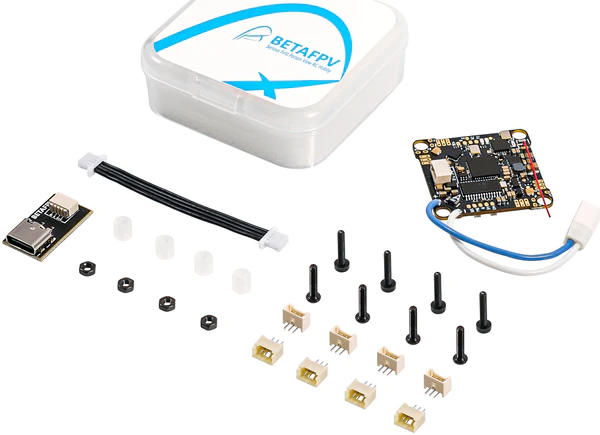

- 1 * F4 1S 12A AIO FC
- 4 * Anti-vibration Rubber Dampers
- 4 * M2 x 10mm Screws
- 4 * M2 x 10mm Screws
- 4 * M2 Screw Nut
- 8 * PH-1.25 Connectors for Motor
- 1 * SH1.0 4-Pin Cable
- 1 * SH1.0 4-Pin to USB Type-C Adapter
